AirLive ARM-201 Manuale utente

Quick Setup Guide

Wired ADSL2/2+ Ethernet/USB

odem

ARM-201

lish

Español

Deutsch

Português

日本語

Slovensky

................

...............

............

................

............

Ελληνικό

Polski

Magyar

Česky

............

..................

................

..................

Table of Contents

List of Languages

ARM-201

Declaration of Conformity

We, Manufacturer/Importer

OvisLink Corp.

5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan

Declare that the products

Wired ADSL Modem Router

AirLive ARM-201

are in conformity with

In accordance with 89/336 EEC-EMC Directive and 1999/5 EC-R & TTE Directive

Clause Description

■EN 55022:1998/A1:2000/A2:2003 Limits and methods of measurement of radio disturbance characteristics of information technology equipment.

■EN 61000-3-2:2000 Disturbances in supply systems caused by household appliances and similar electrical equipment "Harmonics"

■ EN 61000-3-3:1995/A1:2001 Disturbances in supply systems caused by household appliances and similar electrical equipment "Voltage fluctuations"

■ EN 55024:1998/A1:2001/A2:2003 Information Technology equipment-Immunity characteristics-Limits And methods of measurement

■EN 60950-1:2001/A11:2004 Safety for information technology equipment including electrical business equipment.

■CE marking

Manufacturer/Importer

Signature： ______________

Name ： Albert Yeh

Position/ Title : Vice President

Date： 2008/1/1

ARM-201 English

Note on the FCC standard

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferences

when the equipment is operating in a commercial area. This equipment generates, uses and may radiate radio

frequency energy, and if not installed in accordance with the user guide, may cause interference in the

transmission of radio communications. If operating in a residential area, it is probable this equipment will cause

harmful interference, in which case the user will be required to try to correct this interference using his own

means.

Note on CE Marking

This is a Class B product. In a residential area this product may cause radio interference, in which case the user

can be required to take the appropriate measures. OvisLink Corp. hereby declares that AirLive ARM-201

meets the basic requisites of directive 99/05/CE, and is therefore liable for the accuracy of these data:

OvisLink Corp.

5F, No.6 Lane 130,

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: +886-2-2218-6888

Warranties

This product has undergone various quality controls to ensure proper operation.

This product is covered by a two-year warranty for countries inside European Union. For other countries, the

warranty period is one year only. In the event of any manufacturing fault or breakdown, it will be repaired by

OvisLink Corp. Please contact your supplier for details on the procedure to follow. This warranty shall not be

applicable in the event of damage caused by improper use of the product, accidents, faulty handling or

manipulation nor any future incompatibility with third party products.

English

ARM-201 English

Important Information



The ADSL Router default IP address is 192.168.2.1



The default Subnet Mask is 255.255.255.0



The default login name is admin



The default password is airlive



Please use only the power adapter provided with the Router

Back Panel

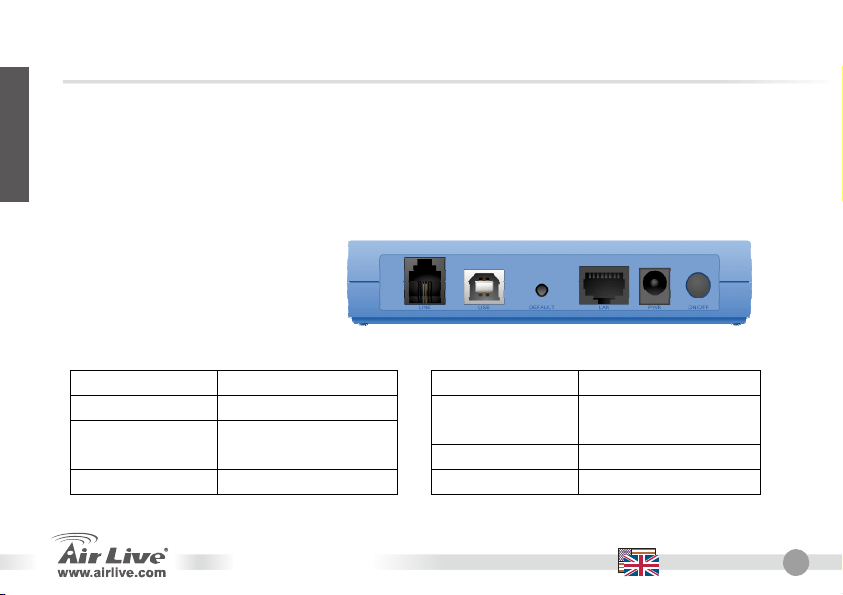

Descriptions of All Connectors

Port / Switch / Button Description

LINE Connect with phone cable

USB Connect with USB cable to

DEFAULT Reset button.

Port / Switch / Button Description

LAN Connect with Ethernet

Cable to Switch Hub or PC

PWR Connect with power adapter

ON/OFF Power switch button

English

ARM-201 English

Installation Steps Software Installation Steps

1. Please install your network cards first

before installing the Router

2. Connect the power and LAN cable to the

router.

3. If you need to change router configuration,

please follow the procedure below:

The Router default IP address is

192.168.2.1. Please make sure your

computer IP is in the same subnet as the

router (i.e. 192.168.2.x)

Open the web browser and enter

192.168.2.1. When asked for Login and

Password, just type admin for login name

and airlive for Password.

Software Support

This Setup wizard can be run in Windows

98SE/Me/2000/XP. The following procedures are

operated in Windows XP. (Procedures are similar

for Windows 98SE/Me/2000.)

Internet: Basic Setting

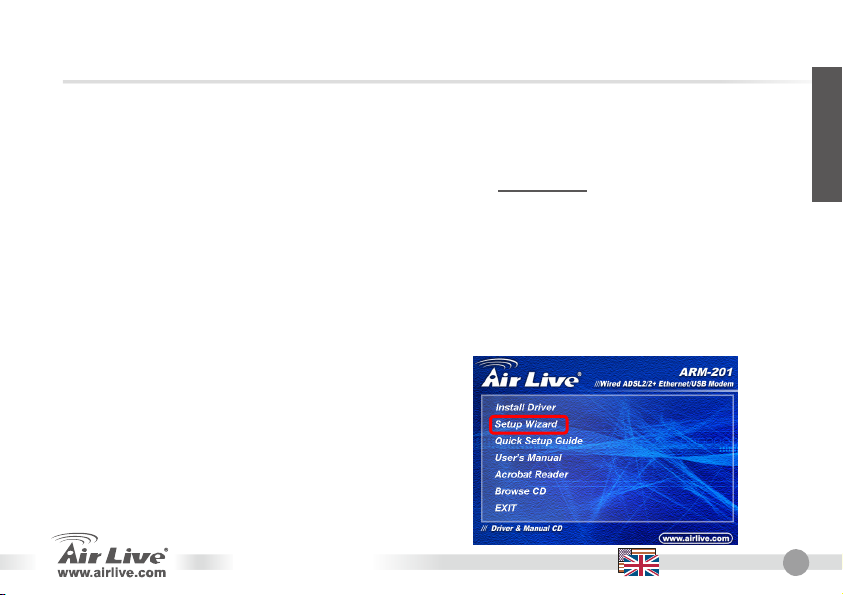

1. Please insert the driver CD that came with

your device into your CD-ROM drive, the

driver CD will auto start and show the

installation guide. If not, please double click

the CD-ROM device icon in "My computer",

and execute autorun.exe. The following

screen will be displayed. Please Click

“Setup Wizard”.

English

ARM-201 English

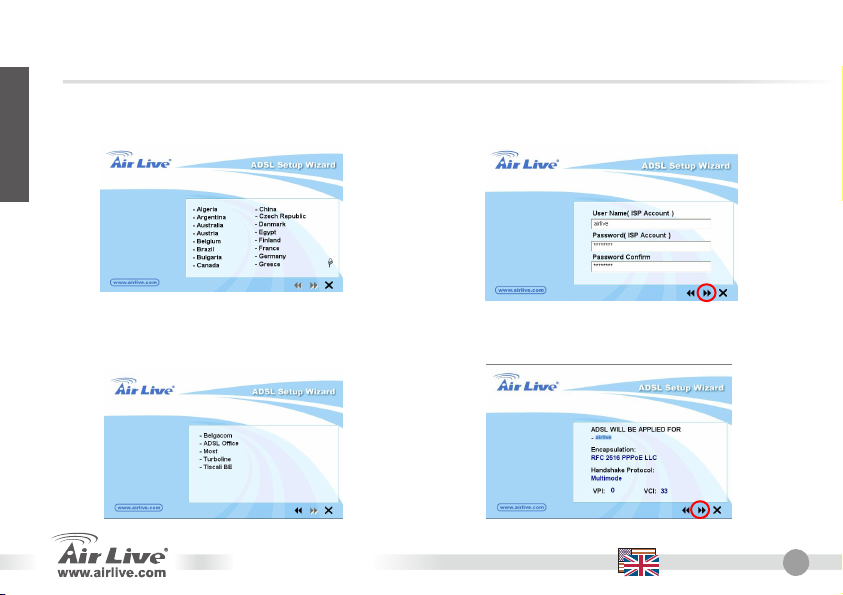

2. Please select the country you have installed

the ADSL router and click “Next”.

3. Please select the ISP (Internet Service Provider)

of your ADSL service.

4. If the router cannot be found, please enter the

IP Address and the Password of the router to

search again. Click “Next” to continue.

5. Click “Next” to save the settings and

reboot the router.

English

ARM-201 English

6. After saving and rebooting the router, the

ISP settings are all finished. This wizard will

then help to set your computer to obtain IP

Address from the router automatically.

7. The ISP settings are all finished. If you want

to configure more settings, please click

“Finish” to close the wizard

If your ISP is not in the list of setup wizard, please

follow the manually setup wizard.

Manually Setup Wizard in Web

Management

Once your PC has obtained an IP address from

your router, enter the default IP address

192.168.2.1 (router’s IP address) into your PC’s

web browser and press <enter>

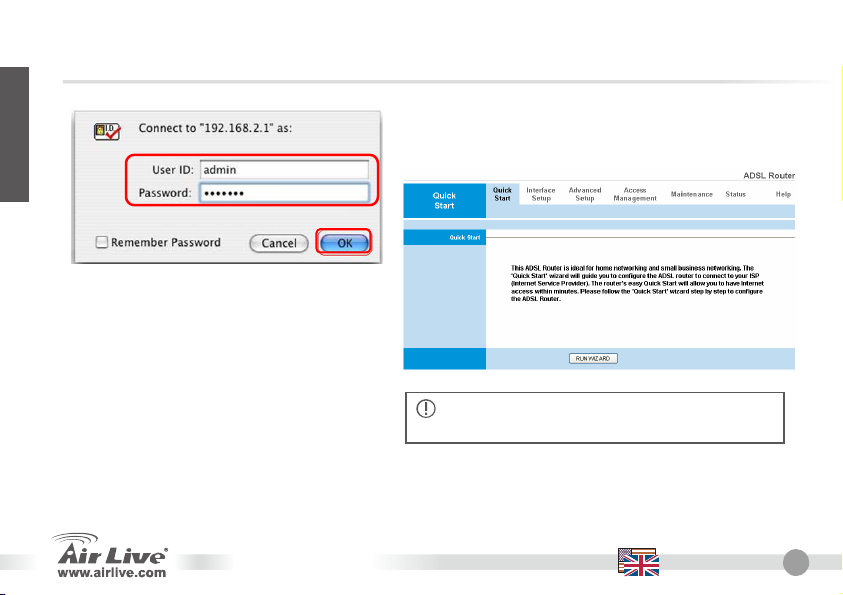

The login screen below will appear. Enter the

“User Name” and “Password” and then click <OK>

to login. By default the user name is “admin” and

the password is “airlive”. For security reasons it is

recommended that you change the password as

soon as possible.

English

ARM-201 English

The HOME page screen below will appear.

The Home Page is divided into seven

sections: Quick Start, Interface Setup,

Advanced Setup, Access Management,

Maintenance, Status and Help.

In the Quick Start, click “Run Wizard” to start the

configuration.

If your computer does not have Ethernet port,

please follow the ADSL USB installation.

English

ARM-201 English

ADSL USB Installation

Step 1: Connect ADSL Router and PC with USB cable.

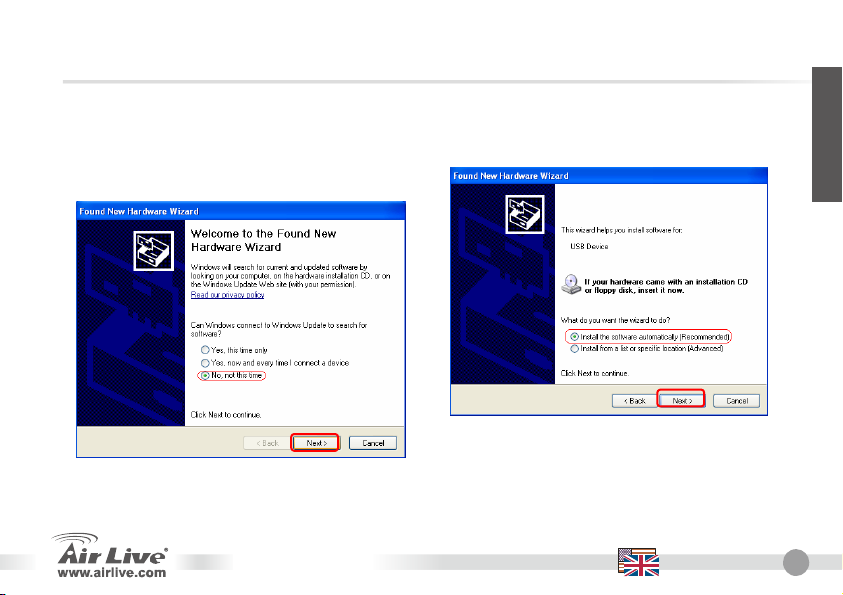

Step 2: Once “Found New Hardware Wizard” window

pops out, click “Next” / “Locate and install

driver software” to continue.

Step 3: The Windows should automatically detect the

device and start the “Found New Hardware

Wizard”. Insert the “AirLive CD” into the

computer and press “next”.

Note: If the computer doesn’t start the installation

wizard automatically, please go to “Control

Panel” and select “Add New Hardware”.

English
