AirLive WL-1100SD Manuale utente
User’sGuide
WL
-
1100SD
Wireless 802.11b SD Card
Table of Contents
Package Contents & System Requirements ........................................................................................................ 1
Package....................................................................................................................................................... 1
System Requirements ................................................................................................................................. 1
Introducing SD WLAN Card Card ................................................................................................................. 1
SD WLAN Card features and benefits ....................................................................................................... 1
SD WLAN Card Wireless Network Scenarios ........................................................................................... 1
About the SD WLAN Card CD-ROM........................................................................................................ 2
Installing the Driver........................................................................................................................................ 2
Installation of the SD WLAN Card Driver to the Pocket PC using Microsoft Active Sync®.................... 2
To verify if the installation of the driver was completed successfully:....................................................... 3
SD WLAN Card Configuration Utility........................................................................................................... 4
configuring the utility ..................................................................................................................................... 5
Status tab .................................................................................................................................................... 5
Statistics tab................................................................................................................................................ 6
Site Survey tab............................................................................................................................................ 7
Radio tab..................................................................................................................................................... 8
About tab .................................................................................................................................................... 8
SDIO Wireless lan card Specifications........................................................................................................... 9
Troubleshooting.............................................................................................................................................. 9
Introduction ................................................................................................................................................ 9
Common Troubleshooting Tips .................................................................................................................. 9
1
PACKAGE CONTENTS & SYSTEM REQUIREMENTS
Package
1. Manual (In CD-ROM )
2. Drivers and configuration utilities on CD-ROM
3. Quick Install Guide
4. Product Device
If you miss any of these items please contact your reseller.
System Requirements
PDA with Windows® Pocket PC 2002 and 2003 with at least 32 MB memory
Secure Digital (SD) slot (Assuming SDIO host controller and driver are already installed)
Microsoft® Active Sync® should be installed
An IEEE802.11b or Wi-Fi approved Access Point/Base station
INTRODUCING SD WLAN CARD CARD
The SD WLAN Card is a wireless network card that complies with the IEEE 802.11b standard on wireless
LANs (Revision B).
SD WLAN Card features and benefits
•Wi-Fi (Wireless Fidelity) certified (Expected in Q2/04).
•Supports data rates up to 11 Mbps.
•Fully compatible with any other wireless LAN system based on Direct Sequence Spread Spectrum (DSSS)
radio technology that complies with the “IEEE 802.11b standard on wireless LANs.
•Automatic Transmit Rate Select mechanism in the transmit range of 11, 5.5, 2 and 1 Mbps.
•128 bit Wired Equivalent Privacy (WEP) data encryption and WPA support.
•Efficient Power Management.
•Roaming over multiple channels.
•Working range up to 300 meters in an open environment.
•Supports Ad-hoc and infrastructure modes for easy wireless communication.
SD WLAN Card Wireless Network Scenarios
•The SD WLAN Card enables you to:
•Connect your computer to a Peer-to-Peer workgroup of wireless computing devices
•Connect your computer to a Small Office/Home Office (SOHO) network that includes Wi-Fi access
points.
•Connect your computer to a Local Area Network (LAN) Infrastructure that includes the SD WLAN
Card, or other IEEE 802.11b compliant LAN systems
Wireless stations can be equipped with the SD WLAN Card, but also with other WLAN PC Cards. Both
the SD WLAN Card and the WLAN PC Card share the same wireless functionality.
2
Peer-to-Peer (Ad-hoc) Workgroup
The Peer-to-Peer workgroup configuration enables you to
quickly set up a small wireless workgroup, where the
workgroup participants can exchange files using features
like “Files and Printer Sharing” as supported by Microsoft®
Networking.
You can use this option to setup a temporary or Ad-hoc
network in environments where no access points are
available (for example in Small Office/Home Office
“SOHO” environments). As long as the stations are within
range of one another, this is the easiest and least expensive
way to set up a wireless network.
Home Networking
With SD WLAN Card, wireless access to the Internet or other
devices is at your fingertips. All you need to do is connect the
SD WLAN Card to an existing access point that may be
connected to the external Cable or xDSL modems and you are
ready to:
Share files and printers, and
Access the Internet.
2-2-3 Enterprise Networking
With the Wi-Fi certified Access Point in the corporate network
system, you can connect to a corporate Local Area Network (LAN) infrastructure to access all network
facilities in wireless. LAN Infrastructures may either be:
Stand-alone wireless LANs.
Wireless network infrastructures connected to an existing Ethernet network.
About the SD WLAN Card CD-ROM
The SD WLAN Card CD-ROM contains both software and documentation for the SD WLAN Card card.
INSTALLING THE DRIVER
Installation of the SD WLAN Card Driver to the Pocket PC using
Microsoft Active Sync®
1. Connect your PDA to your computer and make sure Active-Sync® has established for a connection
between the two devices.
2. Insert the CD ROM to your PC. The following screen will apeear, click Install Driver to start driver
installation. After driver installation is complete, clik Install Utility to start utility installation.
Note: Do not insert the SD WLAN Card into the card slot of your PDA until the Driver (Step 1)
and Utility (Step 2) installations have been performed.
3
3. Click “YES” to proceed the installation.
4. Click “OK” to complete the driver installation.
To verify if the installation of the driver was completed
Step 1
4
successfully:
1. Soft reset the PDA (push Soft-reset Button of PDA)
* Some PDA may not require resetting but it should be safer to reset.
2. Insert the SD WLAN Card into the PDA
3. Check the LED on the SD WLAN Card. If steady Blue light is seen, the SD WLAN Card is active.
4. (Optional) To check the quality of the network connection, you should use the SD WLAN Card
configuration utility program as described in the next section
SD WLAN CARD CONFIGURATION UTILITY
1. Click Install Utility to perform utility installation.
2. Click “YES” to proceed the installation.
Step 2
5
3. Click “OK” to complete the driver installation.
CONFIGURING THE UTILITY
Status tab
SSID The current access point name (ESS ID)
Status The current connection status.
Type The current connection mode.
Channel The wireless radio channel currently used by the card.
Tx Rate The current transmit rate. This can be 1 Mbps, 2 Mbps and 5.5 Mbps.
6
IP The IP address of the card.
MAC The MAC address of the card.
Signal Shows the signal strength of the received signal.
Set AP Click to enter wireless network configuration screen.
Quality Shows the signal quality of the received signal.
Statistics tab
Tx Success The number of successfully transmitted packets.
Tx Error The number of unsuccessfully transmitted packets.
Tx Throughput (kbps) The actual instantaneous transmit rates, in Kbps.
Rx Success The number of successfully received packets.
Rx CRC Error The number of unsuccessfully received CRC packets.
Rx Throughput (kbps) The actual instantaneous receive rates, in Kbps.
Reset Click to clear the previously settings.
7
Site Survey tab
Rescan Searches for all available networks. Clicking on the button, the device will start to
rescan and list all available sites.
SSID The current access point name.
BSSID The MAC address for the Access Point or station.
Mode The currently connected device mode.
WEP WEP (Wired Equivalent Privacy) shows the current WEP used in the AP. WEP can
be enabled or disabled.
CH The wireless radio channel currently used by the card.
Signal The signal strength from the network Access Point or station.
Support Rates Displays all the supported rates.
8

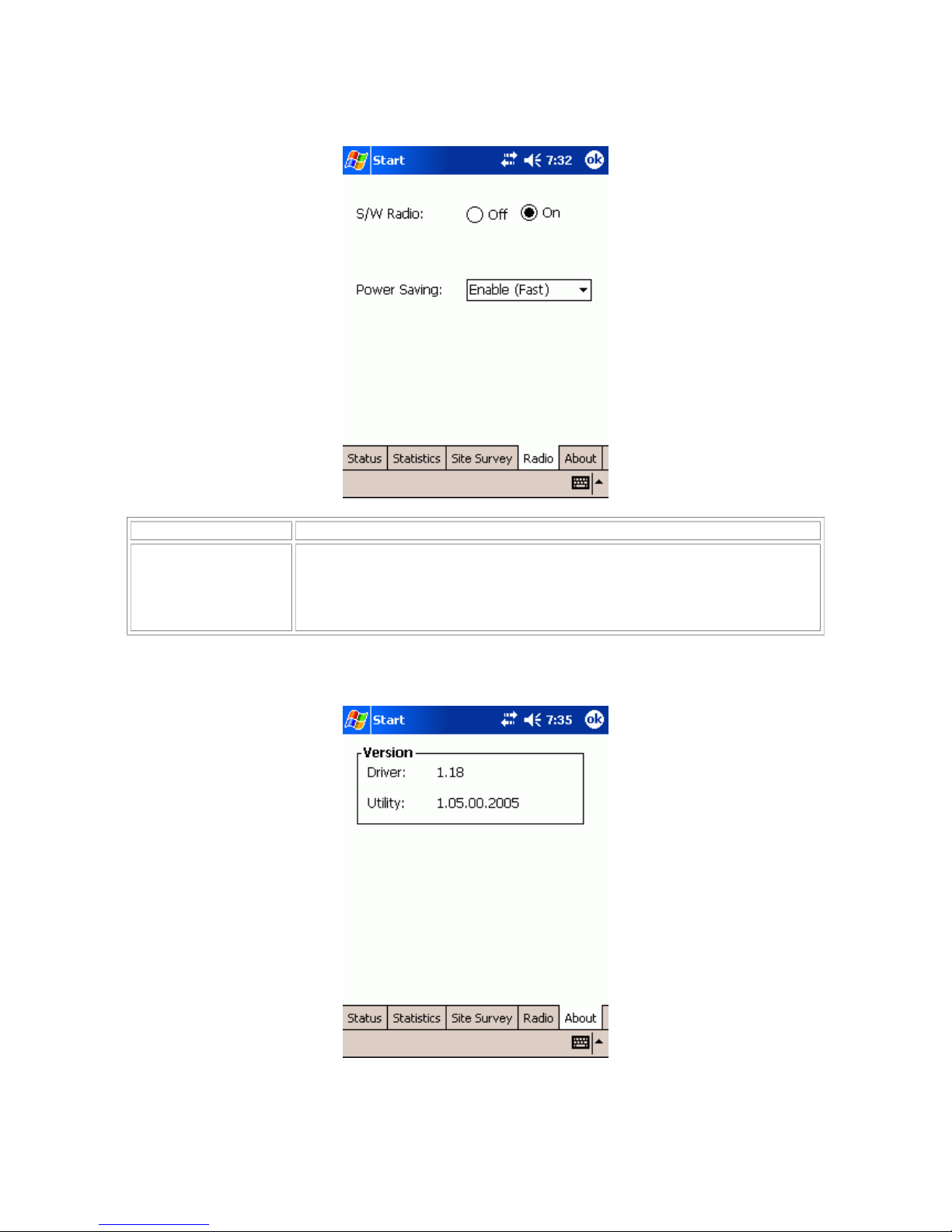

Radio tab
S/W Radio Select Off or On to turn off/on Radio Frequency function.
Power Saving Disable: Select to disable power saving function.
Enable (Max): Select to enter power saving mode instantly.
Enable (Fast): Select to enter power saving mode later (Under the
circumstances of not receiving/transmitting packets, the system will enter Power
Saving mode in 10 seconds ).
About tab
Shows the driver version and the utility version.
