Wired Controller
English Manual
Model : RWV03 （7ACELH032）
CONTENT
Parts and Functions............................................................ 1
Operation............................................................................ 6
Wired Controller Wiring Instruction................................... 21
Wired Controller
Operation & Installation Manual
RWV03
1
Parts and Functions
Interface Display

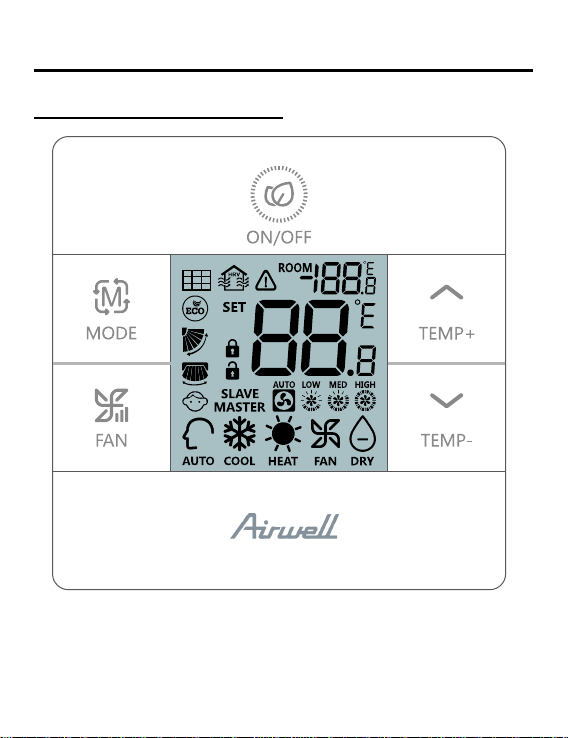

Full display
2
Parts and Functions

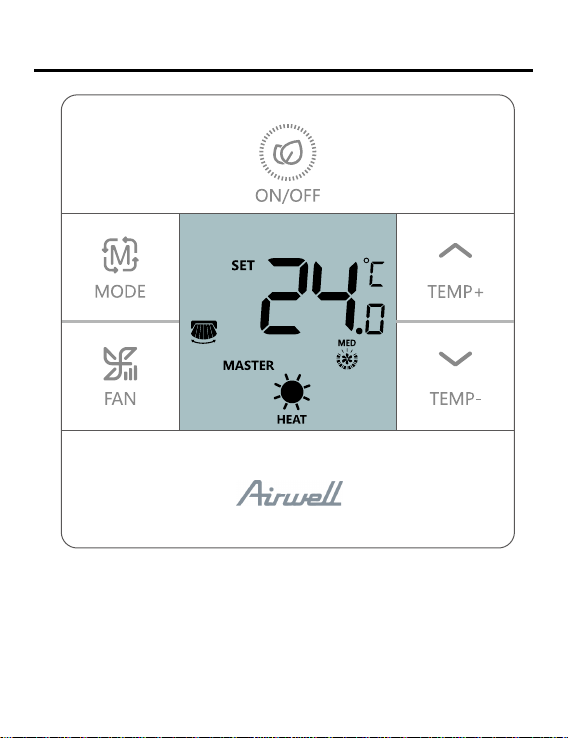

ON display
3
Parts and Functions

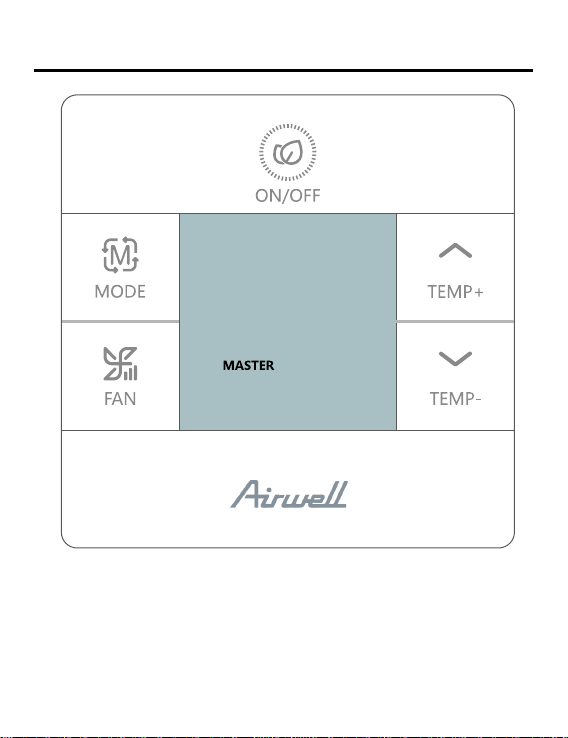

OFF display
4
Parts and Functions
Icon
Room temp. display; ECO parameter display;
Historic error code display; Parameter
display; Central address display; Temp.
compensation setting display; Mode
combination setting display.
Set temp. display; Forced cooling LL/ forced
heating HH icon display; Current error code/
unit No. display; Parameter checking unit No.
display.
Filter
HRV(Heat Reclaim Ventilation), if HRV
function is set, it will display this icon.
Error icon
ECO icon, if ECO function is set, it will display
this icon.
/ Central/lock
UP/DOWN swing
LEFT/RIGHT swing
Child lock
5
Parts and Functions
/ Master/slave wired controller
/ / / Auto/low/middle/high fan speed
Auto mode
Cooling mode
Heating mode
Fan mode
Dry mode
6
Special function operation index
Function Operational approach
Function
selection
Under ON state, after turning on the back
light, press for 5s.
Forced
cooling
Under cooling mode OFF state, press
for 5s, buzzer buzzing 2 times, and screen
displaying LL
Forced
heating
Under heating mode OFF state, press
for 5s, buzzer buzzing 2 times, and screen
displaying HH
Child lock
Under ON state, press together for
5s to set or cancel child lock function.
Under OFF state,after turning on the back
light, press together for 5s to set or
cancel child lock, buzzer buzzing 1 time.
Temp.
compensation
Under OFF state, after turning on the back
light, press for 5s, then adjust by /
, and conrm by .
Operation
7
Operation
Function Operational approach
Forced
defrosting.
Under state of ON + heating mode + 30°C(if
ECO mode is set, change temp. to max limit)
+ high fan speed, press 6 times within
5s, buzzer buzzing 3 times.
ECO- cooling
Eco cooling mode parameter adjusting:
under ON state, cooling mode, 30°C set
temp., press together for 5s to enter
adjustment; Parameters will be shown at rst
two 8 segments on the upper right corner of
room temp. display area; Press / to
adjust and press to conrm.
ECO- heating
Eco heating mode parameter adjusting:
under ON state, heating mode, 16°C set
temp., press together for 5s to enter
adjustment; Parameters will be shown at rst
two 8 segments on the upper right cornerof
room temp. display area; Press / to
adjust and press to conrm.
8
Operation
Function Operational approach
Error inquiry
After turning on back light, press for 5s
to enter error inquiry state; under error inquiry
state, press for 5s to clear current and
historic error code.
Wired
controller
mode setting
Under OFF state, press for 10s to enter
setting, then press / for adjustment
and press for conrmation.
Shift from
Celsius
degree to
Fahrenheit
degree
Adjust set temp. to 30 degree Celsius (if ECO
temp. limit is set, change to max temp.), then
press for 15s to change to Fahrenheit
degree.
Shift from
Fahrenheit
degree to
Celsius
degree
Adjust set temp. tolowest degree Fahrenheit
(if ECO temp. limit is set, change to min.
temp.), then press for 15s to change to
Celsius degree.
