CDC-MP3

yu

STEREO

CAR

CD

RECEIVER

RADIO-CD

ESTEREOFONICO

PARA

AUTOMOVIL

OWNER’S

RECORD

For

your

convenience,

record

the

model

number

and

serial

number

(you

will

find

them

on

the

right

side

of

your

set)

in

the

space

provided

below.

Please

refer

to

them

when

you

contact

your

AIWA

dealer

in

case

of

difficulty.

Model

No.

|CDC-MP3

Serial

Welcome

Thankyou

for

your

purchasing

this

AIWA

product.

To

optimize

the

performance

of

this

unit,

please

read

through

this

manual

carefully.

In

addition

to

this

operating

instructions

manual,

be

sure

to

refer

to

the

separate

installation

and

connections

manuals

as

well.

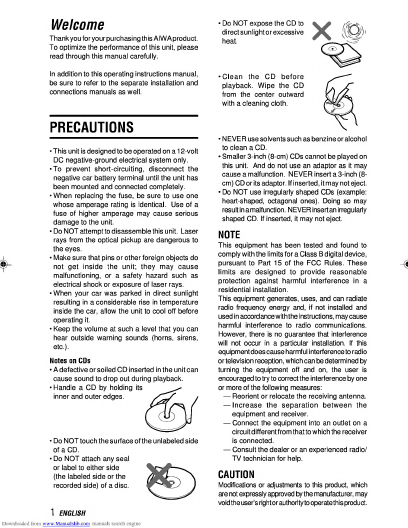

PRECAUTIONS

•

This

unit

is

designed

to

be

operated

on

a

12-volt

DC

negative-ground

electrical

system

only.

•To

prevent

short-circuiting,

disconnect

the

negative

car

battery

terminal

until

the

unit

has

been

mounted

and

connected

completely.

•

When

replacing

the

fuse,

be

sure

to

use

one

whose

amperage

rating

is

identical.

Use

of

a

fuse

of

higher

amperage

may

cause

serious

damage

to

the

unit.

•

Do

NOT

attempt

to

disassemble

this

unit.

Laser

rays

from

the

optical

pickup

are

dangerous

to

the

eyes.

•

Make

sure

that

pins

or

other

foreign

objects

do

not

get

inside

the

unit;

they

may

cause

malfunctioning,

or

a

safety

hazard

such

as

electrical

shock

or

exposure

of

laser

rays.

•

When

your

car

was

parked

in

direct

sunlight

resulting

in

a

considerable

rise

in

temperature

inside

the

car,

allow

the

unit

to

cool

off

before

operating

it.

•

Keep

the

volume

at

such

a

level

that

you

can

hear

outside

warning

sounds

(horns,

sirens,

Notes

on

CDs

•

A

defective

or

soiled

CD

inserted

in

the

unit

can

cause

sound

to

drop

out

during

playback.

•

Handle

a

CD

by

holding

it:

•Do

NOT

touch

the

surface

of

tf

i

•

Do

NOT

attach

any

seal

or

label

to

either

side

(the

labeled

side

or

the

recorded

side)

of

a

disc.

to

clean

a

CD.

•

Smaller

3-inch

(8-cm)

CDs

cannot

be

played

on

this

unit.

And

do

not

use

an

adaptor

as

it

may

cause

a

malfunction.

NEVER

insert

a

3-inch

(8-

cm)

CD

or

its

adaptor.

If

inserted,

it

may

not

eject.

•

Do

NOT

use

irregularly

shaped

CDs

(example:

heart-shaped,

octagonal

ones).

Doing

so

may

result

in

a

malfunction.

NEVER

insert

an

irregularly

shaped

CD.

If

inserted,

it

may

not

eject.

NOTE

This

equipment

has

been

tested

and

found

to

comply

with

the

limits

for

a

Class

B

digital

device,

pursuant

to

Part

15

of

the

FCC

Rules.

These

limits

are

designed

to

provide

reasonable

protection

against

harmful

interference

in

a

residential

installation.

This

equipment

generates,

uses,

and

can

radiate

radio

frequency

energy

and,

if

not

installed

and

used

in

accordance

with

the

instructions,

may

cause

harmful

interference

to

radio

communications.

However,

there

is

no

guarantee

that

interference

will

not

occur

in

a

particular

installation.

If

this

equipment

does

cause

harmful

interference

to

radio

or

television

reception,

which

can

be

determined

by

turning

the

equipment

off

and

on,

the

user

is

encouraged

to

try

to

correct

the

interference

by

one

or

more

of

the

following

measures:

—

Reorient

or

relocate

the

receiving

antenna.

—

Increase

the

separation

between

the

equipment

and

receiver.

—

Connect

the

equipment

into

an

outlet

on

a

circuitdifferent

from

that

to

which

the

receiver

is

connected.

—

Consult

the

dealer

or

an

experienced

radio/

TV

technician

for

help.

CAUTION

Modifications

or

adjustments

to

this

product,

which

are

not

expressly

approved

by

the

manufacturer,

may

void

the

user’srightor

authority

to

operate

this

product.

1

ENGLISH

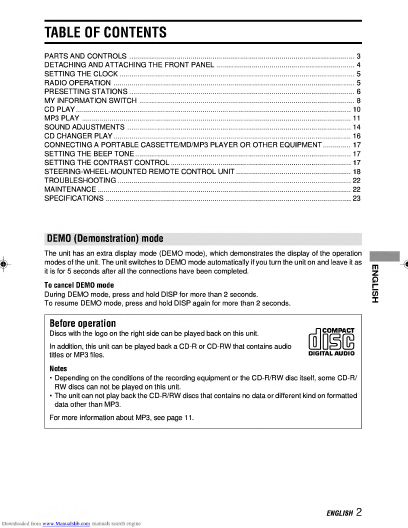

TABLE

OF

CONTENTS

PARTS

AND

CONTROLS

.3

DETACHING

AND

ATTACHING

THE

FRONT

PANEL.4

SETTING

THE

CLOCK.5

RADIO

OPERATION

.5

PRESETTING

STATIONS.6

MY

INFORMATION

SWITCH.8

CD

PLAY.10

MP3

PLAY

.11

SOUND

ADJUSTMENTS.14

CD

CHANGER

PLAY.16

CONNECTING

A

PORTABLE

CASSETTE/MD/MP3

PLAYER

OR

OTHER

EQUIPMENT.

17

SETTING

THE

BEEP

TONE.

17

SETTING

THE

CONTRAST

CONTROL.

17

STEERING-WHEEL-MOUNTED

REMOTE

CONTROL

UNIT.

18

TROUBLESHOOTING.22

MAINTENANCE.22

SPECIFICATIONS.23

¥

DEMO

(Demonstration)

mode

The

unit

has

an

extra

display

mode

(DEMO

mode),

which

demonstrates

the

display

of

the

operation

modes

of

the

unit.

The

unit

switches

to

DEMO

mode

automatically

if

you

turn

the

unit

on

and

leave

it

as

it

is

for

5

seconds

after

all

the

connections

have

been

completed.

To

cancel

DEMO

mode

During

DEMO

mode,

press

and

hold

DISP

for

more

than

2

seconds.

To

resume

DEMO

mode,

press

and

hold

DISP

again

for

more

than

2

seconds.

Before

operation

Discs

with

the

logo

on

the

right

side

can

be

played

back

on

this

unit.

In

addition,

this

unit

can

be

played

back

a

CD-R

or

CD-RW

that

contains

audio

titles

or

MP3

files.

digital

audio

•

Depending

on

the

conditions

of

the

recording

equipment

or

the

CD-R/RW

disc

itself,

some

CD-R/

RW

discs

can

not

be

played

on

this

unit.

•

The

unit

can

not

play

back

the

CD-R/RW

discs

that

contains

no

data

or

different

kind

on

formatted

data

other

than

MP3.

For

more

information

about

MP3,

see

page

11.

_n

COMPACT

($M@

ENGLISH

2

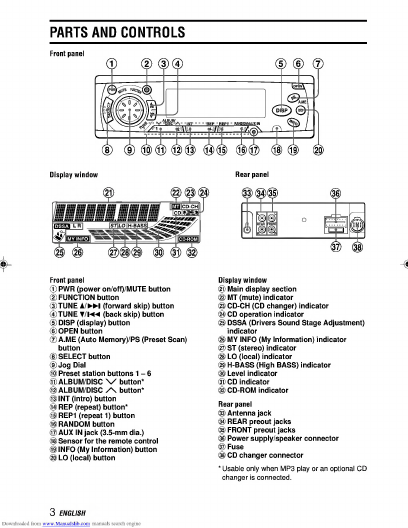

PARTS

AND

CONTROLS

Front

panel

Display

window

Rear

panel

Front

panel

©

PWR

(power

on/off)/MUTE

button

©FUNCTION

button

©TUNE

!/

►►

!

(forward

skip)

button

©TUNE

T/l«

(back

skip)

button

©

DISP

(display)

button

©OPEN

button

®

A.ME

(Auto

Memory)/PS

(Preset

Scan)

button

©SELECT

button

©Jog

Dial

©

Preset

station

buttons

1-6

©ALBUM/DISC

V

button*

©ALBUM/DISC

button*

©

INT

(intro)

button

©

REP

(repeat)

button*

©REP1

(repeat

1)

button

©RANDOM

button

©AUXIN

jack

(3.5-mm

dia.)

©

Sensor

for

the

remote

control

©INFO

(My

Information)

button

(§>

LO

(local)

button

Display

window

®

Main

display

section

@

MT

(mute)

indicator

(§>CD-CH

(CD

changer)

indicator

(§)

CD

operation

indicator

©

DSSA

(Drivers

Sound

Stage

Adjustment)

indicator

©MY

INFO

(My

Information)

indicator

@

ST

(stereo)

indicator

(§>

LO

(local)

indicator

©

H-BASS

(High

BASS)

indicator

©

Level

indicator

©

CD

indicator

©CD-ROM

indicator

Rear

panel

©

Antenna

jack

@

REAR

preout

jacks

©

FRONT

preout

jacks

©

Power

supply/speaker

connector

(§>

CD

changer

connector

*

Usable

only

when

MP3

play

or

an

optional

CD

changer

is

connected.

3

ENGLISH

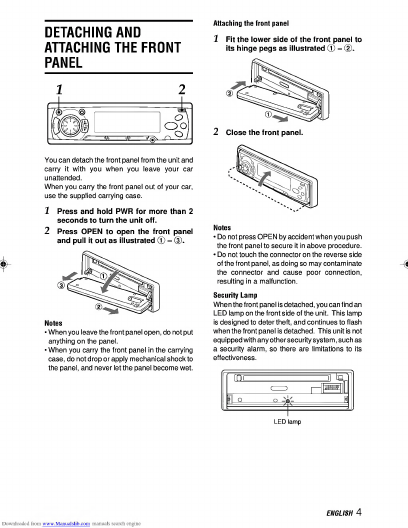

DETACHING

AND

ATTACHING

THE

FRONT

PANEL

1

2

You

can

detach

the

front

panel

from

the

unit

and

carry

it

with

you

when

you

leave

your

car

unattended.

When

you

carry

the

front

panel

out

of

your

car,

use

the

supplied

carrying

case.

1

Press

and

hold

PWR

for

more

than

2

seconds

to

turn

the

unit

off.

2

Press

OPEN

to

open

the

front

panel

and

pull

it

out

as

illustrated

©

-

©.

•

When

you

leave

the

front

panel

open,

do

not

put

anything

on

the

panel.

•

When

you

carry

the

front

panel

in

the

carrying

case,

do

not

drop

or

apply

mechanical

shock

to

the

panel,

and

never

let

the

panel

become

wet.

Attaching

the

front

panel

1

Fit

the

lower

side

of

the

front

panel

to

its

hinge

pegs

as

illustrated

©

-

@.

2

Close

the

front

panel.

•

Do

not

press

OPEN

by

accident

when

you

push

the

front

panel

to

secure

it

in

above

procedure.

•

Do

not

touch

the

connector

on

the

reverse

side

of

the

front

panel,

as

doing

so

may

contaminate

the

connector

and

cause

poor

connection,

resulting

in

a

malfunction.

Security

Lamp

When

the

front

panel

is

detached,

you

can

find

an

LED

lamp

on

the

front

side

of

the

unit.

This

lamp

is

designed

to

deter

theft,

and

continues

to

flash

when

the

front

panel

is

detached.

This

unit

is

not

equipped

with

any

other

security

system,

such

as

a

security

alarm,

so

there

are

limitations

to

its

effectiveness.

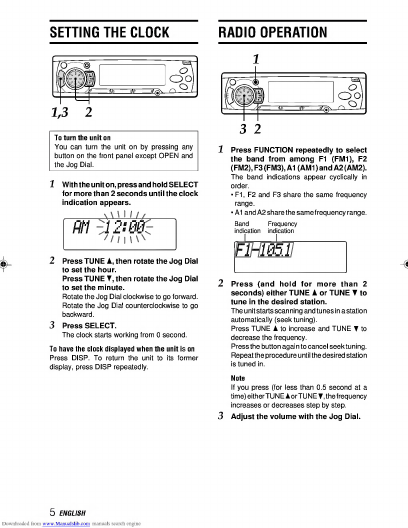

SETTING

THE

CLOCK

RADIO

OPERATION

IQ'^Z®

i

-

—

i

oY

f{

1,3

2

To

turn

the

unit

on

You

cai

n

turn

the

unit

:

on

by

pressing

any

button

t

jn

the

front

panel

except

OPEN

and

the

Jog

Dial.

1

W

ith

the

unit

on,

press

and

hold

SELECT

for

more

than

2

seconds

until

the

clock

indication

appears.

_.\

\

>

l

<

/

/

m

'I

I\\

2

Press

TUNE

A,

then

rotate

the

Jog

Dial

to

set

the

hour.

Press

TUNE

▼

,

then

rotate

the

Jog

Dial

to

set

the

minute.

Rotate

the

Jog

Dial

clockwise

to

go

forward.

Rotate

the

Jog

Dial

counterclockwise

to

go

backward.

3

Press

SELECT.

The

clock

starts

working

from

0

second.

To

have

the

clock

displayed

when

the

unit

is

on

Press

DISP.

To

return

the

unit

to

its

former

display,

press

DISP

repeatedly.

1

3

2

1

P

ress

FUNCTION

repeatedly

to

select

the

band

from

among

FI

(FM1),

F2

(FM2),

F3

(FM3),

A1

(AMI)

and

A2

(AM2).

The

band

indications

appear

cyclically

in

•

FI,

F2

and

F3

share

the

same

frequency

■

A1

and

A2

share

the

same

frequency

range.

Band

Frequency

rirafi

i

2

Press

(and

hold

for

more

than

2

seconds)

either

TUNE

A

or

TUNE

▼

to

tune

in

the

desired

station.

The

unit

starts

scanning

and

tunes

in

astation

automatically

(seek

tuning).

Press

TUNE

A

to

increase

and

TUNE

T

to

decrease

the

frequency.

Press

the

button

again

to

cancel

seek

tuning.

Repeat

the

procedure

until

the

desired

station

Note

If

you

press

(for

less

than

0.5

second

at

a

time)

eitherTUNE

AorTUNE

▼

,

thefrequency

increases

or

decreases

step

by

step.

3

Adjust

the

volume

with

the

Jog

Dial.

5

ENGLISH

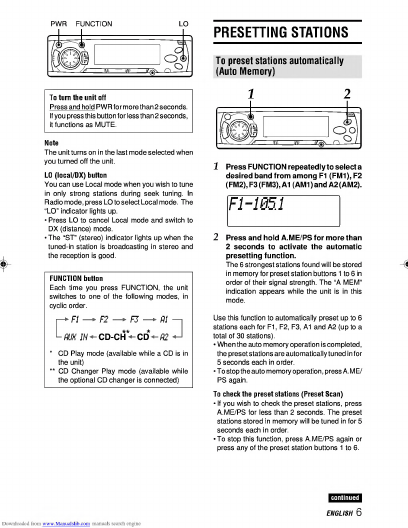

PWR

FUNCTION

LO

To

turn

the

unit

off

Press

and

hold

PWR

for

more

than

2

seconds.

If

you

press

this

button

for

less

than

2

seconds,

it

functions

as

MUTE.

Note

The

unit

turns

on

in

the

last

mode

selected

when

you

turned

off

the

unit.

LO

(local/DX)

button

You

can

use

Local

mode

when

you

wish

to

tune

in

only

strong

stations

during

seek

tuning.

In

Radio

mode,

press

LO

to

select

Local

mode.

The

“LO”

indicator

lights

up.

•

Press

LO

to

cancel

Local

mode

and

switch

to

DX

(distance)

mode.

•The

"ST”

(stereo)

indicator

lights

up

when

the

tuned-in

station

is

broadcasting

in

stereo

and

the

reception

is

good.

FUNCTION

button

Each

time

you

press

FUNCTION,

the

unit

switches

to

one

of

the

following

modes,

in

L

m

in+-

F2

—

F3

—

Rl

CD-CH**-CD

-fl?

CD

Play

mode

(available

while

a

CD

is

in

the

unit)

CD

Changer

Play

mode

(available

while

the

optional

CD

changer

is

connected)

PRESETTING

STATIONS

To

preset

stations

automatically

(Auto

Memory)

1

2

1

Press

FUNCTION

repeatedly

to

select

a

desired

band

from

among

FI

(FM1),

F2

(FM2),

F3

(FM3),

A1

(AMI)

and

A2

(AM2).

Fi-mi

2

Press

and

hold

A.ME/PS

for

more

than

2

seconds

to

activate

the

automatic

presetting

function.

The

6

strongest

stations

found

will

be

stored

in

memory

for

preset

station

buttons

1

to

6

in

order

of

their

signal

strength.

The

“A

MEM”

indication

appears

while

the

unit

is

in

this

Use

this

function

to

automatically

preset

up

to

6

stations

each

for

FI,

F2,

F3,

A1

and

A2

(up

to

a

total

of

30

stations).

•

When

the

auto

memory

operation

is

completed,

the

preset

stations

are

automatically

tuned

in

for

5

seconds

each

in

order.

•

To

stop

the

auto

memory

operation,

press

A.ME/

PS

again.

To

check

the

preset

stations

(Preset

Scan)

•

If

you

wish

to

check

the

preset

stations,

press

A.ME/PS

for

less

than

2

seconds.

The

preset

stations

stored

in

memory

will

be

tuned

in

for

5

seconds

each

in

order.

•To

stop

this

function,

press

A.ME/PS

again

or

press

any

of

the

preset

station

buttons

1

to

6.

ENGLISH

6

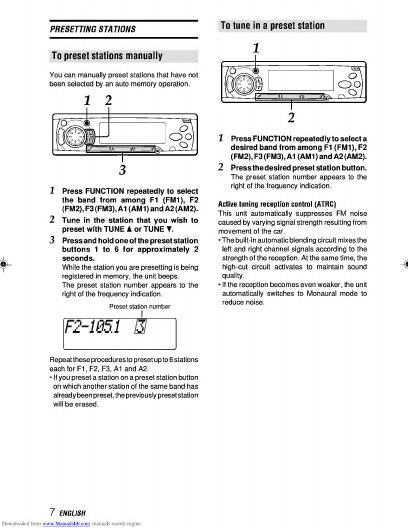

PRESETTING

STATIONS

To

preset

stations

manually

You

can

manually

preset

stations

that

have

not

been

selected

by

an

auto

memory

operation.

1

2

3

1

Press

FUNCTION

repeatedly

to

select

the

band

from

among

FI

(FM1),

F2

(FM2),

F3

(FM3),

A1

(AMI)

and

A2

(AM2).

2

Tune

in

the

station

that

you

wish

to

preset

with

TUNE

A

or

TUNE

▼

.

3

Press

and

hold

one

of

the

preset

station

buttons

1

to

6

for

approximately

2

seconds.

While

the

station

you

are

presetting

is

being

registered

in

memory,

the

unit

beeps.

The

preset

station

number

appears

to

the

right

of

the

frequency

indication.

Preset

station

number

F2-185.1

&

Repeat

these

procedures

to

preset

up

to

6

stations

each

for

FI,

F2,

F3,

A1

and

A2.

•

If

you

preset

a

station

on

a

preset

station

button

on

which

another

station

of

the

same

band

has

already

been

preset,

the

previously

preset

station

will

be

erased.

To

tune

in

a

preset

station

1

2

1

Press

FUNCTION

repeatedly

to

select

a

desired

band

from

among

FI

(FM1),

F2

(FM2),

F3

(FM3),

A1

(AMI)

and

A2

(AM2).

2

Press

the

desired

preset

station

button.

The

preset

station

number

appears

to

the

right

of

the

frequency

indication.

Active

tuning

reception

control

(ATRC)

This

unit

automatically

suppresses

FM

noise

caused

by

varying

signal

strength

resulting

from

movement

of

the

car.

•

The

built-in

automatic

blending

circuit

mixes

the

left

and

right

channel

signals

according

to

the

strength

of

the

reception.

At

the

same

time,

the

high-cut

circuit

activates

to

maintain

sound

quality.

•

If

the

reception

becomes

even

weaker,

the

unit

automatically

switches

to

Monaural

mode

to

reduce

noise.

7

ENGLISH

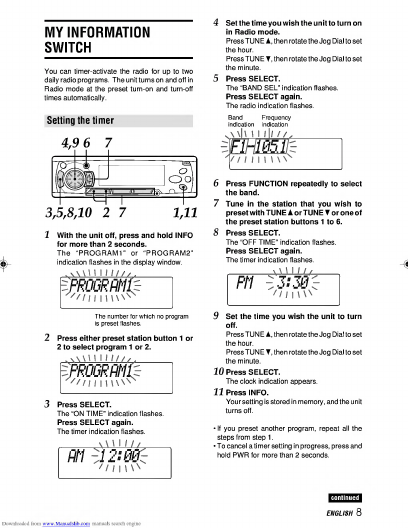

MY

INFORMATION

SWITCH

You

can

timer-activate

the

radio

for

up

to

two

daily

radio

programs.

The

unit

turns

on

and

off

in

Radio

mode

at

the

preset

turn-on

and

turn-off

times

automatically.

Setting

the

timer

4,9

6

7

3

,

5

,

8,10

2

7

1,11

1

W

ith

the

unit

off,

press

and

hold

INFO

for

more

than

2

seconds.

The

“PROGRAM1”

or

“PROGRAM2”

indication

flashes

in

the

display

window.

y\\\

I

I

II///

_

WroorM$

"n

mm''

The

number

for

which

no

program

is

preset

flashes.

2

P

ress

either

preset

station

button

1

or

2

to

select

program

1

or

2.

I

II///,

_

ifROGRm

"m

i

n\\^

3

P

ress

SELECT.

The

“ON

TIME”

indication

flashes.

Press

SELECT

again.

The

timer

indication

flashes.

m

iiirm

'n

n

\\

4

Set

the

time

you

wish

the

unit

to

turn

on

in

Radio

mode.

Press

TUN

E

A,

then

rotate

the

Jog

Dial

to

set

the

hour.

Press

TUN

E

▼

,

then

rotate

the

Jog

Dial

to

set

the

minute.

5

Press

SELECT.

The

“BAND

SEL”

indication

flashes.

Press

SELECT

again.

The

radio

indication

flashes.

Band

Frequency

6

Press

FUNCTION

repeatedly

to

select

the

band.

7

Tune

in

the

station

that

you

wish

to

preset

with

TUNE

A

or

TUNE

T

or

one

of

the

preset

station

buttons

1

to

6.

8

Press

SELECT.

The

“OFF

TIME”

indication

flashes.

Press

SELECT

again.

The

timer

indication

flashes.

_

\\

'

I

/

//

Ptl

'n

n\'

9

Set

the

time

you

wish

the

unit

to

turn

off.

Press

TUNEA.then

rotate

the

Jog

Dial

to

set

the

hour.

Press

TUN

E

▼

,

then

rotate

the

Jog

Dial

to

set

the

minute.

10

Press

SELECT.

The

clock

indication

appears.

11

Press

INFO.

Your

setting

is

stored

in

memory,

and

the

unit

turns

off.

•

If

you

preset

another

program,

repeat

all

the

steps

from

step

1.

•

To

cancel

a

timer

setting

in

progress,

press

and

hold

PWR

for

more

than

2

seconds.

ENGLISH

8

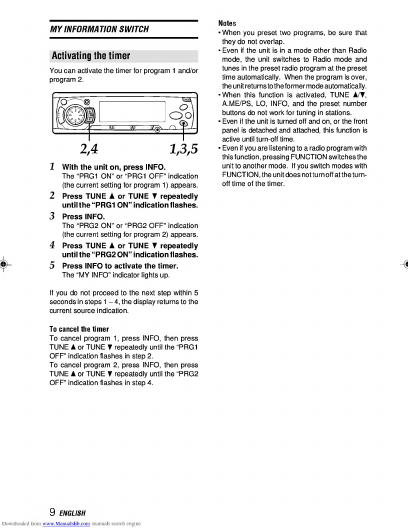

MY

INFORMA

TION

SWITCH

Activating

the

timer

You

can

activate

the

timer

for

program

1

and/or

program

2.

2,4

1

,

3,5

1

With

the

unit

on,

press

INFO.

The

“PRG1

ON”

or

“PRG1

OFF”

indication

(the

current

setting

for

program

1)

appears.

2

Press

TUNE

▲

or

TUNE

▼

repeatedly

until

the

“PRG1

ON”

indication

flashes.

3

Press

INFO.

The

“PRG2

ON”

or

“PRG2

OFF”

indication

(the

current

setting

for

program

2)

appears.

4

Press

TUNE

▲

or

TUNE

▼

repeatedly

until

the

“PRG2

ON”

indication

flashes.

5

Press

INFO

to

activate

the

timer.

The

"MY

INFO”

indicator

lights

up.

If

you

do

not

proceed

to

the

next

step

within

5

seconds

in

steps

1

-4,

the

display

returns

to

the

current

source

indication.

To

cancel

the

timer

To

cancel

program

1,

press

INFO,

then

press

TUNE

▲

or

TUNE

Y

repeatedly

until

the

“PRG1

OFF”

indication

flashes

in

step

2.

To

cancel

program

2,

press

INFO,

then

press

TUNE

▲

or

TUNE

Y

repeatedly

until

the

"PRG2

OFF”

indication

flashes

in

step

4.

•When

you

preset

two

programs,

be

sure

that

they

do

not

overlap.

•

Even

if

the

unit

is

in

a

mode

other

than

Radio

mode,

the

unit

switches

to

Radio

mode

and

tunes

in

the

preset

radio

program

at

the

preset

time

automatically.

When

the

program

is

over,

the

unit

returns

to

the

former

mode

automatically.

•When

this

function

is

activated,

TUNE

A/Y,

A.ME/PS,

LO,

INFO,

and

the

preset

number

buttons

do

not

work

for

tuning

in

stations.

•

Even

if

the

unit

is

turned

off

and

on,

or

the

front

panel

is

detached

and

attached,

this

function

is

active

until

turn-off

time.

•

Even

if

you

are

listening

to

a

radio

program

with

this

function,

pressing

FUNCTION

switches

the

unit

to

another

mode.

If

you

switch

modes

with

FUNCTION,

the

unit

does

notturn

off

at

the

turn¬

off

time

of

the

timer.

9
