SERVICE MANUAL

DATA

STEREO CASSETTE PLAYER

HS-CP8

S/M Code No. 09-00A-401-6N1

BASIC TAPE MECHANISM : 4ZM-2 P12NC

MODEL CODE : 8ZHKB-0137 <S>

 2 

SPECIFICATIONS

– 3 –

ELECTRICAL MAIN PARTS LIST

DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

87-A21-684-040 1C C-IC,TA2145AF

DIODE

87-020-027-080 0E CHIP-DIODE 1SS184

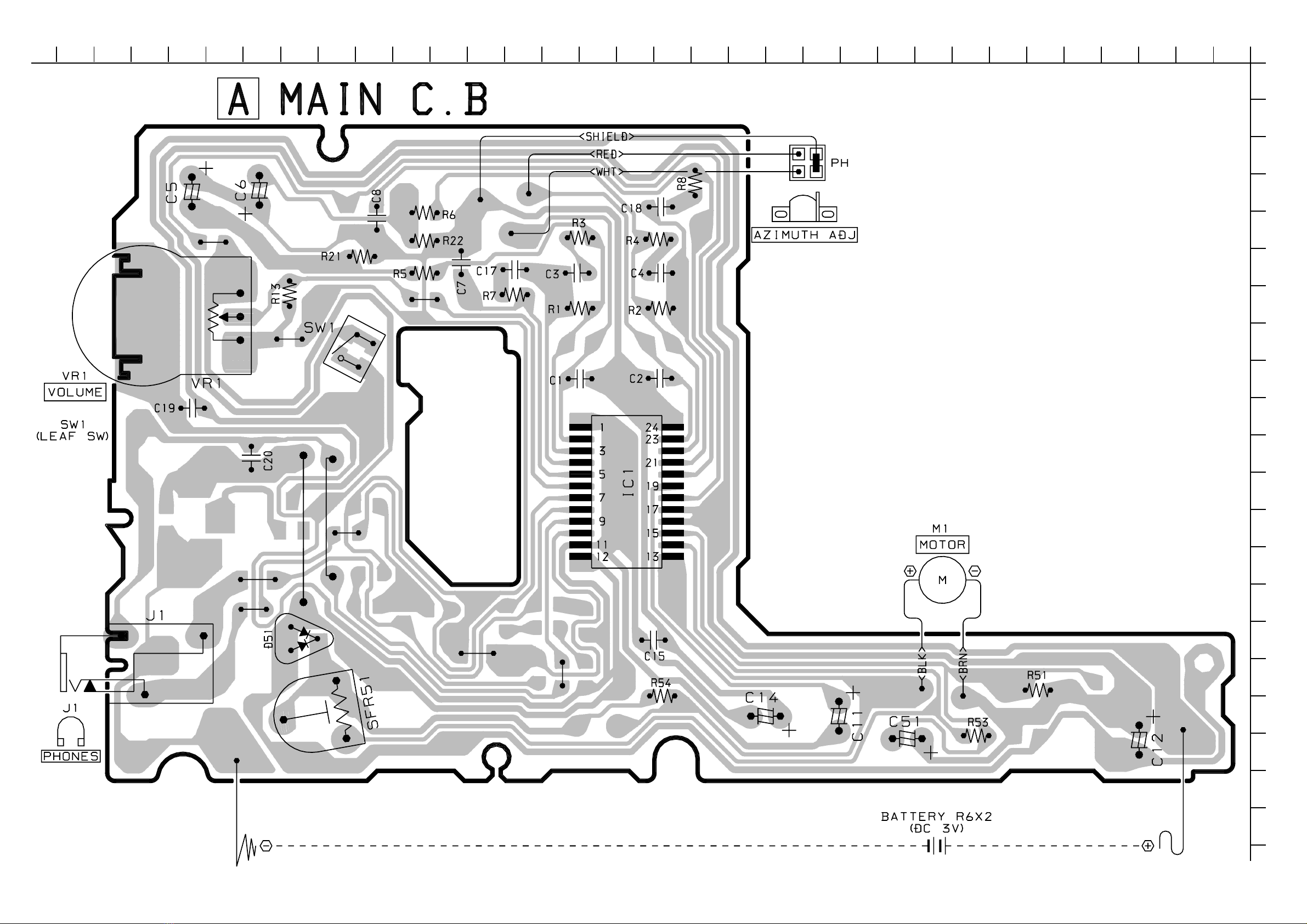

MAIN C.B

C1 87-A11-554-080 0E C-CAP,S 1800P-50 K B

C2 87-A11-554-080 0E C-CAP,S 1800P-50 K B

C3 87-A11-565-080 0E C-CAP,S 8200P-50 K B

C4 87-A11-565-080 0E C-CAP,S 8200P-50 K B

C5 87-015-674-040 0E CAP E 22-6.3M SRA

C6 87-015-674-040 0E CAP E 22-6.3M SRA

C7 87-A11-553-080 0E C-CAP,S 1500P-50 K B

C8 87-A11-553-080 0E C-CAP,S 1500P-50 K B

C11 87-A10-489-040 0E CAP,E 220-4 7L SR

C12 87-A10-489-040 0E CAP,E 220-4 7L SR

C14 87-015-681-040 0E E/CAP 10-16

C15 87-A11-718-080 0E C-CAP,S 0.1-25 Z F

C17 87-A11-733-080 0E C-CAP,S 1-16 Z F

C18 87-A11-733-080 0E C-CAP,S 1-16 Z F

C19 87-A11-733-080 0E C-CAP,S 1-16 Z F

C20 87-A11-718-080 0E C-CAP,S 0.1-25 Z F

C51 87-015-695-040 0E E/CAP 1-50 SRA

J1 85-HRL-623-010 0E JACK,3.5 ST BLK

R51 87-A00-530-080 0E C-RES,S 180-1/10W F

SFR51 87-024-197-010 0E SEMI-FIXED RESISTOR, 1K

SW1 87-A90-133-110 0E SW,LEAF LSA1120JAU

VR1 87-A91-581-010 0E VR,RTRY 20KBX1

Resistor Code

Chip Resistor Part Coding

Figure

Value of resistor

Chip resistor

Wattage Type Tolerance

1/16W

1/10W

1/8W

1608

2125

3216

Form

LW t

1.6 0.8 0.45

2 1.25 0.45

3.2 1.6

108

118

128

: A

CHIP RESISTOR PART CODE

0.55

Resistor Code

Dimensions (mm)

Symbol

1/16W 1005 5% CJ

1.0 0.5 0.35 104

WIRING

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

– 4 –

– 5 –

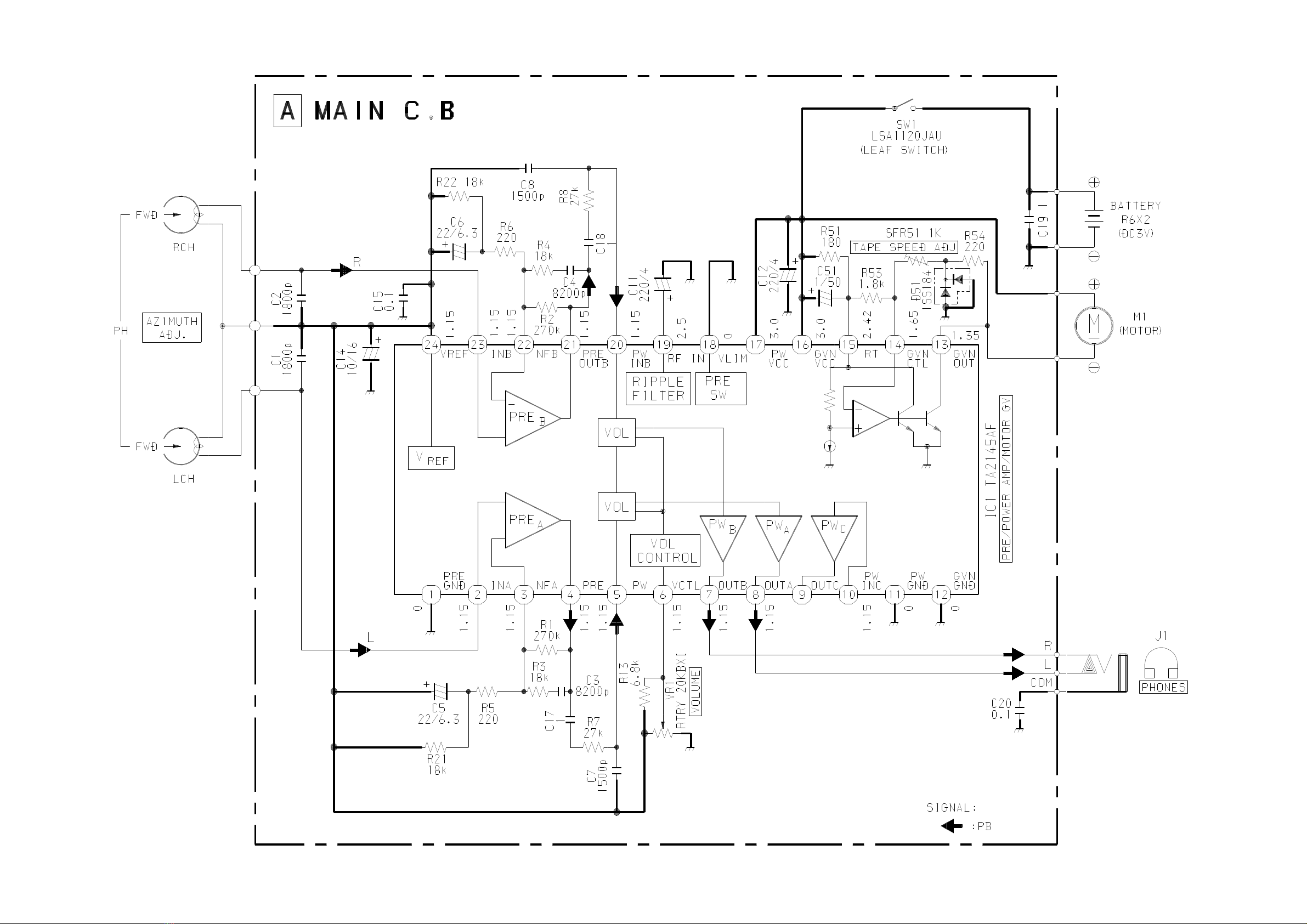

SCHEMATIC DIAGRAM

– 6 –

ADJUSTMENT

– 7 –

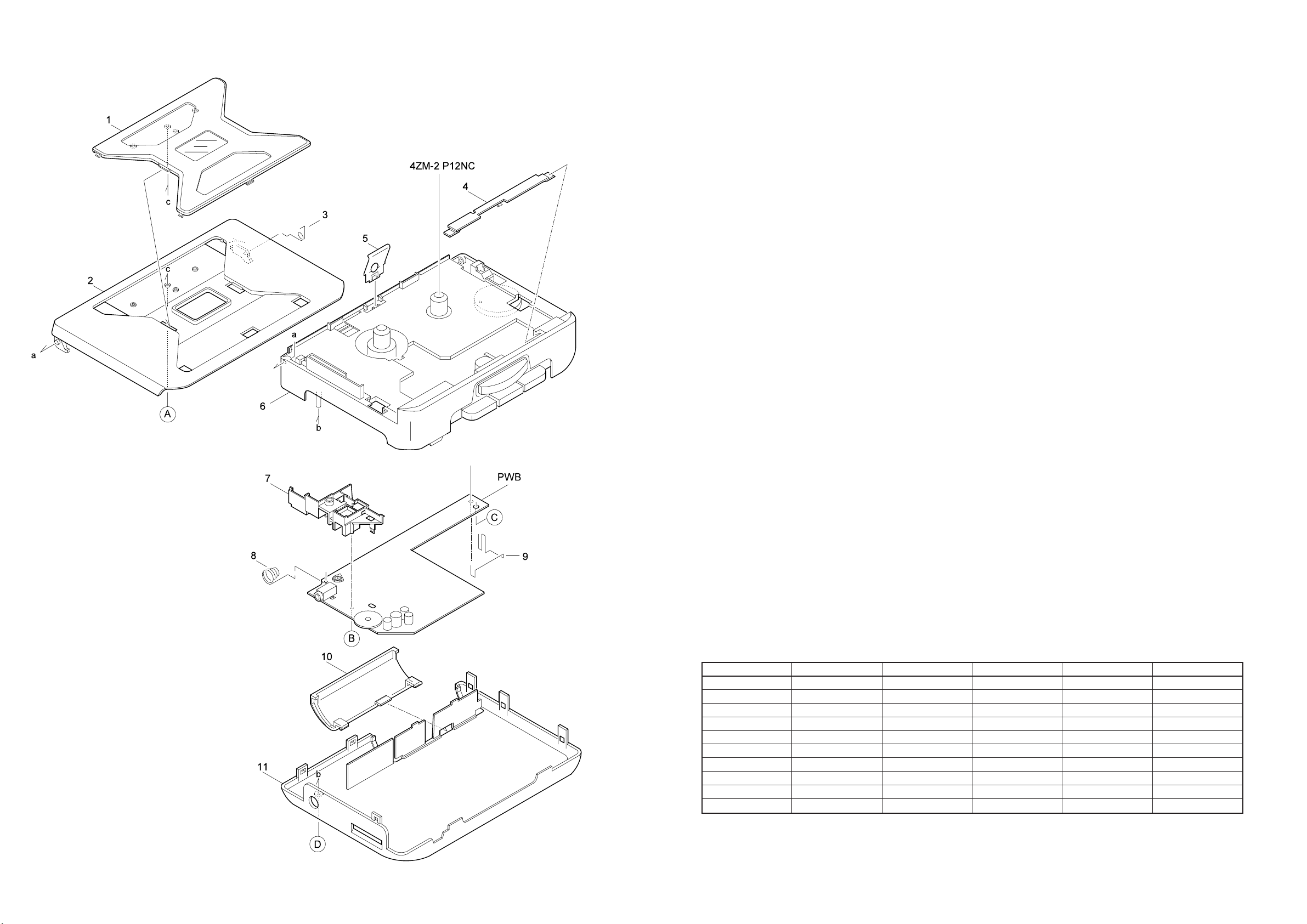

MECHANICAL EXPLODED VIEW 1 / 1 MECHANICAL PARTS LIST 1 / 1

1 8Z-HKB-059-010 1C PANEL,CASS CP8S

2 8Z-HKB-009-010 1A LID,CASS SIL

3 86-HRM-205-010 0E SPR-T,CLICK

4 87-HRR-206-010 0E PLATE,HEAD J034

5 8A-HRL-202-010 0E SPR-P,CASS

6 8Z-HKB-060-010 -- FRAME,CENTER CP8S

7 8Z-HKA-201-010 0E HLDR,JACK

8 8Z-HKA-205-010 0E BAT-CONTACT,(-)

9 8A-HKA-201-010 0E BAT-CONTACT,(+)

10 8Z-HKA-019-010 0E LID,BATT J049N

11 8Z-HKB-061-010 -- CABI,REAR CP8S

A 87-067-732-010 0E TAPPING SCREW, VT1.4-3

B 87-067-384-010 0E SCREWVT1.4-3.5HL

C 87-264-525-310 0E SCREW, V+1.7-2.5

D 87-067-691-010 0E SCREW VT+1.7-6

DESCRIPTIONREF.

NO.

KANRI

NO.

PART NO.

COLOR NAME TABLE

Basic color symbol Color Basic color symbol Color Basic color symbol Color

B Black C Cream D Orange

G Green H Gray L Blue

LT Transparent Blue N Gold P Pink

R Red S Silver ST Titan Silver

T Brown V Violet W White

WT Transparent White Y Yellow YT Transparent Yellow

LM Metallic Blue LL Light Blue GT Transparent Green

LD Dark Blue DT Transparent Orange GM Metallic Green

YM Metallic Yellow DM Metallic Orange PT Transparent Pink

LA Aqua Blue

– 8–

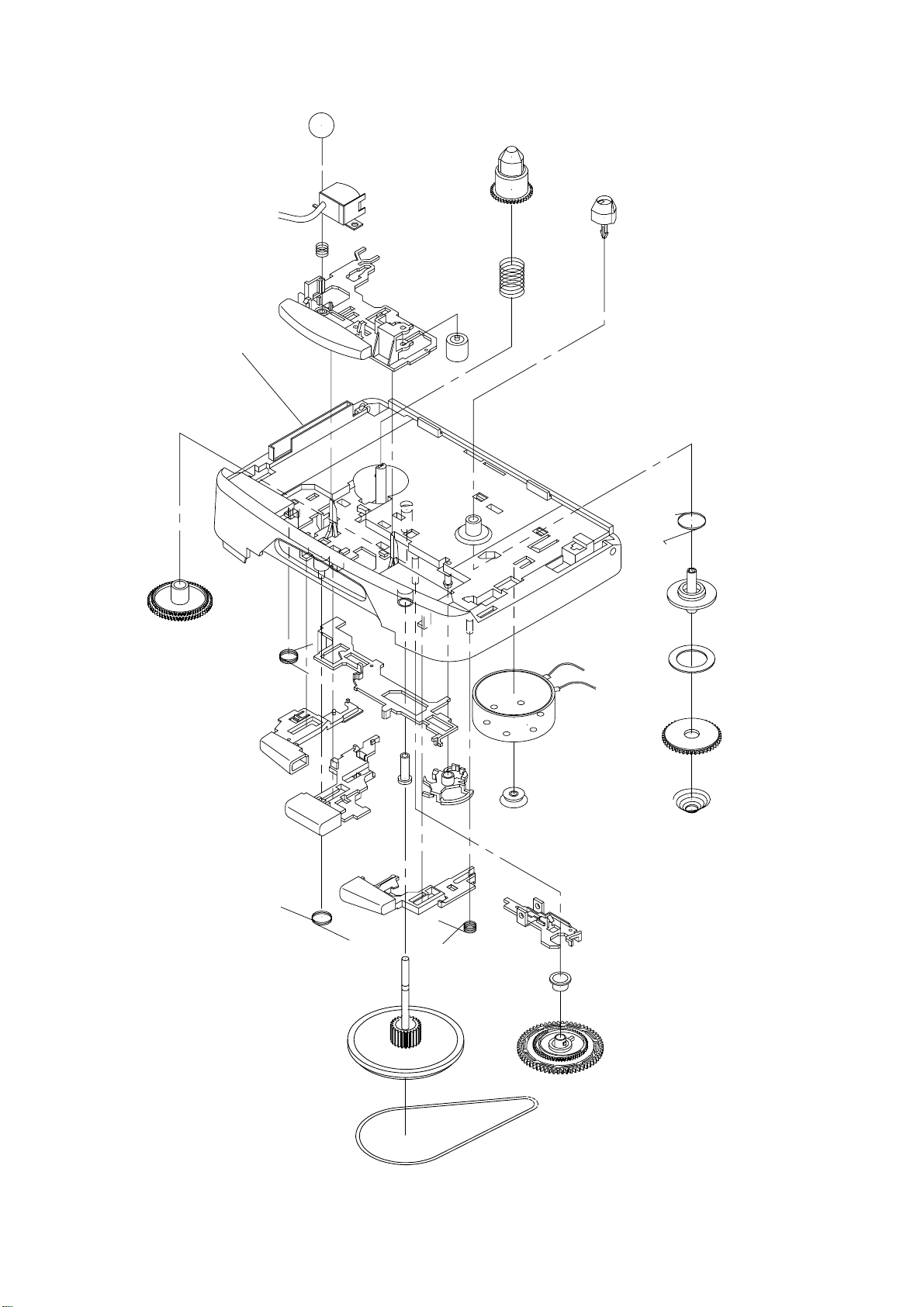

TAPE MECHANISM EXPLODED VIEW 1 / 1

REEL TABLE,L

SHAFT,REEL

FELT,CLUTCH

LEVER,REW G

FRAME,CENTER

–9–

DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

TAPE MECHANISM PARTS LIST 1 / 1

1 84-ZM2-012-110 0E LEVER,PLAY G

2 84-ZM2-211-110 0E GEAR,CONNECT

3 84-ZM2-222-110 0E SPR-T,PLAY

4 84-ZM2-015-110 0E LEVER,STOP G

5 84-ZM2-216-210 0E REEL TABLE,R

6 84-ZM2-013-110 0E LEVER,FF G

7 84-ZM2-223-110 0E SPR-T,REW STOP

8 84-ZM2-232-310 0E BELT,MAIN

9 09-001-421-010 -- FLY-WHL,P ASSY

10 84-ZM2-228-310 0E SPR-C,BT

11 84-ZM2-220-110 0E BRG,P

12 84-ZM2-210-210 0E GEAR,AUTO

13 84-ZM2-218-110 0E CAP,GEAR AUTO

14 84-ZM2-208-510 0E LEVER,SHIFT

15 84-ZM2-224-110 0E SPR-T,FF LOCK

16 84-ZM2-207-310 0E LEVER,AUTO

17 84-ZM2-206-410 0E LEVER,LOCK

18 84-ZM2-219-010 0E PULLEY,MOTOR

19 87-A91-379-010 1D MOT,BCY3B-13

20 84-ZM2-226-510 0E SPR-C,CLUTCH

21 84-ZM2-212-010 0E GEAR,CLUTCH

22 84-ZM2-233-110 0E ROLLER ASSY,PINCH

23 84-ZM2-227-310 0E SPR-C,AZIMUTH

24 84-ZM2-225-010 0E SPR-T,AUTO FIND

25 87-A91-458-010 1B HEAD,AP 4211TA

A 84-ZM2-252-010 0E S-SCREW,AZI-2-6.4 C

–10–

ACCESSORIES / PACKAGE LIST

DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

1 8Z-HKB-914-010 -- IB,D(J)

2 84-447-019-310 0E CLIP,BELT

3 87-B30-195-110 1AHEADPHONE,HP-M029(F)
