SERVICE MANUAL

DATA

STEREO RADIO

CASSETTE PLAYER BASIC TAPE MECHANISM : CL-850-5 SIL

HS-RX308

HS-RX408

S/M Code No. 09-003-425-5C1

CORRECTION

• This Correction Service Manual is issued because of some errors in Service

Manual of MODEL NAME HS-RX308 (YZ) / HS-RX408 (YU,YL,YZ,YH,YJ),

(S/M Code No. 09-002-425-5R1).

YZ

YU,YL,

YZ,YH,YJ

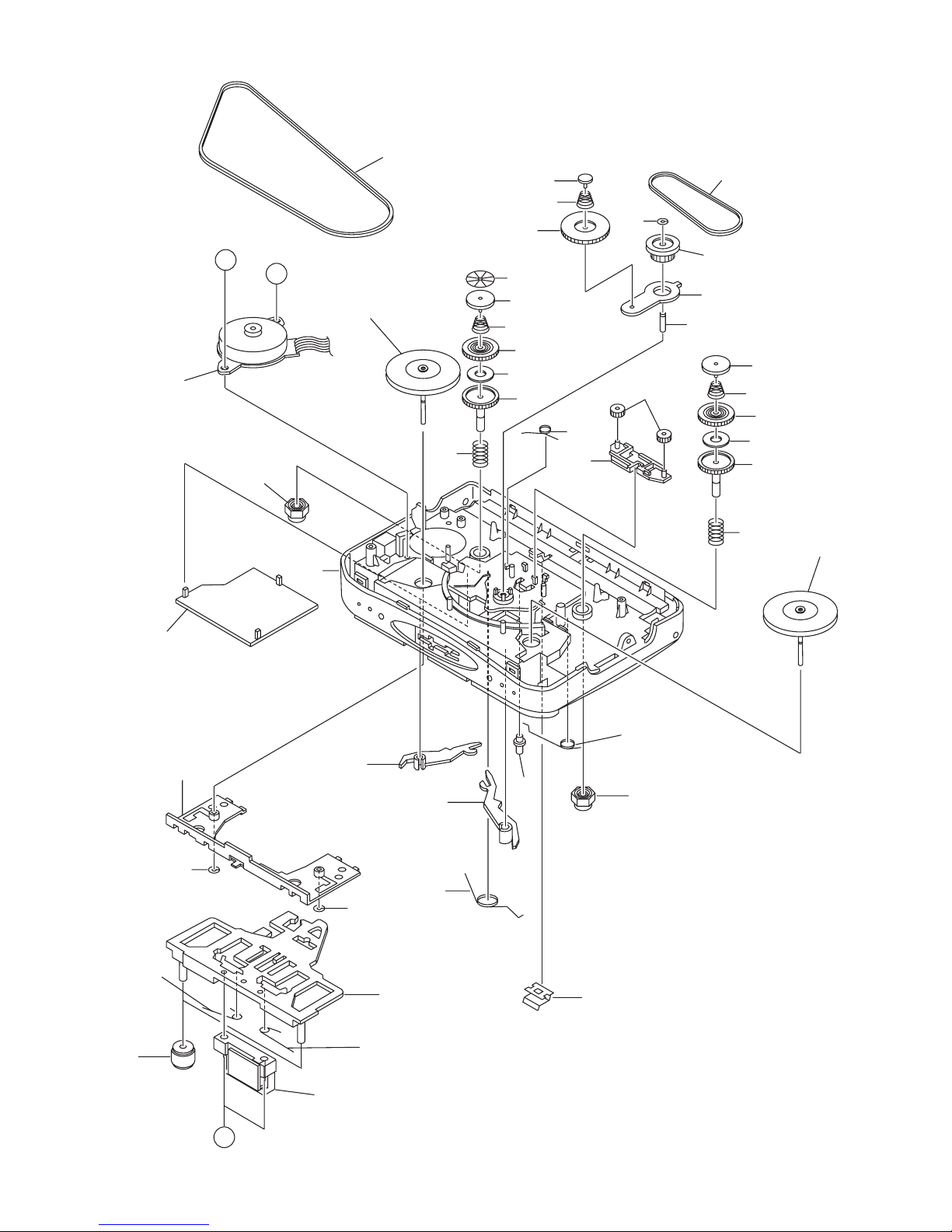

TAPE MECHANISM EXPLODED VIEW 1 / 1

-2-

24

20

33

21

C

B8

7

7

6

6

5

5

4

4

3

3

9

9

18

19

17

13

14

12 16

15

11

2

23

29

28 10

26

25

34

10

1

38

22

22

27

30

36

35

31

37

32

A

TAPE MECHANISM PARTS LIST 1 / 1

DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

-3-

1 8A-HR8-003-010 FRAME CENTER

2 S8-505-240-000 GEAR SHAFT

3 S8-505-070-000 REEL GEAR T

4 S8-505-080-000 CLUTCH GEAR

5 S8-505-300-000 FELT

6 S8-505-200-000 CLUTCH SP

7 S8-505-120-000 REEL GEAR BUSH

8 S8-505-290-000 REFLECTING PLATE

9 S8-505-210-000 BRACK TENSHION SP

10 S8-000-100-000 REEL CAP

11 S8-505-090-000 FWD GEAR PLATE

12 S8-505-060-000 FWD GEAR

13 S8-505-250-000 GEAR PLATE PIN

14 S8-505-220-000 FWD GEAR SP

15 S8-505-050-000 CENTER GEAR

16 S1-2X2-5X0-25L L CUT W

17 S8-505-320-000 FF GEAR HOLDER

18 S8-505-330-000 FF GEAR

19 S8-505-310-000 GEAR HOLDER SP

20 S8-550-3K0-000 FLYWHEEL R ASSY

21 87-A91-563-010 MOTOR(IBIGB02)

22 S1-2X2-5X0-1LC L CUT W

23 SV-500-000-000 SUB BELT

24 SV-190-000-000 MAIN BELT

25 S8-505-100-000 FWD ARM

DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

26 S8-505-110-000 REV ARM

27 S8-505-260-000 SUB CHASSIS

28 S8-505-160-000 REV SELECT

29 S8-505-190-000 SELECT SP

30 S8-505-020-000 HEAD BASE

31 S7-000-080-000 PINCH ROLLER

32 87-A91-019-010 HEAD ASSY(PH8ZM-3)

33 S8-550-4K0-000 FLYWHEEL L ASSY

34 S8-300-160-000 HEAD BASE SP

35 S8-300-170-000 PINCH SP FWD

36 S8-500-090-000 PINCH SP REV

37 8A-HR8-214-010 SPR-P CASS

38 S8-505-130-000 COVER

A S1-PB1-7X5-500 SCREW 1.7-5.5

B S3-PY1-7X2-500 SCREW 1.7-2.5

C S3-PB1-7X3-000 SCREW

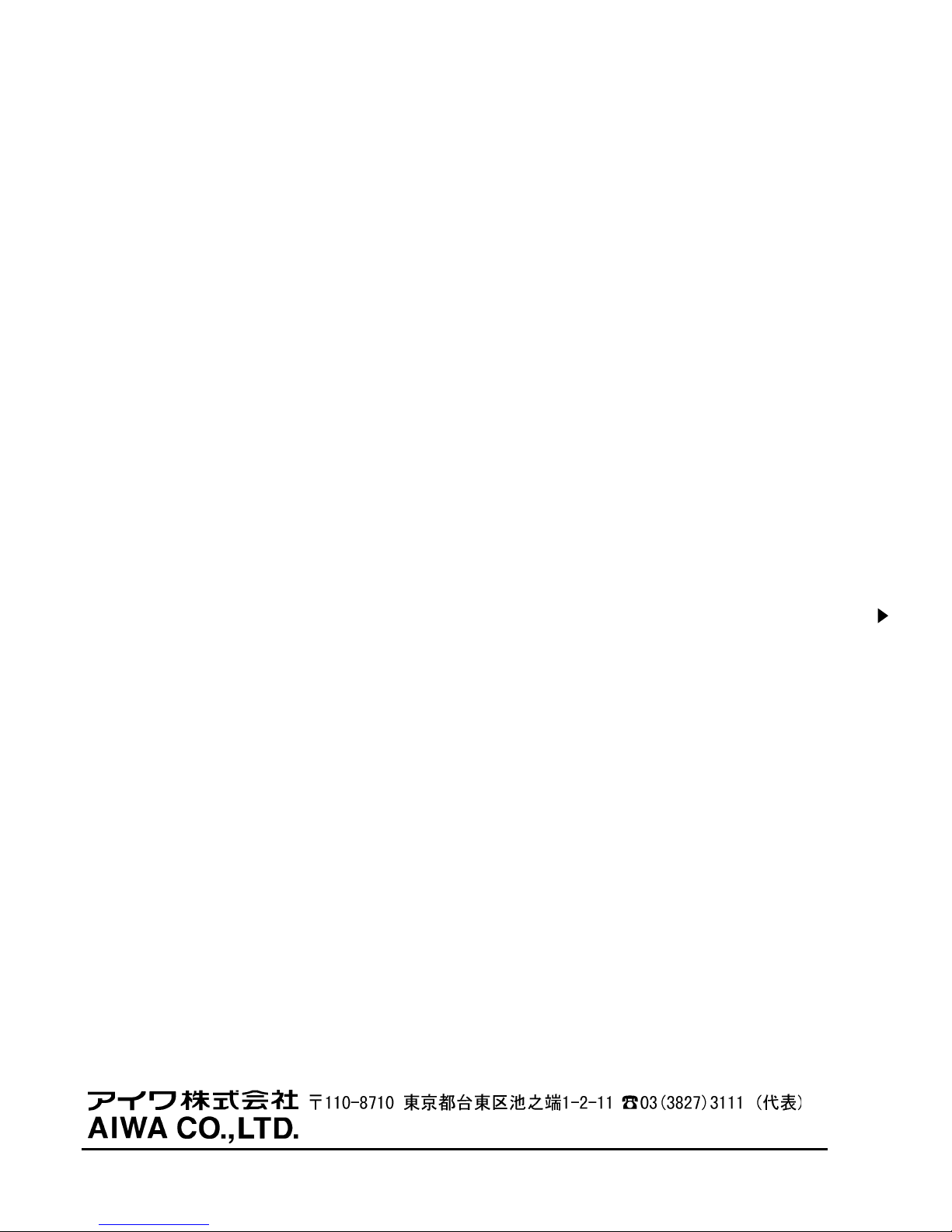

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111

Printed in Singapore9630469 0251431
