SERVICE MANUAL

DATA

CD CARRY COMPONENT SYSTEM

CA-DW235

CA-DW245

LH,HA,K,HR

S/M Code No. 09-011-410-3S3

SUPPLEMENT

• This Service Manual contains information about the difference between

the CD MECHANISM “DA11T3C” and “KSM-213 CDM” for the MODEL

CA-DW235(U)/245(LH,HA,K,HR).

If requiring other information, see Service Manual of

CA-DW235(U)/245(LH,HA,K), (S/M Code No. 09-995-410-3R1),

CA-DW245(HR)/XG-E15/E16(D), (S/M Code No. 09-998-410-3R2).

BASIC TAPE MECHANISM : TN-21ZSW-1694

BASIC CD MECHANISM : DA11T3C

– 2 –

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

This set employs laser. Therefore, be sure to follow carefully

the instructions below when servicing.

WARNING!!

WHEN SERVICING, DO NOT APPROACH THE LASER

EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS

NECESSARY TO CONFIRM LASER BEAM EMISSION.

BESURETOOBSERVEFROMADISTANCEOFMORE

THAN 30cm FROM THE SURFACE OF THE OBJEC-

TIVE LENS ON THE OPTICAL PICK-UP BLOCK.

sCaution: Invisible laser radiation when

open and interlocks defeated avoid

exposure to beam.

sAdvarsel: Usynliglaserstålingvedåbning,

nårsikkerhedsafbrydereerudeaffunktion.

Undgå udsættelse for stråling.

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa

mainitulla tavalla saataa altistaa käyt-täjän

turvallisuusluokan 1 ylittävälle näkymättömälle

lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än vad som

specificeras i denna bruksanvising, kan användaren

utsättas för osynling laserstrålning, som överskrider

gränsen för laserklass 1.

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

CAUTION

Use of controls or adjustments or performance of proce-

dures other than those specified herin may result in

hazardous radiation exposure.

ATTENTION

L’utillisation de commandes, réglages ou procédures

autresque ceuxspécifiés peutentraîner unedangereuse

exposition aux radiations.

ADVARSEL

Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer

ude af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1

LASER product.

The CLASS 1 LASER PRODUCT label is located on the

rear exterior.

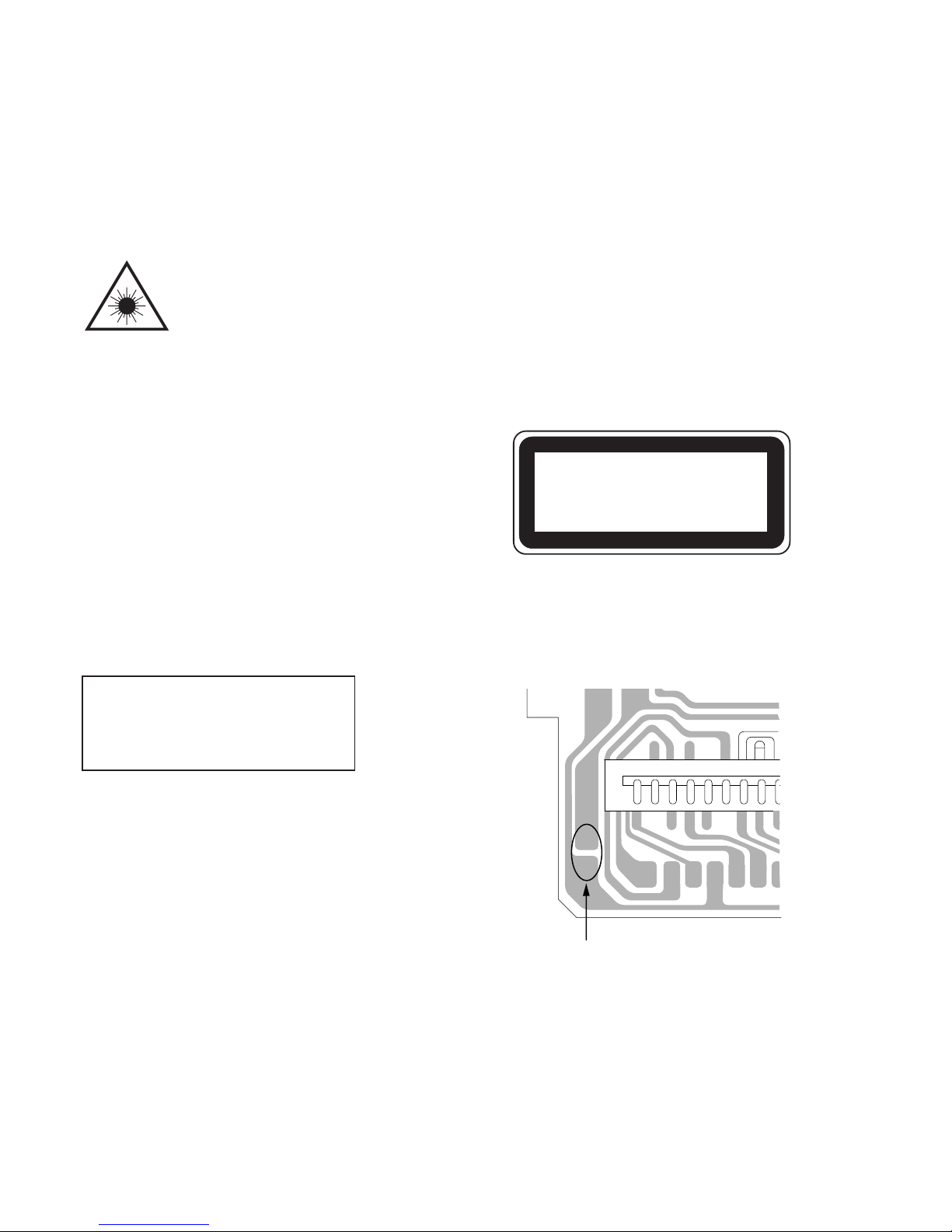

Precaution to replace Optical block

(SF-P101NR)

Body or clothes electrostatic potential could

ruin laser diode in the optical block. Be sure

ground body and workbench, and use care the

clothes do not touch the diode.

1) After the connection, remove solder shown in

right figure.

Solder

CD PICK-UP ASSY. PWB

– 3 –

ELECTRICAL MAIN PARTS LIST

KANRI

NO.

REF. NO. DESCRIPTIONPART NO.

CD MOTOR C.B

M1 S0-M10-A09-700 MOTOR SLED ASSY

PIN3 S2-369-750-000 PLUG,6P

SW1 S4-S13-A01-600 SW,LEAF

REF NO. CD MECHANISIM

KSM-213CDM DA11T3C

C422

C423

C424

C439

R412

R413

R420

R431

R432

R434

R445

R447

R448

2700P

0.068M

0.018M

NO MOUNT

68K

39K

47K

560K

JUMPER

3.9K

10K

56K

3300P

0.047M

0.22M

1000P

220K

15K

270K

47K

18K

15K

NO MOUNT

KANRI

NO.

REF. NO. DESCRIPTIONPART NO.

MECHANICAL PARTS LIST 1 / 1

66 87-A91-369-010 SW,AC SL 2 2 2 SDKGA41700<*EXP U,K>

ADD 8Z-CT9-064-010 PANEL,CD SANYO

ADD 8Z-CT6-214-010 RING,CHUCK

ADD 86-CT9-217-010 HLDR,CHUCK A (S)

ADD 87-651-075-210 VT1+2.6-10

ADD 87-751-094-410 VT2+3-6 W/O SLOT

ADD 87-751-095-410 VT2+3-8 W/O SLOT

ADD 87-721-095-410 QT2+3-8 W/O SLOT

ADD 87-751-097-410 VT2+3-12 W/O SLOT

ADD 87-651-100-410 VT1+3-16

ADD 87-651-104-410 VT1+3-30

ADD 87-571-033-410 VIT+2-4

ADD 87-261-072-410 V+2.6-5

* NOTE :<EXP U,K> = <EXCEPT 235U,245K>

COLOR NAME TABLE

Basic color symbol Color Basic color symbol Color Basic color symbol Color

B Black C Cream D Orange

G Green H Gray L Blue

LT Transparent Blue N Gold P Pink

R Red S Silver ST Titan Silver

T Brown V Violet W White

WT Transparent White Y Yellow YT Transparent Yellow

LM Metallic Blue LL Light Blue GT Transparent Green

LD Dark Blue DT Transparent Orange GM Metallic Green

YM Metallic Yellow DM Metallic Orange PT Transparent Pink

LA Aqua Blue GL Light Green

– 4 –

123456789101112131415

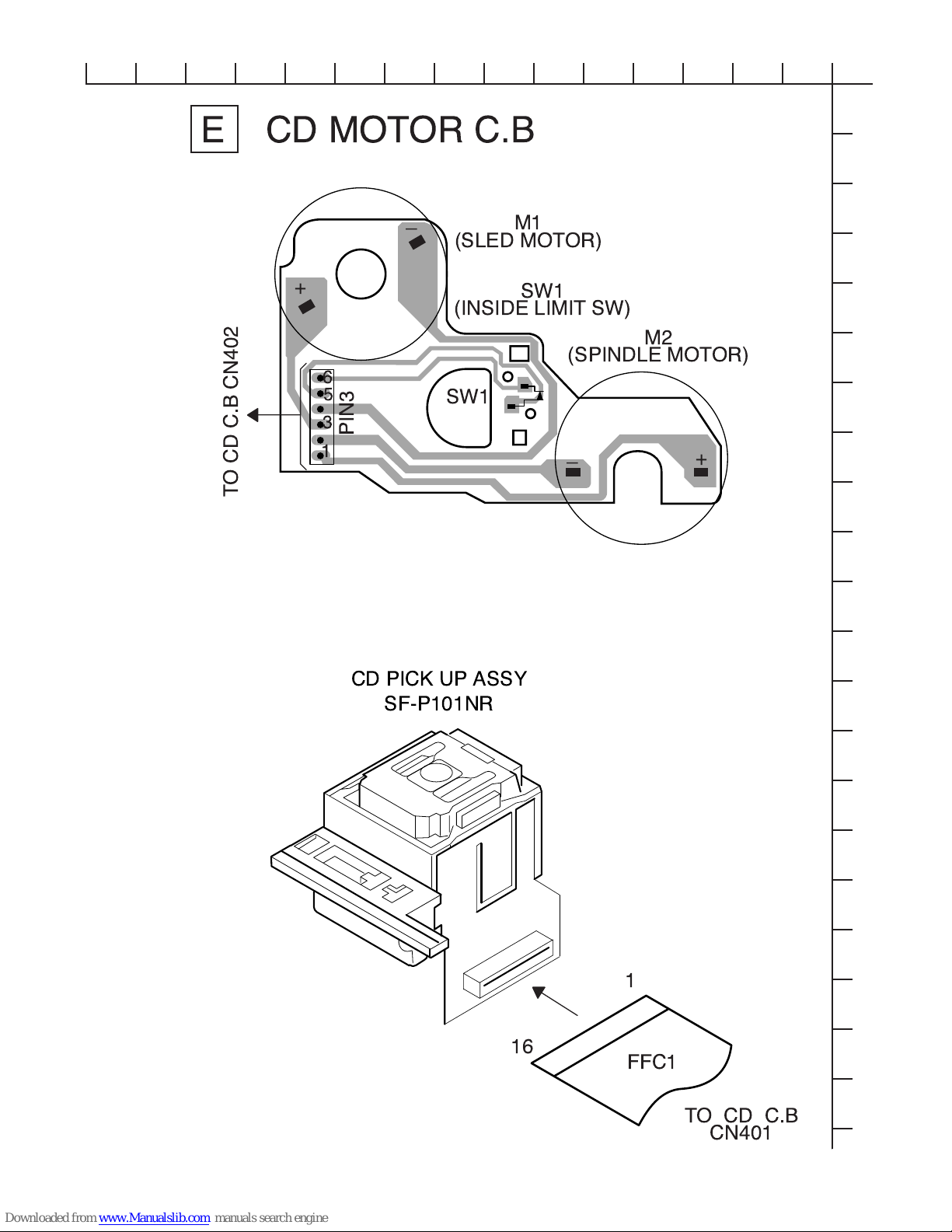

WIRING (CD MOTOR)

E CD MOTOR C.B

TO CD C.B

CN401

CD PICK UP ASSY

SF-P101NR

FFC1

PIN3

SW1

+SW1

(INSIDE LIMIT SW)

(SLED MOTOR)

TO CD C.B CN402

(SPINDLE MOTOR)

– 6 –

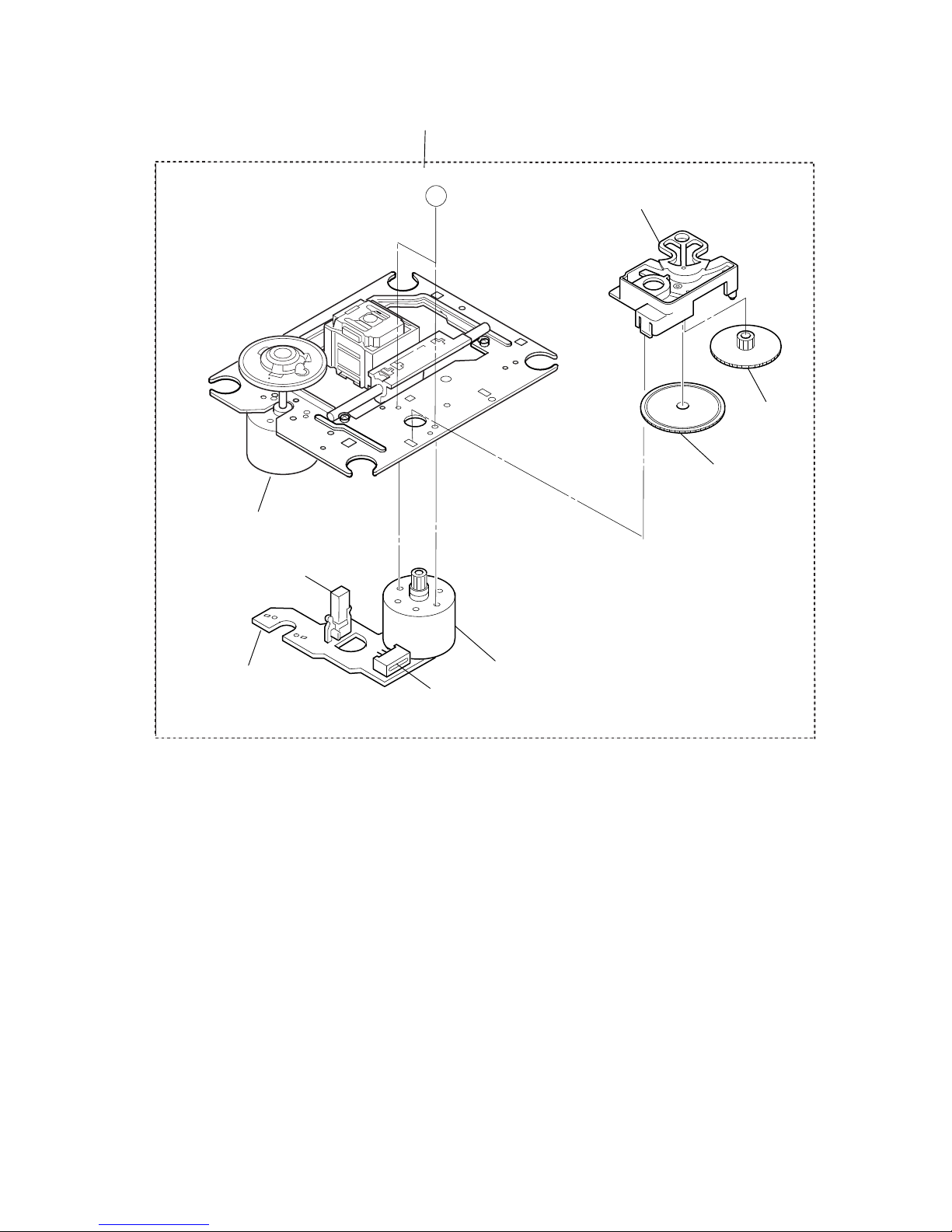

CD MECHANISM EXPLODED VIEW 1 / 1

CD MECHANISM PARTS LIST 1 / 1

DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

1 M8-ZZK-E90-070 DA11T3C

2 S2-121-A28-400 COVER GEAR

3 S2-511-A21-000 GEAR MIDDLE

4 S2-511-A21-100 GEAR,DRIVE

A S1-PN2-03R-OSE SCR PAN PCS 2-3

PIN 3

SW1

CD MOTOR C.B

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111

Printed in Singapore9620450 0251431
