Aiwa LCX-K170 Manuale utente

SPEAKER SYSTEM

SX-AVR1700

SX-AV1700

SX-C1700

SX-R1700

S/M Code No. 09-993-328-1N2

Y

Y

Y

Y

SERVICE MANUAL

DATA

SX-AV1700

SX-R1700

SX-C1700

aiwa

aiwa

aiwa

aiwa

aiwa

2

SPECIFICATIONS SX-AV1700

Speaker 2 way 3 speakers

Woofer: 100 mm, cone type

Tweeter: 60 mm, cone type

Passive radiator: 100 mm

Impedance 8 ohms

Maximum input power 75 W (peak)

Dimensions (W x H x D) 170 x 500 x 205 mm (63/4x 193/4x 81/8in.)

Weight 2.8 kg (6 lbs 3 oz)

• Design and specifications are subject to change without notice.

SX-C1700

Speaker Full-range: 100 mm x 2, cone type

Impedance 8 ohms

Maximum input power 75 W (peak)

Dimensions (W x H x D) 430 x 120 x 175 mm (17 x 43/4x 7 in.)

Weight 2.7 kg (5 lbs 15 oz)

• Design and specifications are subject to change without notice.

SX-R1700

Speaker Full-range: 100 mm x 1, cone type

Impedance 8 ohms

Maximum input power 75 W (peak)

Dimensions (W x H x D) 120 x 230 x 175 mm (43/4x 91/8x 7 in.)

Weight 1.9 kg (4 lbs 3 oz)

• Design and specifications are subject to change without notice.

REF. NO PART NO. KANRI DESCRIPTION

NO.

1 8Z-AS3-906-010 IB,Y(9L)C

ACCESSORIES LIST

3

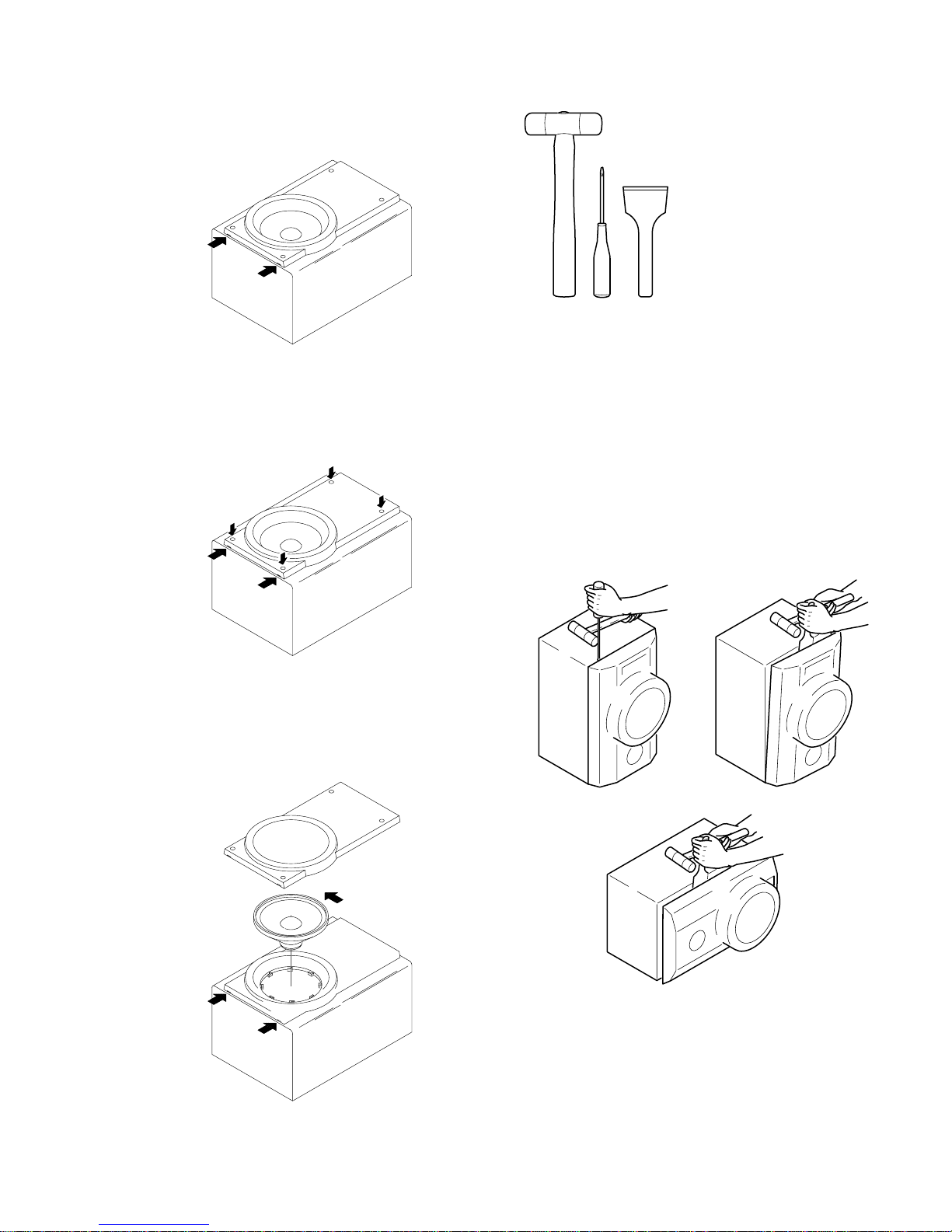

SPEAKER DISASSEMBLY INSTRUCTIONS

Insert a flat-bladed screwdriver into the position indicated by the

arrows and remove the panel. Remove the screws of each speaker

unit andthen remove the speaker units.

Remove the grill frame and four pieces of rubber caps by pulling

out with a flat-bladed screwdriver. Remove the screws from hold

where installed rubber caps. Insert a flat-bladed screwdriver into

the position indicated by the arrows and remove the panel. Re-

move the screws of each speaker unit and then remove the speaker

units.

Insert a flat-bladed screwdriver into the position indicated by the

arrows and remove the panel. Turn the speaker unit to counter-

clockwise direction while inserting a flat-bladed screwdriver into

one of the hollows arround speaker unit, and then remove the speaker

unit. After replacing the speaker unit, install it turnning to clock-

wise direction unitil "click" sound comes out.

Type.1

Type.3

Type.2

TOOLS

1Plastic head hammer

2(-) flat head screwdriver

3Cut chisel

How to Remove the PANEL, FR

1. Insert the (-) flat head screwdriver tip into the gap

between the PANEL, FR and the PANEL, SPKR. Tap

the head of the (-) flat head screwdriver with the plastic

hammer head, and create the clearance as shown in Fig-1.

2. Insert the cut chisel in the clearance, and tap the head of

the cut chisel with plastic hammer as shown in Fig-2, to

remove the PANEL, FR.

3. Place the speaker horizontally. Tap head of the cut

chisel with plastic hammer as shown in Fig-3, and

remove the PANEL, FR completely.

Type.4

Fig-1 Fig-2

Fig-3

How to Attach the PANEL, FR

Attach the PANEL, FR to the PANEL, SPKR. Tap the four

corners of the PANEL, FR with the plastic hammer to fit the

PANEL, FR into the PANEL, SPKR completely.

1 2 3

920074 Printed in Singapore

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111

SPEAKER PARTS LIST

REF. NO PART NO. KANRI DESCRIPTION

NO.

1 8Z-AS3-001-010 GRILLE,FRAME ASSY

2 8Z-AS3-602-010 SPKR, 100

3 8Z-AS3-604-010 SPKR, 100

4 8Z-AS3-606-010 SPKR, TW 50

5 8Z-AS3-005-010 TERMINAL,ASSY

6 88-AS1-609-010 SPKR, CORD 30M

SX-AV1700

REF. NO PART NO. KANRI DESCRIPTION

NO.

1 8Z-AS4-001-010 GRILLE,FRAME ASSY

2 8Z-AS4-602-010 SPKR, 100

3 8Z-AS4-003-010 TERMINAL,ASSY

SX-C1700

REF. NO PART NO. KANRI DESCRIPTION

NO.

1 8Z-AS5-601-010 SPKR, 100

2 8Z-AS5-001-010 GRILLE,FRAME ASSY

3 8Z-AS5-005-010 TERMINAL,ASSY

SX-R1700
