Aiyima A01 PRO Manuale di installazione e funzionamento

Website:www.aiyima.com Email: [email protected]

Telephone: 86-0755-28268551 VK: https://vk.com/aiyima

Location: 4F, Building 7 Hekan industrial park. Wuhe south road 41. Long-Gang district.

ShenZhen. CHINA. 518000

Shenzhen Yima Technology Co.,Ltd

Bluetooth 5.1

2.0 Channel Ampliﬁer

USER MANUALS

Model A01 PRO:

Front And Rear Panel Description Operation Steps

Specification Parameters

FQA

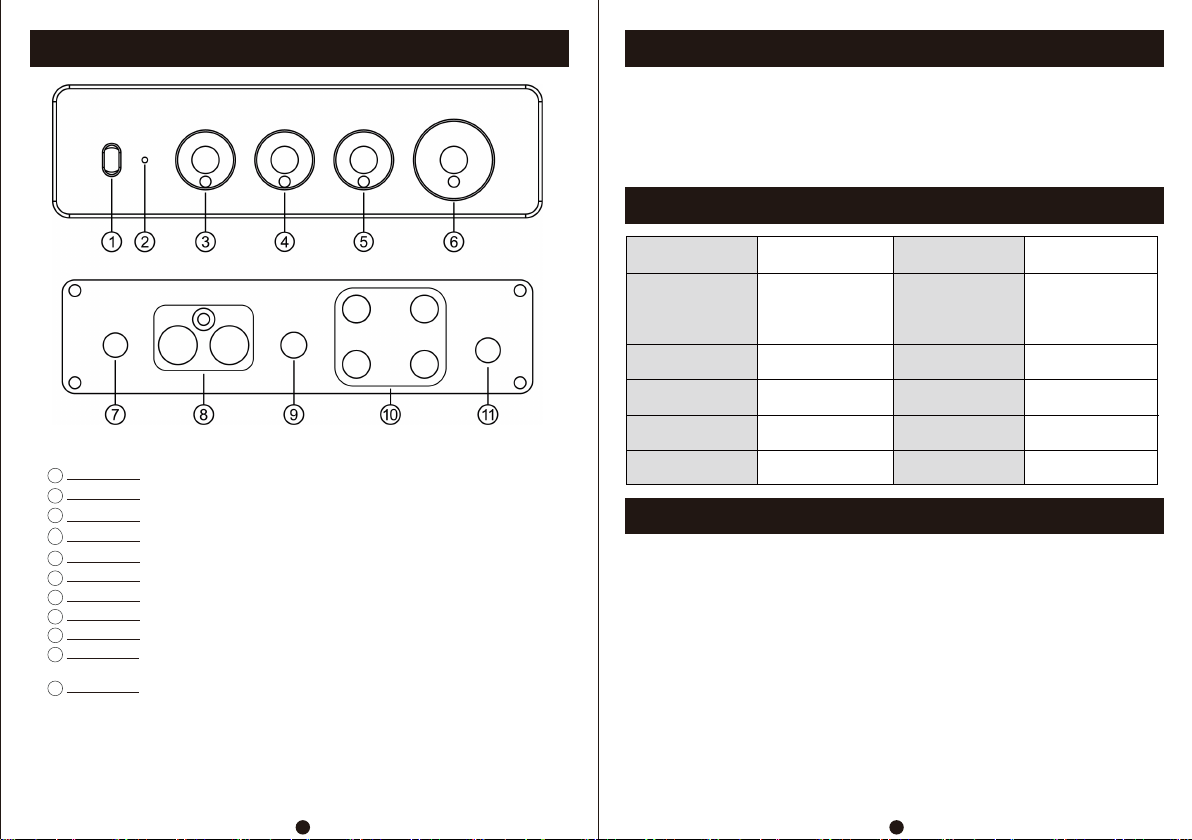

Power switch /RCA/BT input switch

Working Indicator

Bass control knob

Treble adjustment knob

Master volume control knob

Bluetooth input

RCA input

3.5mm Signal output

Speaker interface (red/positive, black/negative; R connected to

right speaker, L connected to left speaker)

11 Power interface (DC voltage range 15-24V)

Middle adjustment knob

1.Connect the passive speaker to the speaker interface.

2.Connect the audio source to be used to the corresponding input interface.

3.Connect the power supply (DC voltage range 15-24V).

4.Start the machine and switch to the corresponding input channel.

5.Turn the knob to the right to adjust the appropriate volume and sound effect.

Maximum

Output Power

Adjustment range

of treble,

midrange and bass

Working Voltage

Input Sensitivity

Frequency Response

Speaker Impedance

Range

Bluetooth Version

3.5 Maximum

output level

100W*2（4Ω）

±6dB

DC15-24V

0.775V

20Hz-20KHz(±1.5dB)

4～8Ω

5.1

1.8V

THD

SNR

0.03%

≥100dB

0.88kg

Package Size

Net weight

L260*W230*H70mm

A: 1.Check whether the machine is started and switched to the corresponding input channel.

2.Check whether the volume knob pointer is in the leftmost state. If it is in the leftmost

state, turn the volume knob to the right.

3.If the above two points are normal, check whether the playback device of the input sound

source is paused, muted, or the volume is at the minimum.

Q: All my cables are connected, but there is no sound output?

A: The input level may be too large. If the volume of the sound source equipment is adjusted

to the maximum, and the volume of the machine is also adjusted to the maximum, it is easy

to be distorted. At this time, turn down the volume of the sound source input device or

machine.

Q: Why is the sound distorted?

1. Please do not open the shell. Improper operation may cause electric shock.

2. Please use the switching power supply of the formal manufacturer, otherwise the machine

may be damaged.

3. Do not use the machine in a hot or humid environment.

A: The amplitude of electrical signals output by different playback devices is different. For

example, mobile phones are usually 0.35V, while CDs are 1V. The natural sound size is

different.

Q: Why does the volume of the machine remain the same, but the sound

level is different when connecting to different audio sources (for example,

connect a CD first, then a mobile phone)?

A: If you use a power supply other than the original standard, please replace the power

supply before testing. Many power sources on the market have large interference

coefficient of the text wave, which will cause a large current sound.

Q: Why does the horn make a loud current sound?

A: When the unshielded signal line is unloaded, the interference signal will enter the power

amplifier for amplification. It is recommended to replace it with shielded signal wire or

unplug the signal wire.

Q: Why does the speaker make a loud buzzing sound when I plug in the

input cable and do not connect the playback source?

A: When using Bluetooth to test the distance, it is normal that the sound is not stuck or

disconnected (without any obstacles) within 10 meters.(Note: The router will interfere with

the Bluetooth signal. Don't get too close!)

Q: Why does Bluetooth sound intermittent?

Warning！
