D10CEA SDI to Component/
Composite Video with 4
Channel Audio
Converter
User Manual
June 28, 2005 P/N 101637-00
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - FAX 781.665.0780 - TestEquipmentDepot.com
1
3
AJA D10CEA SDI to Component/Composite Converter User Manual — Introduction
Introduction
The D1OCEA converts SDI video with embedded audio to 10-bit component or
composite analog video and 4 channel balanced analog audio. The video outputs can
be configured as YPbPr (Betacam or SMPTE/EBU N10), RGB, composite or Y/C
(S-Video). Two re-clocked loop-thru SDI outputs are also provided. This versatile
low-cost converter is ideal for video/audio monitoring.
The 4 channel analog audio outputs can be wired in a balanced or unbalanced
configuration. All audio output channels can be selected as group 1-4 from SMPTE
embedded audio. You have four settings of Audio level to choose from.
Output connections for video and audio are available on a 25 pin “D” subminiature
connector. A break-out cable is supplied with the converter for this purpose.
You can configure video and audio from a DIP switch accessed through a cut-out in
the converter’s case.
Features
•
SDI to analog audio and video converter
•
SDI with embedded audio input
•
2 re-clocked, loop-thru SDI outputs
•
10-bit component or composite analog video outputs
•
4 channel balanced analog audio output
•
Selectable audio level
•
Selectable audio channel group
•
External DIP switch user interface for configuration

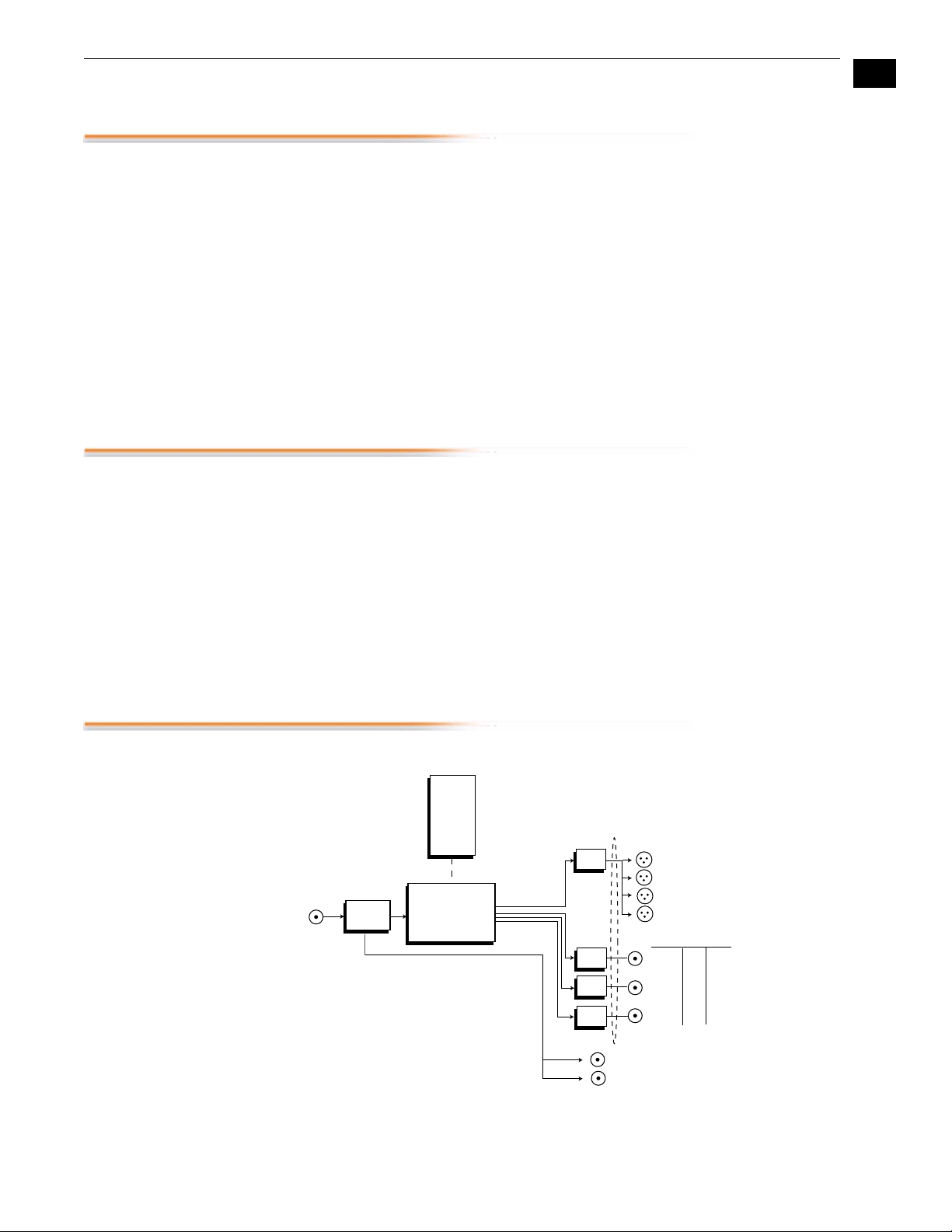

Block Diagram
D10CEA SDI Video with Embedded Audio Converter, Block Diagram
Serial
Video
with Embedded Audio
In
Filter
Audio
Filter
Filter
DIP
Switch
User
Interface
for
Feature
Selection
Video and
Audio D/A
ReClock
COMPONENT OUTPUTS (selected by DIP switch)
Serial Video Out 1
Serial Video Out 2
COMP
Break-out
Cable
Y
C
Clocked Loop-through SDI Outputs B
G
R
Y
Pb
Pr
Channel 1 Right
Channel 1 Left
Channel 2 Right
Channel 2 Left
4

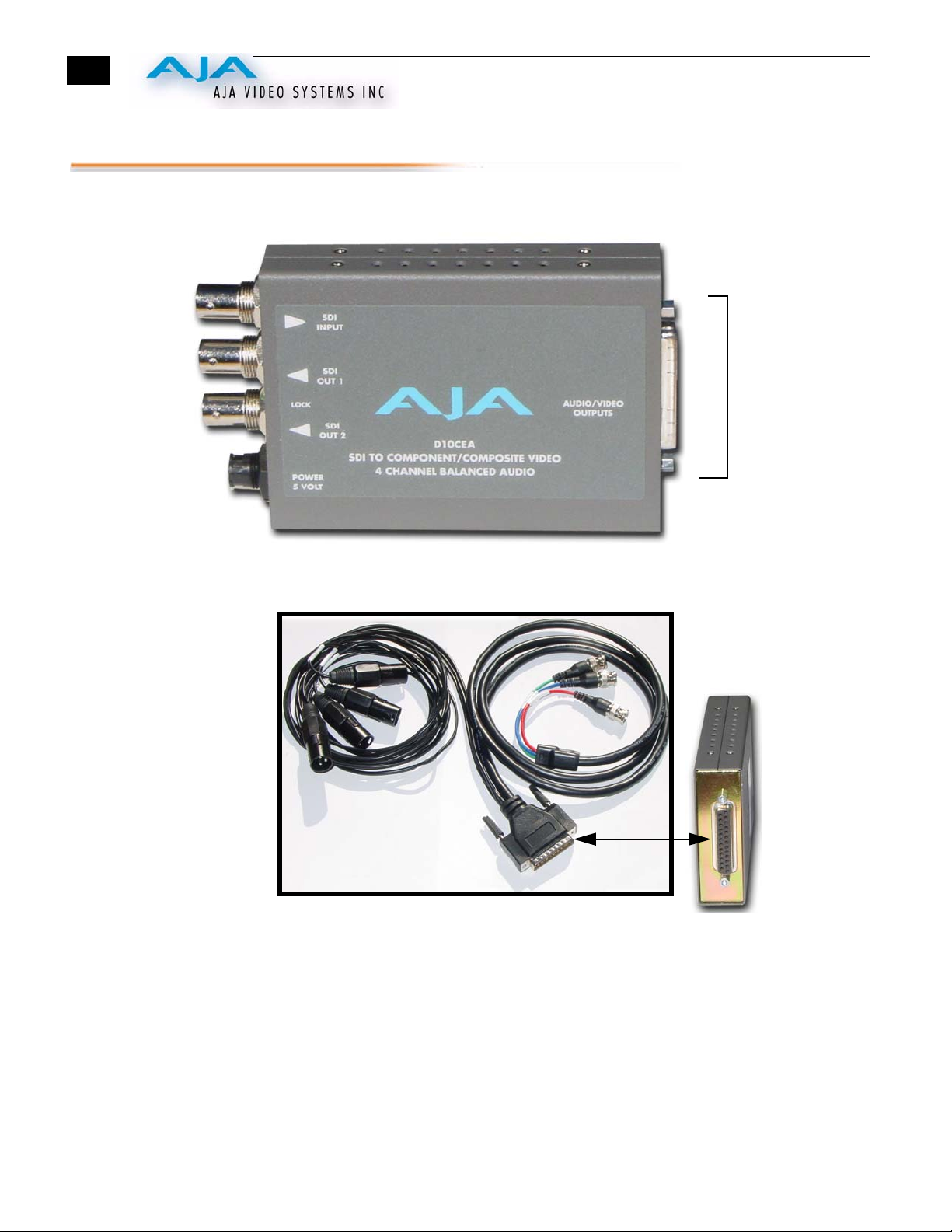

I/O Connections
D10CEA and Break-Out Cable
SDI Input
SDI Loop
SDI Loop
+ 5VDC
Configuration
Determined by
DIP switch on
Output 1
Output 2
Power
Input
BNC
BNC
BNC
back of
Converter
DB25 Connector
Attaches to Break-out
Cable (shown below)
providing Audio and
Video Outputs
Break-out Cable
(DB25 to 4 XLRs
and 3 BNCs)
1
5
AJA D10CEA SDI to Component/Composite Converter User Manual — User Controls

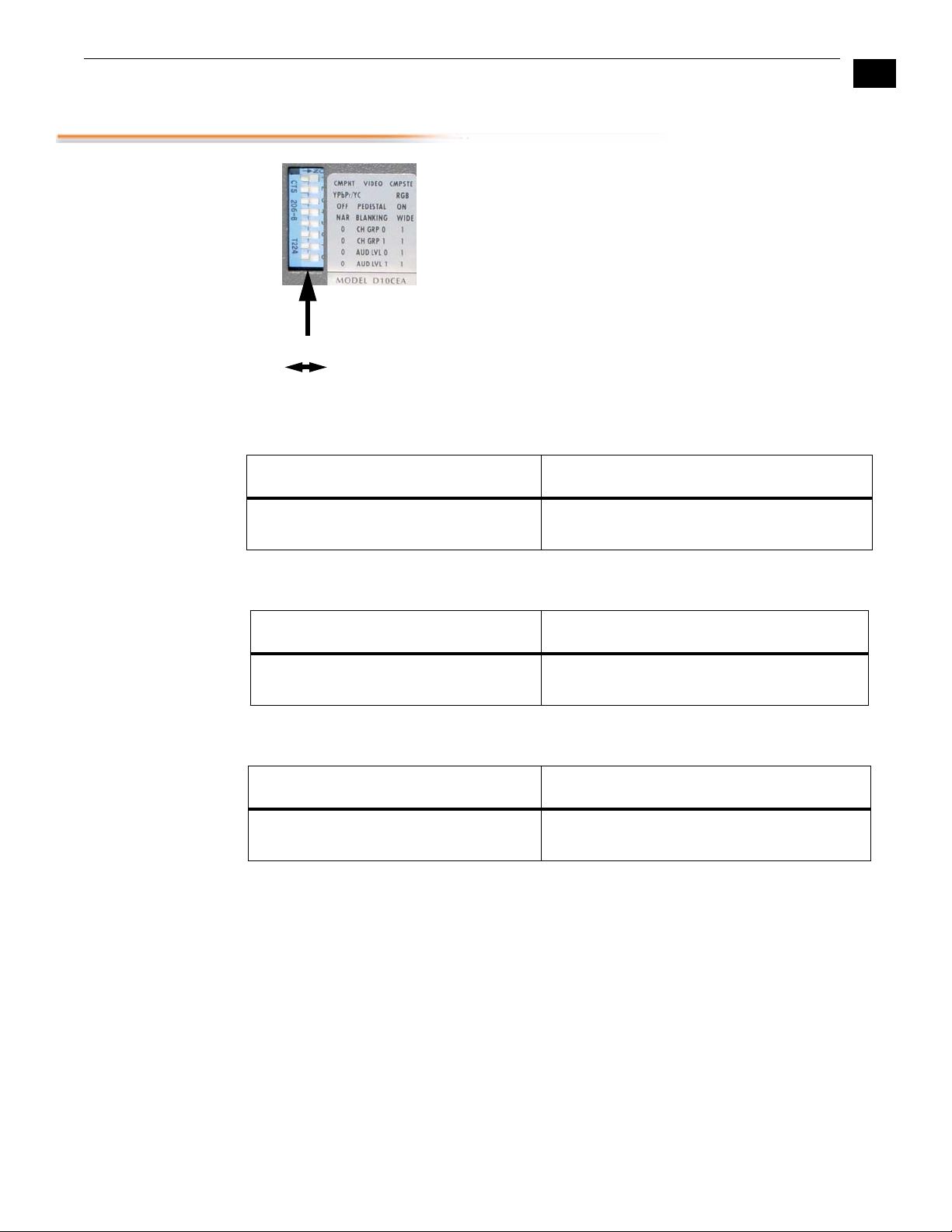

User Controls
The user interface for the D10CEA is an 8-switch DIP accessible
through a cut-out in the bottom of the unit. Use the DIP switches
to configure video outputs, pedestal, blanking, select audio
channel groups, and set audio level.
Switches 1 through 4 configure video output format. Switches 4
through 8 select the audio channel group and audio level. The
exact function of each DIP switch and what it controls is
described on the following pages.
Switch 1—Select Component (COMPNT) or Composite (CMPSTE) Out
:
Switch 2—Selects YPbPr/YC or RGB Component Outputs
:
Switch 3—Configure Pedestal For Composite
:
Note:
There is no effect with 625 input.
RIGHT LEFT
CMPSTE:
Selects composite video output
COMPNT:
Selects component video output
RIGHT LEFT
RGB:
Selects RGB
YPbPr/YC:
Selects YPbPr/YC component video out
RIGHT LEFT
7.5 IRE pedestal for NTSC (also selects
BETA 525 levels for YPbPr)
No pedestal (also selects SMPTE levels for
YPbPr)
DIP Switches
1
2
3
4
5
6
7
8
8
LEFT RIGHT
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - FAX 781.665.0780 - TestEquipmentDepot.com
6
Switch 4—Configure Blanking
:
Switches 5 and 6—Select an Audio Channel Group for Output
Together these two switches select the group of audio channels that will be routed to the
XLR connectors on the break-out cable. Each audio group has four channels,
corresponding to the four connectors. The following table shows the group and channel
assignments selected by each switch position for the two DIP switches.
:
Switches 7 and 8——Select Audio Levels for Output
Together these two switches select audio output levels at the XLR outputs. The following
table shows the level selected by each switch position for the two DIP switches.
:
RIGHT LEFT
WIDE Blanking:
Vertical—
Line numbers indicate where video starts)
line 20, field 1; line 20, field 2 (525 line)
line 23, field 1; line 336, field 2 (625 line)
Horizontal—
Active video line duration
ITU-R/SMPTE (710 pixels NTSC,
702 pixels PAL)
NARROW (NAR) Blanking:
Vertical—
Line numbers indicate where video starts
line 13, field 1; line 12, field 2 (525 line)
line 10, field 1; line 322, field 2 (625 line)
Horizontal—
Active video line duration's)
ITU-R.470 (720 pixels PAUNTSC)~-
Group and Channels S5 S6
Group 0:
Channels 1 to 4
0ff (Left) 0ff (Left)
Group 1:
Channels 5 to 8
0n (Right) 0ff (Left)
Group 2:
Channels 9 to 12
0ff (Left) 0n (Right)
Group 3:
Channels 13 to 16
0n (Right) 0n (Right)
Audio Level (dbu) S7 S8
+4.00 dbu 0ff (Left) 0ff (Left)
+2.00 dbu 0n (Right) 0ff (Left)
0.00 dbu 0ff (Left) 0n (Right)
-14.00 dbu 0n (Right) 0n (Right)
1
7
AJA D10CEA SDI to Component/Composite Converter User Manual — User Controls
Output Selection
Matrix For Video
Output 2 (3 BNCs)
The following table shows the combinations of DIP switch settings required to configure the
three BNCs on the break-out cable.
Examples of Typical DIP Switch Settings
Output Format DIP Switch
#1
DIP Switch
#2
DIP Switch
#3
1 composite & 1 Y/C (pedestal) CMPSTE/
RIGHT
YPbPr/YC
N/A
RIGHT
1 composite & 1 Y/C (no pedestal) COMPNT/
RIGHT
YPbPr/YC/YC
N/A
LEFT
RGB COMPNT/
LEFT
RGB/RIGHT LEFT
SMPTE component (BETA625) COMPNT/
LEFT
YPbPr/YC/YC
LEFT
LEFT
BETA 525 component COMPNT/
LEFT
YPbPr/YC/YC
LEFT
RIGHT
SMPTE
Component
Format
Format
Pedestal
Blanking
Audio Group 0
Audio Group 1
Audio Level 0
Audio Level 1
Beta
Component
Format
Format
Pedestal
Blanking
Audio Group 0
Audio Group 1
Audio Level 0
Audio Level 1
Composite
Format
Format
Pedestal
Blanking
Audio Group 0
Audio Group 1
Audio Level 0
Audio Level 1
Selects:
Component
YPbPr (SMPTE)
Pedestal Off
Narrow Blanking
Audio Group 0 (channels 1-4)
Audio Level +4.00 dbu
Selects:
Component
YPbPr (Beta)
Pedestal On
Narrow Blanking
Audio Group 0 (channels 1-4)
Audio Level +4.00 dbu
Selects:
Composite
Composite and Y/C
Pedestal On
Narrow Blanking
Audio Group 0 (channels 1-4)
Audio Level 0.00 dbu
8
Installation
Typically, D10CEA installation consists of the following:
1.
disconnect +5VDC from the convertor
2.
configure the DIP switch for the desired equipment configuration and video formats
3.
connect video equipment to the convertor BNCs
4.
apply +5VDC power to the converter (AJA power supply model DWP)
Specifications
Item Specification
Serial Input SMPTE 259M with embedded audio
, 1 BNC
Outputs Video: YPbPr - SMPTE, EBU-N10, Betacam, RGB, NTSC,
PAL, YC (S-Video), 10-bits
2 SDI Re-clocked loop-thru, 2 x BNC
Audio: 4 Channel Balanced/Unbalanced. Audio breakout
cable for balanced output included with unit.
Video/Audio Outputs: 1 25-pin D connector
Audio Groups
1, 2, 3, 4
Frequency Response +/- .25dB to 5.5MHz (Y Video)
+/- .5dB to 20 KHz (Audio)
Audio Level Adjustments -14, 0, +2, +4 dBu
Power
(AJA power supply model DWP)
5v DC regulated, 4 watt
Size 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
