SPECIFICATIONS

HARDWARE

Display

DisplayDisplay

Display

360 x 96 dot graphic LCD w/backlight

Dimensions

DimensionsDimensions

Dimensions

19.75" x 12.9" x 2.75" ( .9" at max display angle)

502 mm x 328 mm x 70 mm (12 mm at max display angle)

Weight

WeightWeight

Weight

10.5 lbs. / .8 kg

Power Supply

Power Supply Power Supply

Power Supply

External, 12VDC, 2A, center pin positive

Power Requirement

Power RequirementPower Requirement

Power Requirement

2 W max

AUDIO & MIDI I/O

Sample Rates

Sample Rates Sample Rates

Sample Rates

Up to 2 -bit, 96 kHz

Monitoring

Monitoring Monitoring

Monitoring

Zero-latency hardware monitoring via adjustment knob

Record input (L & R)

Record input (L & R)Record input (L & R)

Record input (L & R)

XLR/ 1/ " combo x 2 (balanced - 0 dBu; input impedance 11 kΩ)

RCA stereo (with phono preamp)

Max Input level

Max Input level Max Input level

Max Input level

+10 dBu

Digital Input

Digital InputDigital Input

Digital Input

2 -bit RCA-pin x 1 S/PDIF

4 Audio Outputs

4 Audio Outputs 4 Audio Outputs

4 Audio Outputs

1/ " phone x (balanced +11 dBu, output impedance 1 kΩ)

Max output level

Max output level Max output level

Max output level

+18 dBu

Phones

Phones Phones

Phones output

output output

output

1/ " stereo phone x 1 (200 mW / 100 Ω)

1/8-inch stereo phone x 1 (200 mW / 100 Ω)

Digital output

Digital output Digital output

Digital output

2 -bit RCA-pin x 1 S/PDIF

MIDI inputs

MIDI inputsMIDI inputs

MIDI inputs

5-pin DIN x 2

MIDI outputs

MIDI outputsMIDI outputs

MIDI outputs

5-pin DIN x

USB

USB USB

USB

USB 2.0 to computer x 1, plus 2-port, powered USB hub

1/ " x 2

SERVICE MANUAL

MODEL: MPC

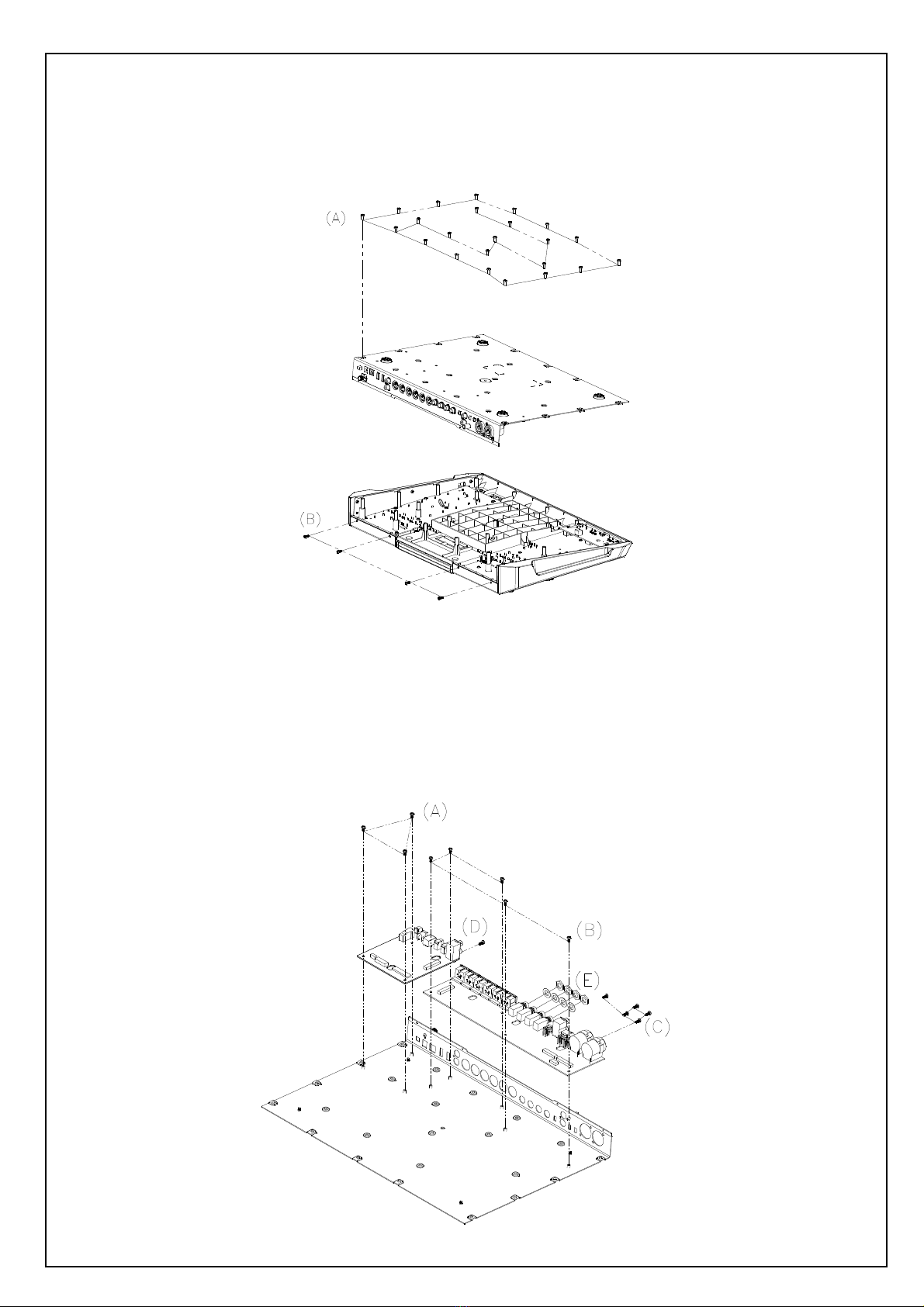

DISASSEMBLY PROCEDURES

DISASSEMBLE THE BOTTOM CHASSIS.

(A)REMOVE 23 SCREWS FROM THE BOTTOM CHASSIS.

(B)REMOVE 4 SCREWS FROM THE TOP PANEL.

(Fig1)

DISASSEMBLE THE

REAR PCB ASS’Y.

(A)REMOVE 3 SCREWS FROM THE

REAR DIGITAL PCB ASS’Y.

(B)REMOVE 5 SCREWS FROM THE

REAR ANALOG PCB ASS’Y.

(D) REMOVE 1 SCREW FROM THE

REAR DIGITAL PCB ASS’Y.

(D) REMOVE 4 PCS NUT AND 4 PCS WASHER FROM THE

REAR ANALOG PCB ASS’Y.

(Fig2)

DISASSEMBLE THE HEADPHONE PCB ASS’Y.

(A)REMOVE 2 SCREWS FROM THE

HEADPHONE PCB ASS’Y.

(Fig3)

DISASSEMBLE THE TOP PCB ASS’Y.

(A) REMOVE 19 PCS KNOBS AND 1 PC JOG WHEEL FROM THE SUBCHASSIS.

(B) REMOVE 8 SCREWS FROM THE PAD HOLDER.

(D) REMOVE 15 SCREWS FROM THE TOP PCB ASS’Y.

(Fig4)

DISASSEMBLE THE LCM MODULE.

(A) REMOVE 4 SCREWS FROM THE SUBCHASSIS.

(B) REMOVE 6 SCREWS FROM THE LDM BOTTOM.

(Fig5)

WIRING DIAGRAM

(US/EU/UK/JIS/AUS NZ)

PACKING DIAGRAM

(US/EU/UK/JIS/AUS NZ)

EXPLODE DIAGRAM

(US/EU/UK/JIS/AUS NZ)

EXPLODE DIAGRAM

(US/EU/UK/JIS/AUS NZ)

EQUENCIAL NO EXPLODE DIAGRAM WILL BE MARKED ON REF.COLUMM OF BOM LIST

ACV0AKA01 BOM

LEVEL

P/N DESCRIPTION QTY

REF

ACV0AKA01 ACV0 100-240V USA 0

AA821801X Shield LCD(2) 1

5-6

AL7-10-1215 Switching ADAPTOR(UL/JIS) DC12V/2A 1

BACR-0012 Foot 4

BACTHG436-1B Hinge 2

BAGL-40A Clip 1

BART-K00702 VR Knob 2

BAW-1136 Washer(Teflon) 2

CA040218004 USB 2.0 1.8M A/B Black CORE 1

CN0100000506 Flat Cable GND Wire Black φ3.2 Length 1

50mm Line/Female

CN0100001605 Flat Cable GND Wire Black φ3.2 Length 1

160mm Line/Female

CN1020002003 Flat Cable 10Pin pitch2.0mm Single Row 1

Length 200mm Female/Female

CN1420002002 Flat Cable Black 14P Pitch:2.0mm Single 1

Row Length 200mm Female/Female

FFC1010001501 FFC 10Pin Pitch=1.0mm Lensht=150mm 1

FFC1010002501 FFC 10Pin Pitch:1.0mm Length:250mm 1

FFC2610002001 Connector 26P 200mm Pitch:1mm 1

FFC5005000501 FFC 50Pin Pitch:0.5mm Length:50mm 1

GEAKA81 Poster 1

HST030008BUL Tube 2

LAC62AKA160 Label 1

LAC67AKA225 Label 1

LAC67YAH261 Label φ8mm Green 1

LAP67YAH255 Sticker φ10mm red 5

MT1101809 Screw Ground Assembly 1

MT11044135 Holder Screw 1

MT1504441 Hinge Holder 2

MT153001201 Top Panel(Paint+Print) 1

MT1530012 Top Panel 1

MT153032301 Bottom Chassis 1

MT1530323 Bottom Chassis 1

NM1504407 Felt 1

OTFSR16KEY FSR 16KEY(AL7-10-0149) 1

PACV0AKA01 Pack Assembly 1

AL7-51-0226-J Safety Manual 1

AL7-51-0381-E Instruction Manual 1

AL7-91-1002 Gel Silica 1

BC1015011050 Bubble Bag 1

CGACV0310AKA01 Gift Box 1

CTACV0513AKA01 Shipping Carton 1

LAC22AKA165 Serial Bar Code Label 1

LAC53ALE112 Safety Label 1

LAC62AKA181 Bar Code Label UPC 2

PE230370402B07 Poly Bag 230*370mm 1

PLACV001 Polyfoam Left 1

PLACV002 Polyfoam Right 1

SD890890 Soft Sheet 1

PT1110685 Button Medium 25

PT1304315 Power Cable Retainer 1

PT150430702 LED Master Ring 16

PT1504309 LED Lens 1

PT1504311 Lamp Guide(1PCS) 7

PT1504425 PAD Holder 1

PT1504426 Fit Washer 2

PT1510610201 Big buttom(8) 1

PT15106102 Big button(8) 1

PT1510610301 Big button(2) 1

PT15106103 Big button(2) 1

PT1510610401 Knob 1

PT15106104 Knob 1

PT1510643 ALPHA Knob 1

PT1510693 button(single) 8

PT1510694 button(3) 4

PT1510696 button (B) 3

PT1510698 Button(M) 2

PT152062403 Side Cap(L) 1

PT1520624 Side Cap(Left) 1

PT152062503 Side Cap(R) 1

PT1520625 Side Cap(Right) 1

PT153012701 Palm Rest(PU Foam) 1

PT1530127 Palm Rest 1

PT153020203 Subchassis 1

PT1530202 Subchassis 1

PU010010010 QUARANTINE CLOTH 2

RU1504306 Rubber Mat 2

RU1504341 Rubber Knob 1

SC0306PW08IBI Screw M3X6 PPWB 4

SC0306RINI SCREW M3X6 PPN 8

SC0308ABNI Screw 14

SC0308PBBI Screw M3X8 PBB Tapping 6

SC0308PBNI Screw M3X8 PPN Tapping 46

SC0310RBBI Screw M3X10 PPB Tapping 8

SC0408PBBI SCREW M4X08 PPB TAPPING 23

SC2606RINI SCREW M2.6X6 PPN 4

TSACV0-1 ACV0 DVD Disc 1

TWMT15106030101 JOG Knob Assembly 1

MT151060301 JOG Wheel 1

PT1504428 Jog sleeve 1

TWPT151063402 Knob Assembly 1

PT151060702 KNOB CAP(RED)(11) 1

PT1510634 Knob Body(Black) 1

TWPT151063406 Knob Assembly 2

PT1510634 Knob Body(Black) 2

PT151064501 knob cap(plating) 2

PT1510645 Knob Cap 2

TWPT151068901 Knob Assembly(Black+Plating) 16

PT151068701 Knob Cap(plating) 16

PT1510687 Knob Cap 16

PT1510689 Knob body 16

PMRTP199X57372 Holder 0
