EN - ENGLISH

2.0 Channel Soundbar

Model：ASB-5L

User Manual

Thank you for

purchasing

this

soundbar.

Please read this

instruction

manual carefully before using this product

to ensure proper use. Keep this manual in a safe place for future reference.

EN - ENGLISH

A compact yet powerful Bluetooth soundbar with sleek looks and excellent audio

response. 4 inbuilt speakers provide clarity across a broad frequency range, with crisp

highs and deep bass that belie the unit’s size. An integral USB port enables playback

of MP3 files directly from compatible media, with further flexible input options

including Aux, Bluetooth, HDMI(ARC), Optical, FM. A convenient and cost-

effective TV audio upgrade that doesn’t compromise on performance.

•Slender and stylish matt black design

•4 speakers for crisp, clear sound with deep bass

•Inbuilt 2.0 channel amplifier with 3 EQ presets

•Versatile input options to support a range of devices

•USB port for MP3 media playback

•Keyhole slots for wall mounting

•Remote control and Aux cable included

Matters that Need Attention

1. Don’t put this product under high temperature wet environment and it will be

worse when it is in the rain or crash strongly.

2. To reduce the risk or electronic shock or fire, do not remove the cabinet cover

simply contact a service professional.

3. In the rear occurrence of malfunction, do not attempt to repair the unit on your

own. Contact a certified service professional for a proper diagnosis and repair.

EN - ENGLISH

4. If fragments or liquids fall into device box, please cut off the power right away.

And it can be used only after professional staff checks it.

5. Don’t install the unit in or near a place where it may come in contact with rain,

moisture or other liquids.

Technical Specifications and Features

Audio output: 40W RMS

Speaker drivers: 4 x 2" 10W units

Bluetooth version: 5.0

Bluetooth range: Up to 10m

FM frequency range: 87.5MHz-108MHz

Connections: USB, OPTICAL, HDMI(ARC), AUX (3.5mm), DC IN

Power supply 19V 1.5A

Dimensions 940 x 60 x 65mm

A. Connections

1. USB IN: Use to connect a flash drive for direct MP3 playback (FAT32 format and

64GB max).

2. OPTICAL IN: Use to connect compatible devices using an optical cable (not

provided).

EN - ENGLISH

3. HDMI(ARC): Use to connect compatible devices using a HDMI cable (not

provided)

4. AUX IN: Use to connect compatible devices using the 3.5mm –3.5mm stereo jack

cable provided.

5. DC IN: Use to connect the DC power supply.

B. LED display

1. Red LED: Standby mode 2. BT: Bluetooth mode

3. USB: USB media mode 4. AUX: Auxiliary input mode

5. OPT: Optical mode 6. ARC: HDMI(ARC) mode

7. FM: FM frequency

C. Remote Control

EN - ENGLISH

Input Functions

•Power on/off: Press the Power on/off button on the remote control or soundbar

control panel to turn the unit on and off.

•AUX in: Connect a compatible device using 3.5mm –3.5mm stereo jack cable

provided, then press the MODE button on the remote control or soundbar control

panel repeatedly until AUX is displayed on the LED display. Ensure the connected

device is producing an audio signal, then adjust the volume of the soundbar using the

Volume up and Volume down buttons on the remote control or soundbar control

panel.

•Bluetooth: Press the BT button on the remote control or repeatedly pressing the

MODE button on the soundbar control panel until BT is shown on the LED display.

The LED display will flash to indicate that the soundbar is in Bluetooth pairing mode.

EN - ENGLISH

Ensure that the device you wish to connect is also in pairing mode and search for

ASB-5L in its device list. When the two devices are paired, the LED display on the

soundbar will stop flashing and remain constant. (The soundbar will now

automatically re-pair with this device whenever it is within range and has Bluetooth

turned on.)

•USB media mode: The soundbar is compatible with USB flash drives of up to

64GB in size and can play MP3 audio files directly. Simply insert a compatible drive

into the USB port on the back of the soundbar and the unit will automatically switch

to USB mode and play the first compatible track.

USB repeat mode (accessed via the remote control) enables single track repeat (press

once) and all track repeat (press twice).

The media player also has a memory function that will recall and continue from the

last-played point when a USB flash drive that has previously been used with the

soundbar is reinserted.

•HDMI(ARC): Connect a HDMI ARC compatible device to the HDMI ARC port on

the soundbar using a standard HDMI cable (not supplied),then press the MODE

button on the remote control or soundbar control panel repeatedly until ARC is

displayed on the LED display. Ensure HDMI ARC is selected as the TV’s audio

output, then adjust the volume of the soundbar using the Volume up and Volume

down buttons on the remote control or soundbar control panel.

•Optical in: Connect a compatible device to the OPTICAL port on the soundbar

using a digital optical cable (not supplied),then press the MODE button on the remote

EN - ENGLISH

control or soundbar control panel repeatedly until OPT is displayed on the LED

display. Ensure Optical SPDIF is selected as the TV’s audio output, then adjust the

volume of the soundbar using the Volume up and Volume down buttons on the

remote control or soundbar control panel.

•FM: Select FM mode by pressing the MODE button on the remote control or

soundbar. The display will show an FM radio frequency. To perform a channel scan,

press Play/Pause button on the remote control or the soundbar. The soundbar will

now scan through the FM frequency, automatically saving any stations with a strong

enough signal. You can now scroll back and forward through the saved channels

using the “previous” or “forward” buttons on the remote control or the soundbar.

•• Equalizer modes: The soundbar has 3 equalizer presets, tailored to complement

various styles of music. Press the EQ button on the remote to choose between Music

(EQ1), Movie(EQ2), News (EQ3).

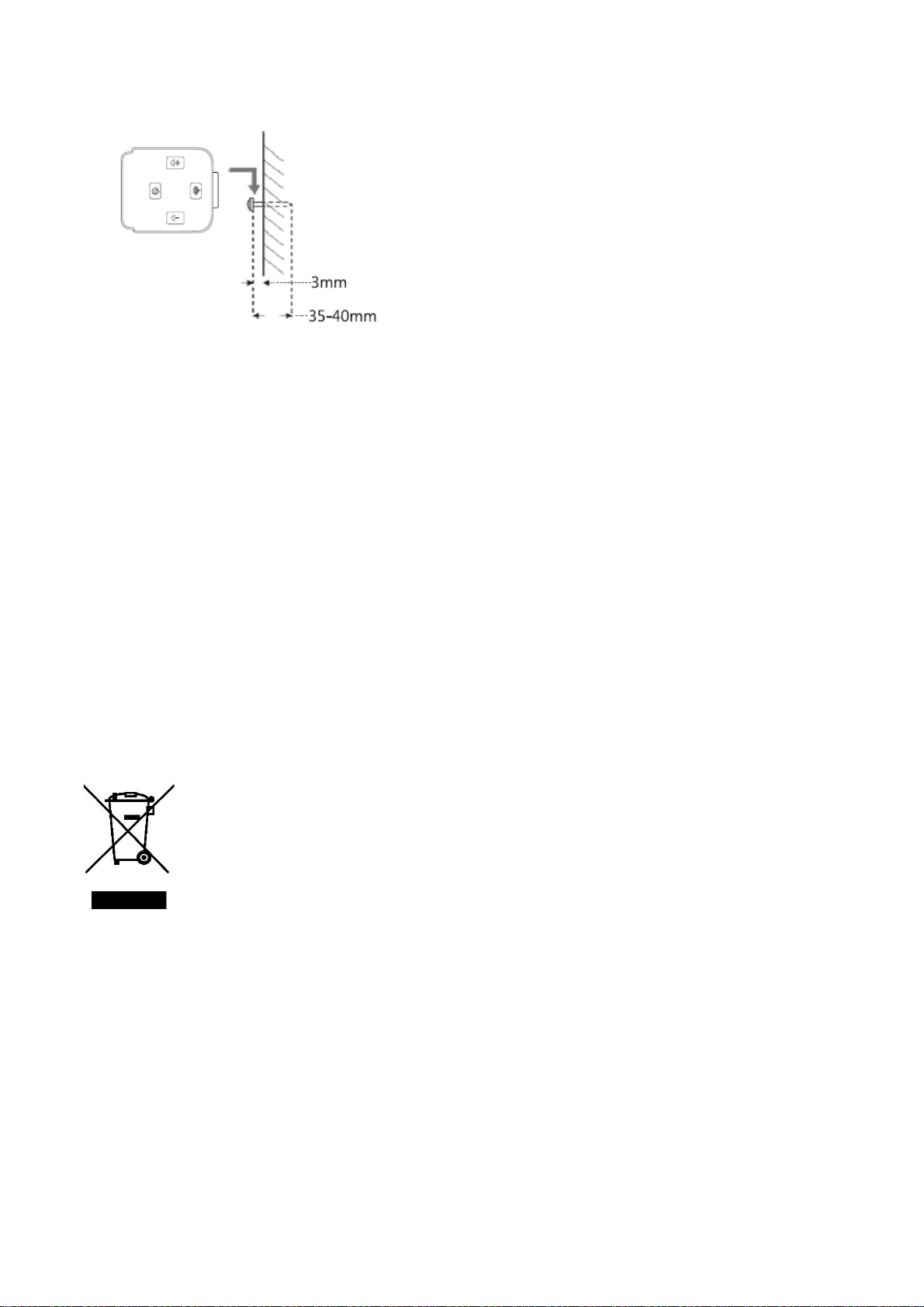

•Wall mounting: The soundbar has two keyhole slots on the back to enable wall

mounting, using the fixings provided or a compatible soundbar bracket (not

supplied).

1. Firmly fix 1 dowel into each hole in the wall if necessary.

Solid wall (i.e. solid brick, solid concreate, solid wood)

Drywall, plaster wall, lath wall etc.

2. Put the speaker onto the screws in the wall.

EN - ENGLISH

Accessories:

User manual x 1

Remote control x 1

AC adaptor x 1

Aux-In cable x 1

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on the product or packaging means that the product should not be

treated as household waste. Do not throw garbage at the end of its life, but take it to

a collection center for recycling. in this way you will help to protect the environment

and be able to prevent any negative consequences that it would have on the

environment and human health.

To find your nearest collection center:

-Contact local authorities

- Access the website: www.mmediu.ro

- Request additional information from the store where you purchased the product.

RO - ROMANA

Soundbar 2.0 CH

Model：ASB-5L

Manualul utilizatorului

Multumim ca ati achizitionat acest produs. Va rugam sa cititi cu atentie manualul de instructiuni. Pastrati

acest manual intr-un loc sigur, pentru referinte ulterioare.

RO - ROMANA

Un soundbar compact dar puternic, cu aspect elegant si raspuns audio excelent. Cele

4 difuzoare incastrate asigura/confera o claritate a sunetului intr-o gama larga de

frecvente cu sunete inalte si bass profund care contrazic marimea aparatului. Un port

USB integral permite redarea fisierelor MP3 direct din sistemul media compatibil, cu

optiuni de intrare care include Aux, Bluetooth, HDMI (ARC), Optic, FM. O

imbunatatire convenabila si rentabila a sistemului audio pentru TV, care nu

compromite performanta.

•Design subtire si elegant, de culoare negru mat

•4 difuzoare pentru un sunet clar, limpede, cu bass puternic

•Amplificator 2.0 canale, cu 3 moduri EQ presetate

•Optiuni de intrare versatile pentru o gama larga de dispozitive

•Port USB pentru redare fisiere MP3

•Fante pentru montarea pe perete

•Telecomanda si cablu auxiliar, incluse

Observatii

1.Nu expuneti acest produs la temperaturi ridicate, in medii umede, si nici nu-l lasati

in ploaie sau nu-l distrugeti.

2.Pentru a reduce riscul de electrocutare, nu desfaceti carcasa; contactati un service

autorizat.

3.In caz de functionare defectoasa, nu incercati sa reparati singur aparatul. Contactati

un service autorizat pentru o diagnoza si reparatiile corespunzatoare.
