Akai ASB12I Manuale utente

English: ASB12I

Index

1. Safety

o1.1. Intended use

o1.2. Labels in this manual

o1.3. General safety instructions

2. Preparations for use

3. Installation

4. Functions

5. Operation

6. Cleaning and maintenance

7. Technical data

8. Disposal of used electrical and electronic equipment

Safety

Intended use

The device functions as a docking station for an iPod/ iPhone/ iPad. By downloading the free UniDOCK from the

iTunes App Store you can enhance the functionality of your device (NOTE: app is for iPad/ iPhone/ iPod touch

only).

Read the manual carefully before the first use.

Labels in this manual

WARNING A warning means that injury or death is possible if the instructions are not obeyed.

CAUTION A caution means that damage to the equipment is possible.

A note gives additional information, e.g. for a procedure.

General safety instructions

WARNING Do not put force on the appliance. The appliance can fall and can cause serious injury.

CAUTION Do not spill any liquid on the appliance.

WARNING Do not insert any objects in the ventilation holes.

CAUTION Do not block the ventilation holes.

This appliance is double insulated; therefore no earth wire is required. Always check that the mains voltage

corresponds to the voltage on the rating plate.

Preparations for use

Unpacking

Unpack the appliance carefully.

Check the package contents as described below. If any item is missing, please contact your reseller.

We recommend that you retain the original carton and packing materials in case it ever becomes necessary to

return your product for service. This is the only way to safely protect the product against damage in transit. If you

do dispose of the carton and the packing materials, please remember to recycle with due care to the environment.

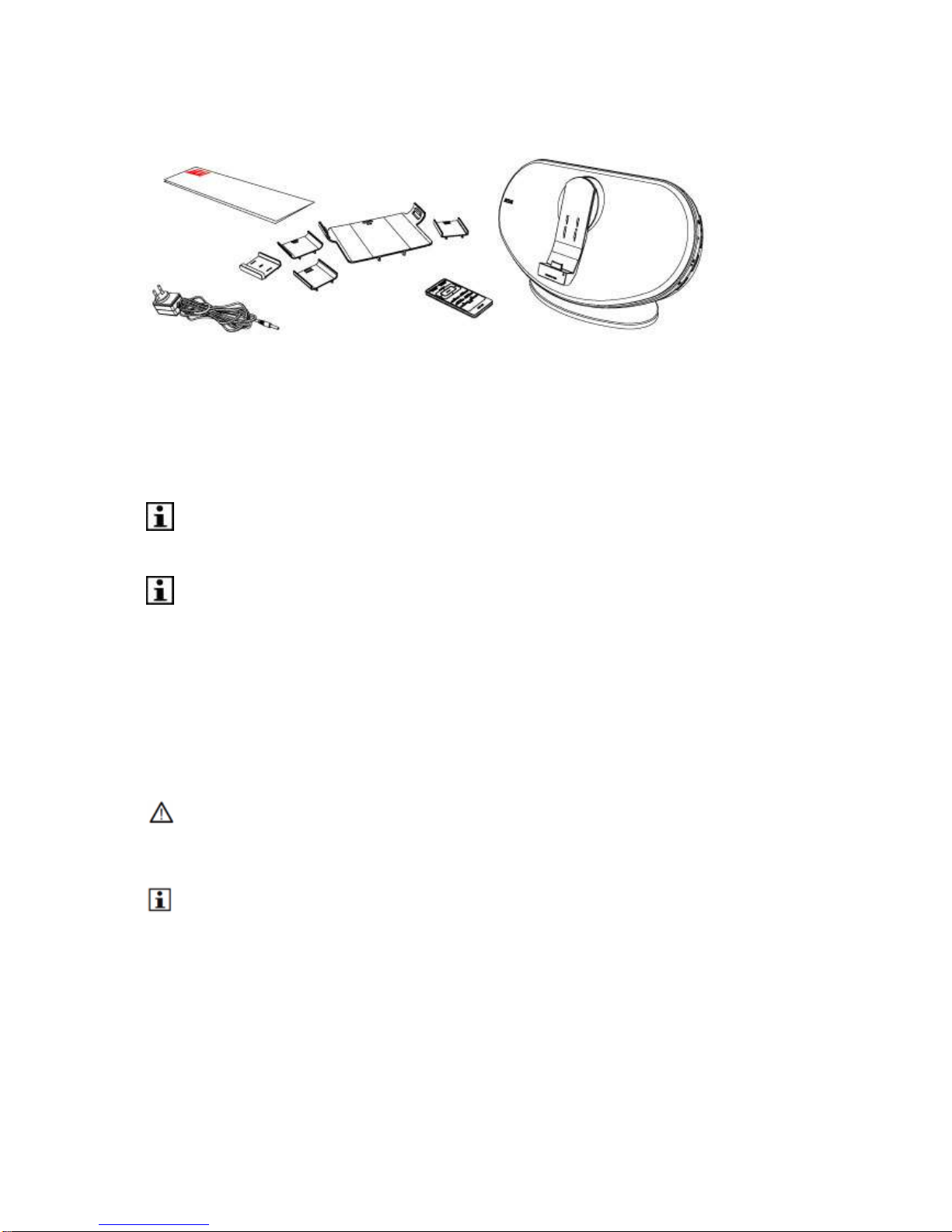

Package contents

The following items are included in the received package:

1 iPod Music System

1 Remote control

1 x Quick start guide

1 Button cell (CR2025)

NOTE: the button cell battery has already been inserted in your remote control

If any item is missing, please contact your reseller.

Installation

Put the appliance on a horizontal flat surface.

Connect the random equipment to the appliance. Read the paragraph "Connecting random equipment".

Connect the appliance to the mains.

Activate the battery.

Read the paragraph "Remote control".

CAUTION Do not put the appliance near a heat source.

Do not expose the appliance to direct sunlight.

This appliance is equipped with rubber feet to prevent it from moving. The feet are made from non-migrating

material specially formulated to avoid leaving any marks or stains on furniture. However, certain types of furniture

polishes, wood preservatives or cleaning sprays cause the rubber to soften and leave marks or a residue on the

furniture, and potentially risk the surface to become damaged. To prevent damage to wooden surfaces, we

recommend that you apply self-adhesive pads to the bottom of the rubber feet before installation.

Activating the battery

Carefully pull the foil out of the battery holder without opening the holder.

The battery has now been activated.

change the battery

Pull out the battery holder

Insert 1 lithium battery, type CR2025 3V battery

When inserting the battery observe the (+) and (-) polarity markings.

Insert the battery tray into the remote control.

Connecting to the mains

Connect the female connector on the mains cable to the AC MAINS connection.

Connect the mains plug to a wall socket.

Connecting external devices

AUX jack

Video connection

Choosing and placing the iPad/ iPhone/ iPod adaptors

Select the right adapter.

Consult the above table for this.

Slide the dock adapter in the holder.

Place your iPad/ iPhone/ iPod

Please note:

Use the right dock adapter. Placing it incorrectly may damage your iPod/iPhone.

Rotate your Apple device for landscape view

Rotate for landscape view

Use the ROTATE (9) key for this.

This key is located on your remote control.

Functions

Remote control

1. POWER button

2. iPod MENU + button

3. SKIP PREV button

4. ENTER button

5. iPod MENU - button

6. PLAY/ PAUSE button

7. VIDEO OUT button

8. VOLUME - button

9. ROTATE button

10. SKIP NEXT button

11. MENU button

12. 3D SOUND button

13. VOLUME + button

ASB12I docking-station

1. iPad/ iPhone/ iPod dock

2. REPEAT iPOWER

3. VOLUME + button

4. VOLUME - button

5. POWER ON/OFF/PLAY/PAUSE button

6. ROTATE button

7. FM antenna

8. COMPONENT VIDEO OUT Y Jack

9. COMPONENT VIDEO OUT Pb Jack

10. COMPONENT VIDEO OUT Pr Jack

11. AUX IN Jack

12. DC IN Jack

Operation

All functions of the appliance are accessible using the remote control. All instructions refer to operation with the

remote control, unless indicated otherwise.

Turning the device on and off.

Switch on (off) the ASB12I

Use the POWER (1) key for this.

This key is located on your remote control.

The CLOCK RADIO app

By downloading the free UniDOCK from the iTunes App Store you can enhance the functionality of your device

(NOTE: app is for iPad/ iPhone/ iPod touch only).

The first time you place your iPad/ iPhone/ iPod in the ASB21I docking station you will be prompted to download

the UniDOCK from the App Store.

After you have downloaded your UniDOCK and completed the installation, you can start using the UniDOCK. To

do this, select the app on your iPad/ iPhone/ iPod.

After you have downloaded your UniDOCK and completed the installation, you can start using the UniDOCK. To

do this, select the app on your iPad/ iPhone/ iPod.

Summary UniDOCK functions

1 Playback controls

2 Alarm

3 SLEEP

4 iPod

5 FM TUNER

6 EQ

7 Settings

Alarm

8 Back (to previous screen)

9 Edit alarm

10 Add alarm

11 Back (to previous screen)

12 Alarm settings

13 Save settings and return to previous screen

14 Edit alarm time

Settings

15 Save settings and return to previous screen

16 Change the background setting

17 Change the clock settings
