Quick Reference Guide to K I GX-270D:

Page:

2 location of the circuit boards, action list

3 component layout of the rec & pb boards

4 component layout of the power & servo boards

5 component list per PCB

6 etc

www.reeltoreel.nl / Philip van der Matten / ver 1.0 / 15 dec 2023 / page 2 of 5

✇ PVDM jjjjjjhjhjfgjhsldkfjghldfkjghsldfkjghsdfkjghldkfjghdkfjghlsdkfjghsldfkghsdfkjghsldfkjghlsdfkghdfghsldfkjghsldfkjghsldfkjghkdfjghlsdkfjghsldfkjghldfkjghdfkjghdfkjghldfkjg✇

PRO AUDIO AFFAIRS

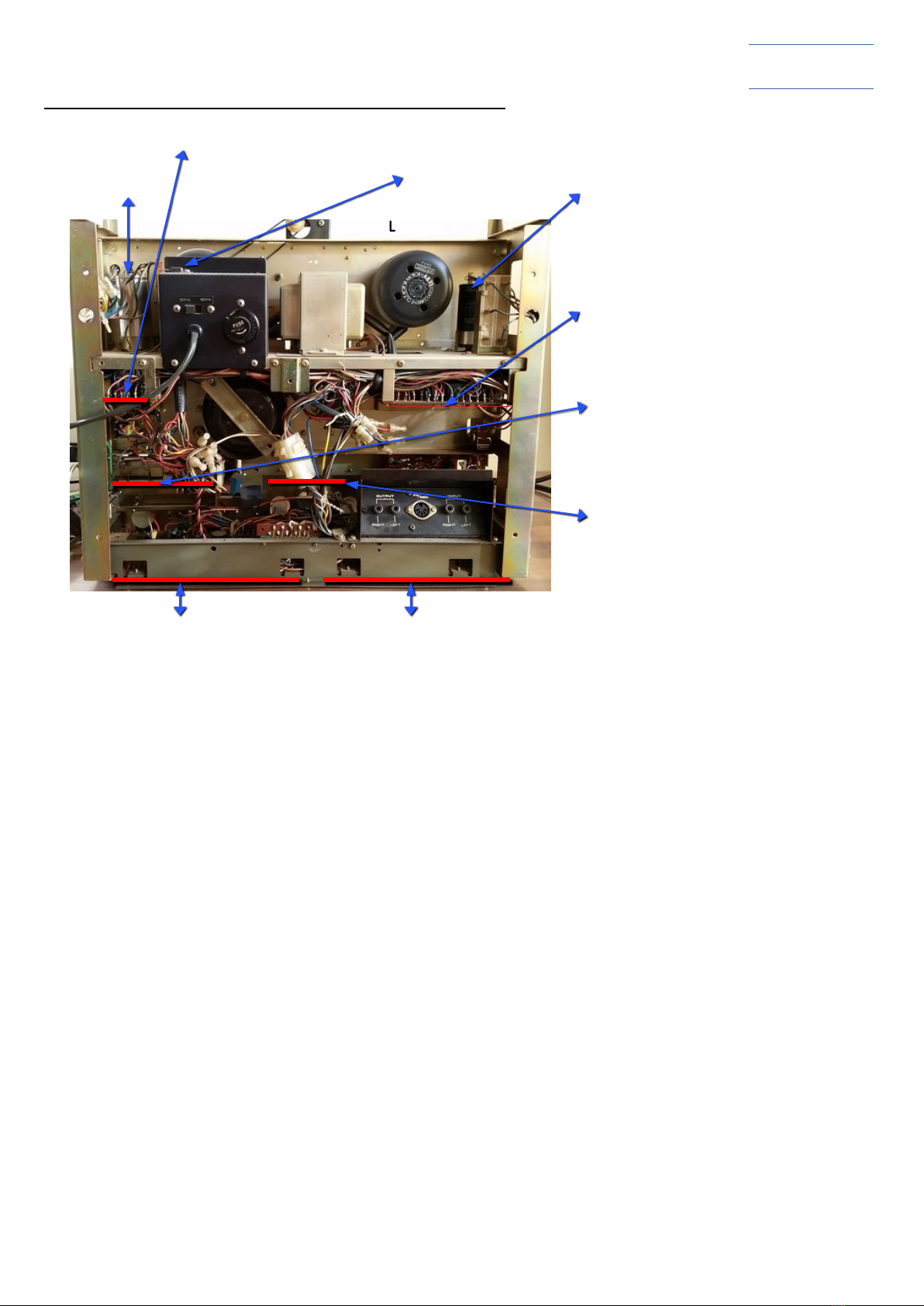

Location of the internal printed circuit boards:

system control pcb (2221)

peak level pcb (5202)

backside

playback amp pcb (5017)osc & rec amp pcb (5016)

servo control pcb(2036)

power supply pcb (2222)

Common problems, service, revise, overhaul, refurbish actions etc:

□ Replace all caps on REC & PB boards, see pg. 3 & 4

□ Replace all transistors on REC & PB boards with KSC1845, see pg. 3 & 4

□ clean both speed switches

□ replace all sparkkillers on powerswitch and power supply pcb

□ TIP48 transistor replace with TIP50

□ (replace 4 diodes on servoboard with FR207 (1000V / 2 ) )

□ (replace 8 diodes on power supply board with FR207 (1000V / 2 ) )

□ motor caps 5µF/150V capstanmotor + 2x 4µF/250V spoolmotor. could be replaced if necassary

□ big 330µF/160V high ripple cap could be replaced

ll specs are for the CEE 220/240V version

TIP48 330µF/160V

5µF/150V

www.reeltoreel.nl / Philip van der Matten / ver 1.0 / 15 dec 2023 / page 3 of 5

✇ PVDM jjjjjjhjhjfgjhsldkfjghldfkjghsldfkjghsdfkjghldkfjghdkfjghlsdkfjghsldfkghsdfkjghsldfkjghlsdfkghdfghsldfkjghsldfkjghsldfkjghkdfjghlsdkfjghsldfkjghldfkjghdfkjghdfkjghldfkjg✇

PRO AUDIO AFFAIRS

osc & rec amp pcb (5016)

47/50 47 100/25 47 47 47 100/25 1/25 100/25 47 47 47 100 47 47/50

rightleft

Component side

10/16 10/16 10/16 10/1610/16 10/16 10/16 10/16

10/25 10/1610/16 10/25

playback amp pcb (5017)

10/16 47 47 47 47 47 100/6,3 100/6,3 47 47 47 47 47 10/16

output

Component side

1/25 10/16

C1845

x12

10/16 1/25 10/16 10/16

10/1610/16

4,7/25 4,7/25

10/1610/16

C1845

x12

www.reeltoreel.nl / Philip van der Matten / ver 1.0 / 15 dec 2023 / page 4 of 5

✇ PVDM jjjjjjhjhjfgjhsldkfjghldfkjghsldfkjghsdfkjghldkfjghdkfjghlsdkfjghsldfkghsdfkjghsldfkjghlsdfkghdfghsldfkjghsldfkjghsldfkjghkdfjghlsdkfjghsldfkjghldfkjghdfkjghdfkjghldfkjg✇

PRO AUDIO AFFAIRS

button

relais

10/25 1/25 1/25

33/25 33/25

33/25 3,3/25

1/25 100/16 1/25

10/25

system control pcb (2221)

power supply pcb (2222)

0,47µF/250V

MP/film/foil

(2x)

220/25

470/50 220/35

Sparkkiller

0,1µF + 120Ω

(7x)

www.reeltoreel.nl / Philip van der Matten / ver 1.0 / 15 dec 2023 / page 5 of 5

✇ PVDM jjjjjjhjhjfgjhsldkfjghldfkjghsldfkjghsdfkjghldkfjghdkfjghlsdkfjghsldfkghsdfkjghsldfkjghlsdfkghdfghsldfkjghsldfkjghsldfkjghkdfjghlsdkfjghsldfkjghldfkjghdfkjghdfkjghldfkjg✇

PRO AUDIO AFFAIRS

cap µ/volt # transistor/semi #

power supply pcb 470/50 repl all 10D4 1N4007→4

220/35 2 repl all 10D5 1N4007→4

0,47/250 2 axial, film

0,1+120hm 7 sparkkiller

system ctrl pcb 1/25 4

10/25 2

100/16 1

3,3/25 1

33/25 3

servo pcb 0,47 BP 1 repl all 10D2 1N4007→4
