Table of contents:

Last modification :

Page 5, pos.7 and 8. visa versa

Page 8, new number for MiniXLR socket added

V2 added

Page 11, screw quantity corrected

Page 13, added CU700

Page 4, corrected wiring

front panel number removed

D7 version added

Page 11, pos 21 new number

Page 6, add dismantle DHT700

The complete DSM 700 family

3

Die komplette DMS 700 Familie

DHT 700 Digital handheld transmitter

4

DHT 700 Digitaler Handsender

DPT 700 Digital bodypack transmitter

7

DPT 700 Digitaler Taschensender

DSR 700 Digital stationary receiver

9

DSR 700 Digital Empfänger

CU 700 Charging unit

13

CU 700 Ladegerät

Frequency range, Mhz,

Band 1

548,100 –697,900 / 50mW

Band 2

710,100 –861,900 / 50mW

863,100 –864,900 / 10mW

DPT 700

Digital bodypack

transmitter

CU 700

Charging unit

DSR 700

Digital stationary

receiver

DHT 700

Digital handheld

transmitter

Mains cable:

EU 0110E03160

US 0110E03170

DSR 700 Antenna:

Band 1 (long) 9999N07440

Band 2 (short) 9999N07450

Front mount cable 0110E01890

Manual:

User manual V1 9100U12810

User manual V2 9100U13560

For information about PSU4000, HUB4000Q,

PS4000 and antenna system SRA2B/W,

RA4000B/W, AB4000 and ASU4000 please refer

to the WMS4000/4500 Service information.

DHT 700 D5 3157Z00…

DHT 700 C5 3157Z00…

DHT 700 D7 3157Z00…

Sleeve 5 to be glued on end cap 9

after it is completely screwed onto

part 4 (thread part).

Use UHU PLUS ENDFEST 300.

Cut out of end cap 6 has to be align

with charging contacts!

Wiring / Verkabelung

1

3

14

2

17

16

15

33

27

6

12

7

9

5

8

10

20

24

19

13

11

25,26

21

23

22

29

28

31

30

4

33

32

34

19

35

37

Apply Loctite 415 to secure

transducer capsule.

D5

D7

C5

non corrosive silicon glue

inphase

(red)

inphase

(red)

36

C5

D5/D7

blue

black

red

screen

red

DHT 700 Parts list / Stückliste

Description

Pos.

Part number

Bestellnummer

Quantity

Stück

Bezeichnung

C5

D5

D7

Wire-mesh cap

1

3157M12010

1

-

Gitterkappe

Wire-mesh cap

1

3157M12020

-

1

-

Gitterkappe

Wire-mesh cap

1

3157M12030

-

1

Gitterkappe

Foam insert

2

3138Z25020

1

-

Innenwindschutz

Foam insert

2

3138Z25010

-

1

Innenwindschutz

Electret capsule C5

3

3157M15010

1

-

Elektretkapsel C5

Dynamik capsule D5

3

2610Z00050

-

1

-

Dynamische Kapsel D5

Dynamik capsule D7

3

2610Z00070

-

1

Dynamische Kapsel D7

Housing with thread

4

3157M14010

1

Gehäuse mit Gewindeteil

Battery sleeve

5

3157Z19020

1

Batteriehülse

End cap

6

3157Z20010

1

Kappe

Housing shell, lower

7

3157Z11010

1

Untere Gehäuseschale

Housing shell, upper

8

3157Z10010

1

Obere Gehäuseschale

Contact cover

9

3157Z42010

1

Kontaktabdeckung

Half ring, upper

10

3157Z21010

1

Halbring, oben

Half ring, lower

11

3157Z31010

1

Halbring, unten

Battery clamp

12

3157M10010

1

Batterieklammer

Friction

13

3157Z40010

1

Reibung

Display cover

14

3157M13010

1

Display Abdeckung

Mute button

15

3157Z14010

1

Mute Knopf

Foam

16

3157Z37010

1

Schaumstoffstück

Foam

17

3157Z38010

1

Schaumstoffstück

Display holder

19

3157Z15010

1

Displayhalter

Foam

20

3157Z28010

2

Schaumstoffstück

LCD display

21

0050E00070

1

LCD Display

On/Off button

22

3157Z16010

1

ON/Off Knopf

IR window

23

3157Z17010

1

IR Fenster

Foam

24

3157Z27010

1

Schaumstoffstück

Main board Band 1

25

3157M01010

1

Hauptprint Band1

Main board Band 2

26

3157M01020

1

Hauptprint Band 2

Antenna board Band 1

27

3157M02010

1

Antennenprint Band 1

Antenna board Band 2

27

3157M02020

1

Antennenprint Band 2

Clamp cushion

28

3157Z48010

1

Auflage

Contact support

29

3157Z47010

4

Kontaktfederung

Battery contact

30

3157Z22010

2

Batteriekontakt

Battery contact

31

3157Z23010

2

Batteriekontakt

Screw EJOT PT KB18x6

32

0099N18050

2

Schraube PT KB18x6

Screw EJOT PT KB22x8

33

0099N22140

3

Schraube PT KB22x8

Screw EJOT PT KB22x8

34

0099N22040

2

Schraube PT KB22x8

Screw EJOT PT KB25x10

35

0099N25050

1

Schraube PT KB25x10

Cable for D5 capsule

36

2548K00010

-

1

Kabel für D5 Kapsel

Device sticker DHT 700 D5

37

4808S10…

-

1

-

Geräteaufkleber DHT 700 D5

Device sticker DHT 700 C5

37

4809S10…

1

-

Geräteaufkleber DHT 700 C5

Device sticker DHT 700 D7

37

4813S10…

-

1

Geräteaufkleber DHT 700 D7

Standadapter SA63

-

6000H63050

1

Stativklammer

Windscreen

-

2630Z01040

1

Windschutz

Colorbandset

-

2630Z00210

1

Farbbandset

Adapter PB1000

-

2334Z05010

1

-

Vorsatz PB1000

-

Important!

For ordering the DHT700 main transmitter board we need the following information:

1. Board number: 3157M0101 for Band1 or 3157M0102 for Band2

2. Preset programming for Band2: standard, IL, IT, BY……etc. (please see table on next page)

3. What microphone head is used: D5, D7 or C5.

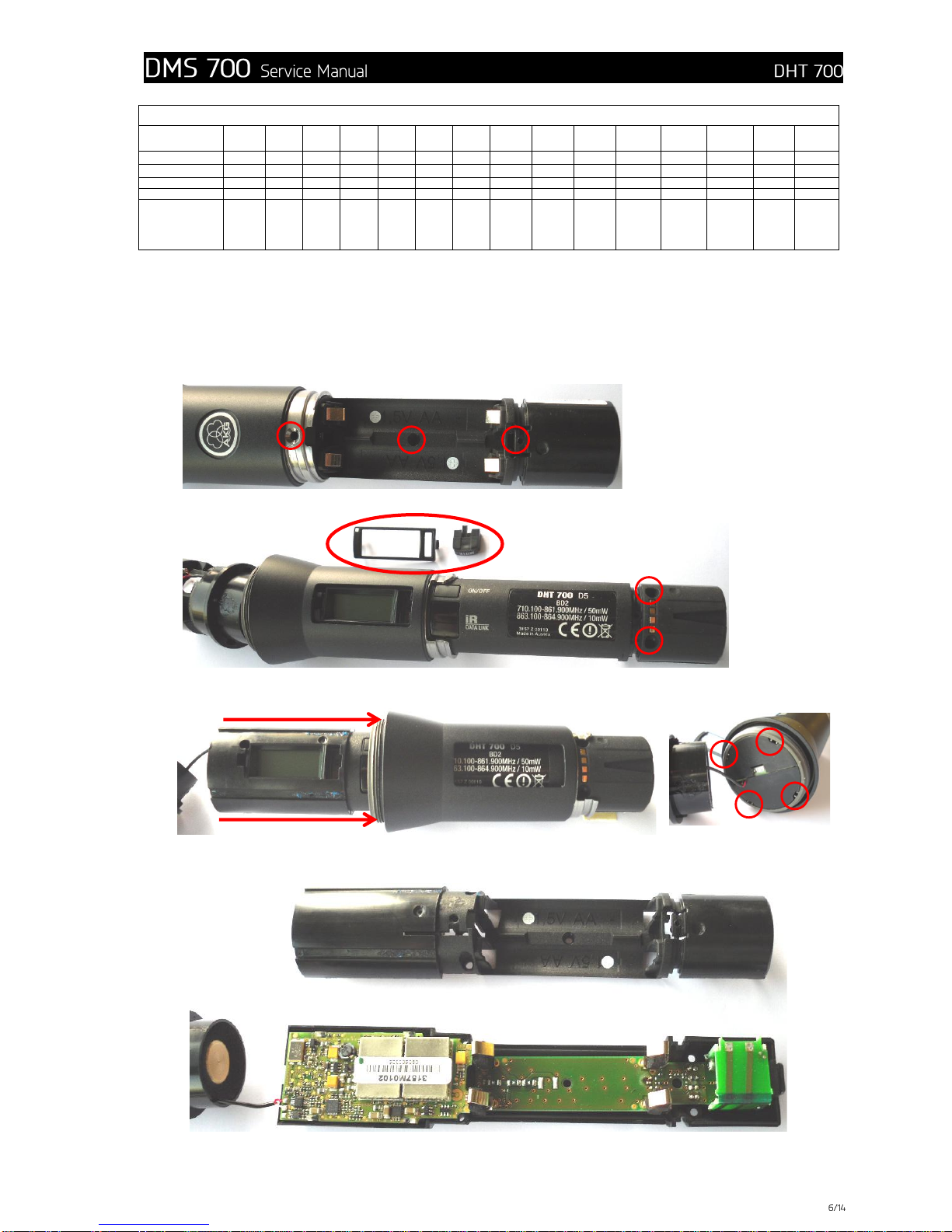

To dismantle the DHT700 proceed as follows:

1. Remove Battery sleeve

2. Remove housing screws

3. Remove display cover and mute button

4. Remove housing

5. Open

Frequency band and power / Frequenzband und Leistung

Preset--

Main board

BD1

50mW

BD1 U

50mW

BD2

10/50mW

BD2 RO

30mW

B2 NZ

10/50mW

BD2 AU

50mW

BD2 JP

10mW

BD2 TH

50mW

BD2 HK

10/20mW

BD2 KR

10mW

BD2 BY

50mW

BD2 IT

10/50mW

BD2 IL

10mW

3157M01010

x

-

3157M01020

-

x

Device sticker

D5-4808S10…

C5-4809S10…

D7-4813S10…

010

130

020

030

040

050

060

070

080

090

100

110

120

DPT 700 D5 3156Z00…

DPT 700V2 D5 3156Z02…

All charging contact solder joints:

1. pre-solder related pads on pcb

2. assemble pcb and frame assy.

3. melt solder by heating up charging contacts with

soldering tip (apply some pressure)

All cables from pcb carrier assy. To be soldered directly on

charging contacts like shown in this view

Wiring / Verkabelung

1

2

3

4

5

6

77

9

11

10

8

14

12

13

15

14

17

141416

18

19,20

DPT 700 Parts list / Stückliste

Description

Pos.

Part number

Bestellnummer

Quantity

Stück

Bezeichnung

V1

V2

Housing compl.*, upper

1

3156M11010

1

Gehäuseoberteil kompl.

Housing, bottom

2

3156Z11010

1

Gehäuseunterteil

Battery cover assy.

3

3156M14010

1

Batteriedeckel

Frame assy.

4

3156M12010

1

-

Rahmen kompl.

Frame assy.

4

3156M12020

-

1

Rahmen kompl.

LCD display

5

0050E00070

1

LCD Display

Display holder

6

3156Z17010

1

Displayhalter

Foam

7

3157Z28010

2

1

Schaumstoffstück

Antenna assy. Band 1

8

3156M10020

1

Antenne kompl. Band 1

Antenna assy. Band 2

8

3156M10010

1

Antenne kompl. Band 2

Foam

9

2932Z34010

1

Schaumstoffstück

On/Off button

10

3156Z18010

1

On/Off Knopf

Mute button

11

3156Z19010

1

Mute Knopf

Cover

12

3156Z20010

1

Abdeckung

Mainboard Band 1

13

3156M01010

1

Hauptprint Band 1

Mainboard Band 2

13

3156M01020

1

Hauptprint Band 2

Bolt, DIN7 2h8 x 20mm

14

0007D20050

2

Stift, DIN7 2h8 x 20mm

Belt clip

15

3156Z25010

1

Gürtelklammer

Screw, M2.5x10

16

7045D25030

3

Schraube, M2.5x10

Device sticker

17

4807S00…

1

-

Geräteaufkleber

Device sticker

17

4807S12…

-

1

Geräteaufkleber

Foam

18

2932Z21010

2

Schaumstoffstück

Mini-XLR socket with wires

19

3156M15010

1

Mini-XLR Buchse

Nut for Mini-XLR socket

20

2781Z20020

1

Mutter für Mini-XLR Buchse

* Housing compl. upper includes display window and Mini-XLR socket.

Important!

For ordering the DPT700 main transmitter board we need the following information:

Board number: 3156M0101 for Band1 or 3156M0102 for Band2, V1 or V2.

Preset programming for Band1: BD1 or BD1U (please see below table)

Preset programming for Band2: IL, IT, BY……etc.(please see below table)

Mainboard (13) will always delivered together with frame assy. (4)

Frequency band and power / Frequenzband und Leistung

Preset--

Main board

BD1

50mW

BD1 U

50mW

BD2

10/50mW

BD2 RO

30mW

B2 NZ

10/50mW

BD2 AU

50mW

BD2 JP

10mW

BD2 TH

50mW

BD2 HK

10/20mW

BD2 KR

10mW

BD2 BY

50mW

BD2 IT

10/50mW

BD2 IL

10mW

3156M01010

x

-

3156M01020

-

x

Device sticker

V1 4807S00…

V2 4807S12…

010

130

020

030

040

050

060

070

080

090

100

110

120

DSR 700 3155Z00…

1

2

3

4

5

8

10

9

7

20,21

2

13

15,16

17

12

11

22

3

4

24

13

39

23

40

6

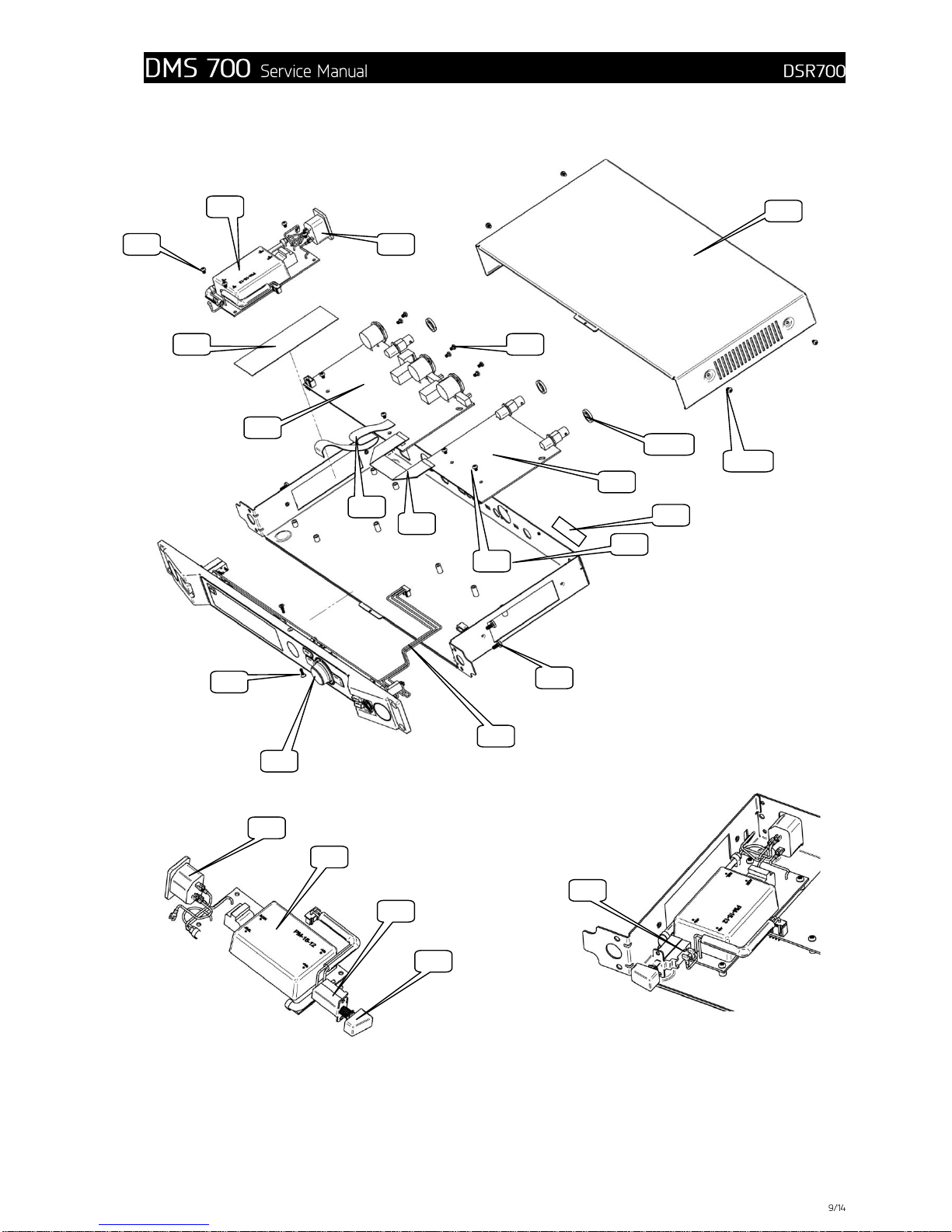

Frontpanel

21

22

3

23

38

25

24

28

29

31

26

27

30

32

33

35

36

37

36

34

42

41

43
