User Manual
19" LCD Open Frame 5-Wire Resistive
Touch Monitor 190OT-5W-3C00-U
1. Technical Specification
1.1 Product Description
190OT-5W-3C00-U is 19” LCD Open frame 5-wire resistive touch monitor, with USB touch system interface,
integrates with 3 mm thickness of 5-wire resistive clear touchscreen glass and USB controller.
1.2 Touch Monitor Technical Specification
Model No. 190OT-5W-3C00-U: 19” LCD Open frame 5-wire Resistive USB
Touch Monitor
Structure Metal-cased open frame, plus 19” 5-wire Resistive touchscreen
and USB controller
Active area (Length) 373.1 mm (14.69”) × (Height) 306 mm (12.05”)
Touch Monitor Dimensions
Length: 422 mm (16.6”) include 5-wire resistive touchscreen
panel
Height: 372 mm (14.65”) include mounting rack
Depth: 64 mm (2.5”) include mounted 5-wire resistive
touchscreen
Suggested Resolution 1280×1024
LCD Panel 0.27mm pixel pitch
Pixel RGB vertical stripe
With clear touchscreen panel 240cd/m2
Brightness With Anti-glare touchscreen panel 218cd/m2
LCD Display color 16.2Million
LCD Maximum Viewing Horizontal(left/right) 80°/80°
AKG Technology, Inc. (http://www.akgtech.com)
Tele:(909)967-5572; Fax: (909) 580-8228; Email: [email protected]
Mailing Address: 1225 BenitoAvenue, #M, Alhambra, CA91803, U. S.A.
Angle Vertical(up/down) 80°/80°
LCD Contrast Ratio 450:1
LCD Input Signal Video Sync. RGB Analog (0.7 Vp-p, 75 ohms)
Composite sync, H/V Separate (TTL)
Sync-On-Green, fh: 30 – 82 kHz, fv: 50 – 75 Hz
Video Signal Input
Connector VGA 15-pin D-Sub; DVI input (Option)
Frequency（H/V）30～81KHz / 50～76Hz
Input (line) voltage: 100-240 VAC (auto switch), 50-60 Hz
Power Power consumption: 42 Watts
Temperature 32° F (0° C) ～104° F (40°C)
Operation Conditions Humidity 10%～90% (non condensation)
Operating RH: -4°F (-20°C) ～140°F (60°C)
Storage Conditions Storage RH: 10%～90% (non condensation)
Mount Interface 1)VESA 75mm
2)Mount bracket: horizontal or Vertical
Buttons AUTO,+,POWER,-,MENU
OSD Control Function Brightness, Contrast Ratio, Auto-adjust, Phase,
Clock, H/V Location, Languages, Function, Reset
Deviation of Touch Error Less than 3.5 mm
Touchscreen Resolution 4096 X 4096
Touch point Density 100,000 touchpoints/in2 (15,500 touchpoints/cm2)
Touch Activation Force 20-120 grams
Surface Hardness Moths 3
Life Time More than 35 million touches in one location without failure
Touch Response Time Less than 5 ms
Touchscreen MTBF Over 50,000 hours
Dust-Proof and Water-Proof Meet NEMA 4 and 12, and IP 65 standards
Chemical Resistance of
Touchscreen
Acetone, Methylene chloride, Methyl ethyl ketone, Isopropyl,
alcohol, Hexane, Turpentine, Mineral spirits, Unleaded Gasoline,
Diesel Fuel, Motor Oil, Transmission Fluid, Antifreeze
Net 5.5 Kgs (12 lbs);
Touch Monitor Weight Gross 10 Kgs (22lbs)
Regular Warranty 1 year for LCD; 3 years for 5-wire resistive touchscreen and
controller
1.3 LCD Technical Specifications
Model No.
N
T-268 LCD Open frame monitor RoHS
Structure Metal-cased open frame, plus 17.1” 5-wire Resistive
touchscreen and USB controller
LCD Panel Size 17”
Display area (H) 337.8 mm (13.3”) × (V) 269.7 mm (10.62”)
Suggested Resolution 1280×1024
Panel 0.27mm pixel pitch
AKG Technology, Inc. (http://www.akgtech.com)
Tele:(909)967-5572; Fax: (909) 580-8228; Email: [email protected]
Mailing Address: 1225 BenitoAvenue, #M, Alhambra, CA91803, U. S.A.
Pixel RGB vertical stripe
Glass surface Anti-glare
Brightness 250cd/m2
Display color 16.2 million
Horizontal(left/right) 80°/80°
Maximum Viewing Angle Vertical(up/down) 80°/80°
Contrast Ratio 450:1
Response Time 16ms
Input Signal Video Sync. RGB Analog (0.7 Vp-p, 75 ohms)
Composite sync, H/V Separate (TTL)
Sync-On-Green, fh: 30 – 82 kHz, fv: 50 – 75 Hz
Video Signal Input
Connector VGA 15-pin D-Sub; DVI input (Option)
Frequency（H/V）30～81KHz / 50～76Hz
Temperature 32° F (0° C) ～104° F (40°C)
Operation Conditions Humidity 10%～90% (non condensation)
Operating RH: -4°F (-20°C) ～140°F (60°C)
Storage Conditions Storage RH: 10%～90% (non condensation)
Buttons AUTO,+,POWER,-,MENU
OSD Control Function Brightness, Contrast Ratio, Auto-adjust, Phase,
Clock, H/V Location, Languages, Function, Reset
Note:
This LCD panel is made in China. We can provide sample model of LCD for a batch of Touch Monitor shipment PO;
we may use different LCD panel to make touch monitor with same LCD technical specification for different period
PO because of LCD panel is changing frequently in the LCD industry.
1.4 5-Wires Resistive Touchscreen Technical Specification
Technology 5- wire Resistive Touchscreen
Construction Glass, uniform resistive coating, polyester coversheet,
transparent insulating dots, conductive coating
Deviation of Error Less than 3.5 mm
Resolution 4096 X 4096
Touch point Density 100,000 touchpoints/in2 (15,500 touchpoints/cm2)
Touch Activation Force 20-120 grams
Surface Hardness Moths 3
Life Time More than 35 million touches in one location without
failure
MTBF Over 50,000 hours
Dust-Proof and Water-Proof Meet NEMA 4 and 12, and IP 65 standards
AKG Technology, Inc. (http://www.akgtech.com)
Tele:(909)967-5572; Fax: (909) 580-8228; Email: [email protected]
Mailing Address: 1225 BenitoAvenue, #M, Alhambra, CA91803, U. S.A.
Light Transmission Clear panel ≥96%; Anti-glare panel ≥87%
Operating Temperature -20°C to 80°C
Storage Temperature -40°C to 80°C
Operating Humidity ＜95%
Storage Humidity ＜95%
Operating Altitude 10,000 feet above sea level
Storage Altitude 50,000 feet above sea level
Chemical Resistance
Acetone, Methylene chloride, Methyl ethyl ketone,
Isopropyl alcohol, Hexane, Turpentine, Mineral spirits,
Unleaded Gasoline, Diesel Fuel, Motor Oil,
Transmission Fluid, Antifreeze
1.5 Touchscreen Controller Technical Specification
Controller Interface USB and RS232 interface
Power Requirements +5VDC (max. 100mA, typical 70mA, 50mV peak to peak max
ripple)
Operating Temperature 0 to 70 degrees Centigrade
Storage Temperature -40 to 80 degrees Centigrade
Relative Humidity 95% at 60 degrees Centigrade
Protocol RS232: 9600 bauds, None parity, 8 data bits, 1 stop bit
USB: USB 1.1 Low speed
Resolution 4096 x 4096
Accuracy Tolerance Max. +/- 0.5% tolerance
Response Time Less than 5 ms
MTBF more than 50,000 hours

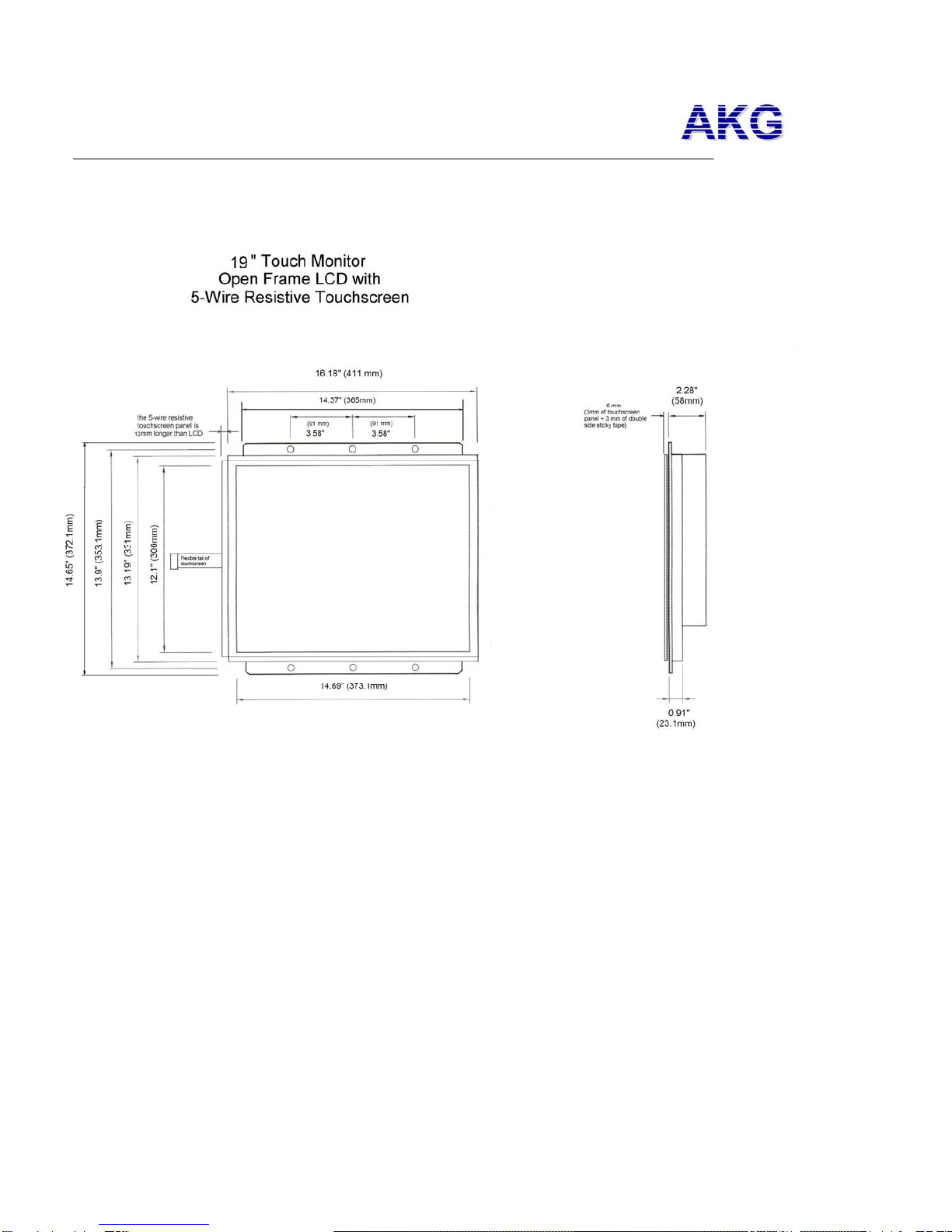

2. Mechanical Drawing
AKG Technology, Inc. (http://www.akgtech.com)
Tele:(909)967-5572; Fax: (909) 580-8228; Email: [email protected]
Mailing Address: 1225 BenitoAvenue, #M, Alhambra, CA91803, U. S.A.
3.Assembling Procedure
1. Connect VGA cable with computer system;
2. Connect the touch system to the computer system with either USB signal cable (USB interface touch monitor)
or RS232 signal cable (RS232 interface touch monitor);
3. connect power;
4. Install the appropriate touch system driver in correspondence with operation system, (Windows XP, 2K, Linux
etc.)
4. Touch System Driver Installation
4.1 Available Touch system Drivers that can be downloaded from
website: http://www.akgtech.com/english/software/softwarePro.html
Windows 2000 (for both home version & professional version)
Windows XP (for both home version & professional version)
Windows Vista
Windows CE 5.0 & 6.0
AKG Technology, Inc. (http://www.akgtech.com)
Tele:(909)967-5572; Fax: (909) 580-8228; Email: [email protected]
Mailing Address: 1225 BenitoAvenue, #M, Alhambra, CA91803, U. S.A.
Linux
4.2 Driver installation and Touch System calibration guide:
•Preparation: connecting 5-wire resistive touch screen, controller and application device or computer with
correct cable on the integration procedure.
•Load the driver from our website or Driver CD in to application system;
•Find the instruction to complete the driver installation;
•Double click at the setup.exe file to start software driver installation. Then, the setup program will guide user
to complete software installation.
5. How to Calibrate 5-Wires Resistive Touchscreen
Calibration, draw test tools and the linearity curve of the touch screen were listed shown as below for user to do touch
screen calibration and touch position test.
