Akira AC-S10CPGB Manuale utente

Air Conditional

Service Manual

   

http://splitoff.ru/tehn-doc.html

, ,  , .

-2-

Model No.: AC-S10CPGB

Version: 1.0

MODEL:

AC-S10CPGB

    : http://splitoff.ru/tehn-doc.html

-3-

Model No.: AC-S10CPGB

Version: 1.0

CONTENTS

SPECIFICATION..................................................................................................................................... 4

EXPLODED VIEW & PART LIST.......................................................................................................... 7

CIRCUIT DIAGRAM ............................................................................................................................ 12

    : http://splitoff.ru/tehn-doc.html

-4-

Model No.: AC-S10CPGB

Version: 1.0

SPECIFICATION

Function Cooling

Rated voltage 220-230V~

Rated frequency 50Hz

Total capacity (W) 2500

Power input (W) 960

Rated input (W) 1150

Rated current (A) /

Air flow volume (m3/h) (H/M/L)** 380 /340 /300

Dehumidifying volume (l/h) 0.8

C.O.P /EER (W/W) 2.5

Model KF-25G

Fan motor speed (r/min) (H/M/L) 960 /870 /780

Output of fan motor (w) 8

Input of heater (w) /

Fan motor capacitor (uF) 1

Fan motor RLA (A) 0.1

Tan Type-piece Cross flow fan –1

Diameter-length (mm) Φ97 x 583

Evaporator Aluminum fin-copper tube

Pipe diameter (mm) Φ7

Row-fin gap (mm) 2 – 1.4

Coil length (I) x height (H) x coil width (L) 576 x 230 x 25.4

Swing motor model MP28EA

Output of swing motor (w) 2

Fuse (A) PCB 3.15A Transformer 0.2A

Sound pressure level dB (A) (H/M/L) 38 /35 /32

Sound power level dB (A) (H /M /L)*** 48 /45 /42

Dimension (W /D /H) (mm) 740 /180 /250

Dimension of package (W /D /H) (mm) 870 /336 /280

Indoor

Unit

Net weight /Gross weight (kg) 8 /11

    : http://splitoff.ru/tehn-doc.html

-5-

Model No.: AC-S10CPGB

Version: 1.0

Model KF-25W

Compressor model 2P17S225ANA

Compressor type Rolling piston type

L.R.A. (A) 18

Compressor RLA (A) 4.1

Compressor power input (W) 880

Overload protector MRAS98776

Throttling method Capillary

Starting method Capacitor

Working temp range (oC) 18 ~ 43

Condenser Aluminum fin-copper tube

Pipe diameter (mm) Φ9.52

Rows-Fin Gap (mm) 1-1.6mm

Coil length (I) x height (H) x coil width (L) 700 x 406 x 22

Fan motor speed (rpm) (H/M/L)** 950

Output of fan motor (W) 20

Fan motor RLA (A) 0.4

Fan motor capacitor (uF) 2

Air flow volume of outdoor unit 1400

Fan type-piece Axial fan –1

Fan diameter (mm) Φ320

Defrosting method Auto defrost

Climate type T1

Isolation I

Moisture protection IP24

Permissible excessive operating pressure for the

discharge side (MPa)

2.5

Permissible excessive operating pressure for the

suction side (MPa)

0.6

Sound pressure level dB (A) (H /M /L) 52

Sound power level dB (H /M /L) 62

Dimension (W /D /H) 660 x 320 x 428

Dimension of package (W /D /H) (mm) 765 x 350 x 490

Net weight /gross weight (kg) 25 /29

Outdoor

Unit

Refrigerant charge (kg) R22 0.68

    : http://splitoff.ru/tehn-doc.html

-6-

Model No.: AC-S10CPGB

Version: 1.0

Length (m) 4

Liquid pipe (mm) 6

Outer diameter Gas pipe (mm) 9.52

Height (m) 5

Connection

pipe

Max distance Length (m) 10

    : http://splitoff.ru/tehn-doc.html

-7-

Model No.: AC-S10CPGB

Version: 1.0

EXPLODED VIEW & PART LIST

Indoor Unit

    : http://splitoff.ru/tehn-doc.html

-8-

Model No.: AC-S10CPGB

Version: 1.0

Part list for indoor unit

No Part name Qty

1 Wall mounting frame 1

2 Rear case 1

3 Evaporator pipe cover 1

4 Drainage pipe 1

5 Pipe clamp 1

6 Cross flow fan 1

7 Fan bearing 1

8 Ring of bearing 1

9 Water tray 1

10 Swing louver 12

11 Swing link 1

12 Manual lever 2

13 Evaporator assy 1

14 Evaporator support 1

15 Front case 1

16 Screw cover 2

17 Front panel 1

18 Filter 2

19 Air cleaner holder 2

20 Guide louver 1

21 Remote controller Y512F 1

22 Guide louver bearing 3

23 Main PCB 1

24 Fuse 3.15A 250V AC 1

25 Room sensor 1

26 Tube sensor 1

27 Sensor insert 1

28 Stepping motor MP28EA 1

29 Motor FN8L 1

30 Motor clamp 1

31 Wire clip 1

32 Wire clamp 1

33 LED holder 1

34 Receiver board JD 1

35 Receiver board K 1

36 Terminal board T240A 1

37 Electric box cover 1

38 Electric box 1

39 Transformer SC23B 1

40 Connecting cable 1

    : http://splitoff.ru/tehn-doc.html

-9-

Model No.: AC-S10CPGB

Version: 1.0

No Part name Qty

41 Power cord 1

42 Signal control wire 1

43 Cold plasma generator 1

44 Cold plasma generator cover 2

    : http://splitoff.ru/tehn-doc.html

-10 -

Model No.: AC-S10CPGB

Version: 1.0

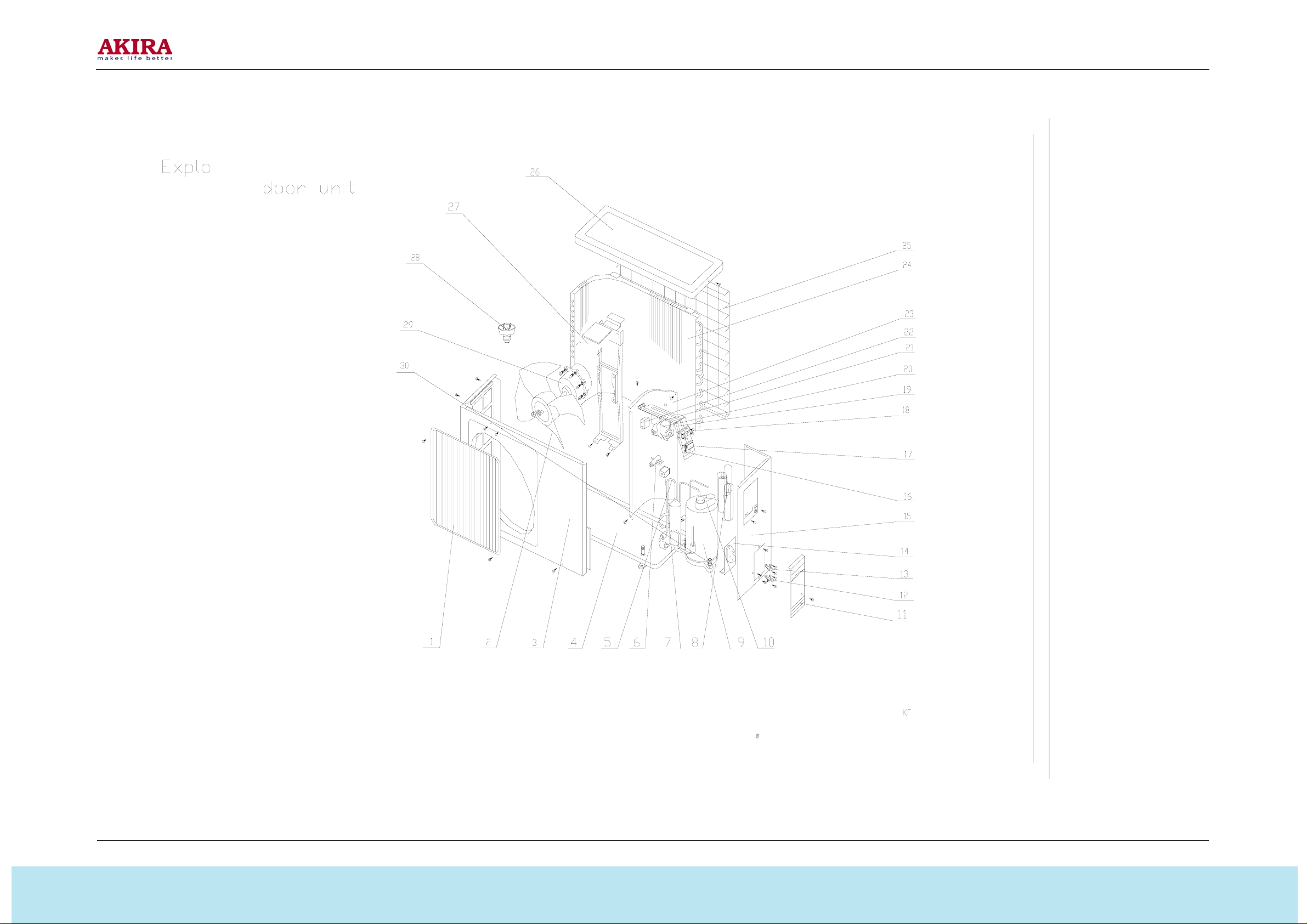

Outdoor Unit

    : http://splitoff.ru/tehn-doc.html
