Akura ATL1930W-ID Manuale utente

19"WIDE SCREEN LCD TV/DVB Freeview

ATL1930W-ID

Safety Information…………………………………………..…1

1.Product Features…………………………………………….3

2.Accessories…………………………………………………..3

3.Front View…………………………………………………….4

4.Rear View……………………………………………………..5

5.Remote Control………………………………………………6

6.Basic Installation…………………………………………….8

7.TV OSD Menu………………………………………………..9

7.1 Picture Menu…………………………………………..…9

7.2 Sound Menu……………………………………………..10

7.3 Channel Menu…………………………………………...11

7.4 Function Menu…………………………………………..12

7.5 PC Menu………………………………………………….13

8. DVB Main Features..................................................14

9. DVB Getting Started.................................................15

10. DVB Operation......................................................17

11. DVB Basic Functions.............................................25

12. User Help Guide………………………………………….26

13.Technical Specifications…………………………………27

Mains Plug wiring…………………………….………………28

Wall bracket mounting instructions………………………....28

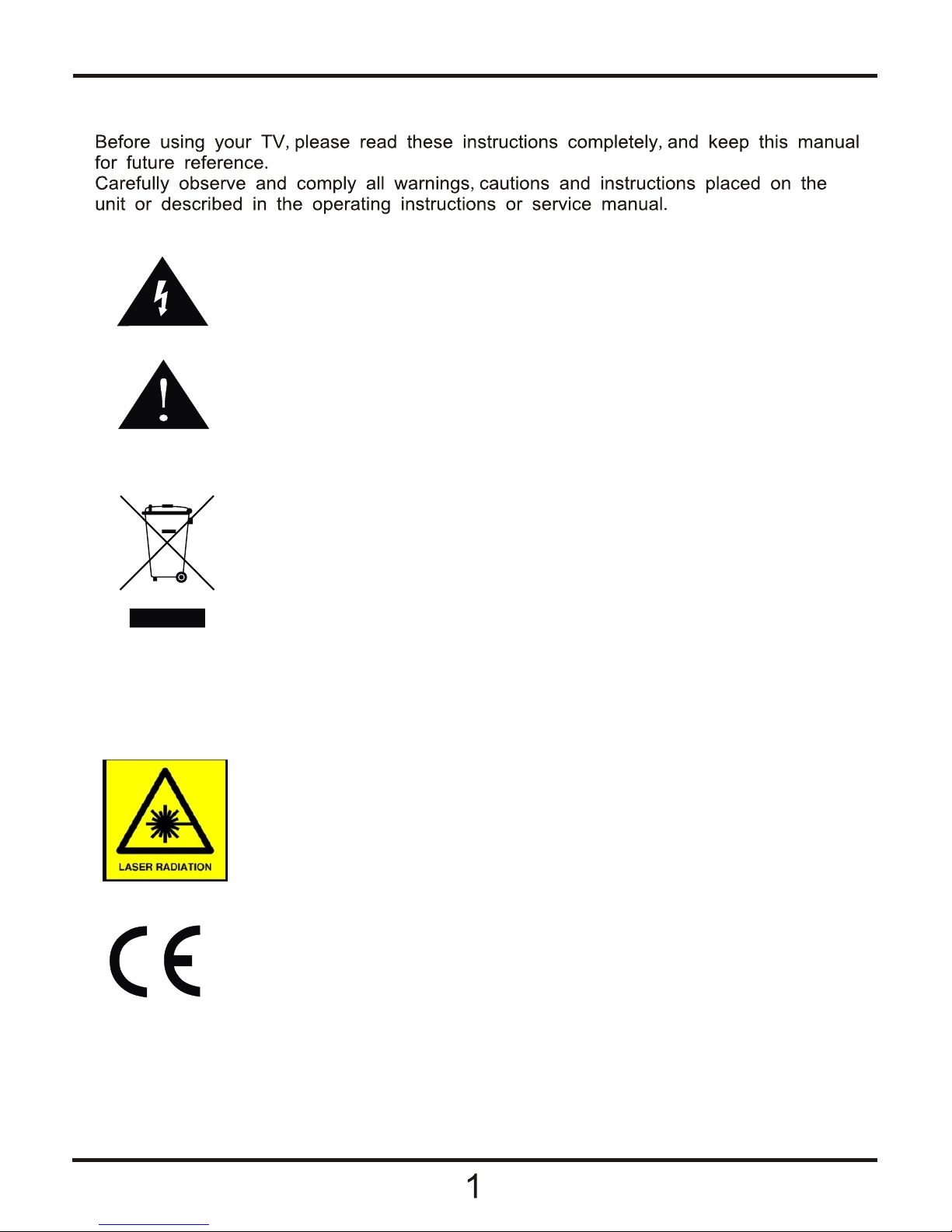

Safety Information

The lightening flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of un-insulated “dangerous

voltage” within the products enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user

to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

The crossed out “Wheelie bin” is intended to show that this appliance must not

be placed with ordinary household waste at the end of its useful life. To prevent

possible harm to the environment or human health from uncontrolled waste

disposal, please keep separate from other household waste and recycle it

responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where you purchased the

product, or their local government office for details of where and how you can

take this item for environmentally safe re-cycling.

Business users should contact their supplier and check the terms and conditions

of the purchase contract. This product must not be mixed with other

commercial wastes for disposal

1. THIS LABEL IS ATTACHED TO THE PLACE AS ILLUSTRATED TO INFORM

THAT THE APPARATUS CONTAINS A LASER COMPONENT.

2. THE WARNING LABEL INFORMING OF RADIATION IS PLACED INSIDE

THEn UNIT. AS SHOWN IN THE ILLUSTRATION. TO WARN AGAINST

FURTHER MEASURES ON THE UNIT. THE EQUIPMENT CONTAINS A

LASER RADIATING LASER RAYS ACCORDING THE LIMIT OF LASER

PRODUCT OF CLASS

This unit complines with European safety and electrical interference directives.

Safety Information cont.

Do not place the TV on an unstable surface, it may tip over and cause injury or

damage to the LCD screen.

Do not place the TV in a cabinet where airflow is restricted, ensure the ventilation

holes are not covered to prevent overheating. Do NOT cover the DC mains

adaptor, this will feel warm to the touch and must be allowed to radiate the heat.

Do not use the TV in wet or damp conditions, if water or liquids are allowed to

enter the case, disconnect the power and call the Technical Help line. Do not

handle the TV or Power adaptor with wet hands.

During an Electrical storm or when going on holiday, disconnect from the mains

supply and aerial (if external or rooftop).

Do not place heavy objects on the mains lead or DC supply lead, do not place

where they can be stepped on, cut or damaged. If the leads do become damaged

please call the Technical Help Line for advice.

Do not drop or damage the TV. If the casing becomes damaged it may cause a

safety issue, Do not open the case or Power adaptor, you risk a severe electric

shock, injury or death. Do not drop objects into the TV ventilation slots or DVD disc

slot. Should an object enter the TV, contact the Technical Help Line for advice.

Do not place the TV near heat sources such as radiators or direct sunlight

Cleaning the TV. Disconnect from the supply before cleaning. Do NOT use petrol

based or chemical cleaning fluids. You may wipe with a soft damp cloth. For

stubborn sticky dirt use a dilute detergent solution..

LCD Screen. Do NOT use chemical solvents on the screen surface, sticky finger

marks must only be removed with a dilute detergent solution. Occasionally one

or two bright dots may be seen on the screen, this is not considered a fault.

- Inputs : Tuner, Scart, VGA, CVBS (video), Audio, PC Audio

- Memory. Up to 200 channels may be stored

- No Signal (TV) Auto standby.

- Timer functions

- Programme exchange (swap)

- Power requirements (DC 12V 5 A (60W).

- LCD Screen 1440 x 900 pixels

- Tuning Range VHF / UHF 48 Mhz 847 Mhz

- TV Systems : PAL (B/G,I,D/K). SECAM (B/G,D/K,L) for UK use PAL “I”.

- Freeview (Digital) and Analog Tuners.

Users' Manual Remote Control Adapter Adapter Cable

1.Product Features

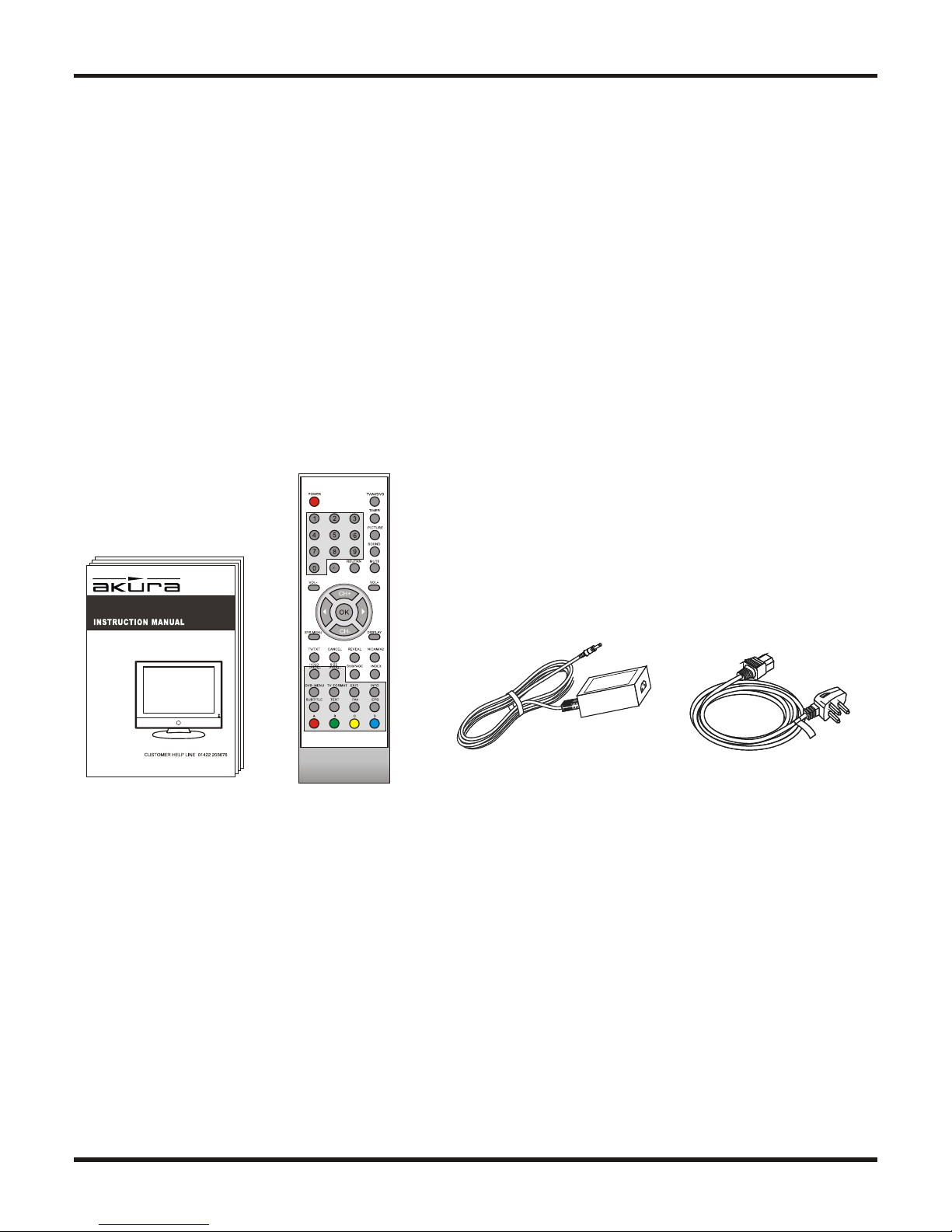

2.Accessories

ATL19 3 0W-I D

19"WIDE SCREEN LCD TV/DVB COMBO

1(IR)Infrared Receiver:Receives IR signals from the remote control.

(Power on/Standby)LED Indicator: Press POWER to turn on and off.

The effective range of the I/R signal is approx 3 metres and an angle of +/- 30 deg.

2 The functions of the buttons are described as below:

MENU: Press to display the OSD menu, Press again to exit the menu.

CH-/CH+: Press to scan through channels. When pressing and holding down either button

user can scan channels quickly.

They are also can be used to move down/up in the OSD menu screen.

VOL-/VOL+: Press to adjust the volume.

they are also can be used to move left/right in the OSD menu screen.

VOL+ button can be used to skip forward to next menu.

TV/AV: Press to select the source: TV,AV,DVB,PC,SCART

Power: Turn on/off the TV set.

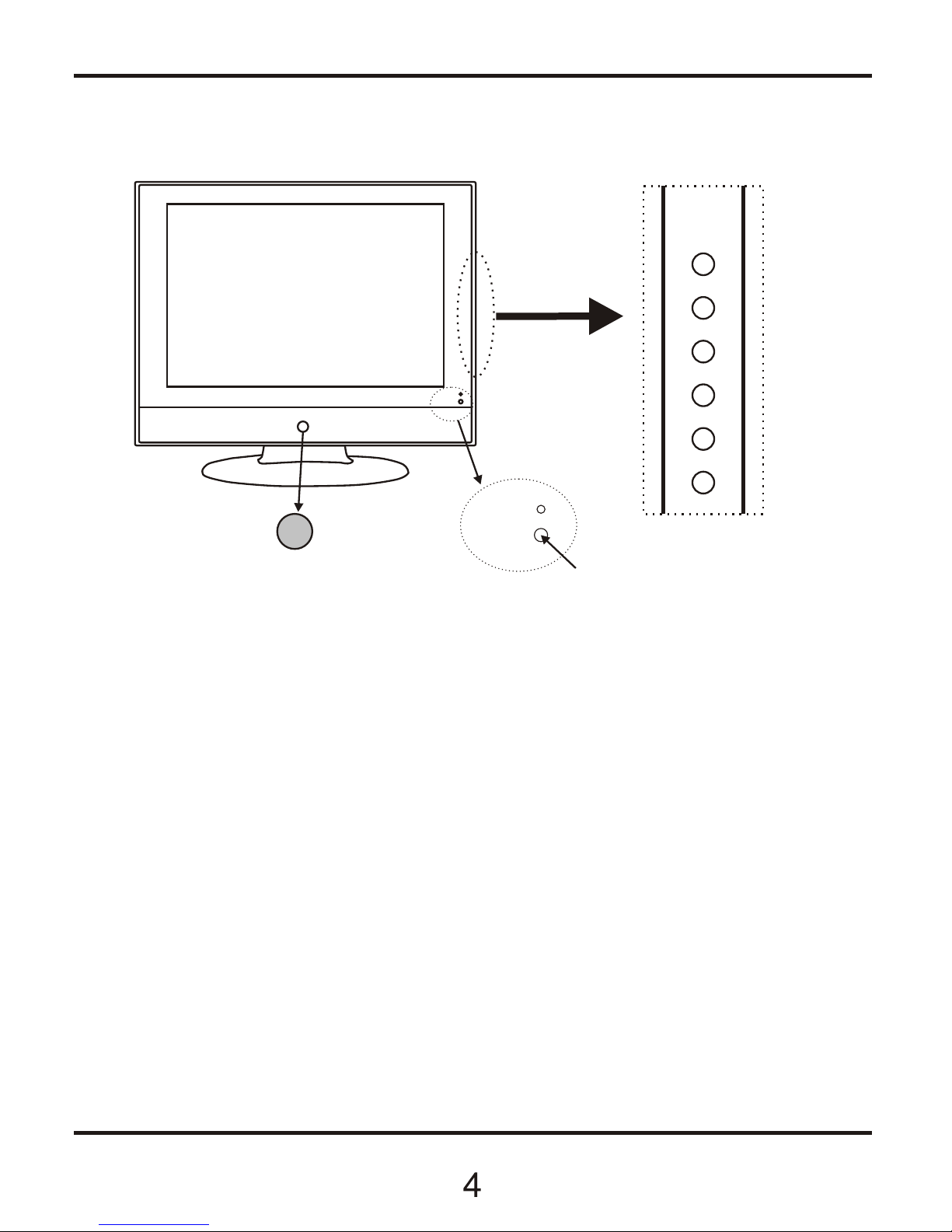

3.Front View

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

CH-

CH+

VOL-

VOL+

TV/AV

Led Indicator

Power

Remote control window

(keep clear)

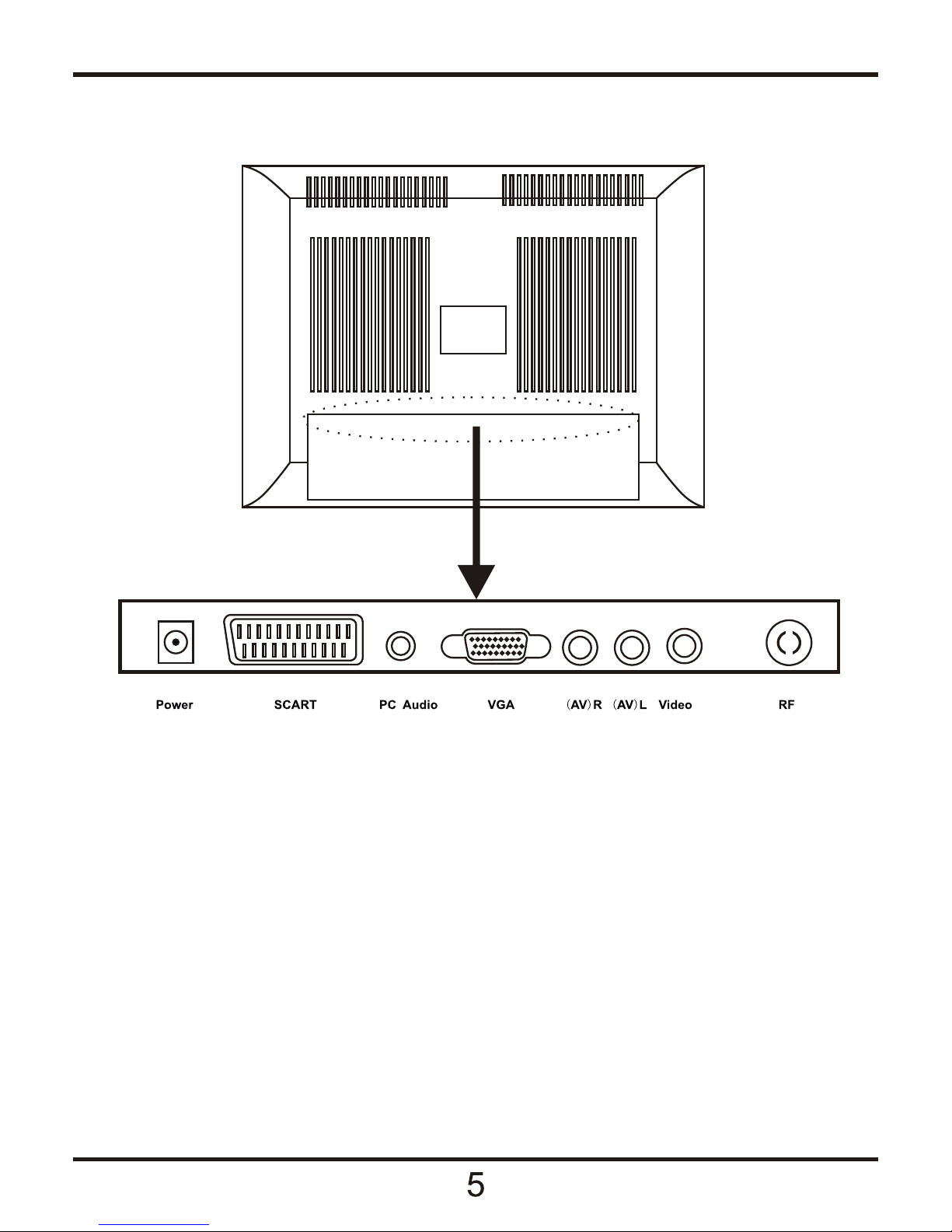

4.Rear View

Power : Connection to Power adaptor.

SCART : Composite video and Audio input from VCR or other devices.

PC Audio : Audio connection from PC.

VGA : PC Monitor display input. Connect to your Pc Mini D15 pin connector.

AV-R,AV-L (Phono): Right and Left Audio input from other sources such as Camcorder.

Video : CVBS video input from other sources such as Camcorder.

RF : Tuner / Antenna RF input.

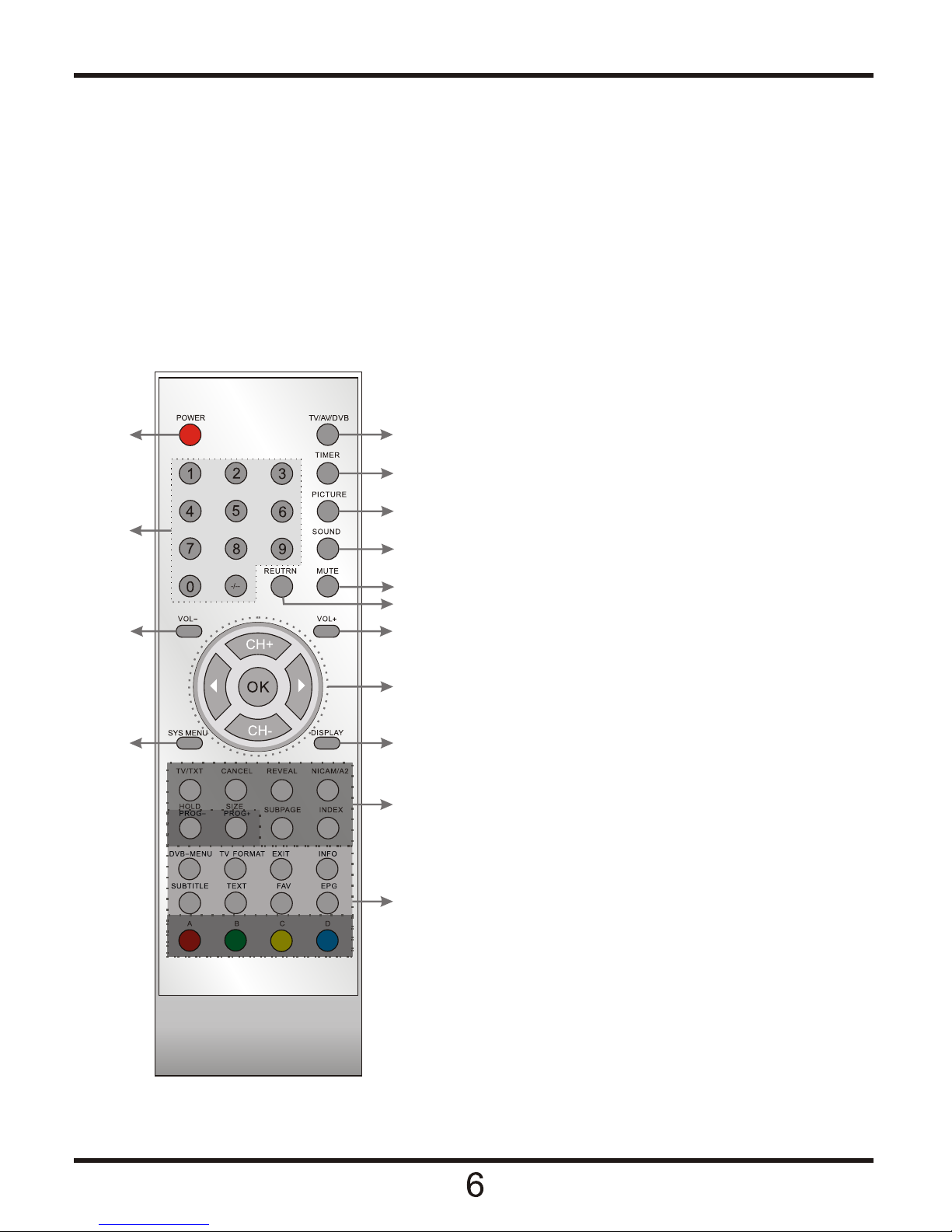

5. Remote control

Note:

1. Fit two AA batteries, making sure that they are the correct way round, as marked on the case.

2. Aim the remote control at the window to keep the right side of the screen, and keep the window

clear at all times.

3. Do not press the buttons on the remote control too quickly-allow time for the set to respond.

910

12 13

1. POWER: turn on or off the TV.

2. TV/AV/DVB: input source select.

3. TIMER: shutdown timer.

4. PICTURE: select the picture mode:

User,Normal, Soft or Vivid.

5. SOUND: select the sound mode:

User, Normal, News and Movie.

6. 11. 0-9,-/--: choose channel directly.

Number buttons for DVB.

7. MUTE: silence.

8. RETURN: go back to play the last channel.

9/10. VOL+/-: adjust the volume.

11. CH+/-: scan through channels.

CH+/-,cursor left/right:

Cursor buttons in TV menu.

OK: CONFIRM BUTTON for OSD menu.

12. SYS-MENU: TV system setup menu.

13. DISPLAY: display

( ).

. ( )

current mode

be used in DVD or TV mode

14 Buttons for Teletext see next page

15Buttons for DVB see next page

Battery Disposal.

When the batteries are exhausted and need replacing, do NOT break open or throw on a fire.

Contact your local waste authority for disposal instructions, do not throw in the domestic waste.

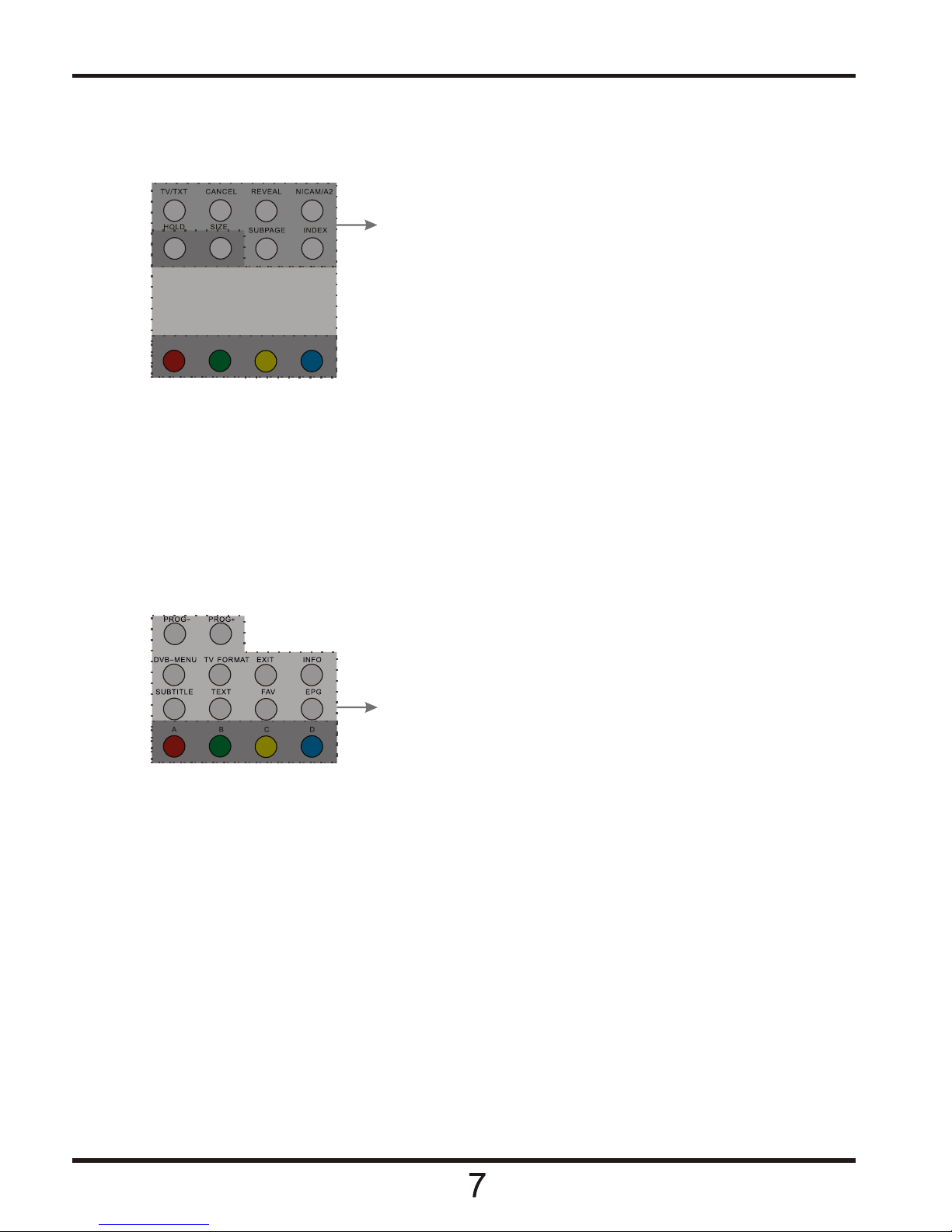

14.Buttons for Teletext

TV/TXT: turn off/on Teletext.

CANCEL: cancel Teletext.

REVEAL: reveal any hidden text.

NICAM/A2: NICAM.

HOLD: hold or carry on the current subpage.

SIZE: press to see top half of page double size.

Press again to see the bottom half of page

double size.

Press again for normal size.

SUBPAGE: press to subpage, again to cancel.

INDEX: go to index.

Colour buttons: short cuts-follow the coloured

links in the text.

15.Buttons for DVB functions

PROG+/-: DVB Program+/-.

DVB-MENU: to display the main menu on the screen or

return to the screen from a menu screen.

TV FORMAT: to change aspect screen ratio 4:3,16:9.

EXIT: to return to the previous menu and screen.

INFO: means information. To display brief information

concerning the current channel you are viewing.

SUBTITLE: to switch the dialogue at the bottom of

the screen.

TEXT: to view the teletext broadcasting program.

FAV: means favorite. To display the favorite channel list

defined by you.

EPG: to show the electronic program guide during

no-menu state only.

A B C D: this keys are effective only combining with

MHEG5 and extended EPG schedule MHEG5

applications.

11. CH+/-,Cursor buttons: Cursor buttons used in menu.

OK: CONFIRM BUTTON.
