Akura ATDVD1930W Manuale utente

LCD TV/DVD COMBINATION

ATDVD1930W

Safety Information………………………………………2

1.Product Features……………………………………4

2.A c c e s s o r i e s … … … … … … … … … … … … … … … … 4

3.Front View……………………………………………5

4.Rear Vi e w……… … … …………… … …………… … 6

5.R e m o t e C o n t r o l … … … … … … … … … … … … … … 7

6.Basic Installation……………………………………9

7.OSD Menu……………………………………………10

7.1Sound Menu…………………………………………11

7.2Channel Menu………………………………………12

7.3Function Menu………………………………………13

7.4PC Menu………………………………………………14

8.DVD Operation…………………………………………15

9.System Operation……………………………………20

10.User Help Guide……………………………………23

11.Disc Care and Handling……………………………24

12.Technical Specifications……………………………25

Mains Plug wiring…………………………………………26

Wall bracket mounting instructions…………………….26

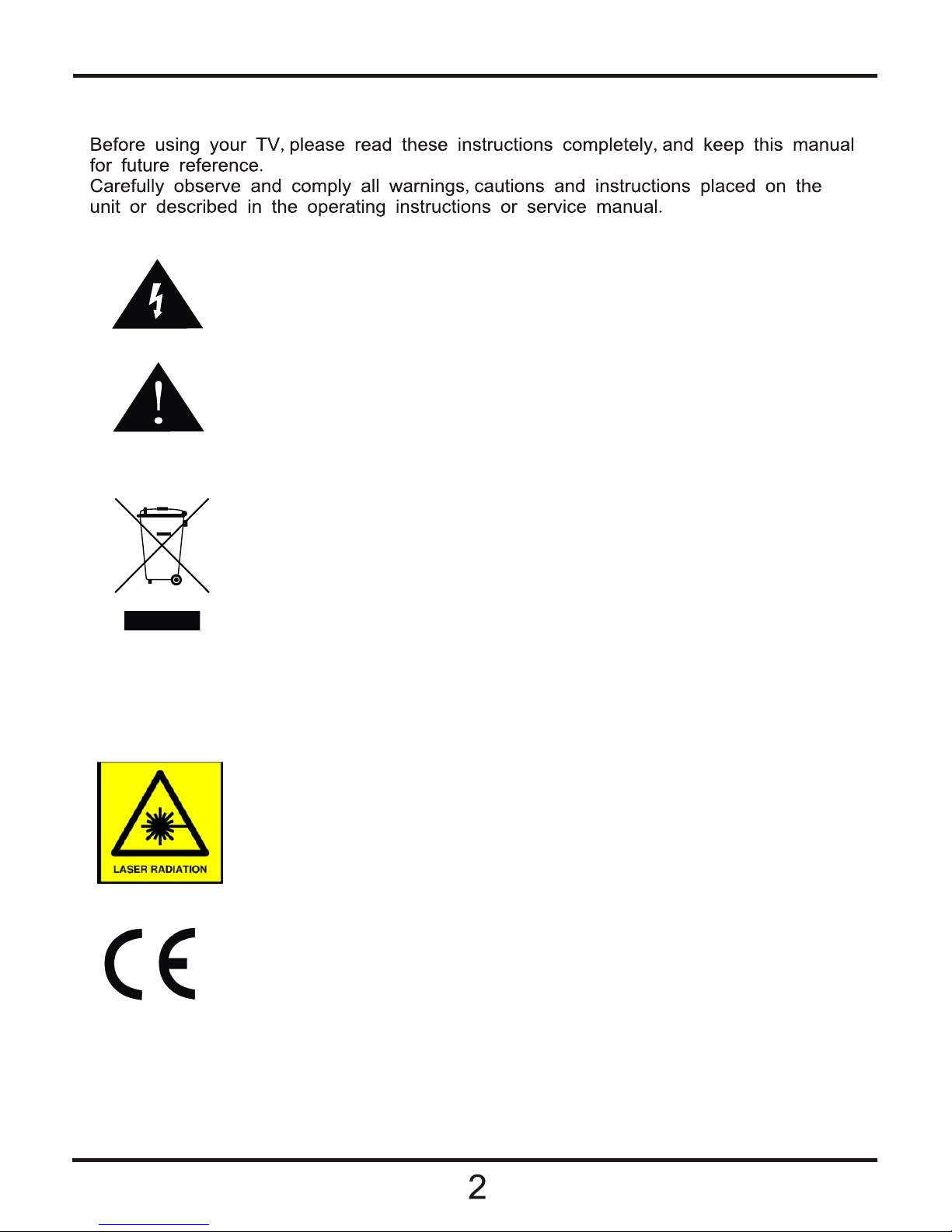

Safety Information

The lightening flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of un-insulated “dangerous

voltage” within the products enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user

to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

The crossed out “Wheelie bin” is intended to show that this appliance must not

be placed with ordinary household waste at the end of its useful life. To prevent

possible harm to the environment or human health from uncontrolled waste

disposal, please keep separate from other household waste and recycle it

responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where you purchased the

product, or their local government office for details of where and how you can

take this item for environmentally safe re-cycling.

Business users should contact their supplier and check the terms and conditions

of the purchase contract. This product must not be mixed with other

commercial wastes for disposal

1. THIS LABEL IS ATTACHED TO THE PLACE AS ILLUSTRATED TO INFORM

THAT THE APPARATUS CONTAINS A LASER COMPONENT.

2. THE WARNING LABEL INFORMING OF RADIATION IS PLACED INSIDE

THEn UNIT. AS SHOWN IN THE ILLUSTRATION. TO WARN AGAINST

FURTHER MEASURES ON THE UNIT. THE EQUIPMENT CONTAINS A

LASER RADIATING LASER RAYS ACCORDING THE LIMIT OF LASER

PRODUCT OF CLASS

This unit complines with European safety and electrical interference directives.

Safety Information cont.

Do not place the Tv on an unstable surface, it may tip over and cause injury or damage

to the LCD screen.

Do not place the tv in a cabinet where airflow is restricted, ensure the ventilation holes

are not covered to prevent overheating. Do NOT cover the DC mains adaptor, this will

feel warm to the touch and must be allowed to radiate the heat.

Do not use the Tv in wet or damp conditions, if water or liquids are allowed to enter the

case, disconnect the power and call the Technical Help line. Do not handle the Tv or

Power adaptor with wet hands.

During an Electrical storm or when going on holiday, disconnect from the mains supply

and aerial (if external or rooftop).

Do not place heavy objects on the mains lead or DC supply lead, do not place where

they can be stepped on, cut or damaged. If the leads do become damaged please call

the Technical Help Line for advice.

Do not drop or damage the Tv. If the casing becomes damaged it may cause a safety

issue, Do not open the case or Power adaptor, you risk a severe electric shock, injury

or death.

Do not drop objects into the Tv ventilation slots or DVD disc slot. Should an object enter

the Tv, contact the Technical Help Line for advice.

Do not place the Tv near heat sources such as radiators or direct sunlight

Cleaning the Tv. Disconnect from the supply before cleaning. Do NOT use petrol

based or chemical cleaning fluids. You may wipe with a soft damp cloth. For stubborn

sticky dirt use a dilute detergent solution..

LCD Screen. Do NOT use chemical solvents on the screen surface, sticky finger

marks must only be removed with a dilute detergent solution. Occasionally one or two

bright dots may be seen on the screen, this is not considered a fault.

- Inputs : Tuner, Scart, VGA, CVBS (video), Audio, S-Video, PC Audio

- Tv Systems : PAL (B/G,I,D/K). SECAM (B/G,D/K,L,LL) for UK use PAL “I”.

- Memory. Up to 200 channels may be stored

- No Signal (TV) Auto standby.

- Timer functions

- Programme exchange (swap)

- Power requirements (DC 12V 5 A (60W).

- LCD Screen 1440 x 900 pixels

- Tuning Range VHF / UHF 48 Mhz 847 Mhz

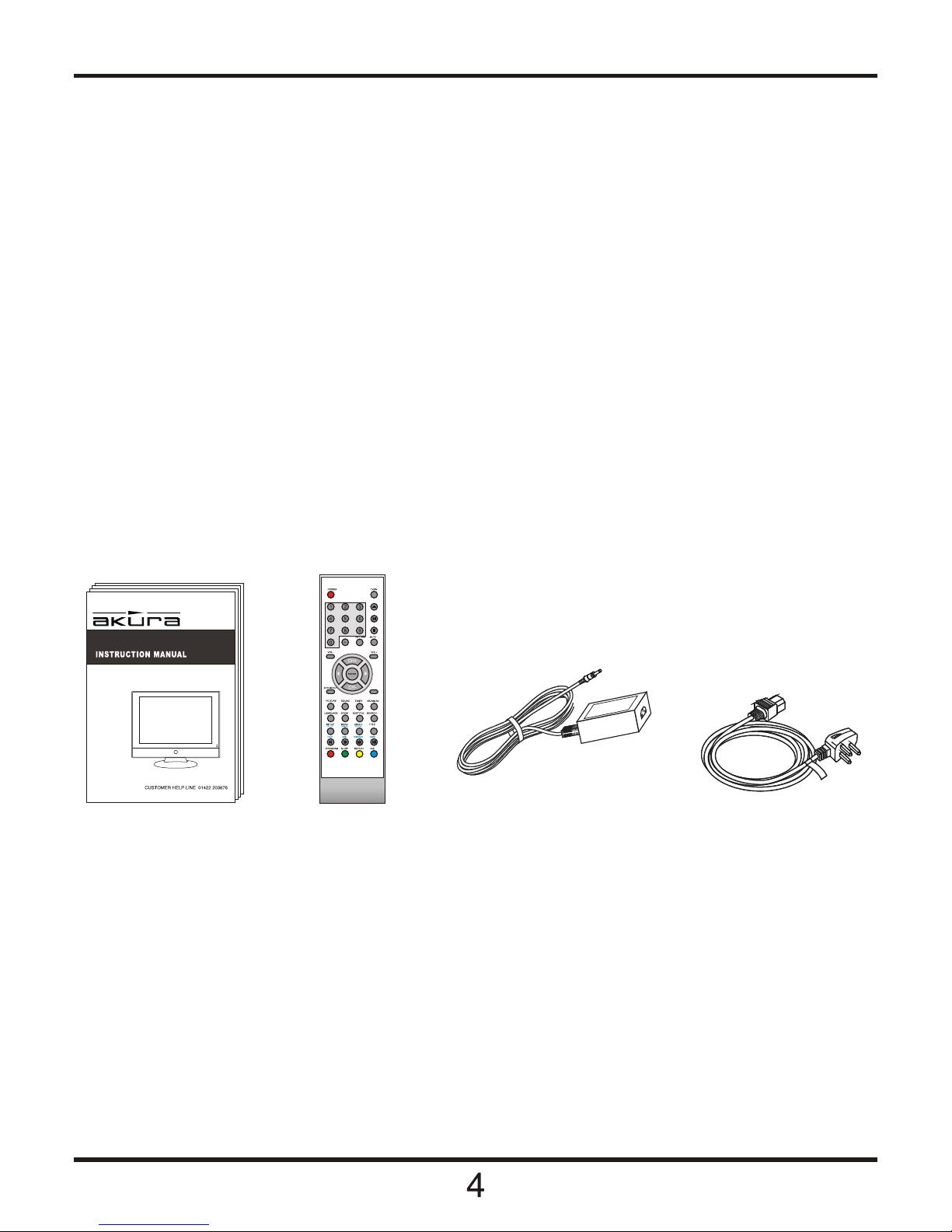

Users' Manual Remote Control Adapter Adapter Cable

1.Product Features

2.Accessories

SYSTEM

LCD TV/DVD COMBINATION

ATDVD193 0 W

1(IR)Infrared Receiver:Receives IR signals from the remote control.

(Power on/Standby)LED Indicator: Press POWER to turn on and off.

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

The effective range of the I/R signal is approx 6 metres and an angle of +/- 30 deg

2 The functions of the buttons are described as below:

MENU: Press to display the OSD menu, Press again to exit the menu.

CH-/CH+: Press to scan through channels. When pressing and holding down either button

user can scan channels quickly.

They are also can be used to move down/up in the OSD menu screen.

VOL-/VOL+: Press to adjust the volume.

they are also can be used to move left/right in the OSD menu screen.

VOL+ button can be used to skip forward to next menu.

TV/AV: Press to select the source: TV,AV,SVIDEO,PC,DVD,SCART

Power: Turn on/off the TV set.

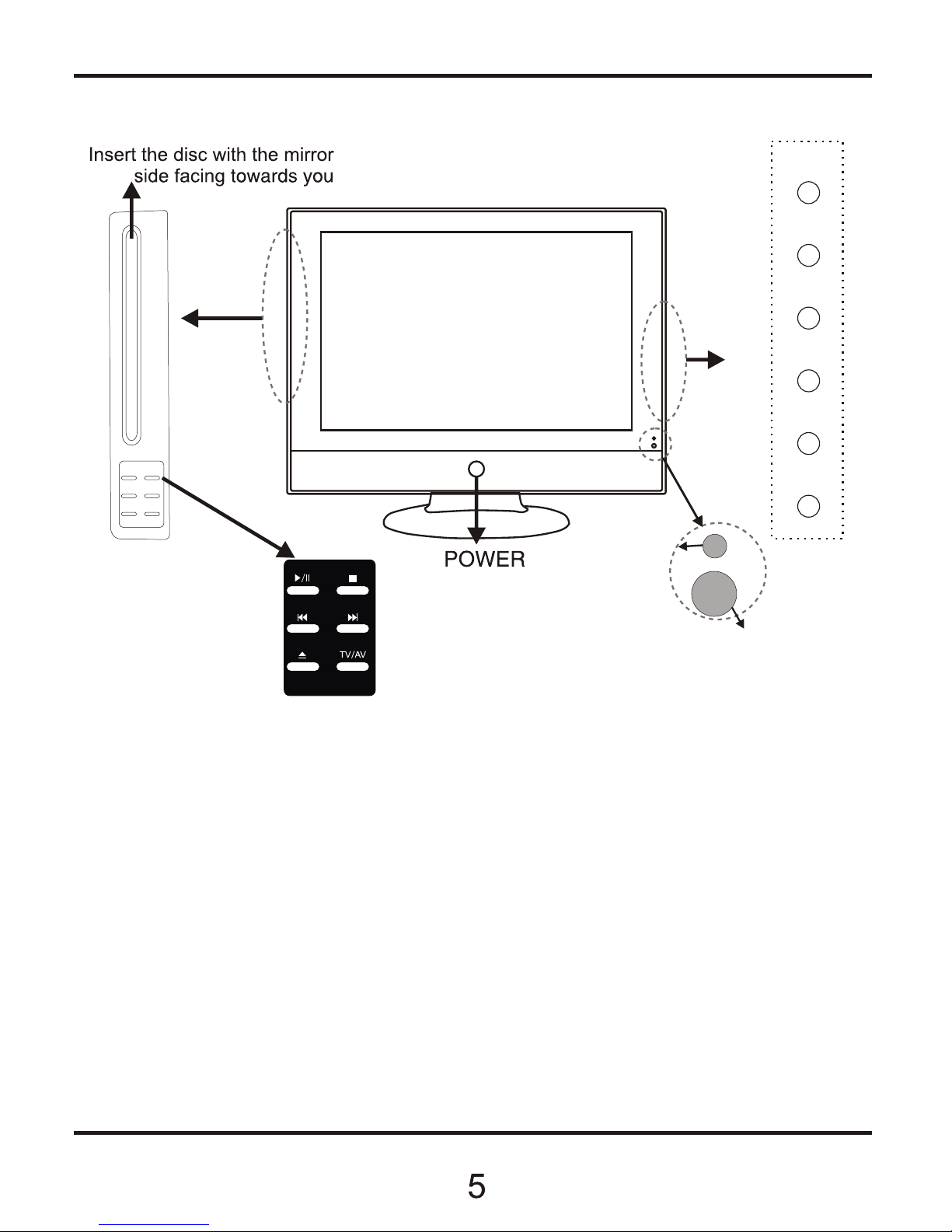

3.Front View

CH-

CH+

VOL-

VOL+

TV/AV

load/eject DVD disc

Remote control window(IR)

(keep clear)

Led Indicator

Play/pause stop DVD

Next track or chapter

Previous track or chapter

4.Rear View

Coax : Output to Audio amplifier (RF encoded)

Power : Connection to Power adaptor.

SCART : Composite video and Audio input from VCR or other devices.

PC Audio : Audio connection from PC.

VGA : PC Monitor display input. Connect to your Pc Mini D15 pin connector.

AV-R,AV-L (Phono): Right and Left Audio input from other sources such as Camcorder.

Video : CVBS video input from other sources such as Camcorder.

S-Video In : Alternative High Quality Video only (sound via AV-R,AV-L).

RF : Tuner / Antenna RF input.

DVD

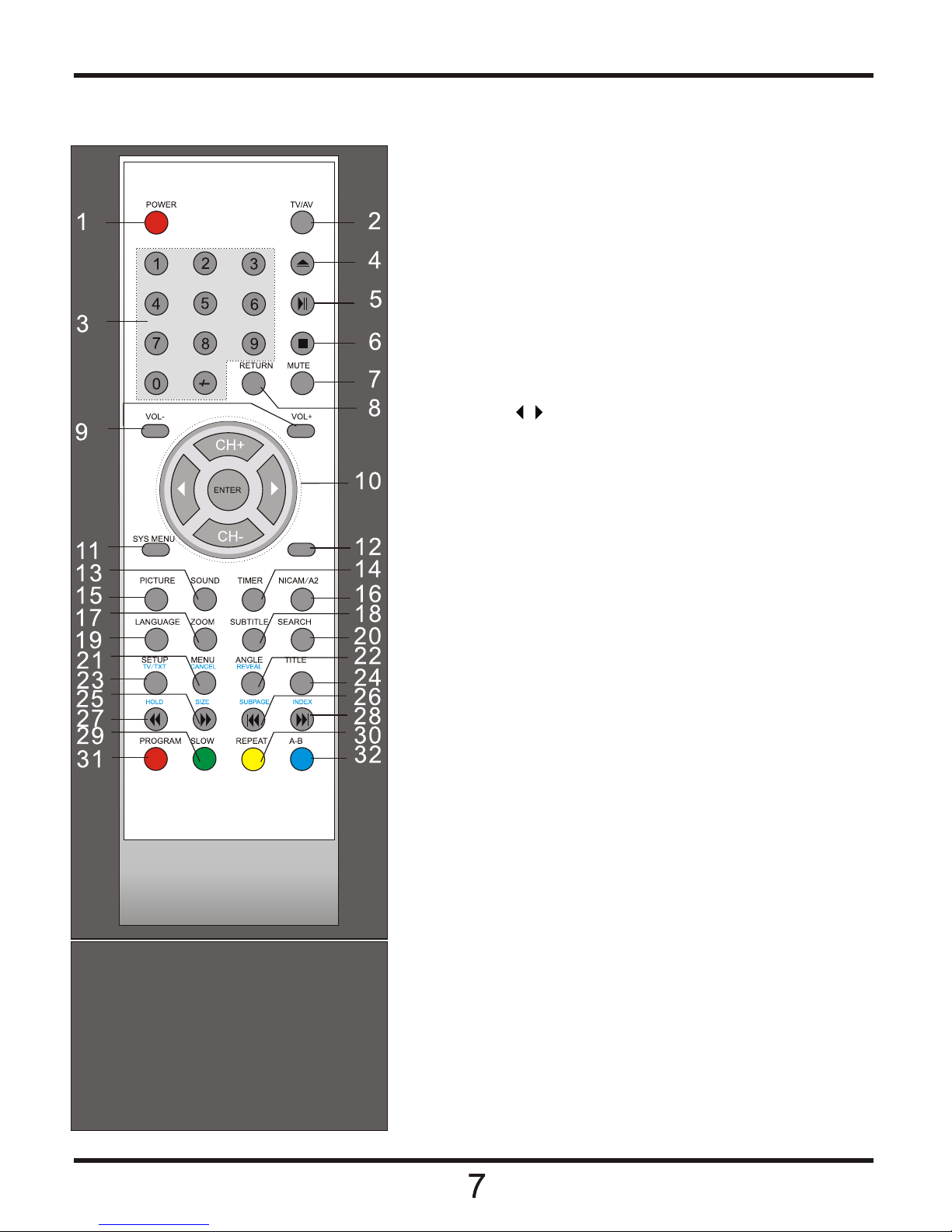

5.Remote control

Buttons for TV functions

1 POWER: turn the TV on or turn it standby.

2 TV/AV: select the input source.

3 0-9,-/--:press 0 to 9 for the first ten channel, press -/--

for 10 to 99, and again for 100 to 199.

7 MUTE: press to go into the silence status or cancel.

8 RETURN: go back to play the last channel.

9 VOL+/-: volume up/down.

10 CH+/-: channel up/down,

CH+ CH- : direction buttons for OSD menu.

ENTER: CONFIRM BUTTON for OSD menu.

11 SYS MENU: TV system menu(see page 9)

13 SOUND: press to select the sound mode: User,

Normal,Movie and News.

14 TIMER: press to set a sleep time, the TV will go standby

after the time you setting.

15 PICTURE: press to select the picture mode: User,

Normal, Soft or Vivid.

16 NICAM/A2: press to select mono or stereo.

Buttons for Teletext

21 CANCEL: turn off the Teletext display.

22 REVEAL: reveal any hidden text, for example-

quiz answers.

23 TV/TXT: turn off/on the Teletext display.

25 SIZE: press to see top half of page double size.

press again to see the bottom half of page

double size.

Press again for normal size.

26 SUBPAGE: for example, to go directly to subpage 4:

press SUBPAGE,then 0,0,0,4;

press SUBPAGE again to cancel subpage mode.

27 HOLD: hold or carry on the current subpage.

28 INDEX: direct recall of page 100.

29-32 Colour buttons: short cuts-follow the coloured

links in the text.

DISPLAY: Press to show current mode

Note:

1. Fit two AA batteries, making sure that

they are the correct way round, as

marked on the case.

2. Aim the remote control at the window

to keep the right side of the screen, and

keep the window clear at all times.

3. Do not press the buttons on the remote

control too quickly-allow time for the

set to respond.

DISPLAY

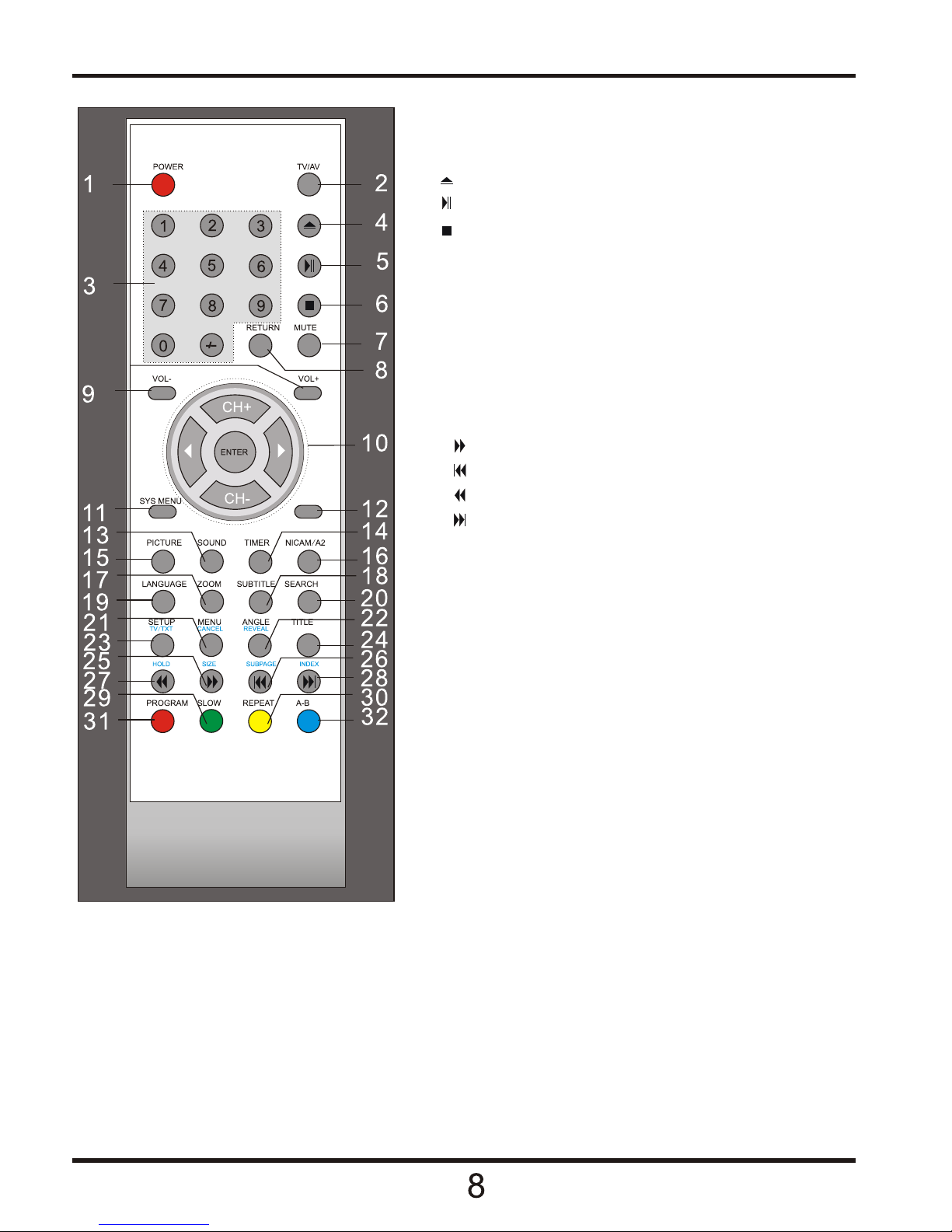

Buttons for DVD functions

4. : load/eject DVD disc.

5. : play/pause DVD program.

6. : stop DVD program.

17 ZOOM: adjust picture size in DVD mode.

18 SUBTITLE: turn on/off the DVD subtitle display.

19 LANGUAGE: select DVD disc language.

20 SEARCH: DVD search, Tracks or Chapters.

22 ANGLE: select DVD picture angle.

23 SETUP: DVD system setup.

24 TITLE: DVD title.

25 : DVD fast forward.

26 : DVD previous chapter.

27 : DVD fast reverse.

28 : DVD next chapter.

MENU (PBC): DVD play list/Disc menu

29 SLOW: play DVD programs at slow speed.

30 REPEAT: play the title or chapter once again.

31 PROGRAM: edit the program and play.

32 A-B: select and play the preferable paragraph of

DVD program by pressing this key twice at the

beginning and end of it.

DISPLAY

Battery Disposal.

When the batteries are exhausted and need replacing,

do NOT break open or throw on a fire.

Contact your local waste authority for disposal instructions,

do not throw in the domestic waste.
