Akuvox A01X Manuale utente

Quick Guide

A01X/A02X

Before you begin using the device, please check the version you got and ensure

that the following items are included in the shipped box:

Unpacking

Universal Accessories:

A01/A02 x 1

M2.5X4 Screw x 4

Plastic wall anchor x 4

Rope x 1

ST4X20 screw x 4

M4X30 screw x 2

Pry tool x 1

M3X4 Set screw x 1

Allen wrench x 1 Rubber Plug(S,M,L) x 3

Silicone Foam Seal Strip x 1

RJ45 Coupler Ethernet Extension Connector x 1

RJ45 Ethernet Patch Cable x 1

Embedded Junction Box Mounting Bracket x 1

Cable Locking Plate x 1

Product Overview

Card Reader

Keypad

Card Reader

A01 A02

Quick Guide

A01X/A02X

The 86 junction box is a standard purchased item for the installation and

is not included in the packing list, please prepare it before the installation.

Installaon Warning

Step1: Bracket Installaon

Wall-mounng Installaon

Mark the positions of the four holes of

the Junction box at the hole center.

Note: The junction box shall be at least

50 mm in height.

Installaon

Drill the four marked holes using 5mm

drill bit hand drill. The drilled hole depth

should be 30mm.

Junction box installation is completed

Fix the the junction box on to the wall

using 4 ST4x20 screws, then ﬁx the

junction box component on to the

junction box using 2 M4x30 screws.

Inserting the plastic wall anchors into

the drilled holes.

Quick Guide

A01X/A02X

Cut out a square hole with the dimension

(height*width*depth = 86*86*50mm).

And lead a cable from the square hole

in to the junction box .

Note: Skip this step is the junction box

is already embedded in the wall .

Fill in the gap between the square hole

and the junction box with cement or other

non-corrosive construction adhesive.

Wait until the cement or the adhesive

become hardened before proceeding

to the next step.

Note: Skip this step is the junction box

is already embedded in the wall .

Fix the junction box component on to

the junction box using 2 M4x30 Screws.

The junction box installation is completed.

Flush Mounng Installaon

GROUND

1100 mm

86mm

86 mm

Quick Guide

A01X/A02X

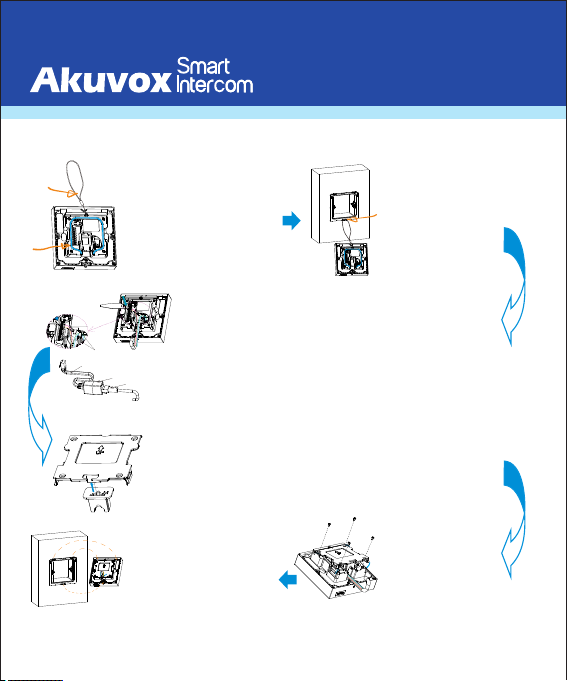

For the convenience of the

installation, it is advised

that you lead the rope we

provided through the rope

hole at the back of the device,

then ﬁll in the grove using the

silicone foam strip.

Hang the rope onto the

hook hanger on the

junction box.

Insert RJ45 cable (with no sleeve attached) and press down the

terminal slot using the pry tool to secure all the signal wires in

their corresponding slot.

Note:

1.M ake sure that all the connection wires are organized under the

wire organizer.

2.I f the RJ45 extension cable is with a sleeve, then you

should insert RJ45 Ethernet patch cable instead and connect it to

the RJ45 coupler Ethernet connector before connecting the R J45

cable (with sleeve) to the connector otherwise it can not be

properly sealed against the water.

Step2:Back Cover Installaon

Plug the rubber plug into the corresponding plug opening in the

direction as indicated.

Note: When there is only one Ethernet cable,you should select small

size rubber plug if the signal wire is less than 6 in quantity. Select

medium size rubber plug if the signal wire is 7-10 in quantity. Select

large rubber plug, if the signal wire is 11 or more in quantity.

Insert the cable locking

plate and tighten it using

4 M2.5x4 screws.

Make all cables go through

the groove of the cable locking

plate, then hang the device

onto the junction box mounting

bracket while pushing it down

against the corresponding hook

hanger.

Wire organizer

RJ45 Ethernet Patch Cable

RJ45 Coupler Ethernet

RJ45 Cable with sleeve

Extension Connector

Quick Guide

A01X/A02X

Push the device against the

hook hanger and tighten the

device with a M3x4 screw

sing Allen wrench as indicated

in the drawing.

Installation completed.

Step3: Device Mounng

Applicaon Network Topology

Conﬁguraon

1. Obtain IP address: While A01/A02 starts up normally, click Search key in the IP Scanner tool to Search

the IP address.(Please consult Akuvox Technical Team for IP Scanner tool).

2. Access the Web UI: Enter the device IP address and press Enter, then enter the username and login

password. The default user name and password are all “ admin”.

3. Add User: Navigate to Directly > User on the web interface, where you enter the user’s information and

click Submit for the conﬁrmation.

.......

LAN

PoE PoE PoE PoE

A01/A02 A01/A02 A01/A02 A01/A02

Quick Guide

A01X/A02X

Operaon

Unlock by RF Card

Place the predeﬁned RF Card in the R F reader area to open the door.

Device Wiring

AKUVOX (XIAMEN) NETWORKS CO., LTD.

ADD: 10/F, NO.56 GUANRI ROAD, SOFTWARE PARK II, XIAMEN 361009, CHINA

www.akuvox.com

YS01000015

+12V

GND

Voltage

Transformer

WG_D1

WG_D0

GND

Relay_IN2

GND

Relay_IN1

GND

COM

Wiegand

Card Reader

Exit

Door Lock

Wiegand

Input/Output

Doorbell 2

Input

Doorbell 1

Input

Relay

Output

Power

Input

Right

Left

Ethernet
