AL Tech HALO 60cm DISH Manuale utente

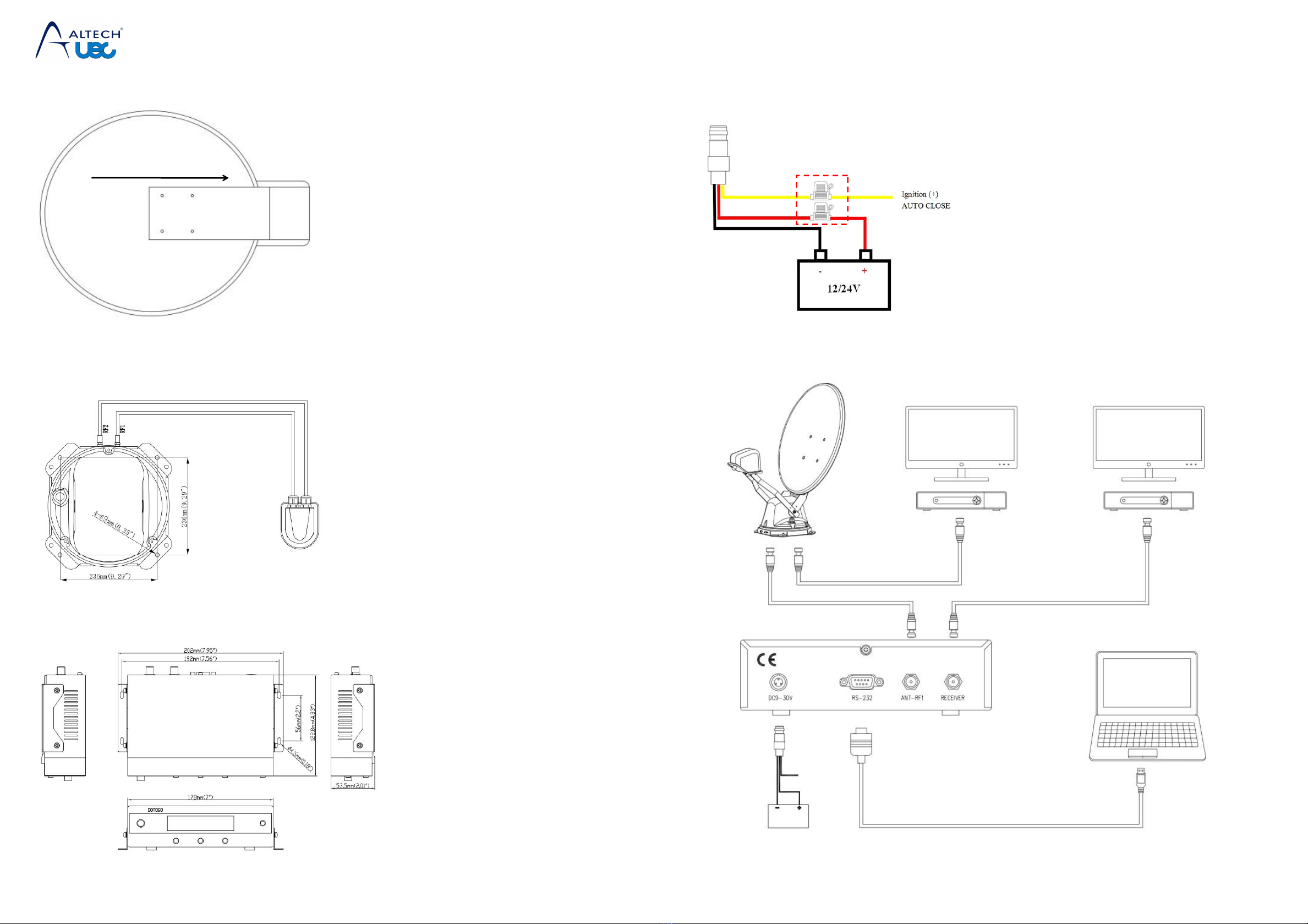

1. Select a location for the ODU
Direction of Travel
2. Mount the ODU
3. Mount the IDU
Pick an area on the roof of your mobile hoe
that will allow the ODU to be mounted
as flat and level and strong as possible.
With good support that will permit the
dish,once fitted and raised,to have a
full 360 degree rotation and elevation
range.
Mind the direction of Travel.
Drill the mounting holes and cable
access hole to prepare the site for
installation.
Ensure that all screw fixings are
covered with sealant to ensure that
there are no leaks into the RV.
Dry place is required for IDU to be
mounted.
Drill the mounting holes prepare the
site for installation.
4. Power cable
5. Wiring diagram
Red : Positive of battery(VBAT+)
Black :Cathode of battery(VBAT-)
Yellow : Ignition(+)
7.5A Fuse
NOT supplied

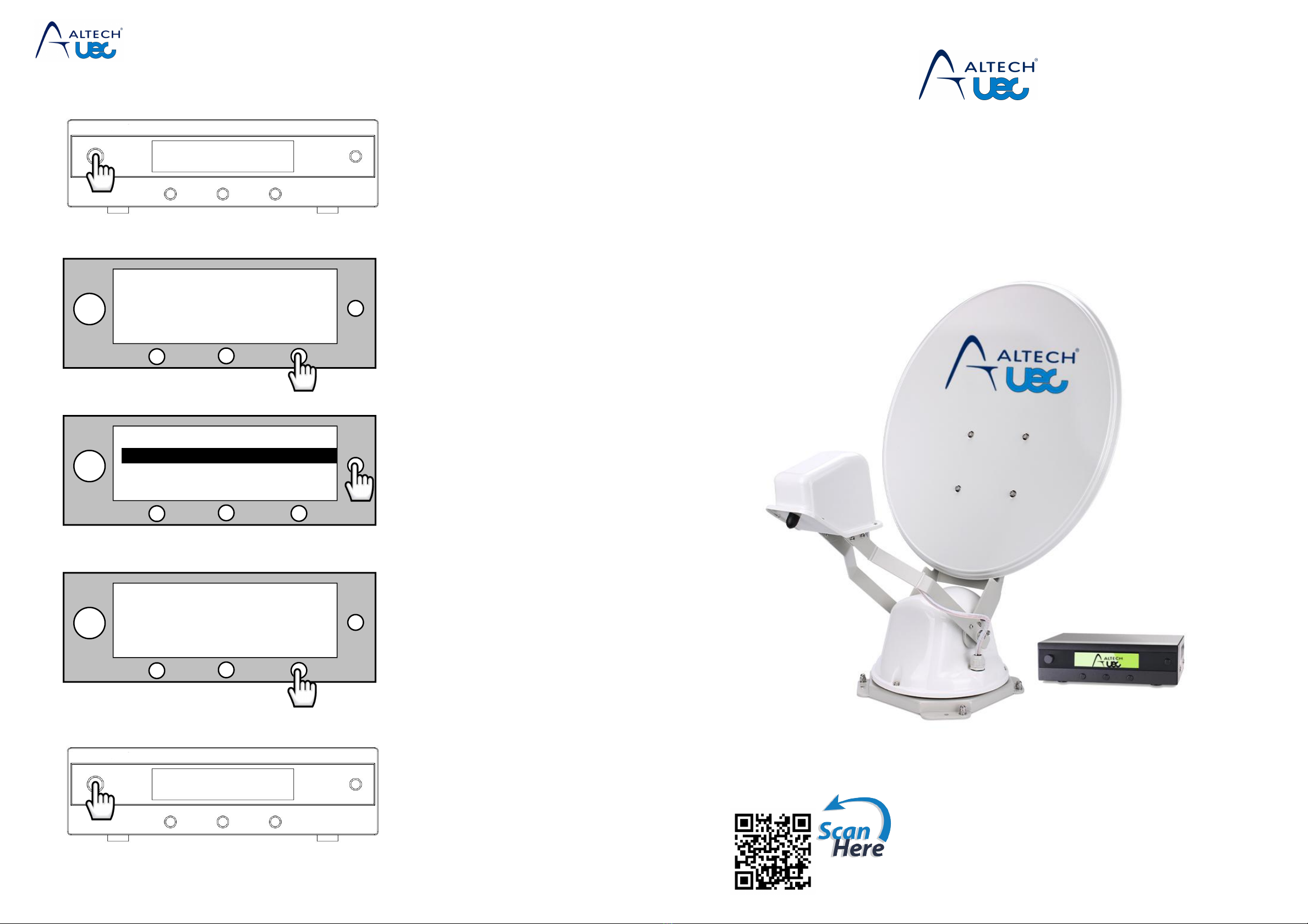

6. Turn on system
7. Deploy system
OPTUS C1 / D3
SLEEP 156.0E 0%
MENU DEPLOY
8. One-button to change the target satellite
SATELLITE SELECTION
A: OPTUS C1 / D3
B: OPTUS D1
C: ASIASAT4
9. Stow system
OPTUS C1/D3
LOCK 156.0E 80%
MENU STOW
10. Turn off system
Turn On Power The antenna system
will retract to shut down position and
enter into Sleep Mode. The power
consumption is very low.
Press DEPLOY will deploy system.
Then antenna will lock onto target
satellite automatically.
Press Function key can change the
target satellite which you want in the
list.
Wait for 3 second, the target satellite
will be selected automatically and
tracked by the antenna.
And it will return to Normal Mode
automatically at the same time.
If you use ignition stow function you
install at vehicle, the system will
automatically shut down dish on
vehicle startup.
OR press STOW. Antenna system
will retract to shut down position.
Before you driving, please confirm
the dish is completely retract to shut
down position.
Press Power can turn off the system.
To View the UEC website and access the latest documentation.
https://uec.com.au/halo-60cm-documents
HALO 60cm DISH
Quick Start Guide
