Alarm Lock CYLINDER ADAPTER KIT Addendum Guida

CYLINDER ADAPTER KIT

ADDENDUM

WI 1177 1/03

CAUTION

PROPER ALIGNMENT OF GEARS IS CRITICAL!

FAILURE TO ALIGN GEARS PROPERLY WILL CAUSE LOCK TO MALFUNCTION.

345 Bayview Avenue

Amityville, New York 11701

For Sales and Repairs 1-800-ALA-LOCK

For Technical Service 1-800-645-9440

© ALARM LOCK 2003

Note: See the illustrated instructions, WI 1163,

"How to Replace Cylinder" for detailed replace-

ment procedures. After inserting the new cylin-

der and Slide Plate, and before replacing the

Cover Plate (step 16), align the gears as follows:

The rollpin hole located on the Spindle Bush-

ing (HW970) must be aligned with the

stamped arrow on the Gear Driver (HW968).

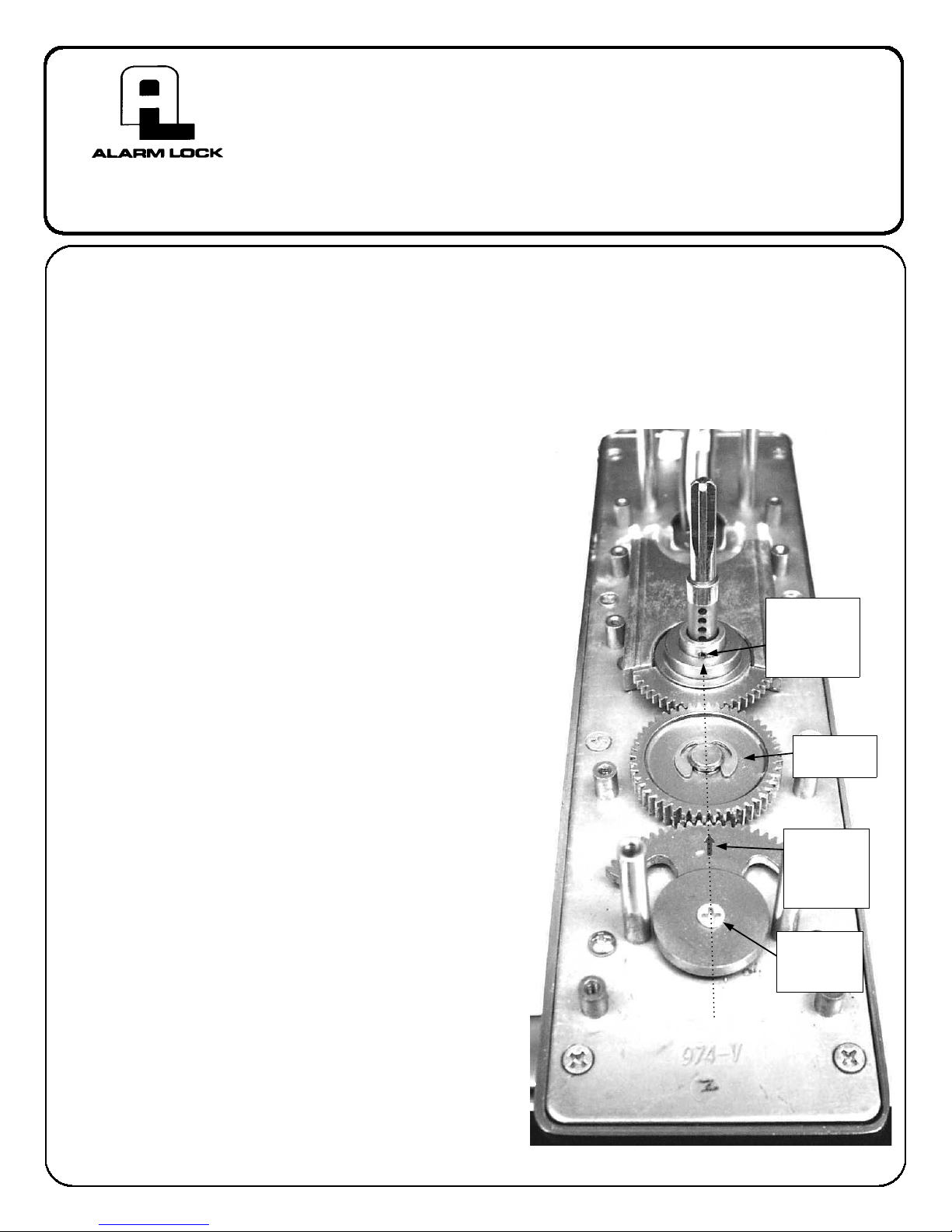

Using a straight edge (or for convenience you

can use the Cover Plate HW1016 instead of a

straight edge) align the gears as shown in the il-

lustration at right:

Place one end of the straight edge directly over

the center retaining screw of the Gear Driver.

Align the other end of the straight edge with the

rollpin hole. The stamped arrow (!) on the Gear

Driver must be directly underneath the straight

edge when aligned with the rollpin hole.

If the arrow is not aligned, loosen the Gear

Driver retaining screw, lift the Gear Driver. The

Slide Plate springs will cause the Spindle Bush-

ing to self-align (if the Slide Plate is installed

properly). Re-position the Gear Driver until the

arrow is aligned with the rollpin hole. Tighten the

Gear Driver Retaining screw, and Replace the

Cover Plate and Frame Spacer as per the direc-

tions in WI 1163.

Rollpin hole

on Spindle

Bushing

(HW970)

Idle Gear

(HW967)

Stamped

Arrow on

Gear Driver

(HW968)

Gear Driver

retaining

screw
