Albalá Ingenieros DEM3000C01 Manuale utente
DEM3000C01
DUAL AES/EBU AUDIO EMBEDDER IN SD-SDI DIGITAL VIDEO
Version 1.0
Albalá Ingenieros, S.A.
Medea, 4 - 28037 Madrid - Spain
04 January 2018 - © Albalá Ingenieros S.A. - All rights reserved
DEM3000C01
DEM3000C01
DUAL AES/EBU AUDIO EMBEDDER IN SD-SDI DIGITAL VIDEO
Version 1.0
1. DESCRIPTION ...................................................................................................................... 5
1.1. The DEM3000C01 .......................................................................................................................... 5
1.2. Features ............................................................................................................................................. 6
1.3. Block diagram .................................................................................................................................. 7
2. SPECIFICATIONS ................................................................................................................. 9
3. INSTALLATION .................................................................................................................. 11
3.1. Initial inspection .......................................................................................................................... 11
3.2. Safety instructions ...................................................................................................................... 11
3.3. Environmental considerations ................................................................................................ 12
3.4. Power considerations ................................................................................................................. 12
3.5. Module configuration ................................................................................................................ 12
3.6. Installing the module in the mounting frame ................................................................... 13
3.7. Interconnection ............................................................................................................................ 15
3.7.1. Electrical SDI video connections .................................................................................... 16
3.7.2. Digital audio connections ................................................................................................ 16
4. OPERATION ...................................................................................................................... 17
4.1. Front panel description .............................................................................................................. 17
4.2. Configuration from the front panel ...................................................................................... 18
4.3. Module remote control and supervision ............................................................................. 19
4.3.1. Details of the DEM3000C01 registers ......................................................................... 20
5. GLOSSARY ........................................................................................................................ 25
6. REGULATIONS .................................................................................................................. 27
7. VERSIONS ......................................................................................................................... 29
DEM3000C01
Albalá Ingenieros | Manual DEM3000C01
1. DESCRIPTION
1.1. The DEM3000C01
The DEM3000C01 module is a embedder of AES/EBU-format digital audio
AES/EBU-format digital audio into SDI video signals as per SMPTE 272M-AC. The
DEM3000C01 consists of two identical sections that can insert two streams of digital
audio, the equivalent of four channels of analog audio, into each SDI video signal. The
audio to be embedded must have a sampling frequency of 48kHz and be synchronized
to the video. The module includes digital audio reference outputs as per AES11 that are
generated from the input SDI video and can be used to synchronize other sources of
digital audio when needed.
The DEM3000C01 operates with binary encoded video at 270 and 360Mbit/s for both
525 and 625 line systems.
The module provides a pushbutton and various LEDs on the front panel in order to select
and indicate into which group the audio will be embedded. This and other operations
can also be performed remotely by installing a communications controller in the same
mounting frame as the DEM3000C01.
The reserved fields of the SDI stream for (EDH) error detection are both processed and
updated completely.
It is possible to monitor the DEM3000C01 status remotely using a communications
controller module installed in the same mounting frame. In addition, certain controller
modules provide SNMP management and the ability to record events in a file including
date and time information for further analysis.
The DEM3000C01 is a TL3000 terminal line module and can be housed in a three rack
unit (3 RU) UR3000 mounting frame or a 1 RU UR3100 mounting frame.
5
Albalá Ingenieros | Manual DEM3000C01
1.2. Features
•Dual embedder for inserting AES/EBU digital audio into SD-SDI digital video as per
SMPTE 272M.
•Provides two sections, each of which can embed two digital audio streams into a video
group.
•Embeds 20 or 24 bit, 48kHz AES/EBU digital audio streams in sync with the video
signal.
•Provides automatic equalizers at the inputs capable of compensating 300+ meters of
Belden 8281 cable.
• The video output for each section is distributed to two connectors.
• Provides two balanced, transformer isolated digital audio inputs per section.
• Provides two transformer isolated AES11 reference digital audio outputs per section.
• Performs complete EDH packet processing.
•Ability to remove all audio groups contained within the incoming SDI signal before
embedding.
• Front panel indicator for SDI signal absence and EDH errors.
• Front panel indicators for the audio groups used in the SDI signal.
•Front panel indicators for z-flag violations and incorrect sampling frequency in the
AES/EBU signal.
• Front panel button for selection of audio group for insertion.
•Module control and supervision can be done remotely when the mounting frame is
equipped with a communications controller module.
•One UR3000 mounting frame can house up to 12 DEM3000C01 modules. If power
supply redundancy is required and FA3000 or FA3001 modules are used then only 10
modules can be housed in the mounting frame. If PSU3300 or PSU3301 modules are
used for this purpose then up to 12 modules can be installed.
• One UR3100 mounting frame can house up to three DEM3000C01 modules.
• Low power.
6
Albalá Ingenieros | Manual DEM3000C01

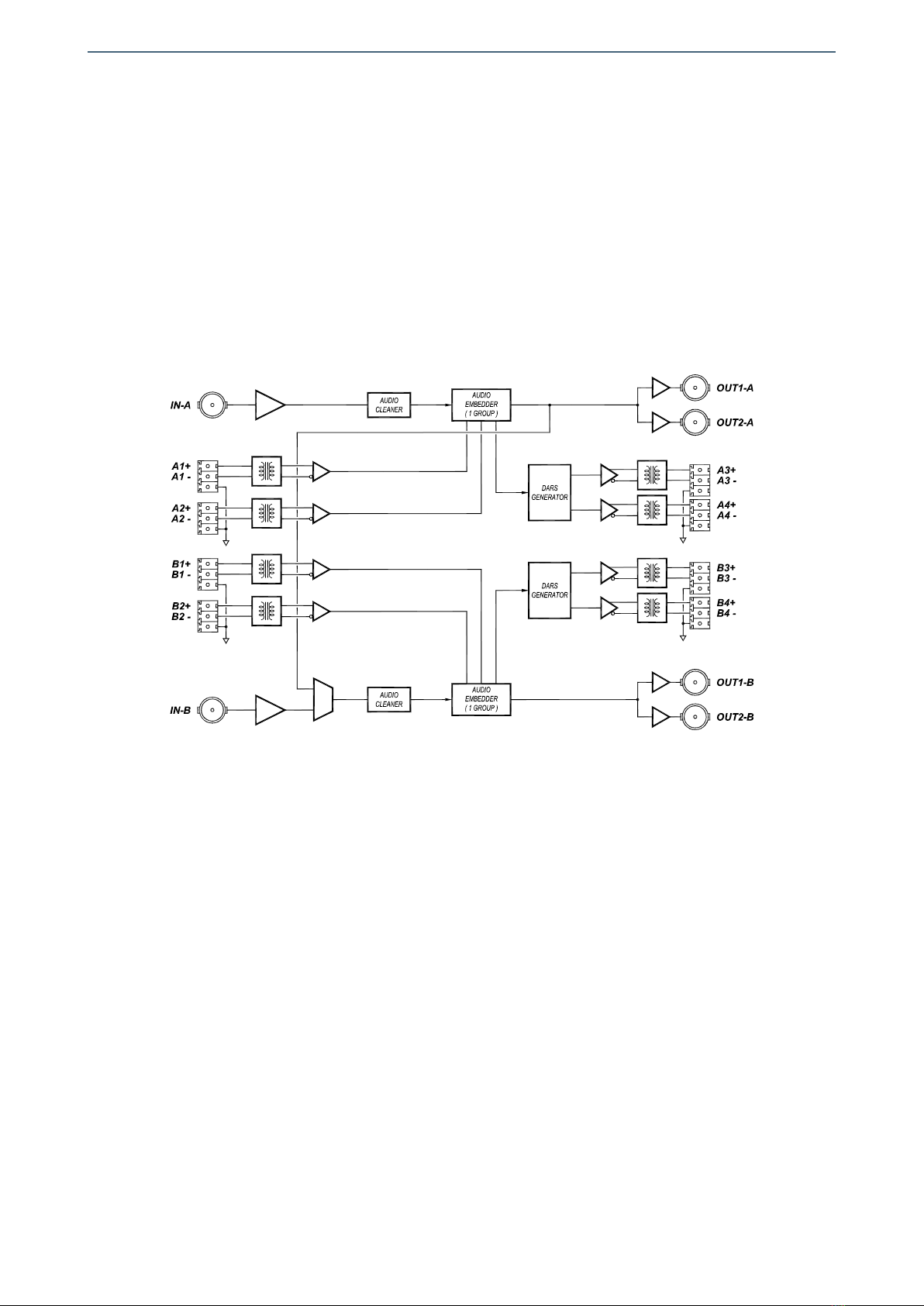

1.3. Block diagram
7
Albalá Ingenieros | Manual DEM3000C01
DEM3000C01
8
Albalá Ingenieros | Manual DEM3000C01
2. SPECIFICATIONS
SD-SDI digital video signal input
Connector BNC
Impedance 75Ω ± 1 %
Return loss >15dB up to 360 MHz
Number of inputs 1 per section, 2 sections
Equalizable cable length:
Belden 8281 >300 m
SD-SDI digital video signal output
Connector BNC
Impedance 75Ω ± 1 %
Return loss >15dB up to 360 MHz
Number of outputs 2 per section
Amplitude 800mVpp ± 10 %
Rise and fall time (20 % - 80 %) 1.1 ns typ.
SD-SDI digital video signal
Signal format According to SMPTE ST 259 standard
Bit rate 270 or 360Mbit/s
Embedded audio format According to SMPTE 272M
standard, 48kHz
synchronous with video
Input to output delay 630 ns
AES/EBU digital audio signal input
Connector Plug-in terminal,
3.81mm pitch
Impedance 110Ω ± 20 %
Type Transformer balanced
Encoding and electrical characteristics According to
EBU Tech. 3250-E/AES3
standard
Sampling rate 48kHz synchronous with video
Number of inputs 2 per section
AES/EBU digital audio reference signal output
Connector Plug-in terminal,
3.81mm pitch
Impedance 110Ω ± 5 %
Type Transformer balanced
9
Albalá Ingenieros | Manual DEM3000C01
Encoding and electrical characteristics According to
EBU Tech. 3250-E/AES3 and AES11
standards
Sampling rate 48kHz synchronous with video
Number of outputs 2 per section
General
Maximum power supply current + 410 / - 410 mA
Operating temperature range 0 .. 50 °C
Approximate weight 400 g
10
