Cost-effective and compact

STM-1/4 multiservice metro access

Alcatel-Lucent 1645 AMC Access Mutiplexer Compact2

The Alcatel-Lucent 1645 Access Multiplexer

Compact (AMC) is a Synchronous Transport Module

1/4 (STM-1/4) platform that allows service providers to

deliver a rich set of cost-effective TDM and Ethernet

services to small and medium enterprises (SME).

Offering enhanced revenue-generating potential

and eliminating the need for overlay networks, it

is energy efﬁcient and compact, improving the

use of space while reducing operating expenditures

(OPEX). Supporting ﬁber and copper, the 1645 AMC

transports metro and access trafﬁc to the network

edge, using both optical and electrical interfaces.

Alcatel-Lucent 1645 AMC Access Mutiplexer Compact2

Alcatel-Lucent 1645 AMC Access Mutiplexer Compact 3

To be proﬁtable, service providers

must reduce OPEX while meeting

business customers’ demands by of-

fering a host of revenue-generating

Internet Protocol (IP) and Ethernet

services. Simultaneously, some en-

terprises want to build, operate and

control their own networks.

For the service provider, the 1645

AMC serves as a small-footprint,

SDH multiservice provisioning plat-

form (MSPP) that can be installed

on the customer premises, providing

TDM and Ethernet services. With

versatile and robust management

capabilities, it offers ﬂexible instal-

lation options. Enterprises can use

the 1645 AMC to build and operate

their own optical networks, using

leased or owned ﬁber.

The 1645 AMC provides ﬂexible,

multiservice access to business

customers and extends Ethernet

services to the metro and access

edges. It also supports fiber and

copper access for SDH, TDM and

Ethernet trafﬁc through both optical

and electrical interfaces.

Meeting enterprise demands

Key beneﬁts

•Eliminatestheneedforoverlaynetworks

•Enhancesrevenue-generatingcapabilitieswhilereducingOPEX

•Providesexible,rich,multiserviceaccesstobusinesscustomers

•ExtendsEthernetservicestothemetroandaccessedges

•Offersexibleinstallationoptionsthroughsmall-footprint

•Deliversversatileandrobustmanagementcapabilities

•SupportsberandcopperaccessforSDH,TDMandEthernet

trafﬁc through both optical and electrical interfaces

Alcatel-Lucent 1645 AMC Access Mutiplexer Compact4

Fiber business applications

The 1645 AMC offers a powerful

and economical base for ﬁber-to-the-

business (FTTB) applications. This

compact MSPP aggregates traditional

TDM and Ethernet services over

SDH transport and can operate as

customer premises equipment (CPE)

or network-edge devices. It supports

Ethernet from 10/100 to Gigabit

Ethernet (GigE), TDM from E1 to

E3, SDH and a rich set of STM-1/

4-line and client interfaces.

Providing highly effective solutions

for enterprise network services, the

1645 AMC supports flexible ring

configurations. Services include

Ethernet business services, LAN

and Private Branch Exchange

(PBX) interconnection over ﬁber,

all services where solid performance

and reliability are essential service

attributes. It can also be used for

interoffice applications in both

access and mobile networks based

on fiber or copper, facilitating

Ethernet local area network

(E-LAN) communication on

campus and in virtual private

networks (VPNs).

No overlay networks

Available in STM-4 conﬁgurations,

the 1645 AMC provides a wide range

of interfaces, including private-line

and switched Ethernet capabilities.

It is an economical, multiservice

unit that transports metro and access

trafﬁc over existing SDH networks,

eliminating the need for overlay

networks for Ethernet services.

Alcatel-Lucent 1645 AMC Access Mutiplexer Compact 5

Enhanced revenue generation,

reduced expenses

The 1645 AMC enhances revenue-

generating capabilities by allowing

service providers to offer services

such as IP transport, Ethernet Layer

2 switching and TDM to customers

with various traffic demands. It

improves OPEX through efﬁcient use

of space in tight environments and

low energy consumption.

Flexible, multiservice

business access

The 1645 AMC provides flexible

multiservice access to business

customers. It supports both ring

or mesh conﬁgurations for FTTB

applications in access networks. In

addition to cost-effective enterprise

network services, the 1645 AMC

also offers interofﬁce applications

in both access and mobile networks

and facilitates LAN-to-LAN

communication on campus and

through VPNs.

The 1645 AMC, an economical,

multiservice device, allows next-

generation services over a legacy

SDH network, leveraging existing

service-provider assets.

Alcatel-Lucent 1645 AMC Access Mutiplexer Compact6

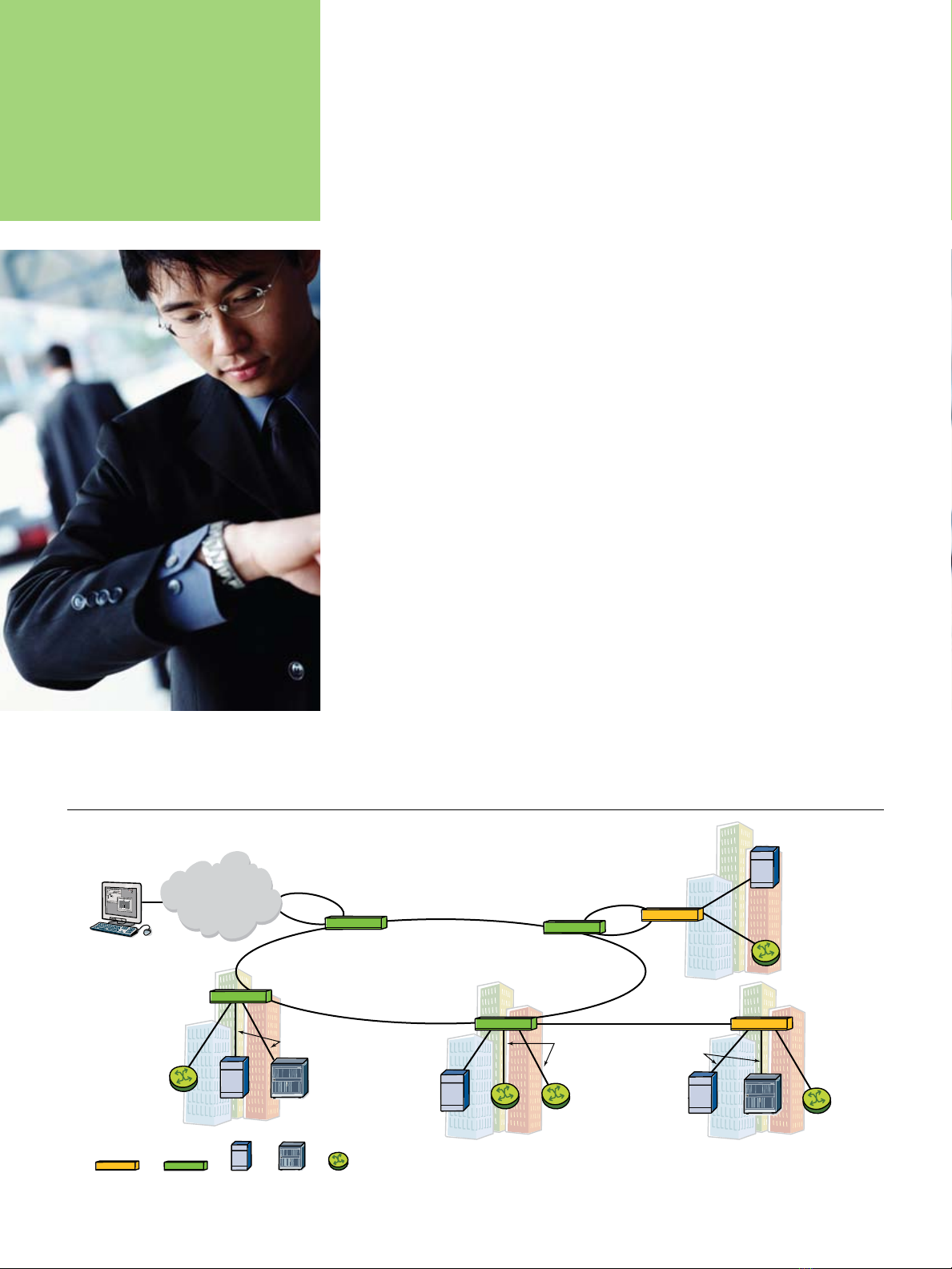

Figure 1. 1645 AMC supporting a typical metro-access application

STM-4

1643 AMS 1645 AMC

1350 OMS

ATM

switch

RouterPABX

10/100/1000

Ethernet

STM-1

STM-4

E1, E3, DS3,

STM-1

E1, E3, DS3

10/100/1000

Ethernet

10/100/1000

Ethernet

E1, E3, DS3

SDH

(STM-16/64)

1850 TSS

16XX OMSN

10/100/1000

Ethernet E1, E3, DS3, STM-1

Cost-effective TDM,

IP and Ethernet

Create new revenue-generating op-

portunities by offering more services

to SME customers. Transport metro

and access services over existing SDH

facilities, eliminating the need for

overlay networks.

The 1645 AMC offers Ethernet

and IP applications, including:

•EconomicalvoiceanddataCPE

•Ethernetservicesforbusiness

customers:

¬ Point-to-point Ethernet

private line (EPL)

¬ Point-to-multipoint Ethernet

virtual private line (EVPL)

¬ E-LAN

•Multipoint-to-multipointvirtual

line/LAN services (packet ring)

with bandwidth sharing and

statistical multiplexing

•Ethernetovercopperusing

symmetric high-speed digital

subscriber line (SHDSL)

•Second-GenerationMobile

Network/Third-Generation

Mobile Network (2G/3G)

mobile aggregation

The 1645 AMC supports cost-

efﬁcient and reliable transport of

TDM and Ethernet services in the

metro access. Figure 1 shows the

1645 AMC and the Alcatel-Lucent

1643 Access Multiplexer Small (AMS)

platforms working together to support

a typical metro-access application,

with the 1645 AMC providing STM-4

transport and the 1643 AMS

supporting STM-1 transport for

multiservice trafﬁc.

Alcatel-Lucent 1645 AMC Access Mutiplexer Compact 7

Extended Ethernet services

When deploying the optional Alcatel-Lucent Tr a n s L A N ®

Card, the 1645 AMC supports a diverse mix of standar-

dized Ethernet services. Depending on the Tra n s L A N

Card selected, the 1645 AMC provides the following

capabilities:

•FullLayer2switchingfunctionality:point-to-point

and point-to-multipoint

•Virtualconcatenation(VCAT)andgenericframing

procedure (GFP)

•InstituteofElectricalandElectronicsEngineers

(IEEE) 802.1Q virtual local area network (VLAN)

tagging and IEEE 802.1ad Provider Bridging,

also called stacked VLANs

•VLANtrunking,savingphysicalinterfacesat

hub locations

Installation ﬂexibility

With its compact design, the 1645 AMC is suitable for

both street cabinet and CPE installation. It supports

either AC or DC power supplies, further increasing

deployment ﬂexibility.

Alcatel-Lucent 1645 AMC Access Mutiplexer Compact8Alcatel-Lucent 1645 AMC Access Mutiplexer Compact8

centralized alarming. The 1645 AMC

can also be integrated into Simple

Network Management Protocol

(SNMP) management systems.

The 1645 AMC derives fault-man-

agement information by monitoring

and analyzing information contained

in the path overhead of each virtual

container (VC). Alarm information

is ﬁltered and displayed locally while

it is simultaneously transmitted to

the management-center database.

Versatile and robust

management capabilities

Either the Alcatel-Lucent 1350

Optical Management System (OMS)

or a PC-based, Graphical User

Interface (GUI) craft terminal can

be used to manage the 1645 AMC.

When the OMS is deployed, the

1645AMC communicates through an

embedded communications channel.

The PC-based craft interface

can be used for local and remote

management and cost-effective

Alcatel-Lucent 1645 AMC Access Mutiplexer Compact 9

Performance-management infor-

mation from the overhead bytes is

analyzed and stored in the database

of the 1645 AMC. When equipped

with a Tr a n s L A N ®Card, the 1645

AMC can also store Ethernet-speciﬁc

performance information.

The 1645 AMC stores several differ-

ent equipment conﬁgurations in its

network management system. This

feature facilitates quick turnaround

for conﬁguration changes.

Service level agreement (SLA) management is available with trafﬁc proﬁles

that include:

•Besteffort

•Bandwidthguaranteed

•Regulated:minimumbandwidthguaranteedplusburst

Fiber and copper access options

When ﬁber access is available, the 1645 AMC can be installed directly as CPE.

If the last mile to the customer must be bridged through copper, the 1645 AMC

provides an SHDSL option card. As a result, E1 over copper or 10/100BASE-T

Ethernet access through up to four combined SHDSL copper lines can be served.

Alcatel-Lucent 1645 AMC Access Mutiplexer Compact10

The 1645 AMC can be equipped

with the following high-speed optical

Small Form Factor Pluggable (SFP)

network interfaces:

•SMT-4S-4.1(shorthaul)

•STM-4L-4.1(longhaul)

•STM-4L-4.2(longhaul)

•SMT-1/4multiratebidirectional

•STM-1S-1.1(shorthaul)

•STM-1L-1.1(longhaul)

•STM-1L-1.2(longhaul)

Equipped with 16 2 Mb/s (E1) G.703

tributary interfaces, an optional card

can expand the 1645 AMC to a maxi-

mum of 32 interfaces. In accordance

with G.704 and I.431, support of

Integrated Services Digital Network

(ISDN) modes is also available.

Adding an optional board offers

support for other interfaces:

•16-portE1:2Mb/s

•16-portDS1:1.5Mb/s

•3-portE2/DS3:34Mb/s

to 45 Mb/s, provisional

•6-portSTM-1supportingSFP

•12SHDSL:Ethernetover

copper/E1

•8-port10/100BASE-T

Ethernet private line

•5-portswitchedEthernet;

3 x 10/100BASE-T,

1 x 10/100/1000BASE-T,

1 x 1000BASE-X: SX/LX/ZX SFP

Key features

•Cost-effectivemultiserviceaccess

over the established SDH base

•Multiplemain-boardcongura-

tions to serve various needs

•Varietyofoptionboardstoserve

individual service needs

•EthernetEPL,EVPLand

ELAN services using optional

TransLAN Card

•Space-saving,compactdesign

•Lowpowerconsumption

•StreetcabinetorCPEinstalla-

tion options

•VC-12,VC-3andVC-4SNC

protection

•EthernetandE1overcopper

•Cost-effectiveCPEforvoice-and

data-services transport

•Cost-effectivebusiness-data

access, including E1/Ethernet

over copper by SHDSL

•2G/3Gmobileaggregation

Altri manuali per 1645 AMC

Indice

Altri manuali Alcatel-Lucent Multiplexer

Alcatel-Lucent

Alcatel-Lucent 7330 Manuale di installazione e funzionamento

Alcatel-Lucent

Alcatel-Lucent 1643 AMS Manuale utente

Alcatel-Lucent

Alcatel-Lucent 3600 MainStreet Manuale operativo e di manutenzione

Alcatel-Lucent

Alcatel-Lucent 1645 AMC Manuale utente

Alcatel-Lucent

Alcatel-Lucent 1655 AMU Manuale utente

Alcatel-Lucent

Alcatel-Lucent 1643 AMS Manuale utente

Alcatel-Lucent

Alcatel-Lucent 1643 AMS Manuale utente

Alcatel-Lucent

Alcatel-Lucent Data Multiplexer Explore 1665 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 1660 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 1643 AMS Manuale tecnico

Alcatel-Lucent

Alcatel-Lucent 1643 AMS Manuale utente

Alcatel-Lucent

Alcatel-Lucent Data Multiplexer Explore 1665 Manuale utente

Alcatel-Lucent

Alcatel-Lucent Data Multiplexer Explore 1665 Manuale utente

Alcatel-Lucent

Alcatel-Lucent Data Multiplexer 1665 DMX Manuale utente

Alcatel-Lucent

Alcatel-Lucent 1511 BA Manuale utente

Alcatel-Lucent

Alcatel-Lucent Data Multiplexer Explore 1665 Manuale utente

Manuali Multiplexer popolari di altre marche

Campbell

Campbell AM416 Manuale utente

Paradyne

Paradyne SIM2000 Manuale utente

Panasonic

Panasonic WJFS616 - SWITCHER Manuale utente

Lanex

Lanex TM-77 Manuale utente

Bosch

Bosch VSS8394/01T Manuale utente

Quark-Elec

Quark-Elec QK-A035 Manuale utente

ADTRAN

ADTRAN Frameport 768 Manuale utente

Elo TouchSystems

Elo TouchSystems E247 Manuale utente

Paradyne

Paradyne Hotwire 8786 Manuale utente

RFL Electronics

RFL Electronics 9508D UCC Manuale utente

Miranda

Miranda AMX-101i Manuale di istruzioni

ShipModul

ShipModul MiniPlex-AIX NMEA-0183 Manuale utente

GE StoreSafe SDVR-10 Manuale utente

Pickering

Pickering 40-613 Manuale utente

Pickering

Pickering 40-667C Manuale utente

American Fibertek

American Fibertek MTX-8410C Manuale utente

ADC

ADC HiGain ELU-319 5E Manuale utente

Paradyne

Paradyne Hotwire 8774 Manuale utente
