The Alcatel-Lucent 1353 Litespan Management

System (LMS) is the management component of

the Litespan family, which offers cost-effective voice,

data, high-speed Internet access (HSIA) and video

services for your residential and business subscribers.

The integrated, centrally-operated Alcatel-Lucent

1353 LMS manages the Alcatel-Lucent 1540 Litespan

multiservice network.

With the Alcatel-Lucent 1540 Litespan and the

Alcatel-Lucent 1353 LMS, you can offer any mix

of revenue-generating services. This multivendor-

compatible solution supports multiple network

topologies and transport options, ensuring a smooth

transition from traditional voice to next-generation

networking (NGN). Moreover, the Alcatel-Lucent

1353 LMS and Alcatel-Lucent 1540 Litespan are

integrated and tested with other products in the

Alcatel-Lucent portfolio to offer complete end-to-end

NGN solutions.

Alcatel-Lucent 36.5

Tellabs 13.2

Ericsson 10.2

Calix 5.9

Siemens 4.4

Zhone 3.1

Huawei 16.8

UTStarcom 2.4

Occam 2.2

Other 5.3

Alcatel-Lucent Leadership (2007)

36.5% market share worldwide

Source: broadbandtrends.com, March 2007 (The Windsor Oaks Group LLC)

Leading the Industry

The Alcatel-Lucent 1540 Litespan family has taken

a leading position as an access network solution.

A March 2007 study by The Windsor Oaks Group

LLC reported that the Alcatel-Lucent solutions

are leading the MSAP/DLC market (36.5 percent).

As of March 2007, the Alcatel-Lucent 1540 family

is being used by more than 70 service providers in

41 countries worldwide. More than 26 million

equivalent lines have already been delivered —

plain old telephone system (POTS), integrated

services digital network (ISDN), leased lines

and digital subscriber line (xDSL).

3Alcatel-Lucent | Partnering for Change

Access is the cornerstone of a tele-

com network. All end-user services

merge in the access nodes. The types

of services your end users want

continue to expand as technology

evolves at an unprecedented pace.

As a result, your access network

must be able to accept many differ-

ent services, topologies, technologies

and transport options. Faced with

such challenges, being able to man-

age the access network efficiently

and effectively is a vital requirement.

Among other things, you need

reliable management solutions —

solutions that will automate net-

work operation, administration

and maintenance. What’s more,

these solutions must be cost-efficient,

optimize operating expenses

(OPEX), provide quality of service

(QoS),

as well as achieve stringent time-

to-market objectives.

The Litespan Family

The Alcatel-Lucent 1353 Litespan Management System (LMS) is

part of the Alcatel-Lucent 1540 Litespan family. Each Alcatel-Lucent

1540 Litespan includes not only the multiservice gateway platform, but

also an integrated management system — the Alcatel-Lucent 1353 LMS.

This system manages narrowband and broadband services, transport links,

as well as subscribers for the Alcatel-Lucent 1540 Litespan Multiservice

Access Gateway.

The flexible, multiservice Alcatel-Lucent 1540 Litespan solution provides

basic narrowband voice and data services (using plain old telephone

system [POTS], integrated services digital network [ISDN] basic access/

primary rate access, voice over IP [VoIP] and digital leased lines), as well

as broadband services. Services include asymmetrical digital subscriber line

(ADSL) and symmetrical high bit rate DSL (SHDSL), giving users high-

speed Internet surfing and multimedia downloading (see Figure 1). For all

of these services, the Alcatel-Lucent 1353 LMS provides operation and

maintenance functions.

Managing the Access Network

Residential

1540 Litespan

PSTN/ISDN

LL/TDM

ATM

Ethernet

1353 LMSIP/Internet Mixed

Business

Multiservice Multivendor

Multitopologies

(Star/Ring/Tree)

Multiscenarios

Figure 1 – The Alcatel-Lucent Access Gateway for the ETSI World

4 Alcatel-Lucent 1353 LMS

With the Alcatel-Lucent 1353 LMS,

you can take advantage of a user-

friendly and familiar graphical user

interface (GUI) to present informa-

tion related to operations, service

configuration, performance, alarms

and security (see Figure 2).

Like the management system for

the Alcatel-Lucent Optinex family

and the Alcatel-Lucent Intelligent

Services Access Manager (ISAM)

family, the Alcatel-Lucent 1353

LMS is based on the Alcatel-

Lucent Management Platform

(ALMAP). This compatibility lets

you easily integrate the Alcatel-

Lucent 1353 LMS with other

Alcatel-Lucent management

systems. That’s important, because

integrated network management

optimizes your capital investment,

reusing existing hardware to mini-

mize equipment costs, while lower-

ing operation and maintenance

activities and training costs.

Furthermore, in networks with

Alcatel-Lucent switching or trans-

port equipment, management

applications can be easily integrated.

For example, alarms for all network

elements appear in a single window

for ease of monitoring and use.

With the goal, moreover, of provid-

ing you with a complete solution,

both the Alcatel-Lucent 1353 LMS

and Alcatel-Lucent 1540 Litespan

are integrated and tested with

other Alcatel-Lucent products.

The Alcatel-Lucent 1353 Litespan Management System (LMS)

Figure 2. The Alcatel-Lucent 1353 Litespan Management System GUI

5Alcatel-Lucent 1353 LMS

The Alcatel-Lucent 1353 LMS functions as a network element manager,

an end-to-end network manager of user services, as well as a subscriber

manager. It incorporates several management applications described in

Table 1 and illustrated in Figure 3. With, moreover, the Alcatel-Lucent

1353 LMS, all of your applications can run on a single server, providing

a cost advantage for small networks.

Table 1. Alcatel-Lucent 1353 LMS Management Applications

APPLICATION FUNCTION

Alcatel-Lucent 1353 Distributed Network (DN) Element manager for voice and leased line data services delivered on the Alcatel-Lucent 1540 Litespan

platform

Alcatel-Lucent 5523 ADSL Work Station (AWS) Element manager for xDSL broadband services delivered on the Alcatel-Lucent 1540 Litespan platform

Alcatel-Lucent 1353 NM (Network Management) Element manager for the optional integrated add-drop multiplexer (for synchronous digital hierarchy (SDH)

services) in the Alcatel-Lucent 1540 Litespan

Alcatel-Lucent 1353 GW (Gateway) Gateway application running on top of the element managers to interface with third-party operational

support systems (OSSs)

Alcatel-Lucent 1355 DN Subscriber manager for voice services delivered on the Alcatel-Lucent 1540 Litespan platform

Alcatel-Lucent 1355 GW Gateway application running on top of the Alcatel-Lucent 1355 DN to interface with third-party OSSs

Alcatel-Lucent 1353 LMS Applications

1353 LMS Applications

> Narrowband and VoIP: 1353 DN

> Broadband: 5523 AWS

> SDH Transport: 1353 SH

> Subscriber Management: 1355

1353 GW

ISN

CLI

(IP/Files)

CLI

(IP/Files)

CORBA

TL1 (ASCII)

1355 GW

1355 DN TLL1-GW

1353 Litespan Management System

1353 SH (SDH)

1354 RM 5620 NM

1353 DN (NB) 5523 (BB)

Figure 3. Alcatel-Lucent 1353 LMS Management Applications

With Alcatel-Lucent’s element managers, you control

the configuration, creation and activation of services,

as well as the fault and performance management,

and real-time monitoring of the Alcatel-Lucent

1540 Litespan.

For its part, the Alcatel-Lucent 1353 DN network

element manager controls Alcatel-Lucent 1540 Litespan

narrowband services, whereas the Alcatel-Lucent 1353

NM manager controls the Alcatel-Lucent 1540 SDH

transport links. xDSL services are controlled by the

Alcatel-Lucent 5523 AWS. The element managers

also provide an interface for integration with the net-

work operator’s existing OSS. Plus, you can run any

network management application from any server in

the system. And to lower your capital expenditures,

our new common desktop reduces the number of

servers required because several clients can share

an application from any server.

SUBSCRIBER MANAGEMENT

The Alcatel-Lucent 1355 DN application provides

subscriber management for the Alcatel-Lucent Litespan

1540 family access networks through subscriber admin-

istration, service activation and subscriber line testing.

It is designed to support the unique requirements of

your access network by including large numbers of plat-

forms and subscribers, widespread geographic distribution

and concurrent use of different technologies and services.

6 Alcatel-Lucent 1353 LMS

Network Element Management Tailored to Your Needs

7Alcatel-Lucent 1353 LMS

NETWORK ELEMENT MANAGERS

Feature Summary

• Network view

• Equipment configuration

• Port and termination provisioning

• Management of communication between the

Alcatel-Lucent 1353 LMS and Alcatel-Lucent

1540 Litespan

• Equipment redundancy management

• Alarm collection and logging

• Alarm log consultation

• Remote inventor

• Backup/restore of network element configuration

• Remote software upgrade of network elements

• Generic management

• V5 interface and MEGACO/H.248 provisioning

• Management of leased-line interfaces

(2 Mb/s, n x 64 etc.)

• Line testing

• Performance and traffic monitoring

In the same way for the Alcatel-Lucent 1355 DN —

an application within the Alcatel-Lucent 1353 LMS

— you can take advantage of:

• Connection management

• Massive subscriber management operations

• Subscriber/connection queries

• External subscriber creation

• Subscriber alarm

• Subscriber/connection test

• Massive and scheduled testing

• Test results management

• Open interfaces to upper management layers

8 Alcatel-Lucent 1353 LMS

Flexibility for Diverse Business Requirements

SUPPORT OF MULTIPLE

TOPOLOGIES

Star, ring, tree, point-to-point and

mixed topologies are all supported

by the Alcatel-Lucent Litespan

family. All topologies can be super-

vised from the Alcatel-Lucent

1353 LMS Map Manager. In all of

these topologies, network manage-

ment information can reach the

access nodes from the Alcatel-

Lucent 1353 LMS through either

in-band or out-band mechanisms.

SUPPORT OF MULTIPLE

TRANSPORT OPTIONS

The Alcatel-Lucent 1540 Litespan

and Alcatel-Lucent 1353 LMS

integrate plesiochronous digital

hierarchy (PDH) or SDH transport

mechanisms toward the switching

and data networks. PDH, asynchro-

nous transfer mode (ATM) and

Ethernet transport capabilities are

also in the system. Transport is

supported between Alcatel-Lucent

Litespan exchange units (EUs)

and remote units (RUs) using

HDSL or G.SHDSL transport

protocols, fiber connections or

external leased-line networks.

Equally important, broadband

(xDSL) and narrowband (voice

and leased-line data) traffic can

share the same fiber (SDH STM-1

or STM-4). Broadband (xDSL)

traffic can be routed through STM-1

optical or E3/DS3 electrical inter-

faces toward the ATM backbone.

For its part, xDSL traffic can be

redirected toward the backbone

(typically IP) over Ethernet

(1000Base-SX, 1000Base-LX,

1000Base-EX, 1000Base-ZX and

1000Base-TX). This increases

flexibility when connecting to

the IP data backbone through

metro Ethernet networks. You

can manage all of these transport

options with the Alcatel-Lucent

1353 LMS.

9Alcatel-Lucent 1353 LMS

Ease of Integration and High Scalability

MULTIVENDOR COMPATIBILITY

The Alcatel-Lucent 1540 Litespan and Alcatel-Lucent

1353 LMS are designed to function well in multivendor

environments. This open design lets you build competi-

tive, customized solutions compatible with your existing

investments and customers’ needs. The integrated

and centralized Alcatel-Lucent 1353 LMS also ensures

changes can be made very quickly, significantly

shortening time-to-revenue.

ALL SIZES OF NETWORKS

The Alcatel-Lucent Litespan family is highly scalable

and suitable for any access network size — from a few

nodes to hundreds of them. With its flexible architec-

ture, you can run the Alcatel-Lucent 1353 LMS on a

PC, upgrade to a small UNIX workstation, and add

new servers or workstations to evolve with the growth

of the Alcatel-Lucent 1540 Litespan network (see

Figure 4).

1353 LMS

Initial Network

Size

1353 LMS

Growing

Network

PC Platform UNIX Server

Easy migration to a server platform

minimizes operational impact as the network grows

Figure 4. A Network Management System Platform for Any Network Size

Reduced CAPEX and OPEX

By lowering capital and operating expenses, the Alcatel-Lucent Litespan family has a significant impact.

The Alcatel-Lucent 1353 LMS fits into your OSS puzzle by satisfying four key expectations:

Network fault reduction:

• Proactive alarming

• Routing line testing

• Performance/traffic measure-

ments and alarms crossing

thresholds

Reduced customer service

expenses – automating all activi-

ties for activating service and

providing customer assistance

through open interfaces that

support:

• Service activation

• Subscriber status management

• Line and telephone set testing

Reduced maintenance costs:

• Centralizing/automating opera-

tions and maintenance (O&M)

activities in the OSS, such as

alarm reporting or testing for

the multivendor access network

• Adapting network management

functionality to your organization’s

and staff expertise. (The Alcatel-

Lucent 1353 LMS has been

designed according to the TMN

model with element, network

and service management levels

that provide flexibility in terms

of architecture and operator

profiles.)

• Providing operation-driven

menus, constrained checking

and on-line help to avoid errors

• Properly forecasting spare stock

with network inventory and

alarm information

Reduced provisioning expenses:

• Exporting accurate information

on network resources for correct

forecasting of access network

deployment and minimized

number of field interventions

10 Alcatel-Lucent 1353 LMS

Choice of Operating Systems and Reliability

Multiple operating systems

The Alcatel-Lucent 1353 LMS is available for UNIX and Windows

2000 operating systems. UNIX servers can each support up to

3,000 network elements and 65 operators. The PC installations

are ideal for managing networks with fewer than 30 nodes.

Redundant servers

System availability is enhanced through the N+1 redundancy

of servers (see Figure 5). A backup server will take over the

function of any server that fails in the system.

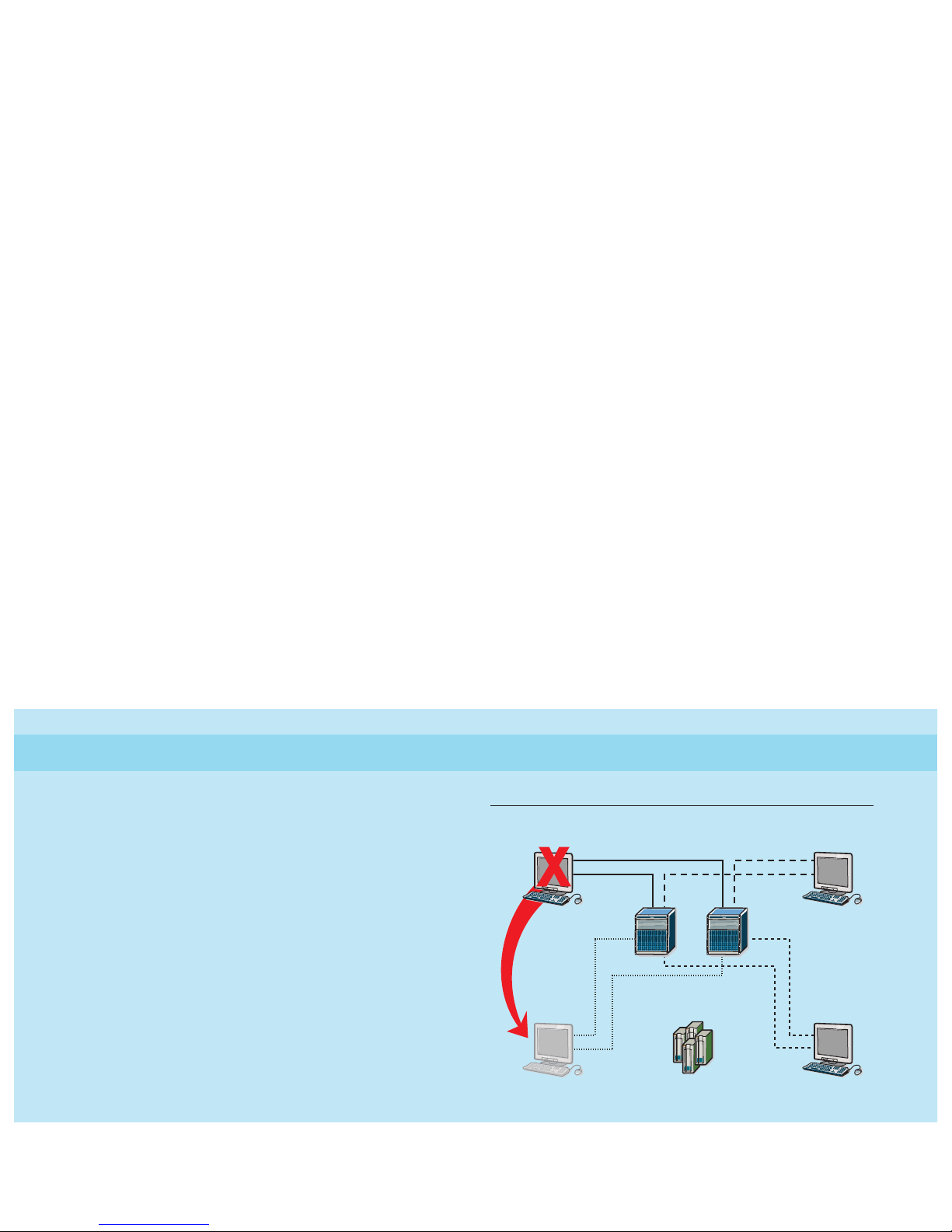

Figure 5. Overview of the High Availability OS Cluster Solution

1353 LMS

Spare

1353 LMS

Mirrored Disk Sharing

N+1 Local Protection

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Alcatel-Lucent Hardware di rete

Alcatel-Lucent

Alcatel-Lucent Service Aggregation Router 7705 Manuale utente

Alcatel-Lucent

Alcatel-Lucent VitalQIP AMS 1000 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 1677 SONET Link Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale tecnico

Alcatel-Lucent

Alcatel-Lucent VitalQIP Appliance Manager 5000 Platform Manuale utente

Alcatel-Lucent

Alcatel-Lucent 9364 Guida

Alcatel-Lucent

Alcatel-Lucent 7302 Guida all'installazione

Alcatel-Lucent

Alcatel-Lucent 5750 SSC Manuale utente

Alcatel-Lucent

Alcatel-Lucent Broadband 700 MHz Manuale utente

Alcatel-Lucent

Alcatel-Lucent MVNE Manuale utente

Alcatel-Lucent

Alcatel-Lucent VitalQIP 500 Manuale utente

Alcatel-Lucent

Alcatel-Lucent Managed Business Network Manuale utente

Alcatel-Lucent

Alcatel-Lucent OmniAccess 700 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 100 GbE Manuale utente

Alcatel-Lucent

Alcatel-Lucent OAW-AP85 Manuale utente

Alcatel-Lucent

Alcatel-Lucent OmniPCX Enterprise Manuale utente

Alcatel-Lucent

Alcatel-Lucent 9764 Series Manuale utente

Alcatel-Lucent

Alcatel-Lucent Intelligent Services Access Manager Manuale utente

Alcatel-Lucent

Alcatel-Lucent Litespan 1540 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7302 Manuale tecnico

Alcatel-Lucent

Alcatel-Lucent Metrospan Edge 1692 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 735x Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente

Lanner

Lanner NCA-1525 Manuale utente
