Alcatel POP 10 Manuale utente

MagicFlip keyboard

CJB1AU001AAA

Quick Start Guide

EN - 2 EN - 3

Catalog

Introduction �� 4

Setting�� 4

Detaching�� 5

Connecting Keyboard and Tablet�� 6

Indicator Status�� 6

Trackpad multi-touch gesture�� 7

Keyboard Interface�� 8

Hot Keys �� 8

Battery Charging for Keyboard�� 9

Certication �� 9

Warranty�� 11

EN - 3

Specication

Product Name MagicFlip Keyboard

Model Name KBP360

Bluetooth Bluetooth 4�0

Compatible Device POP 10

Dimension 244�2 × 146�5 × 6�5 mm

Weight 360g

Battery Capacity 400mAh

Standby Time >1700H

Keyboard’s Using Time >480H

Touch Pad’s Working Time >19H

Battery Type Li-Po

Available Distance about 10m

Charging Time of Tablet <5H

Charging Time of

Keyboard <2H

Operating Temperature 0 - 40 °C

TouchPad Function

(Optional)

Button function

Cursor moving and Drag

function

Double-click function

Scrolling function

EN - 4 EN - 5

Introduction

A� Frame

B� Keyboard

C� USB

D� LED Light

E� Power Switch

F�Touch Pad

Setting

1. Open the frame

2. PutTablet into frame and x

EN - 5

3. Finish

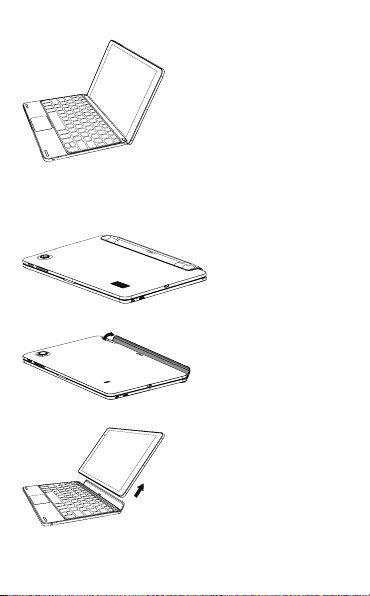

Detaching

1. Keyboard and Tablet are closed

2. Open frame from back side of Tablet

3. Take out theTablet

Note: Frame can only be spun with a certain angle� Don’t

open the frame vigorously or quickly�

EN - 6 EN - 7

Connecting Keyboard and Tablet

Keyboard connects with the Tablet through Bluetooth�

When using it for the rst time, please pair the Keyboard

with the Tablet�

1. Make sure Tablet Bluetooth is open

Touch Apps →Settings →Network connections section

from home screen and turn on the Bluetooth switch�

2.Turn on the Keyboard

When the blue light is blinking quickly, the Keyboard is

discoverable and ready for pairing with yourTablet� When

you turn on the Keyboard for the rst time, it will be

discoverable for 2 minutes�

3. Pair Keyboard with Tablet

i) In the Tablet’s Bluetooth settings page, select “ALCATEL

ONETOUCH KBD POP10” from available device’s list.

ii) According to prompt, conrm to connect “ALCATEL

ONETOUCH KBD POP10” keyboard.

When successfully connected, the light turns blue for

a short time to indicate a stable status� It will turn off

after 5 seconds�

iii) If unsuccessful, restart Keyboard and return to step 2�

Indicator Status

LED Light Notes

Red Charging

Blinking Red power is equal to or less than 10%

EN - 7

LED Light Notes

Solid Blue 5S Bluetooth pairing or reconnection

is successful

Fast Blinking

Blue (1S/T)

The keyboard is discoverable, ready

for pairing�

Slowly Blinking

Blue (3S/T)

The keyboard is trying to reconnect

to your Tablet�

Trackpad multi-touch gesture

Button function

Left/Right, up or down Cursor moving and

Drag function

Double-click

Two-nger slide up or down to scroll

through documents, web pages, and more

Two-nger to scroll through homescreen:

One nger slide left and right when another

nger touch the touchpad

EN - 8 EN - 9

Keyboard Interface

Keys Function

Back

Calculator

Calendar

Web browser

Mail

WiFi

Music

Previous track

Play/Pause

Keys Function

Next track

Mute

Volume down

Volume up

Screen locker

Android home

Switch apps

Android™

Hot Keys

EN - 9

Keys Operation Function

fn+X Cut

fn+C Copy

fn+V Paste

fn+Lock Open/close touch pad

Battery Charging for Keyboard

If the status light is red, the keyboard folio battery needs

to be charged�

1. Plug one end of the micro-USB cable supplied into the

charging port, and the other end into a USB port on Alcatel

Onetouch 5V 2A charger.

The status light is solid red as the battery charges�

2. Charge the battery until the status light turns off.

3. When Tablet is connected to the Keyboard, it will charge

both at the same time.

Certication

The Bluetooth word mark and logos are owned

by the Bluetooth SIG, Inc� and any use of such m

arks by TCL Communication Ltd� and its afliates

is under license� Other trademarks and trade names are

those of their respective owners�

KBP360 Bluetooth Declaration ID D025485

EN - 10 EN - 11

Battery:

Observe the following precautions for battery use:

- Do not attempt to open the back cover and replace the

inner rechargeable Li-polymer battery� Please contact

the dealer to replace it�

- Do not attempt to eject, replace and open battery�

- Do not punctuate the back cover of your device�

- Do not burn or dispose of your device in household

rubbish or store it at temperature above 50°C�

- Dispose of used batteries according to the instructions�

Risk of explosion if battery replaced by an incorrect type�

This symbol on your device,the battery and the

accessories means that these products must be

taken to collection points at the end of their

life:

- Municipal waste disposal centers with specic bins for

these items of equipment�

- Collection bins at points of sale�

They will then be recycled, preventing substances being

disposed of in the environment, so that their components

can be reused�

Please make sure the temperature for device will not be

higher than 40 ˚C for use in charging mode and not be

higher than 45 ˚C for use in non-charge mode�

In European Union countries:

These collection points are accessible free of charge�

All products with this sign must be brought to these

collection points�
