Operation, Maintenance and Installation Manual

VersAlarm 4X

Indoor / Outdoor Alarm System

(auxiliary contact models)

QSG00269_Rev01

Before proceeding with the installation or operation of the VersAlarm™4X, read all

instructions thoroughly, as well as complying with all Federal, State and Local Codes,

Regulations and Practices. The VersAlarm™4X must be installed by qualified personnel

familiar with all applicable local electrical and mechanical codes. Refer to the National

Electrical Code (NFPA 70). Failure to properly install and test this product can result in

personal injury or equipment malfunction.

The VersAlarm™4X is a multipurpose alarm that can be used in a wide variety of appli-

cations such as: septic tanks, sumps, holding tanks, pump chambers and water tanks.

Introduction

Safety Guidelines

1. DO NOT USE WITH FLAMMABLE OR EXPLOSIVE FLUIDS SUCH AS GASOLINE, FUEL OIL, KEROSENE,

ETC. DO NOT USE IN EXPLOSIVE ATMOSPHERES.

2. DICONNECT ALL POWER WHEN INSTALLING, WORKING ON THE UNIT OR REPLACING THE FUSE.

3. FAILURE TO TURN OFF ALL POWER WHEN SERVICING THE VERSALARM™ 4X COULD RESULT IN

SERIOUS INJURY OR DEATH.

Description of Operation

The VersAlarm™4X is powered by 120VAC, “hard wired”. When a float switch “closes” the buzzer and beacon will

turn “on”.

Pressing the “Silence” button deactivates the buzzer and when the alarm is remedied, the system automatically

resets itself. The system can be tested be pressing the “Test” switch, when pressing the switch, the buzzer should

annunciate and the beacon should illuminate.

Electrical Information

Primary Power: 120VAC, 50/60 Hz

Watts: 10 Watts

Fuse: 1 Amp Fast Acting Type AGC

Buzzer: 95db @ 2 Feet

Switch: UL Listed, 120VAC, 1 Amp Minimum

(signaling device) Single Pole, Single Throw

Alarm Systems Control Panels Float Switches Leak Detection Systems Page 2 of 2

PO Box 827 Hawley, MN 56549 (218) 483-3034 Fax (218) 483-3036 www.alderonind.com

QSG00269_Rev01

Installation

1. Determine mounting location for the VersAlarm™ 4X. Mount the unit using four #8 x 1.25” self tapping screws

(not included) (Fig. 1). Mounting brackets are 3.125” x 5.625” (Width x Height).

2. Drill holes for conduit connections, see Figure 2 for recommended hole locations on the enclosure. Attach

conduit per National Electrical Code.

3. Bring power wires through the conduit into the unit and connect to the terminal block (Fig. 3). Connect L1 to

TB1, N to TB2 and G to TB3. Make sure the power is on a separate circuit breaker from any other device to

maintain power integrity.

4. Bring “signaling device” wires (such as a float or pressure switch, etc.) through the conduit and connect to the

terminal block (Fig. 3). Connect to TB4 and TB5. Caution! - When installing the “signaling device”, refer to its

installation instructions for proper installation. Connect only with UL or CSA listed switches rated 1 amp at 120

VAC minimum.

5. Refer to the included schematic for additional wiring information.

6. Caution! - When installing wires, route all wires away from sharp objects and internal components. After all

wires are installed, seal all conduits, per National Electrical Code, that come from sources containing corrosive

gases. Failure to do so will cause premature failure and void warranty.

7. Reinstall the enclosure cover and carefully tighten the four screws.

Testing

1. Turn on power and then press the “Test” button, located on the left side of the unit (Fig. 2). Once the “Test”

button is pressed, the buzzer should annunciate and beacon should illuminate. While pressing the “Test” button,

press the “Silence” button and the buzzer should silence. Let go of the “Test” button and repeat the sequence

several times to ensure the system is working properly.

2. Test the system similar to Step 1, but by activating the “signaling device”. The buzzer should annunicate and

the beacon should illuminate.

3. Test product weekly to ensure system integrity.

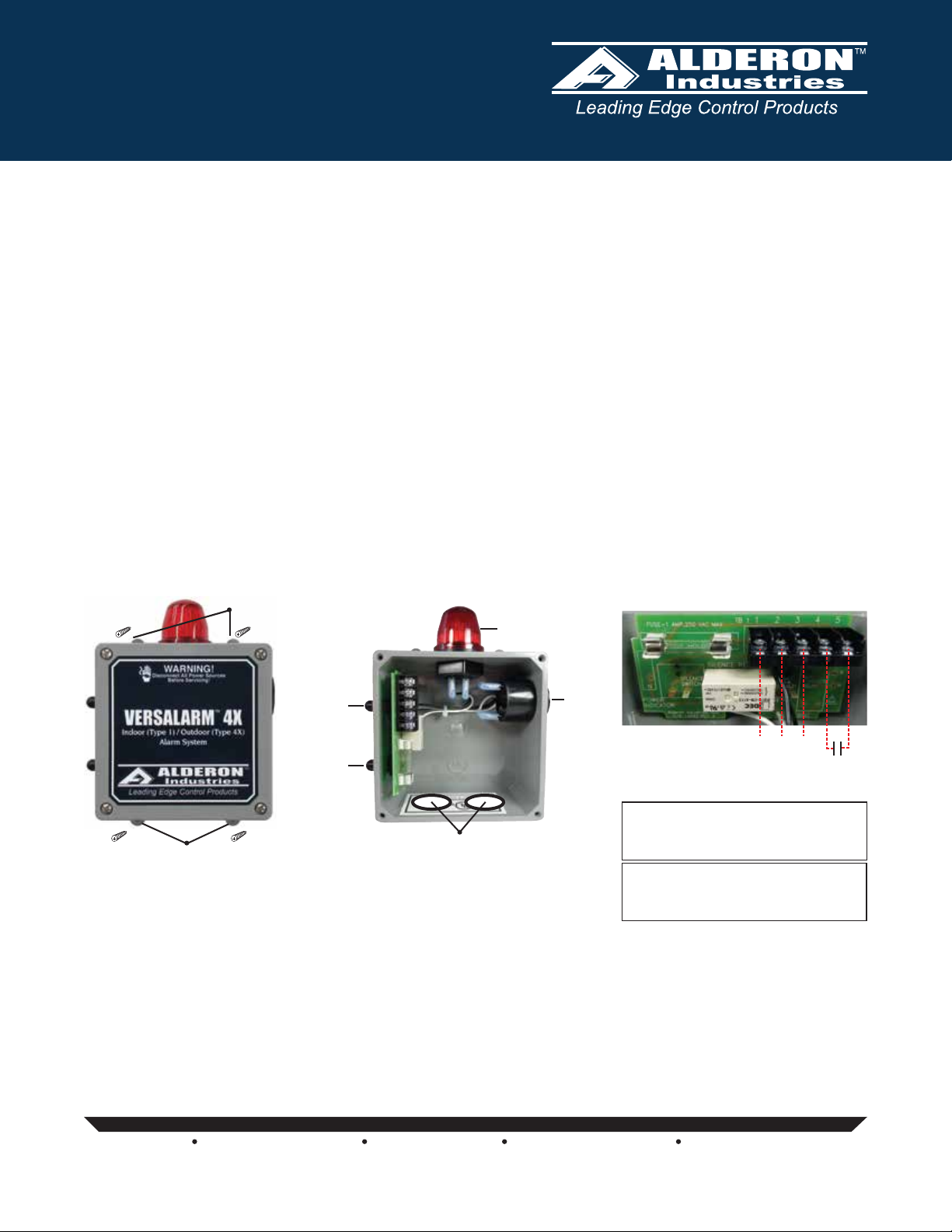

(Fig. 1)

Mounting Holes (2)

(Fig. 2)

Recommended

Conduit Hole Locations

Test

Button

Silence

Button

Beacon

Buzzer

(Fig. 3)

L1 N

Signaling

Device

(Float Switch)

CAUTION! - Failure to connect power in

and float as shown (Fig. 3) will cause

catastrophic circuit board damage.

(120 VAC 50/60 Hz)

Terminal Block (TB) 1 2 3 4 5

Do not exceed 8 in. lbs. torque when

tightening screw terminals.

Wire Range: 12-24 AWG

Operation, Maintenance and Installation Manual

VersAlarm 4X

Indoor / Outdoor Alarm System

(auxiliary contact models)

Branch Circuit Protection Device/Disconnect Means Field Provided -

10 Amp, 120 VAC

F1 FUSE MUST BE

REPLACED WITH 1

AMP AGC FAST

ACTING 250 V MAX.

FS1

ALARM

FLOAT

120 VAC

POWER

CR1

TEST

PB1

SILENCE

PB2

ALARM CIRCUIT BOARD

Beacon, Power Indicator & BUZZER WIRED INTO THE CIRCUIT BOARD

1A 1

ALARM CIRCUIT

CR2

White

Red

Black

Alarm Auxiliary Contacts

120VAC, 5 Amps Max.

White = Common

Red = Normally Closed

Black - Normally Open

Notes:

1. WARNING! Electrical Shock Hazard! Disconnect power before servicing this product. A qualified service person must install and service this product according to applicable electrical and plumbing codes.

2. Install in accordance with National Electric Code, NFPA 70, Seal all boxes, fittings and conduit with appropriate seal devices to prevent moisture and gases from entering enclosure.

3. Connect all grounds to a good ground. 4. Dashed lines represent field wiring - Use minimum 60 deg C Copper Wire 5. Branch Circuit Protection Device/Disconnect Means Field Provided.

Sheet No:

Sheet Description:

Model Number:

DWG. Number:

Quote Number:

Drawn By:

Checked By:

Date: Revision Level:

Page Notes:

B.Klabunde

J.Bober

4/3/2019

001

----

AWG/ OR

CIRCULAR

MILL SIZE

TIGHTENING

TORQUE IN INCH

POUNDS

SCREW

DRIVER

EXTERNAL

DRIVE

WRENCH

14 35 75

12 35 75

10 35 75

8 40 75

645 110

4 45 110

250 150

1 50 150

1/0 50 180

2/0 50 180

FIELD WIRING

TERMINAL BLOCK

FIELD SUPPLIED

LEGEND

CR CONTROL RELAY

GL GROUND LUG

R Alarm Beacon

B Alarm Buzzer

F1 Fuse

PB1 Test Pushbutton

PB2 Silence Pushbutton

FS1 Float Switch

07-29-2013 Version; Rev AAG, MECH-00000049

Incoming Power:

L1 = 120V Hot Leg

N = Neutral

G = Grond

----
