NOTE: The beeper of the keypad LM172 will beep at the press of any key. When you enter the entry code,
each button should be pressed within 1 second. If an error has occurred, the beep will sound for
2 seconds before returning to normal operation. Please try again.
How to Operate LM/MK Series Swing Gate Opener
Once the keypad LM172 has been learnt successfully, you can use default code to operate the gate.

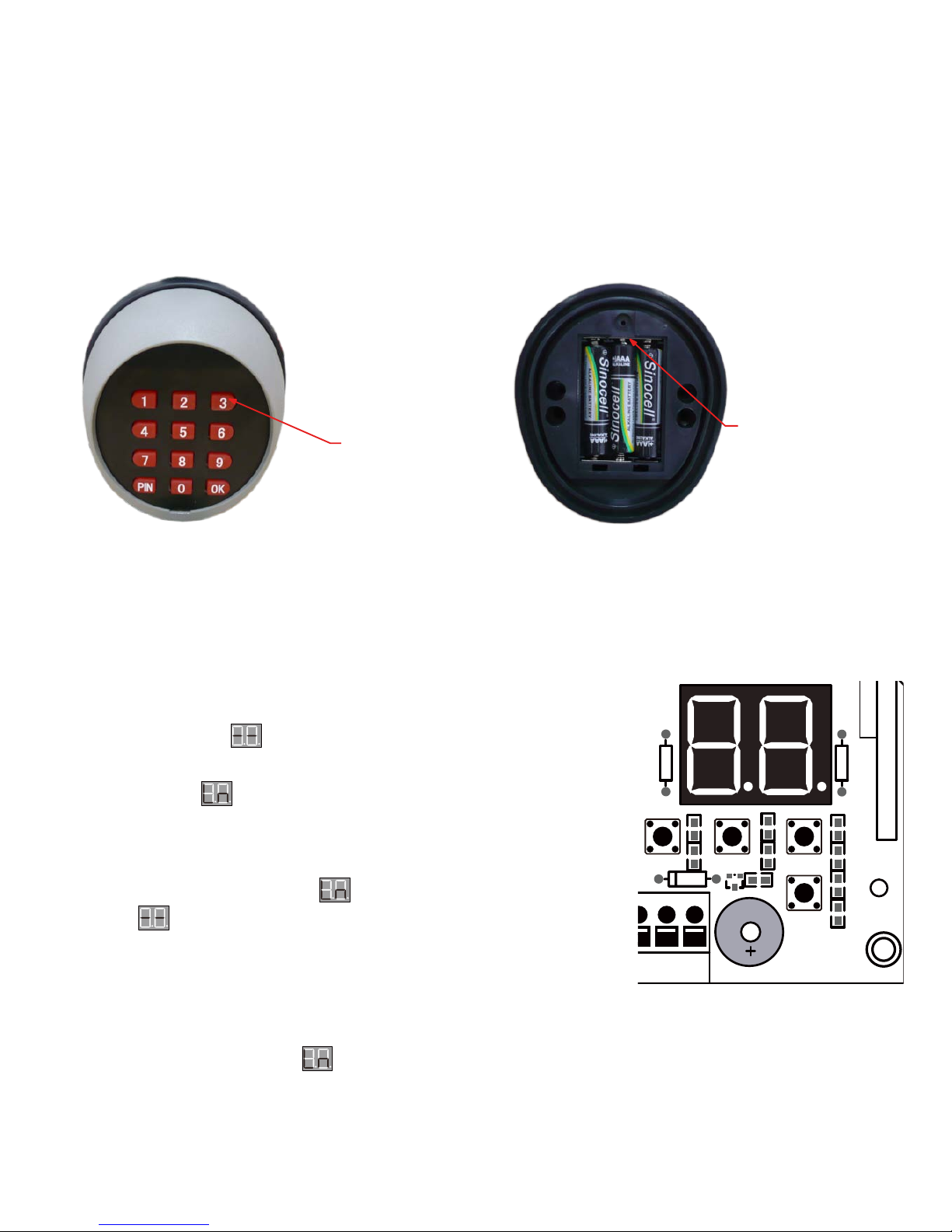

Step 1. Press and release “PIN” button on the keypad LM172 and then enter the 6 digits entry code.(factory
default entry code is “888888”)
Step 2. Press the ”OK” button within 1 second after step 1 to move the gate.
1. When the gate stops in some positon and the opener is in standby mode, you can make it to
move via the following steps:
2. You can press the ”OK” button at anytime to stop the moving gate.(Entry code is not needed).
NOTE: If the Keypad LM172 is installed outside of the gate to open the gate, and no Keypad is installed
inside of the gate, we strongly recommend you set the auto-close function in circuit board in control
box. Refer to Installation and Operation Manual page 22.
“Learn” Transmitter code
Use For DSR/DSC Series Sliding Gate Opener
Make sure the control board of opener is power on and in
standby mode (PWR LED is on and REM LED is off, gate is stop).
Control Board of DSR/DSC 1000/600
45 6 7 8321
ON
MIN MAX MIN MAX
DIP

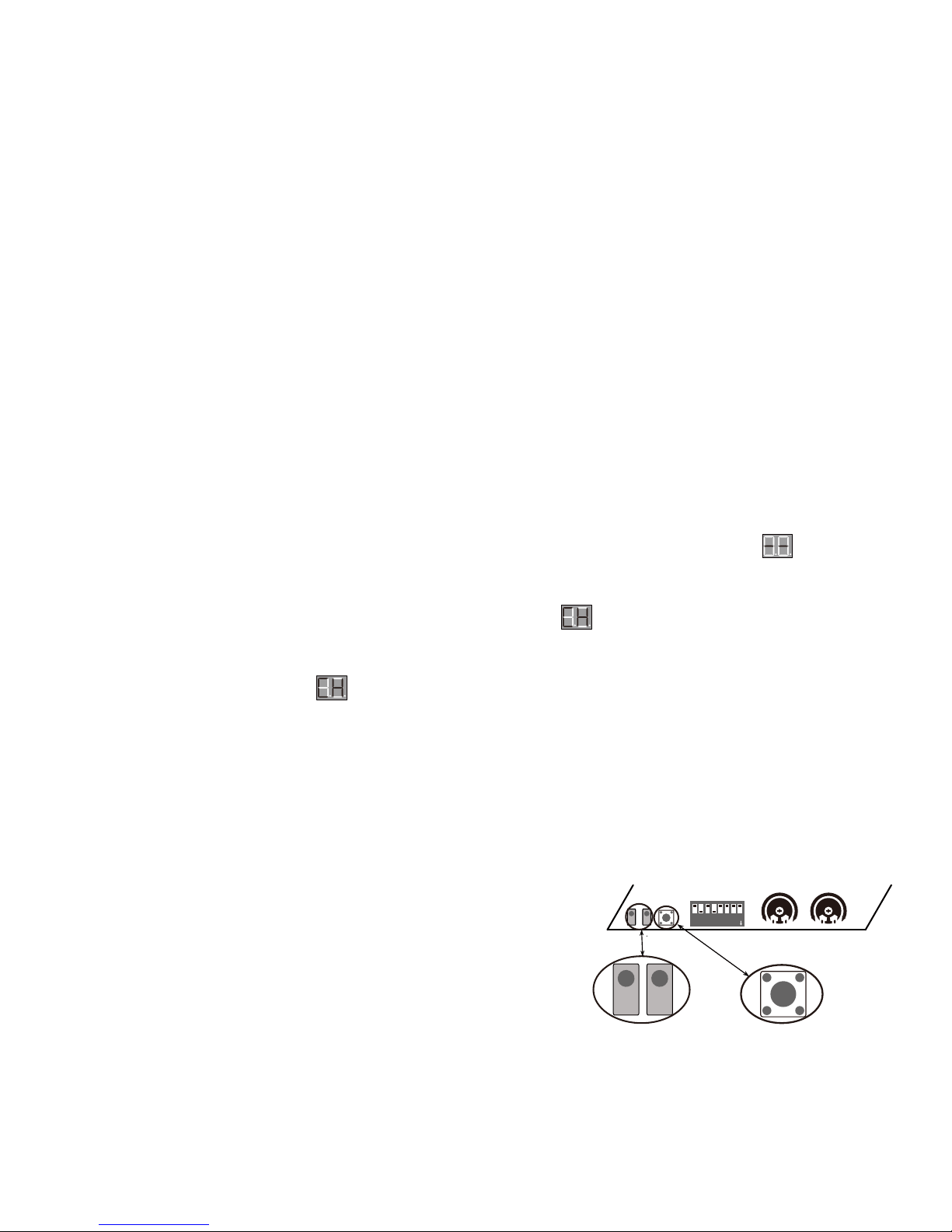

Learn ButtonREM LED PWR LED
Step 1. Press and release “Learn” button of the control board, and then
REM LED will be on.
Step 2. Press the ”OK” button once on the keypad LM172
to learn the transimitter code. If the keypad has been
learnt successfully, the REM LED will flash for 2 seconds
and then back to off. Now you can use the factory defaut code to operate the
gate (Refer to the chapter “HOW TO OPERATE DSR/DSC 1000/600 DSR400” in manual) .
2
NOTE: The “OK” button should be pressed within 1 second after step 1, or you may have to
start over.
Programming the new entry code
For safety reason, you may change the factory default entry code or old entry code to your new
code but the keypad must be learnt successfully with control board of swing gate opener before
you try to change the entry code.
Make sure the control board of the opener is power on and in standby mode (LED flashes “ ”“(- -)”).
Step 1. Press and release “PIN” button on the keypad LM172 and then enter the 6 digits default or old entry
code. (factory default entry code is “888888”)
Step 2. Press and release “PIN” button on the keypad LM172, “ ”(“CH”) will display on the LED of the
control board.
NOTE: Every step for pressing button during program must be finished within 1 second to ensure success-
-full program.
Step 3. Enter your 6 digits new entry code and press “PIN” button to store it. The entry code has been updat-
-ed successfully while “ ”(“CH”) flashes for 2 seconds on LED of the control board.
