Alfa Network AWIPH90 Manuale utente

AWIPH90 WiFi Phone

User Manual

Version 1.0

Table of Contents

Chapter 1 Overview of the WiFi Phone………………………………3

1.1 Front Panel and Keypad………………………………………………………. 3

1.2 Keypad function description………………………………………………….. 4

1.3 Main Screen……………………………………………………………………. 5

1.4 Entering and Editing text……………………………………………………... 5

1.5 Making a Phone Call…………………………………………………………... 6

1.5.1 Entering the phone number manually

1.5.2 Using the Phone Book

1.5.3 Using the Call History

1.5.4 Using the Quick Setting

1.5.5 Redial a Number

1.5.6 Answering a Call/ Reject a Call

1.5.7 Holding a Call / Transferring a Call

Chapter 2 Call History…………………………………………………8

Chapter 3 Message……………………………………………………...9

Chapter 4 Phone Book………………………………………………...10

Chapter 5 Call Settings………………………………………………..10

5.1 SIP Settings…………………………………………………………………….. 11

5.2 Call Waiting……………………………………………………………………..13

5.3 Call Forward…………………………………………………………………….13

5.4 NAT Settings…………………………………………………………………….14

5.5 Audio Settings…………………………………………………………………...14

5.6 DTMF Tone……………………………………………………………………...14

5.7 Skype Gateway………………………………………………………………….14

Chapter 6 Network Settings…………………………………………..15

6.1 IP Settings…………………………………...…………………………………. 15

6.2 WLAN Settings………………………………………………………………… 16

6.3 User Certificate………………………………………………………………….19

6.4 Root Certificate………………………………………………………………….21

Chapter 7 Phone Settings…………………………………………….. 23

7.1 Vibrator………………………………………………………………………….23

7.2 Ringer……………………………………………………………………………23

7.3 Ring Tones……………………………………………………………………... 23

7.4 Ringtone Volume………………………………………………………………..23

7.5 Language………………………………………………………………………..23

7.6 Backlight………………………………………………………………………...23

7.7 Speed Dial……………………………………………………………………….24

7.8 Web Configuration……………………………………………………………..24

Chapter 8 System Time……………………………………………… 25

8.1 Date Time Setting………………………………………………………………25

8.2 SNTP Setting……………………………………………………………………26

Chapter 9 Firmware Settings…………………………………………26

9.1 Firmware Version………………………………………………………………26

9.2 HTTP Server……………………………………………………………………27

9.3 Firmware Upgrade……………………………………………………………..27

Chapter 10 IP Camera

10.1 IP Camera Play………………………………………………………………..28

10.2 IP Camera IP…………………………………………………………………..28

Chapter 1 Overview of the WiFi Phone

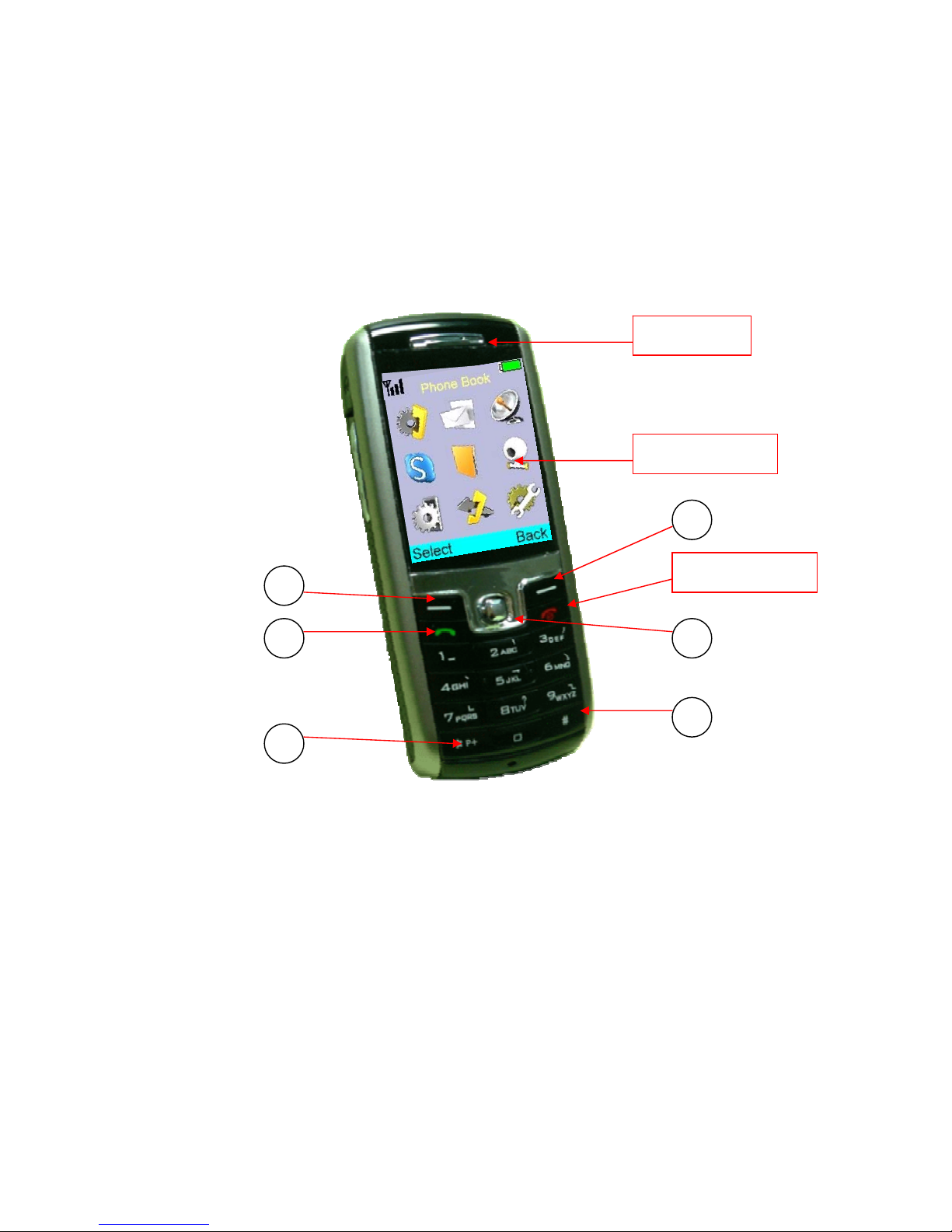

1.1 Front Panel and Keypad

Figure 1.1.1 Front Panel and Keypad

Graphic LCD

Receiver

Power On/Off Key

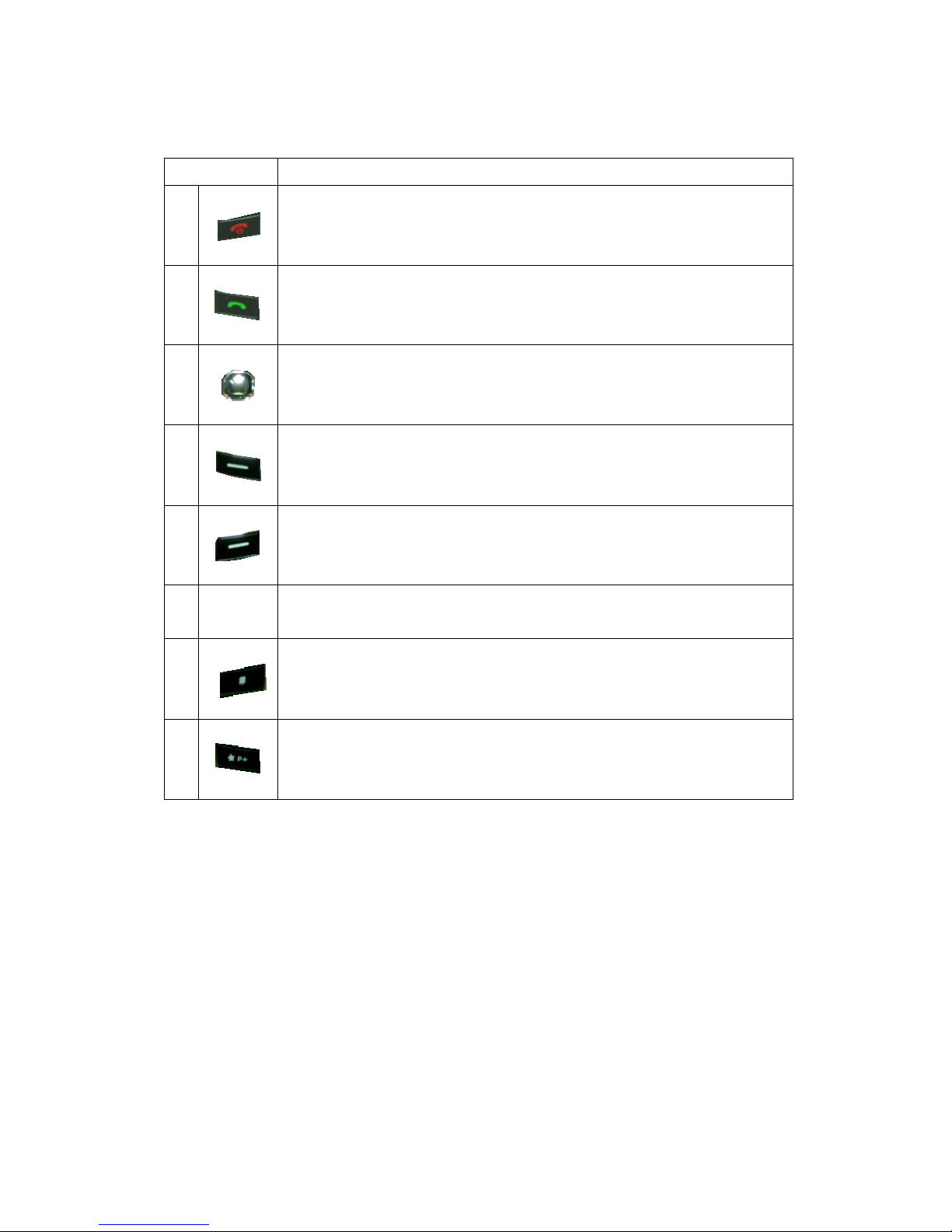

1.2 Keypad function description

Key Description

Power on/off and End key

Display IP address key

Used to end or reject a call, or to return to standby mode.

Answer/Send key

Used to answer a call or dial a number.

Menu and select key

Used to enter into menu and move up and down to select items

In Input Mode, you can switch [123], [abc] and [ABC].

Left key: Phone Book and Select key

To search or add or delete the data of phone book

Press the button to go back to main menu

Right key: Quick Setting and Back key

To enter Quick Setting menu

0-9 Number key

Used for entering numbers and characters.

5 Unlock Key

Used to unlock the key ; Pound key: In entry mode

Skype Buddy List : Press to retrieve Skype Buddy List.

Asterisk key

In entry mode, use the asterisk key to enter ‘.’, ‘@’and ‘:’,’*’

Table 1.2.1: Keypad function description

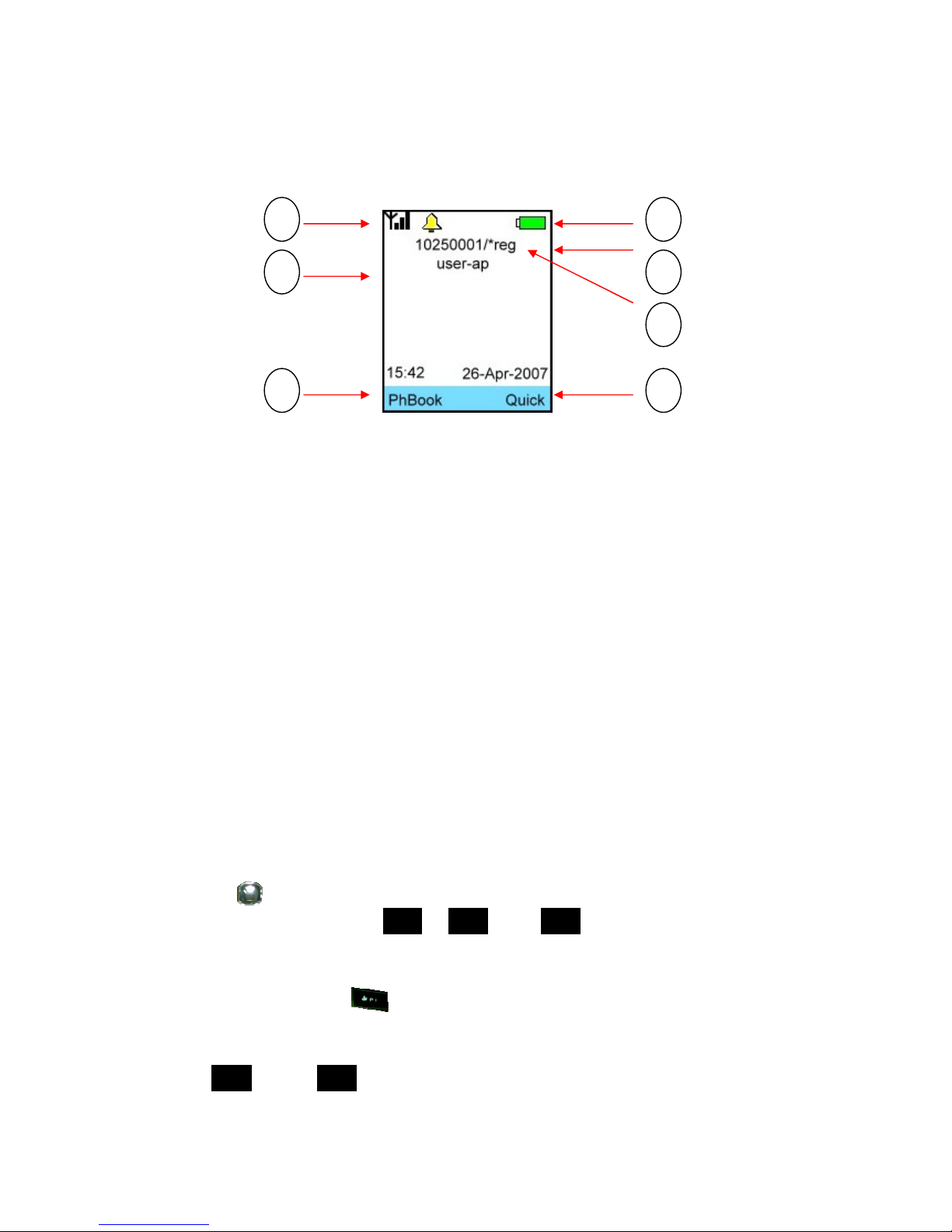

1.3 Main Screen

After powering on, the phone enters standby mode, with the main screen displayed as

shown in Figure 1.3.1

Figure 1.3.1

1 Battery icon

2 User name

3 Right soft key tab

4 Left soft key tab

5 AP information:

Showing which AP you are connecting

6 Signal strength icon

7 Registration status indicator: when SIP registration is enabled, the *reg indicates

WIFI PHONE has registered to the SIP Registrar successfully. If WIFI PHONE fails

to register to the SIP Registrar, a rotating line will appear at the same place.

1.4 Entering and Editing text

In many situations you need to enter numbers and characters in an entering field.

Please refer to the following guidelines:

•Press to switch between upper case character, lower case character and

numeric mode, with the icon , or shown at the middle of

the bottom of LCD screen respectively.

• In enter mode, Press to enter ‘.’‘@’ or ‘:’by pressing it once, twice or

three times respectively.

• In or mode, press numeric key ‘1’to enter a space or icons as

follows: “ . , $ % & _”

abc

ABC 123

ABC abc

• Press

to move the cursor.

• Press

to clear the number/character that the cursor points to.

• Press to abort the editing.

1.5 Making a Phone Call

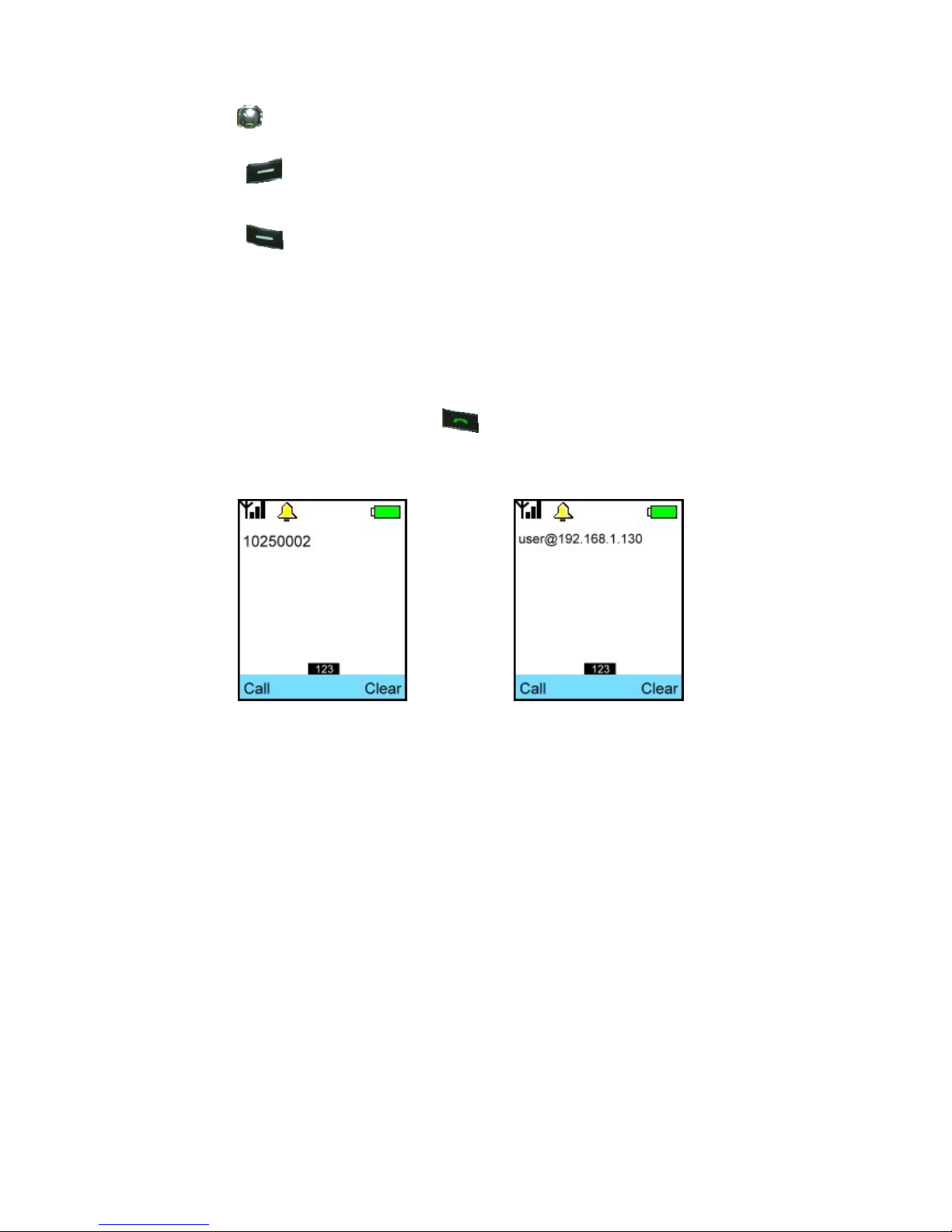

1.5.1 Entering the phone number manually

You can enter phone number (needing SIP Proxy Server and SIP Registrar) or SIP

URL at the entering line. Then press to make a phone call. Please refer to

Figure 1.5.1

1.5.2 Using the Phone Book

You can search the Phonebook by name to get the phone number/SIP URL and make

a call. Please refer to Chapter 4.1 phonebook

1.5.3 Using the Call History

You can find the phone number/SIP URL from the Call History to make a phone call.

Please refer to Chapter 2.1 Call History

1.5.4 Using the Quick Setting

You can select several options of the major functions from “Quick Setting”. Such as

Site Survey, Key Lock, and change phone standby modes: General Mode/ Vibrator

Mode/ Ringer Mode/ Silent Mode.

1.5.5 Redial a Number

At the standby mode, press The list of placed calls is displayed. The latest

dialed number is highlighted, so you can redial this number directly by pressing the

left soft key.

1.5.6 Answer a Call/ Reject a Call

To answer a call, press to accept. You can use key to adjust the

volume. To reject a call, press Please refer to Figure 1.5.2

Figure 1.5.2

Caller ID will be shown on screen as Figure 1.5.2

Caller will hear “ Ring back tone” as soon as the phone is calling out

Receiver will hear “ Ring tone ” as soon as a call is coming

If the receiver is busy, caller will hear busy tone back from receiver

1.5.7 Hold a Call / Transfer a Call

When talking, press to hold the call.

To resume the held call, press again. Please refer to Figure 1.5.3

Figure 1.5.3 Hold and resume a call

To transfer the call, press and press the third party’s number, then press

to make call out. Please refer to Figure 1.5.3

Chapter 2 Call History

2.1 Call History

Figure 2.1.1 provides information about accessing the main menu and using its

features.

Figure 2.1.1

Call Settings

Message

Call History

Network Settings

Phone Settings

System Time

Firmware Settings

Figure 2.1.2 shows the architecture of Call History menu.

Figure 2.1.2

You can find out all the records of Dialled /Answered/Missed/ Delete Records

Chapter 3 Message

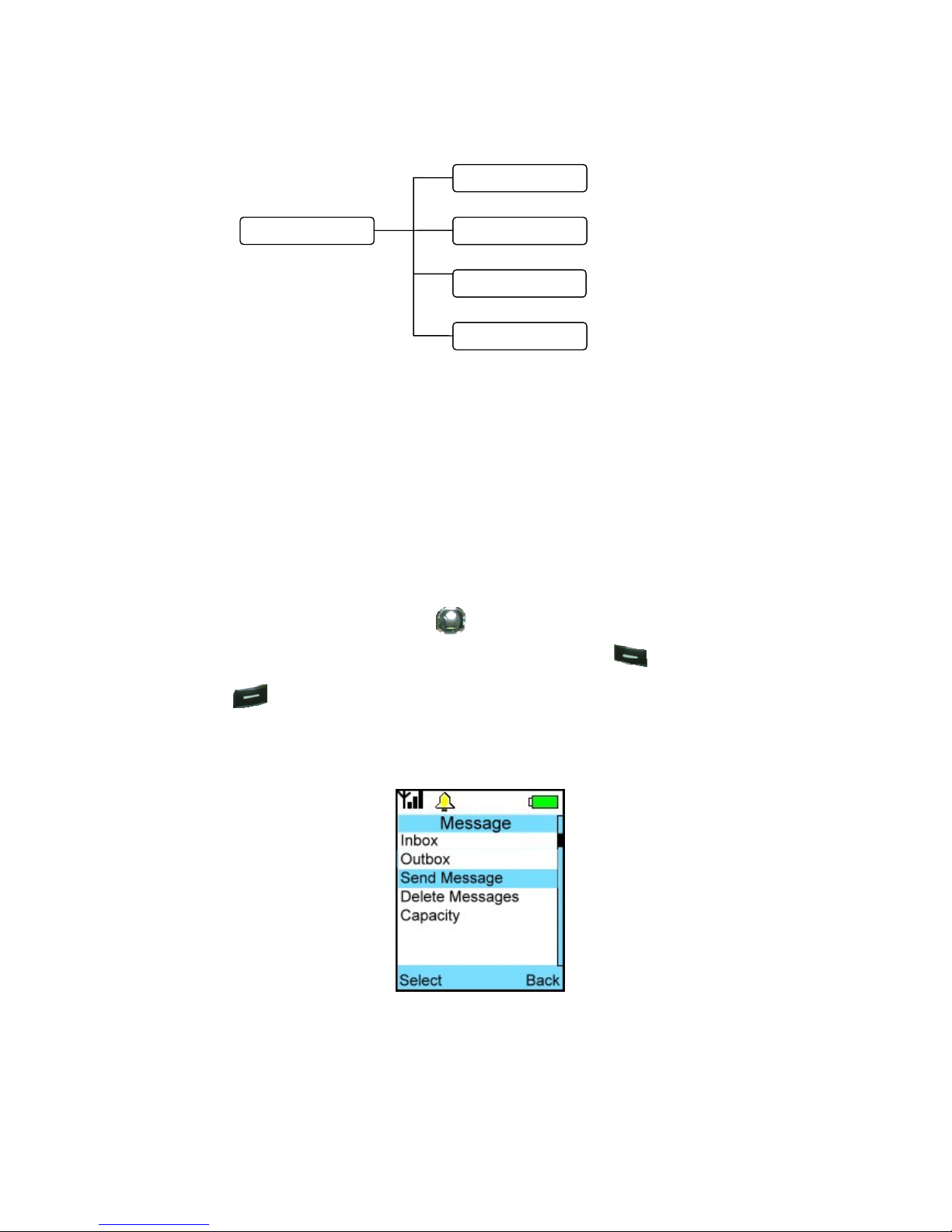

3.1 Message

You can send and delete messages here. Also, you can find out the records of Inbox /

Outbox. To send a message, press to enter Menu and scroll to Message.

Then select Send Message to input your message and press to send out or

press to clear it.

The Message menu is displayed, as shown in Figure 3.1.1

Figure 3.1.1

Call History

Delete Records

Missed Calls

Answered Calls

Dialled Calls
