INSTRUCTIONS FOR INSTALLATION, SETTING AND USE

1. BUILT-IN FIREPLACE SPECIFICATION

- WIDE 730 mm

- DEPTH 426 mm

- HEIGHT 543 mm

- NOMINAL POWER 11 KW

- CHIMNEY POT DIAMETER Ø 180 mm

- BUILT-IN FIREPLACE MASS 78 kg

Regulated combustion with a possibility of adjusting

necessary amount of air with air regulator valve (air rosette).

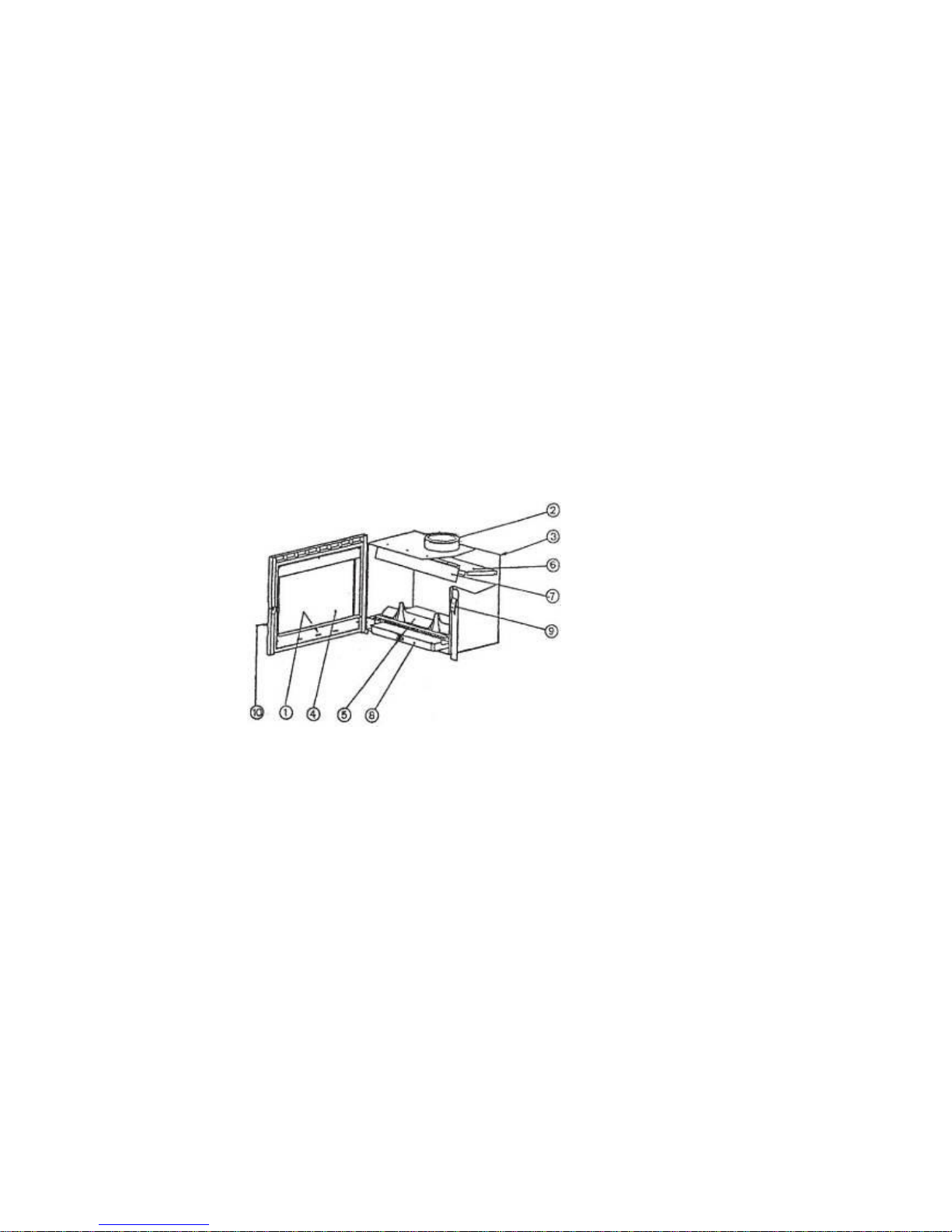

MAIN PARTS OF BUILT-IN FIREPLACE

1. Air flow regulation

2. Chimney pot

3. Shell

4. Fireproof glass 5.

Grate

6. Flue gasses baffle plate

7. Front baffle plate

8. Ashpan

9. Reversible lock

10. Closing knob

2. BUILT-IN FIREPLACE

DESCRIPTION

Built-in fireplace has distinctive construction, design and parts and that

makes it different from other solid fuel furnaces. It’s made from casted

and sheet metal items, which makes maintenance and cleaning easy.

The door is made from cast iron fitted with draught seals that are

air-proof and enable great functionality during operation. Shell is made

from steel sheet 4 mm thick.

Air regulation hatch, that is located on the bottom of the

door, enables fire intensity regulation. Air inlet on the top of the

glass keeps it clean and enables better fuel combustion.

Picture 1

2.1 Air flow regulator (pictures 2, 3, and 4).

Air flow regulator should be adjusted using an adjustable

tool. When closed (picture 2), air flow regulator enables

lower capacity operation. When open (picture 4), air flow

regulator enables nominal capacity.

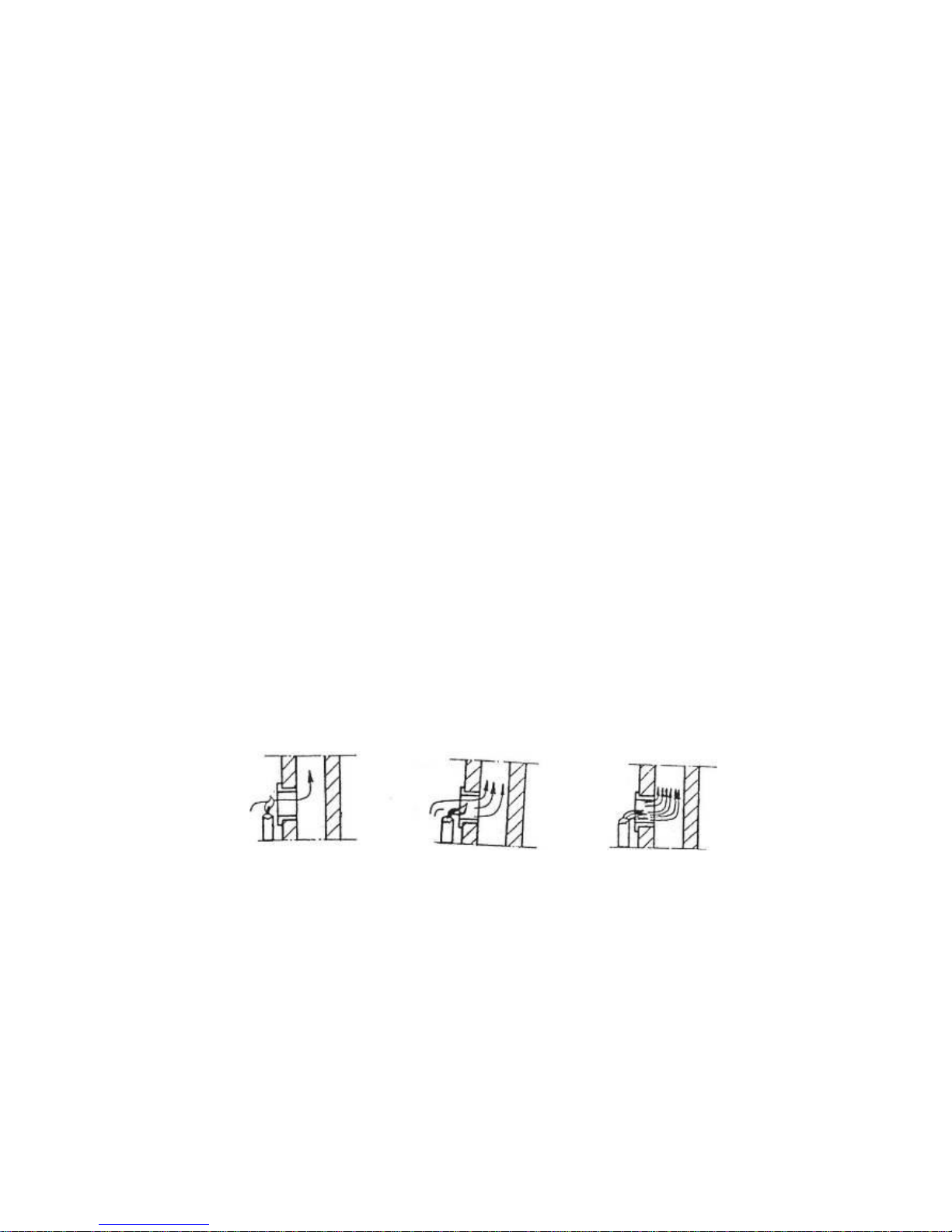

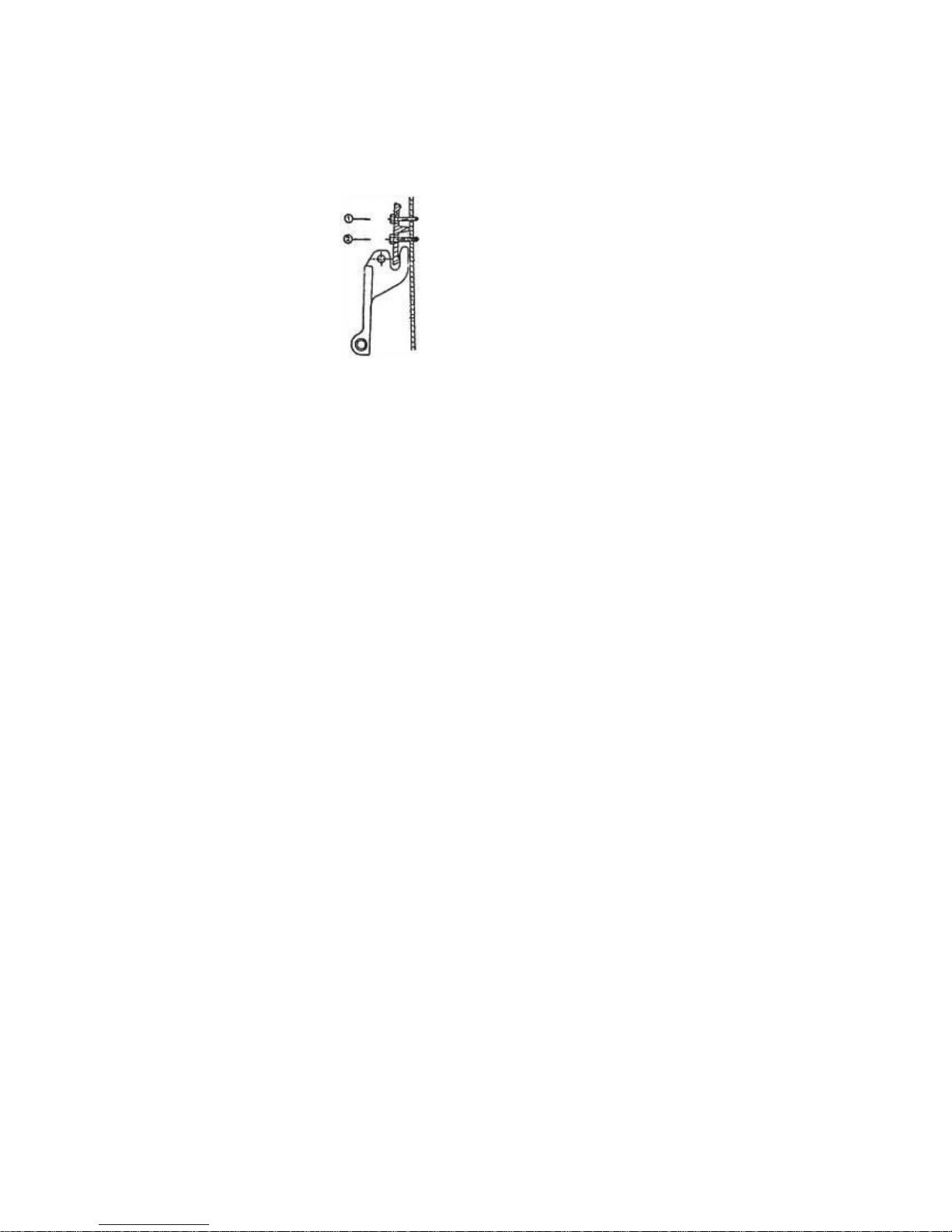

Picture 2 Picture 3 Picture 4

2.2. Door knob

Door knob should be handled with adjustable tool (picture 5)

2.3 Ashpan located under the grate can be easily pulled out using adjusting tool.

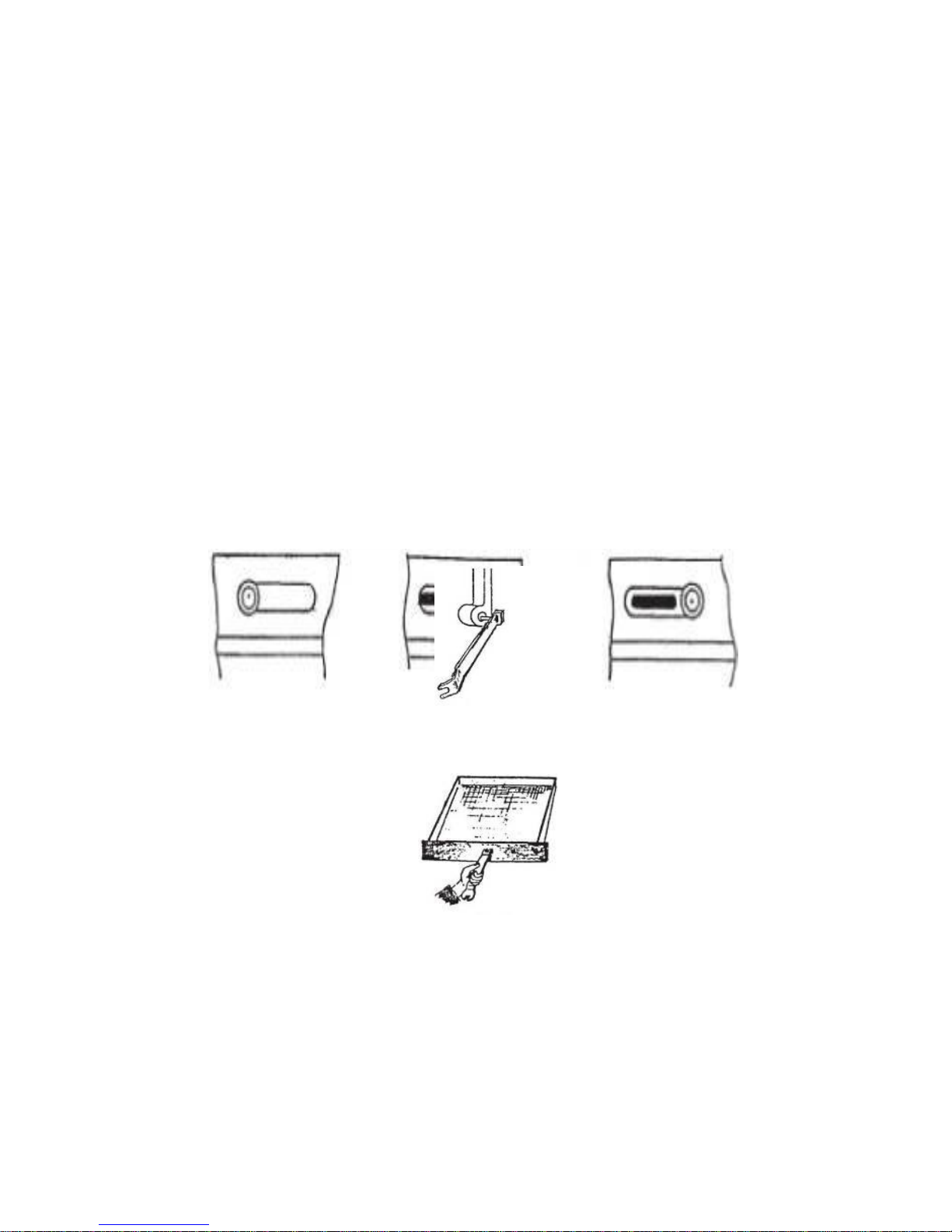

Picture 6

2.4 Spatula is intended for removing ash from grate.

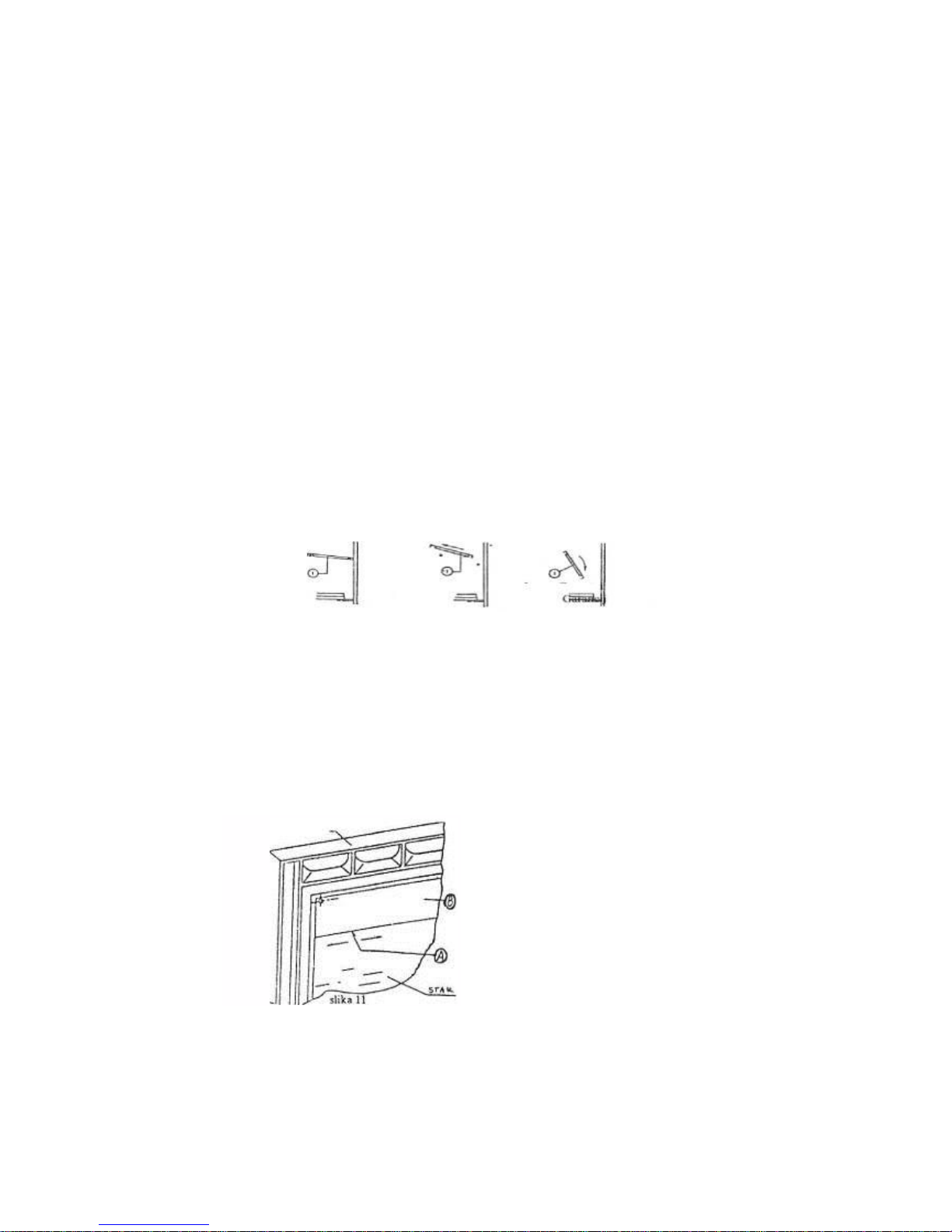

Picture 5

3. HANDLING AND USE 3.1

Fuelling

Before kindling, open air flow regulator. For kindling, use

paper and small pieces of chopped wood. Light the paper and close

the door (or leave it half-closed to accelerate flaring).

When chopped wood catches flame, open the firebox door and fill

the chamber with appropriate fuel.

3.2. Safety

Never use water for fire extinguishing. Door can become

extremely hot. Be careful not to get burned, this is especially

important when kids are in question. Combustion chamber releases

high temperature emissions through glass. Don’t leave temperature

sensitive materials and items in front of built-in fireplace.

Empty the ashpan content into the metal or fireproof

container. Seemingly cooled ash can be extremely hot, even several

hours after.

4. BUILT-IN FIREPLACE INSTALATION

For correct installation of fireplace, it is necessary to check chimney

draught first, because good draught is a requirement for proper

operation.

Draught intensity can be checked with a candle (picture 7).

Low draught Medium draught Strong draught

Picture 7

Draught intensity depends on:

a) Chimney functionality ,

b) Atmospheric conditions (season).

c) Functionality of the fireplace and other heating devices attached to the

same chimney;

d) Position of the house (on the hill, in the valley, etc.)

5. BUILT-IN FIREPLACE MAINTENANCE

Soot removing from the flue way is mandatory and it must be done several

times during a year, at least once in heating season. While cleaning the flue

way, following should be done:

- Detach the flue gases baffle plate (1) by pulling it out (pictures 8 and

9);

- Let the back part of baffle plate slides down, and

then remove it (picture 10).

To attach it back: proceed in reverse order compared to detaching. Check

connections and locking bolts, especially sealants.

Picture 8 Picture 9 Picture 10

Check the condition of chimney pots. All connections must be in good

condition and sealants must be fully functional. When cleaning the

inside of combustion chamber, make sure that span for hot air flow

and fresh air inlet is clear. Front glass should be cleaned with wet

cloth and ash or use some soda-based cleaning product if necessary.

Before cleaning, wait till the fireplace is completely cold. Clean the air

flow baffle plate regularly (picture 11).

B –Air flow baffle plate

A –Edge of air flow baffle plate Edge

should be cleaned by scraping with a

metal object to remove all the

particles that stained the glass and

that way interfere with proper air

flow.

Picture 11

Adjusting of the built-in fireplace

firebox door sealing (picture 12). If you

want better sealing between the door

DOOR

and firebox, you should untighten the bolt 1 and tighten the bolt 2.

If you want less sealing power between the door and firebox, you

should untighten the bolt 2 and tighten the bolt 1.

WARRANTY SERVICE PERIOD

This is the period in which we guarantee service, accessories and spare parts from the

date of purchase of the device. The warranty service period is in accordance with the

current legislation. In case of change of model and design of the device, the deadline for

replacement of the parts is within the statutory term. After this period, we provide the

replacement parts in the new design.

WARRANTY SERVICE TERMS AND CONDITIONS

Product warranty is valid in the specified statutory period.

The warranty does not extend to glass, ceramic and physical damage caused after the

date of purchase.

THE MANUFACTURER RESERVES ALL THE RIGHTS TO CHANGE THESE

TERMS AND CONDITIONS.

The device will work properly in the warranty period only when used in accordance with

this manual for connection and use.

The warranty shall be terminated if it is determined that:

- if the connection of the product or repair was performed by an unauthorized person,

or if there were installed unoriginal parts,

- if the device is not properly used in accordance with this manual,

- if there is a mechanical damage caused during the usage of this device,

- if the repair was performed by an unauthorized person,

- if the device is used for commercial purposes,

- if the damage occurred during transport, after the sale of the device,

- if the defect is due to irregular installation, improper maintenance or mechanical

damage caused by the customer,

- if the defect is due to a too high or too low voltage or it is caused by force majeure .

We can remove the defects of the device and outside the warranty period with original

spare parts for which we also guarantee the same terms.

This warranty does not exclude or affect the consumers’ rights in terms of conformity of

products in accordance with the statutory provisions. If the delivered product does not

meet the contract, the consumer is entitled to require the seller to eliminate this disparity

by repairing or replacing the product without compensation in accordance with the

current legislation.

Picture 12

BUILDING IN THE FIREPLACE

While building in the fireplace, you should comply with specified

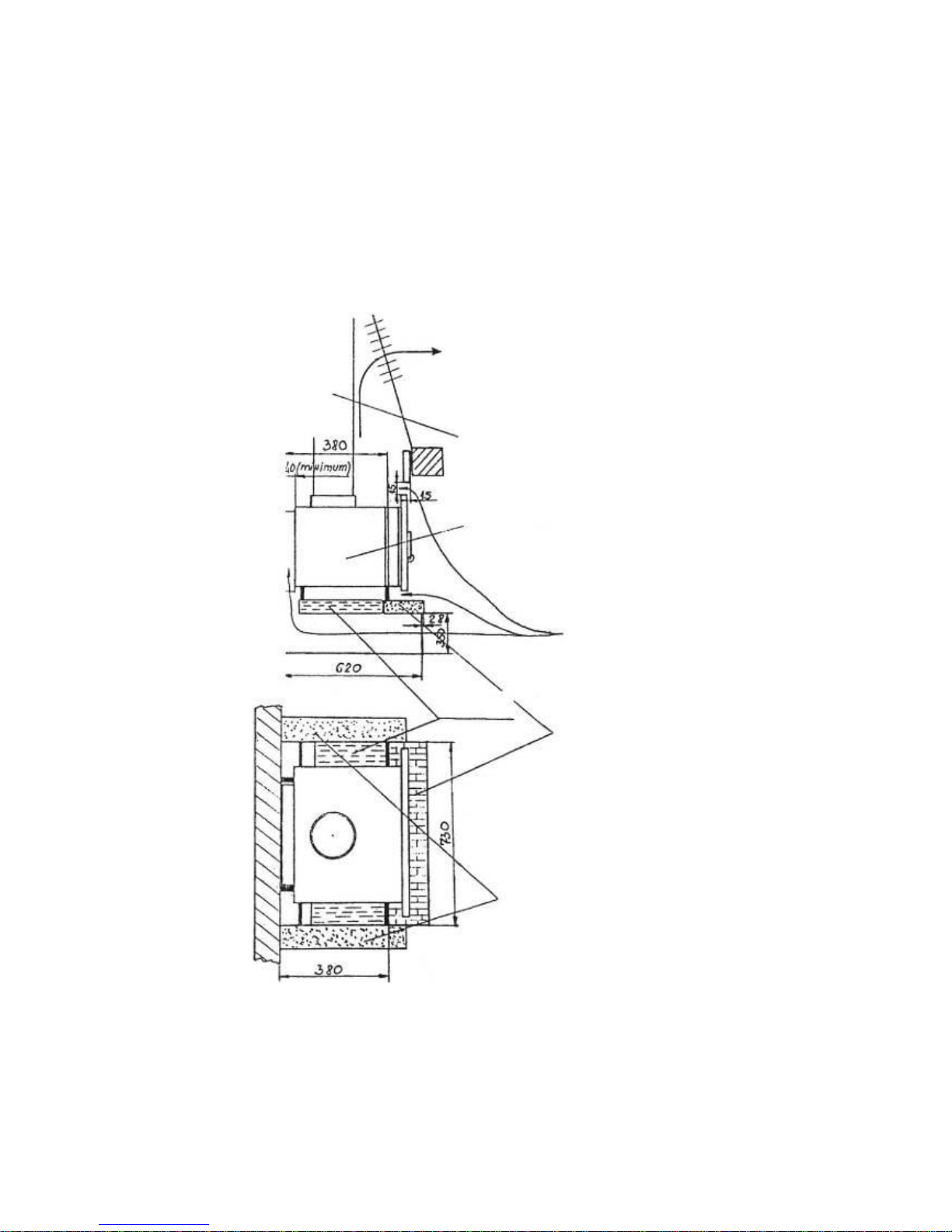

measures showed on the picture 13.

Lateral view

Hot air outlet

Chimney duct

Fireplace element

Inlet for air that flows around the

fireplace element

Bottom decorative panel

Lateral wall

Picture 13
