500-0030 MANUAL-1

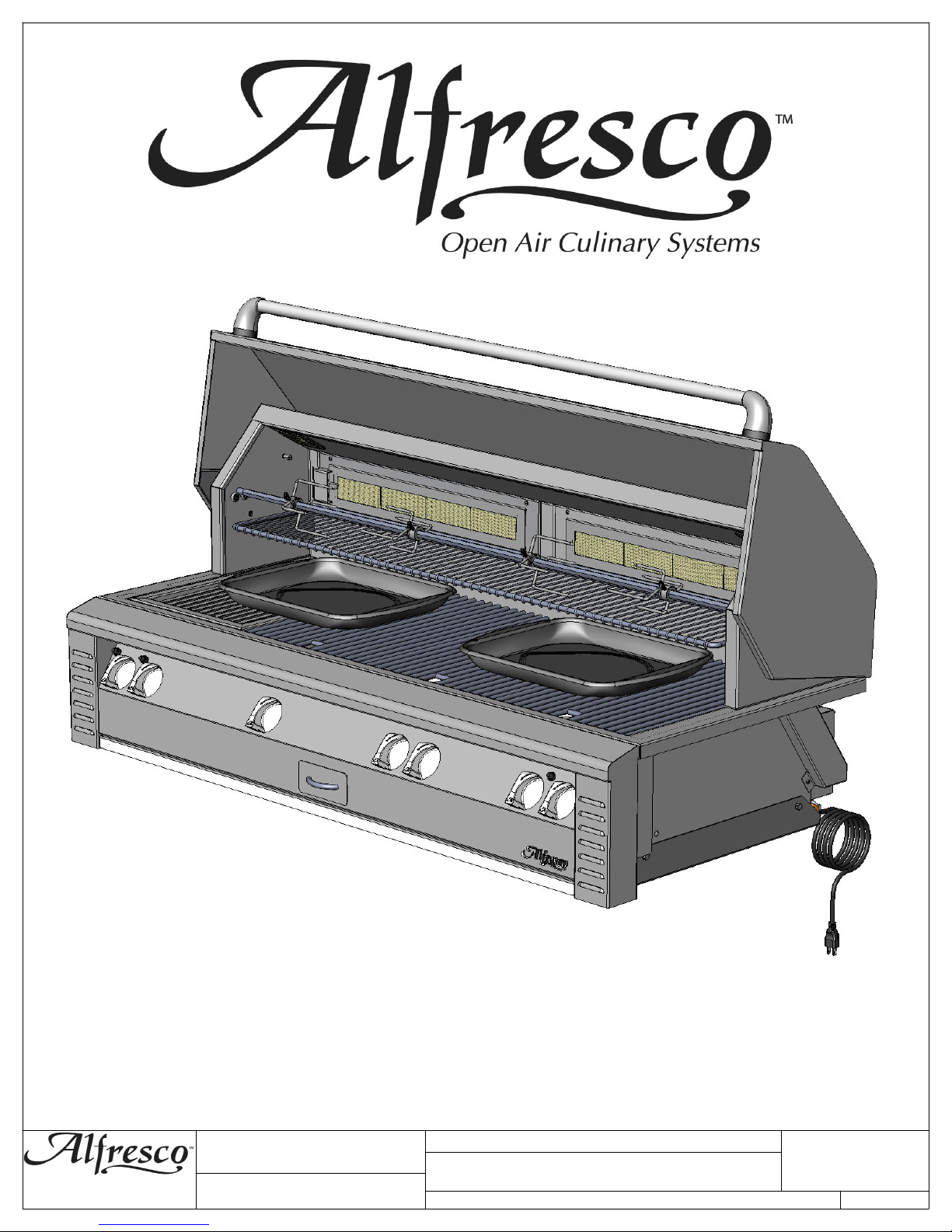

ALX2-56 BFG BBQ
ALX2-56SZ BFG BBQ
LAST SAVED BY: »» adrian «« April 02, 2007 9:07:21 AM
7039 EAST SLAUSON AVENUE SHEET 1 OF 1
DRAWING TITLE:
PROJECT TITLE:
ADRIAN CRISCI
C:\Working\
SUPERIOR EQUIPMENT SOLUTIONS
COMMERCE, CA. 90040
DRAWING NO.:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
DRAWN BY:

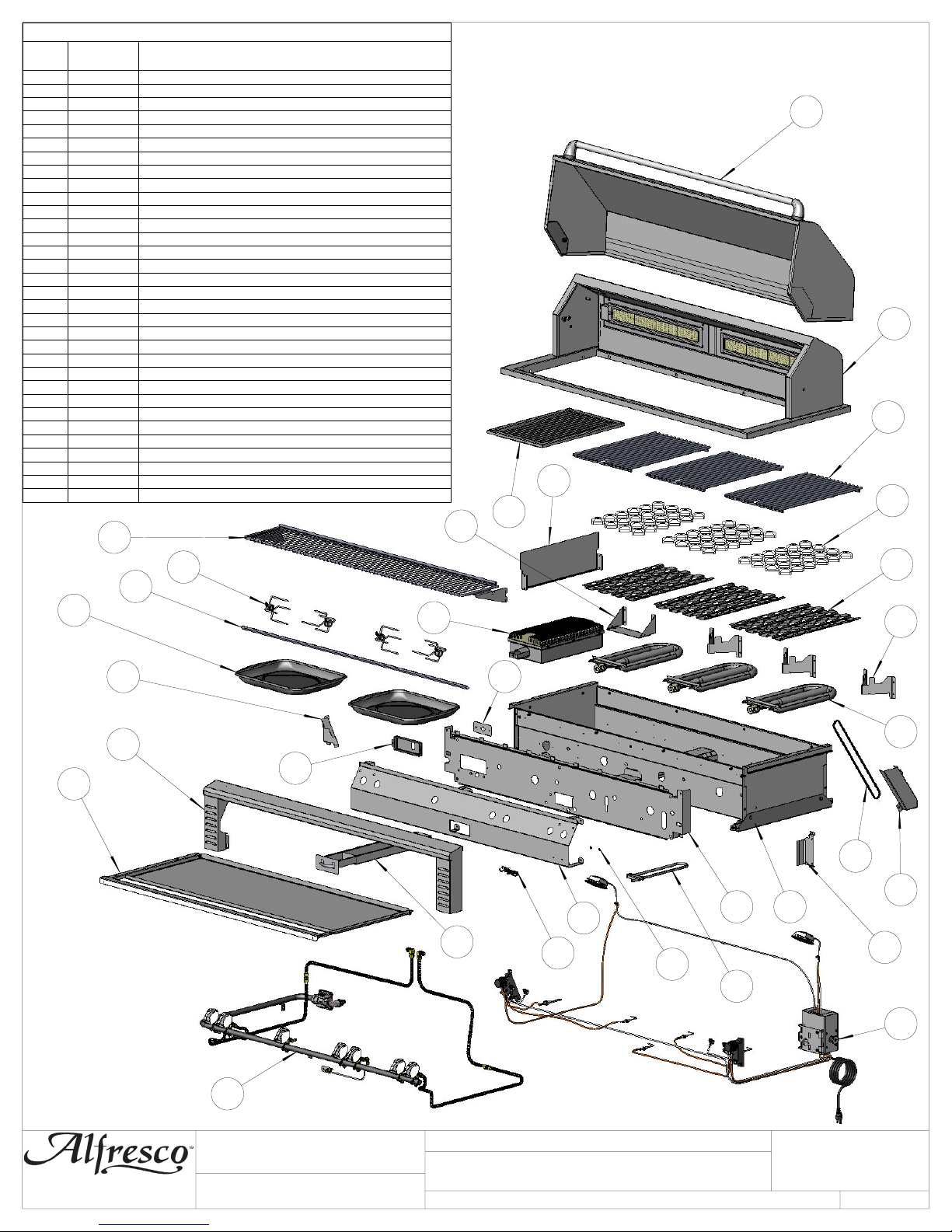

BILL OF MATERIAL
NO. PART
NUMBER DESCRIPTION

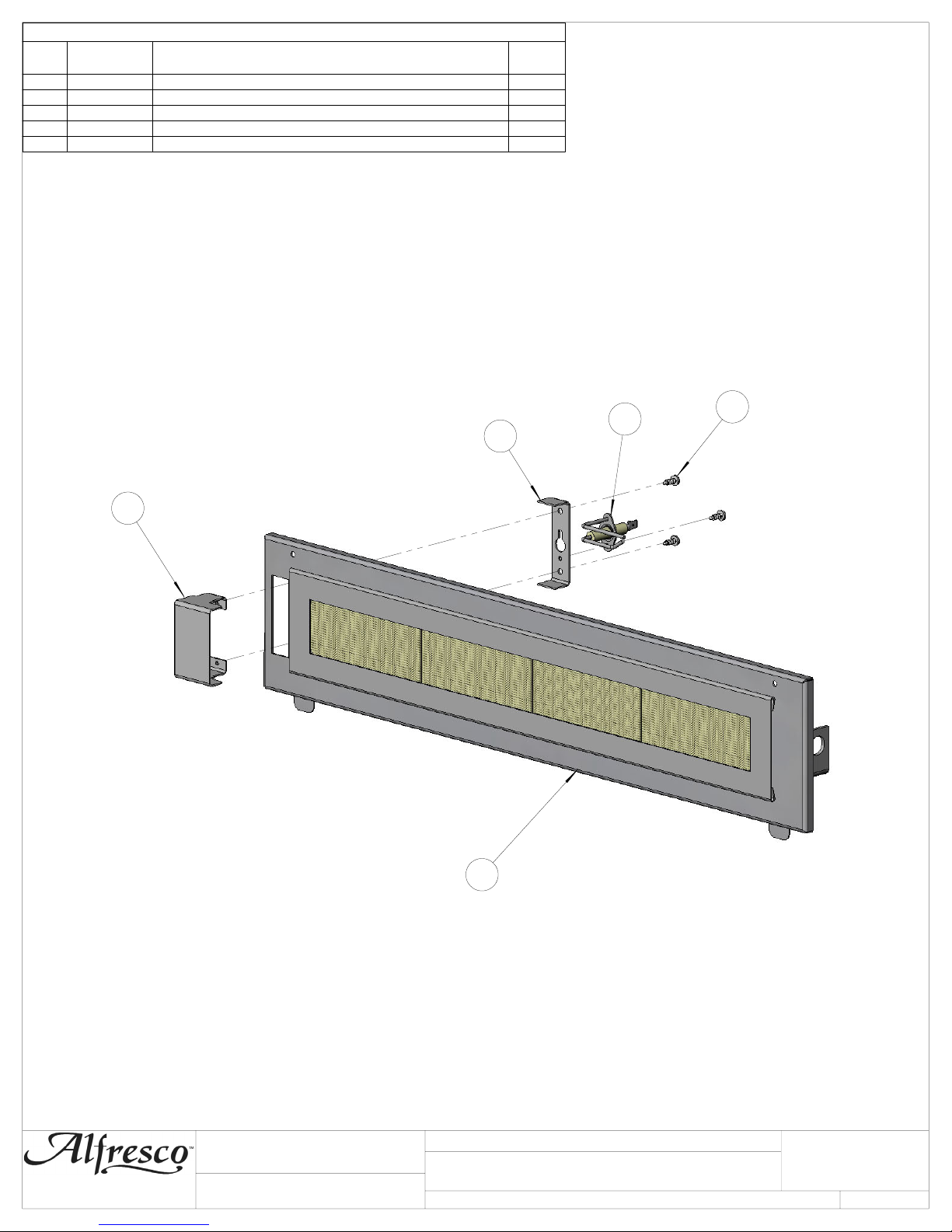

1 100-1066 FIREBOX COVER FOR ELECTRODE
2 100-1073 DUAL VALVE FIREWALL COVE
3 100-1083 U-BURNER BACK WALL BRACKET
4 100-1085 SEAR-ZONE™ BACK WALL BRACKET
5 100-1093 ROTISSERIE CHAIN COVER
6 100-1132 BRIQUETTE TRAY
7 100-1188 BFG FIREWALL
8 100-1189 56" BFG - FRONT PANEL

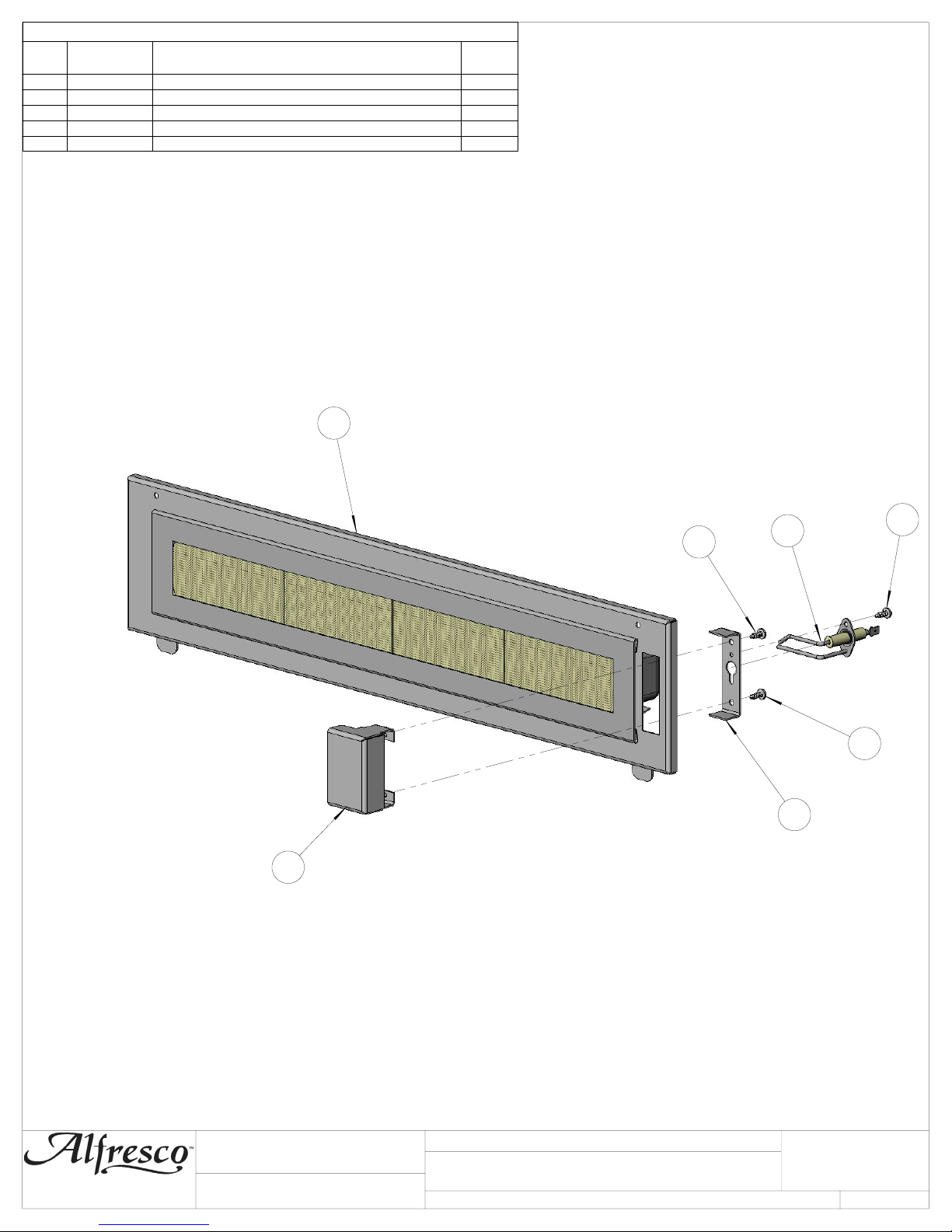

9 100-1196 IGNITER MOUNTING PLATE RIGHT
10 100-1197 IGNITER MOUNTING PLATE LEFT
11 100-1201 BFG SEARZONE™ HEAT SHIELD
13 200-0093 WASHER - PUSH LOCK 1/8" ID X 3/8" OD (FOR LOGO)
14 265-0005 BRIQUETTES - ALFRESCO CERAMIC (SET OF 24 PCS)
15 290-0031 LOGO - ALFRESCO
16 290-0038 BURNER - GRILL - "U" SHAPE
17 290-0052 ALFRESCO SEAR ZONE™ BURNER ASSEMBLY

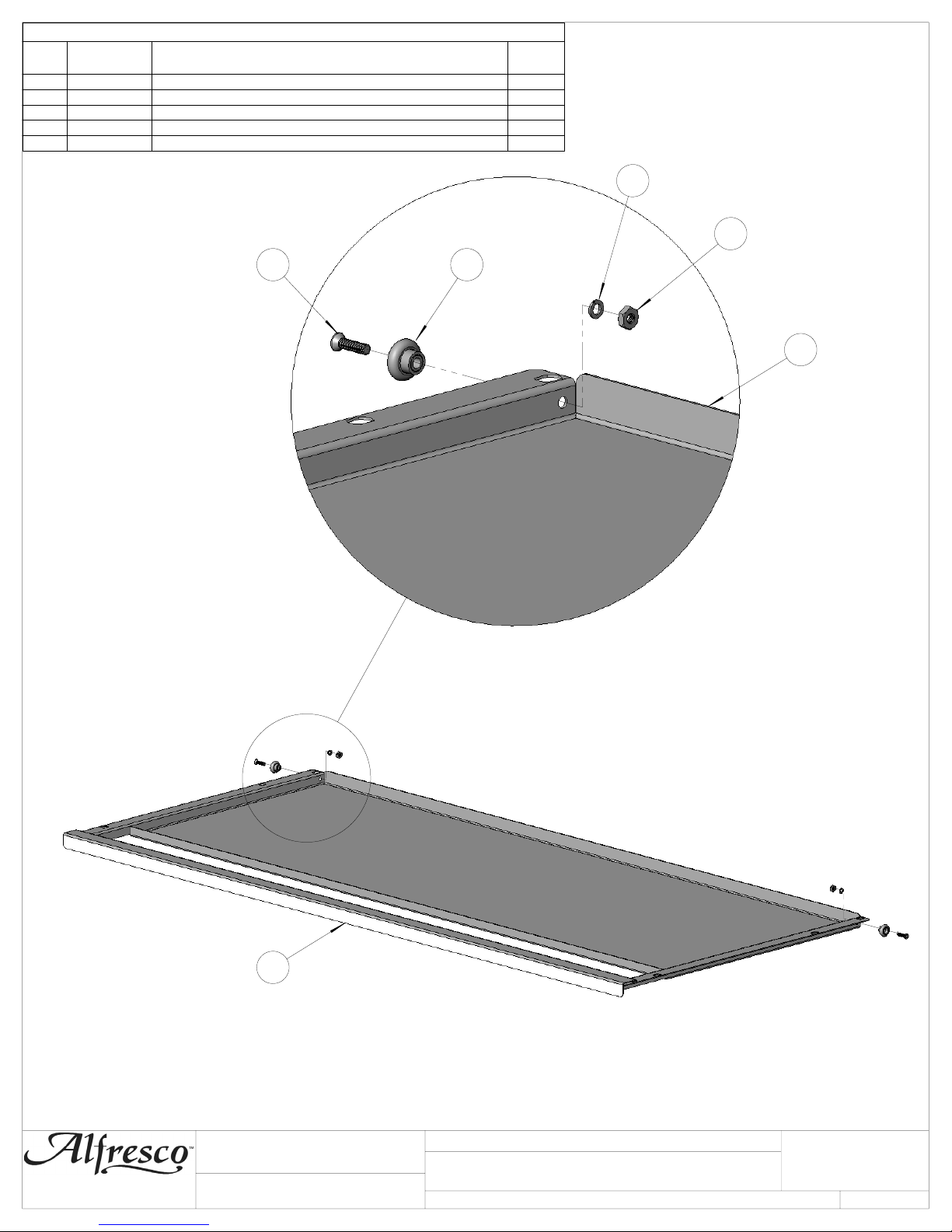

18 290-0059 ROTISSERIE DRIP PAN
19 290-0096 FORK ASSEMBLY
20 290-0116 CHAIN - ANSI # 25 - ¼" PITCH - .13" Ø X 1/8" ROLLER
21 290-0124 GRILL 30" BBQ - 12¾" WIDE - SS
22 290-0176 ALX2-56 BFG ROTISSERIE SPEAR
23 510-0134 SMOKER BURNER ASSEMBLY
24 510-0137 SMOKER TRAY ASSEMBLY
25 510-0144 SEAR-ZONE™ GRILL - 2006 BBQ
26 510-0174 56" BBQ FRONT ASSEMBLY

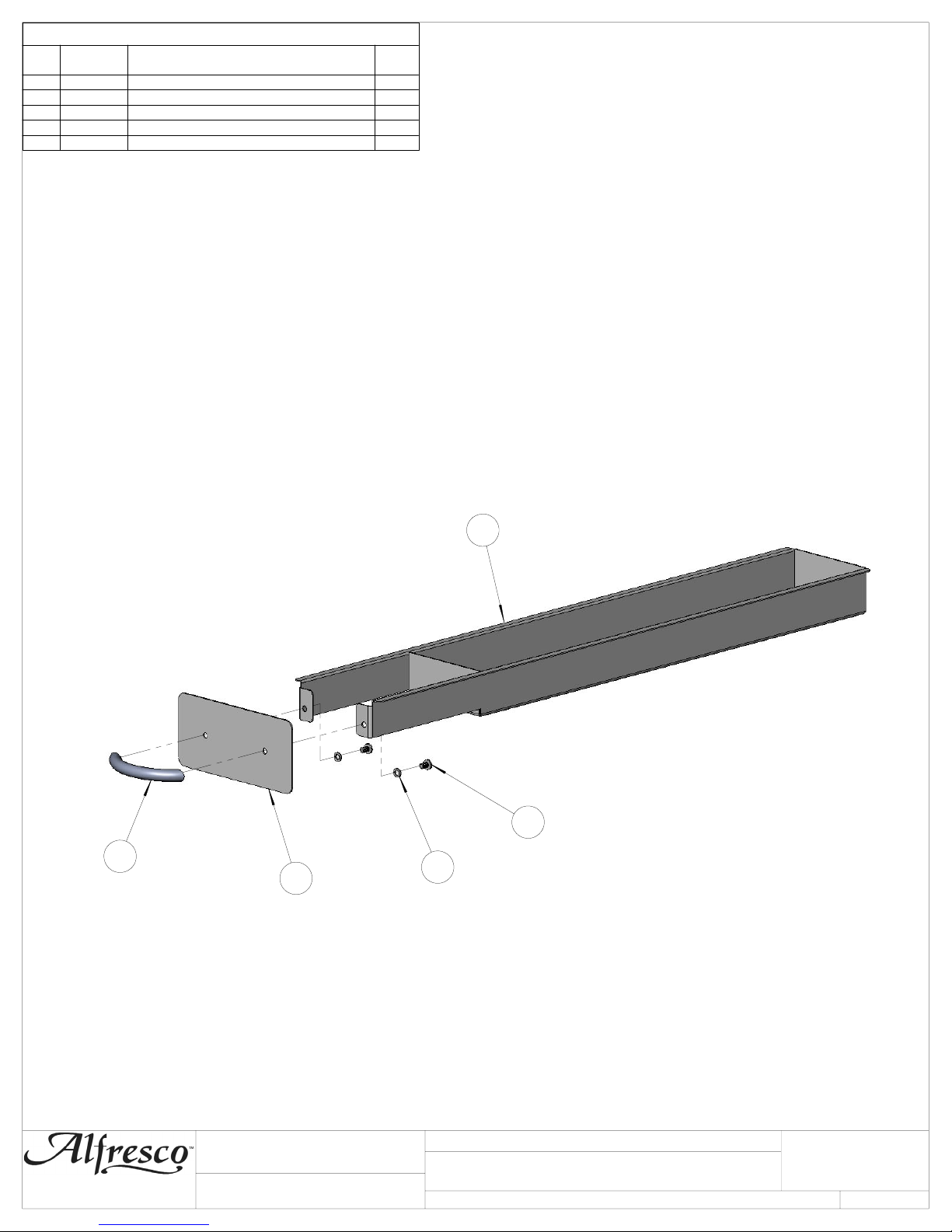

27 510-0175 56" BBQ LX2 - GREASE TRAY

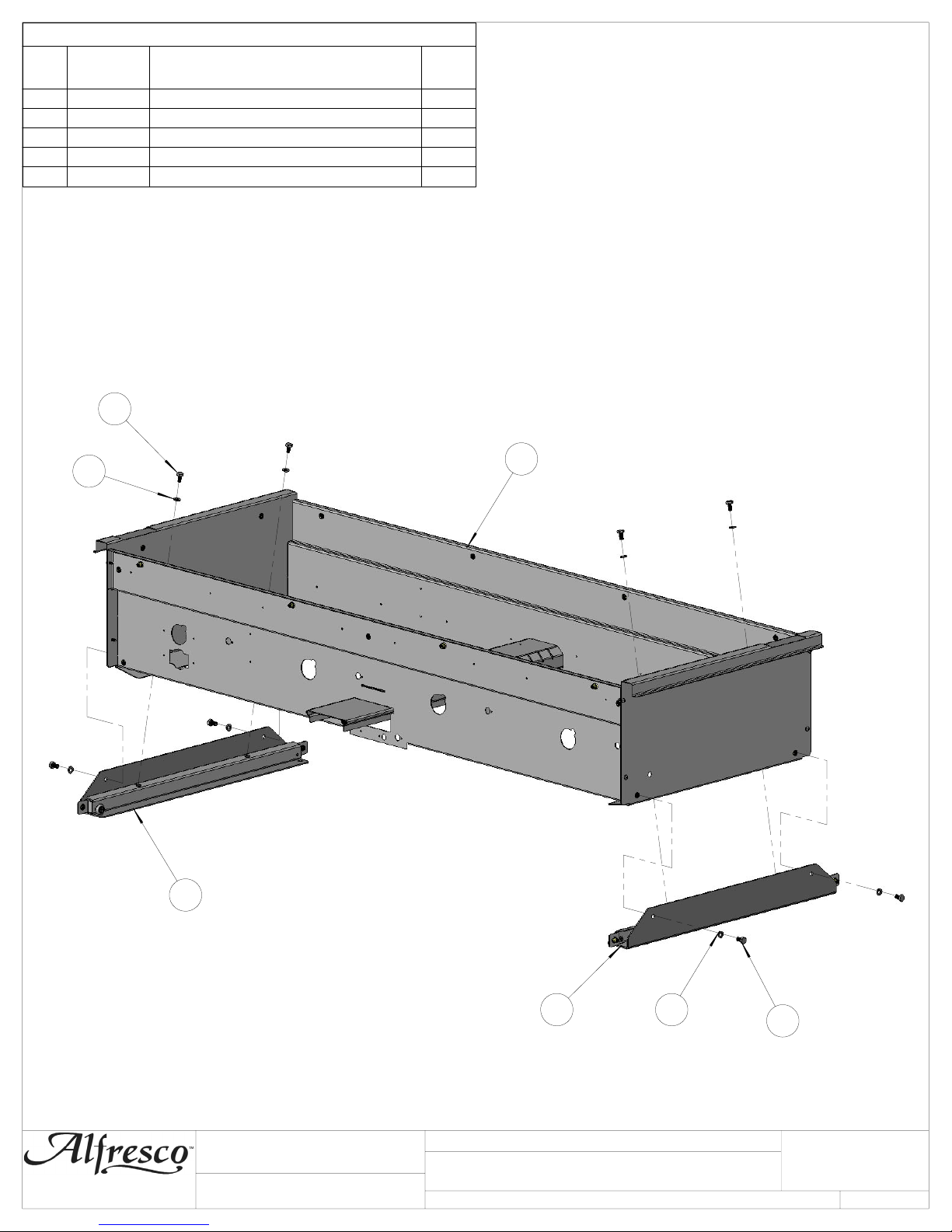

28 510-0181 ALX2-56BFG- FIREBOX ASSEMBLY

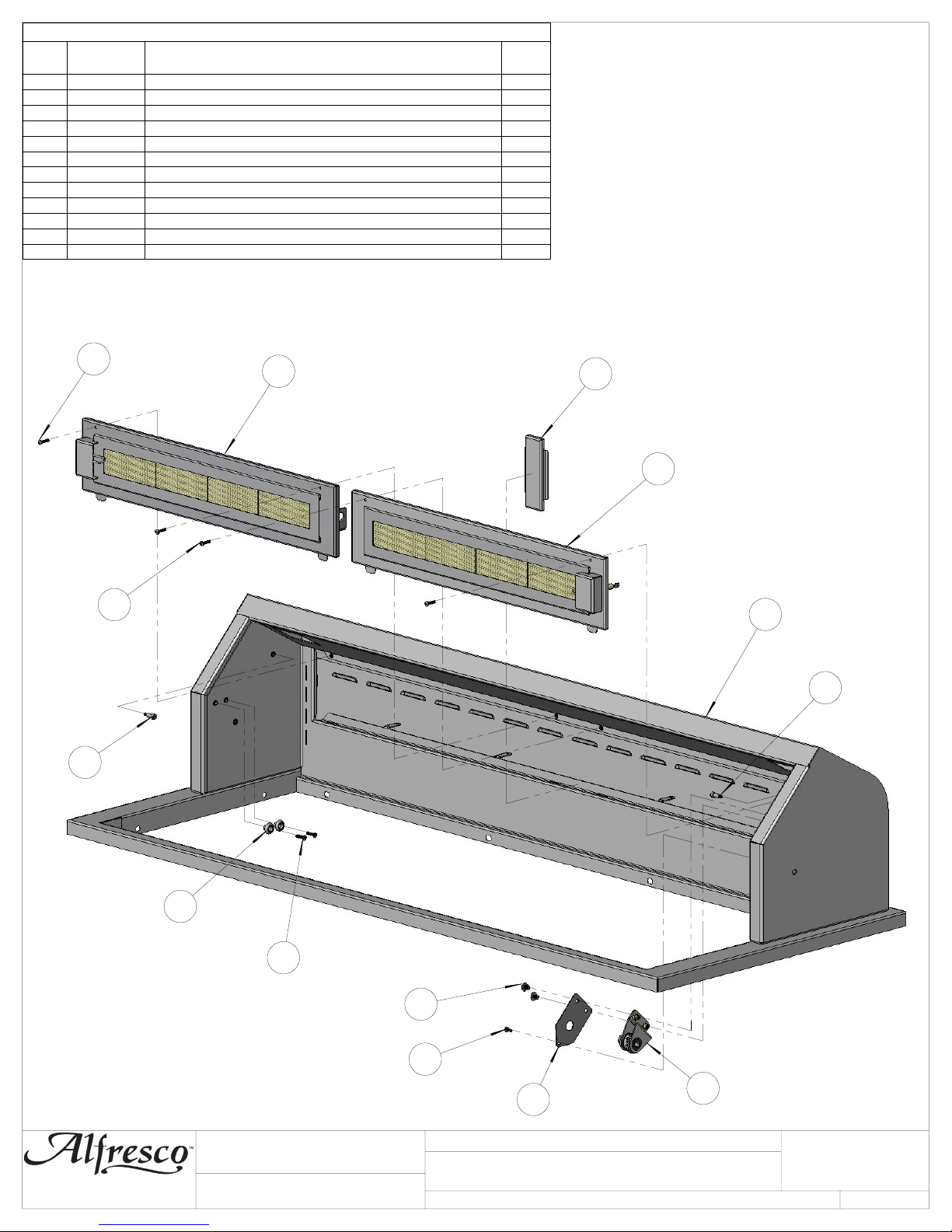

29 510-0184 BFG BACK HOOD + RIM ASSEMBLY

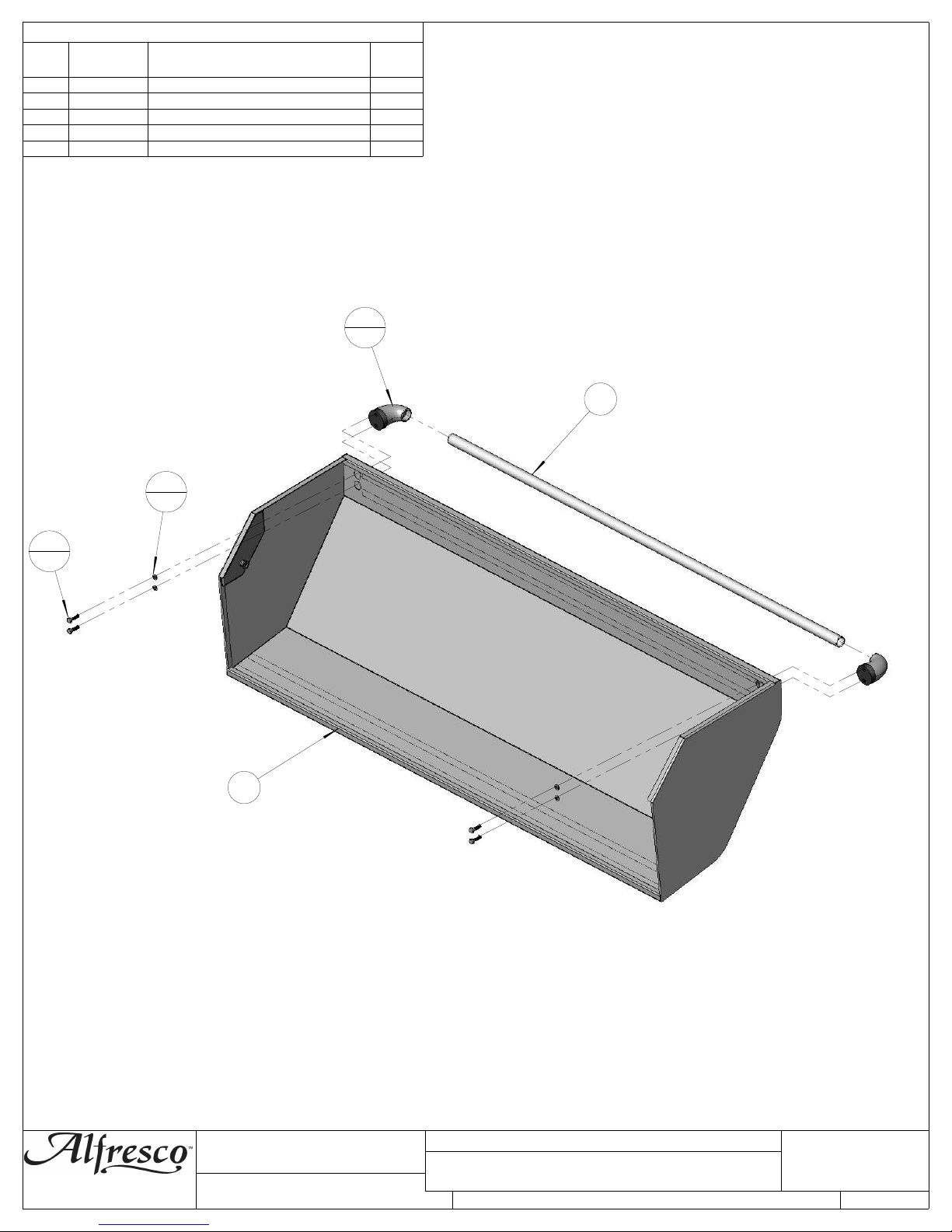

30 510-0186 ALX2-56 BFG FRONT HOOD
31 510-0193 ALX2-56 BFG WARMING RACK

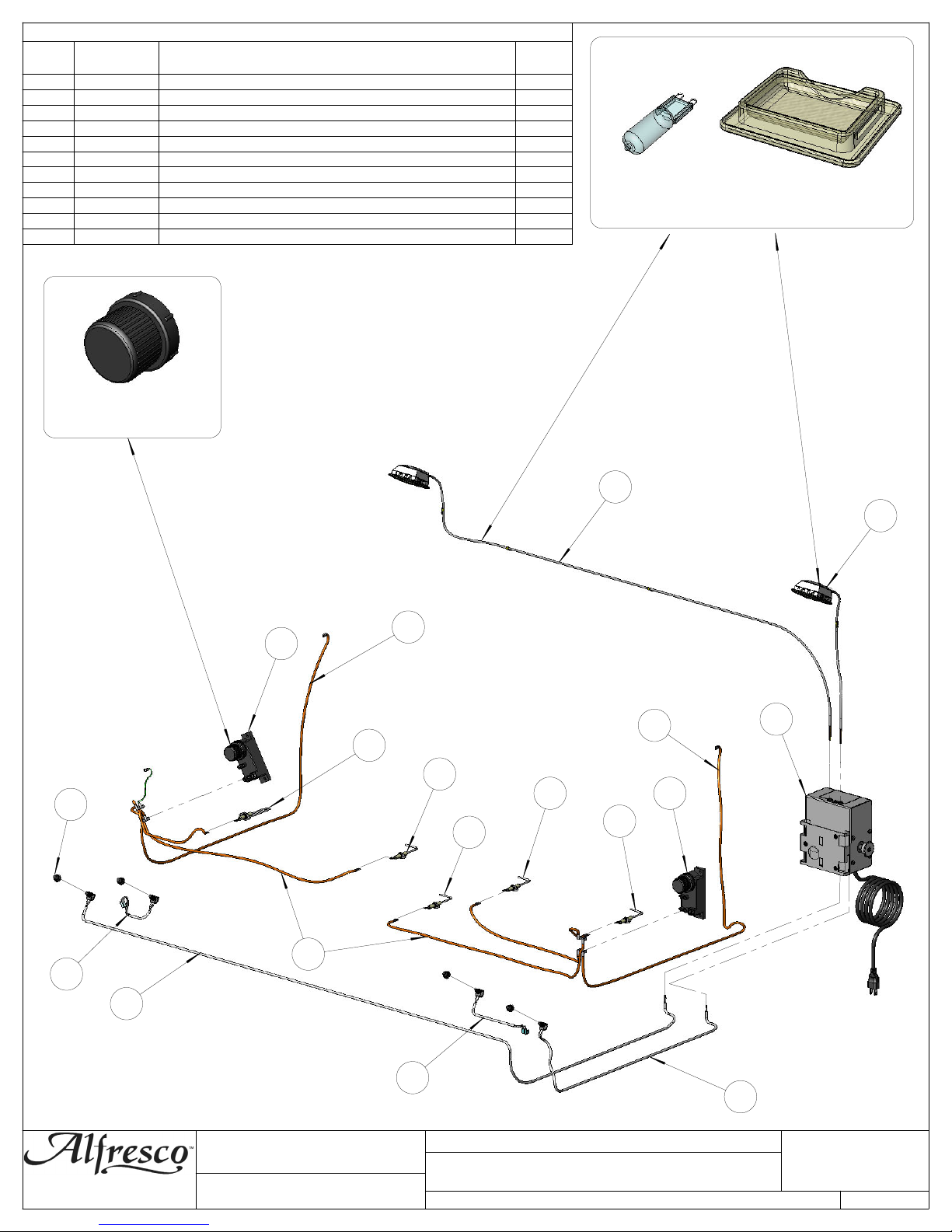

32 510-0213 ALX2-56 BFG ELECTRICAL COMPONENTS
33 510-0225 ALX2-56 BFG MANIFOLD ASSEMBLY
