Alienware Aurora ALX Manuale utente

ALIENWARE ALX DESKTOP MANUAL

Reproduction of this manual in any manner without the prior written

permission of Alienware Corporation is strictly prohibited.

Trademarks used in this manual: Alienware, Alienlce, the AlienHead logo, and

AlienAutopsy are trademarks or registered trademarks of Alienware Corporation.

Microsoft and Windows are registered trade-marks of Microsoft Corporation. Other

trademarks and trade names may be used in this manual to refer to either the entities

claiming the marks and names or their products. Alienware Corporation disclaims any

proprietary interest in trademarks and trade names other than its own.

Rev 3.0 APRIL 2007

Alienware ALX Desktop Manual

CONTENTS

Introduction, 5

Chapter 1 System Preparation and Setup, 7

When your Computer First Arrives, 8

Location and Positioning of Your Computer, 8

Getting to Know Your Computer, 9

Front I/O Ports and Features, 10

Rear Ports and Features, 11

Accessing System Drives, 13

Connecting Monitors, 14

Connecting a Digital Monitor, 14

Connecting an Analog Monitor, 15

Connecting Multiple Monitors, 15

Connecting a TV, 16

Connecting to an NVIDIA SLI Graphics Conﬁguration, 17

Conﬁguring an SLI Graphics Conﬁguration with Multiple Displays, 17

Enabling Multiple Monitors with NVIDIA Based Graphics, 18

Connecting to an ATI CrossFire Graphics Conﬁguration, 19

Conﬁguring a CrossFire Graphics Conﬁguration with Multiple Displays, 20

Enabling Multiple Monitors with ATI Based Graphics, 21

Connecting Speakers, 22

Integrated Audio, 22

Sound Blaster X-Fi Series, 23

Connecting Keyboards and Mice, 24

Connecting a Printer,25

Chapter 2 Using Your System, 27

Connecting USB Devices, 28

Connecting FireWire (1394) Devices, 28

Using Removable Media, 28

Optical Drives, 29

Playing a DVD, 30

Writing a CD or DVD, 31

Alienware ALX Desktop Manual

Using Digital Flash Media, 32

Connecting to the Internet, 32

Connecting to a Home Network, 32

Power Management, 33

Chapter 3 Installing Additional or Replacement Components, 35

Removing the Side Panel, 36

Installing Expansion Cards, 37

Installing a PCI Express x16 Video Card, 37

Installing a PCI or PCI Express Expansion Card, 39

Installing Additional or Replacement Drives, 41

Hard Disk Drives, 41

CD-RW, DVD/CD-RW, or DVD±R/W Drives, 42

Installing Additional or Replacement Memory, 42

Removing a Memory Module, 43

Installing a Memory Module, 43

Chapter 4 System Recovery, 45

AlienRespawn 1.0, 46

Initiating AlienRespawn 1.0, 46

AlienRespawn 2.0, 47

Recovery Disc, 48

Chapter 5 Troubleshooting, 49

Things to Check before Troubleshooting, 50

Software Diagnostics Tools, 51

Backup and general Maintenance, 51

AlienAutopsy, 51

Answers to Common Problems, 52

CD-ROM, DVD-ROM, CD-RW, DVD±RW or Blu-Ray Drive, 52

System, 53

Hard Drive, 53

Internet, 54

Keyboard, 55

Memory, 56

Alienware ALX Desktop Manual

Monitor, 56

Mouse, 57

Power, 57

Printer, 58

Speakers, 58

Expansion Cards, 59

Game Controllers, 59

Appendix A Microsoft Critical Updates, 61

Appendix B General And Electrical Safety Precautions, 63

Appendix C Terms And Conditions Agreement, 65

Appendix D Limited Product Warranty; Disclaimer Of Warranties;

And Limitation Of Liability, 67

Appendix E Contacting Alienware, 72

Appendix F Important Information, 74

Alienware ALX Desktop Manual

INTRODUCTION

Dear Valued Alienware Customer,

Welcome to the Alienware family. We are thrilled to include you among the

growing number of savvy computer users who have chosen to purchase a product

recognized for its award winning combination of quality and innovation. Because

we are hardcore computer users ourselves, Alienware employees understand your

needs when it comes to your system and work tirelessly every day to exceed your

expectations.

The Alienware technicians who have crafted your machine have made certain that

your computer is properly optimized and performs to its fullest potential. We build

machines with one single unwavering purpose: Build It As If It Were Your Own.

The technicians will not rest until your new machine meets or exceeds our very

demanding criteria!

We have tested your machine extensively in order to ensure that you enjoy the

highest levels of performance. In addition to a standard burn-in period, your

system has been evaluated using real-world tools such as synthetic performance

benchmarks and 3D games. The results of all this testing has been documented

and provided for your inspection.

We invite you to share your experience with your new computer with us, so please

do not hesitate to either e-mail or call Alienware with any questions or concerns.

The entire staff shares your enthusiasm for new technology and we hope that you

enjoy using your new computer as much as Alienware enjoyed building it for you.

Sincerely,

Alienware Staff

Alienware ALX Desktop Manual

CHAPTER 1: SYSTEM PREPARATION AND SETUP

Alienware ALX Desktop Manual

CHAPTER 1: SYSTEM PREPARATION AND SETUP

When Your Computer First Arrives

Before setting up your computer or components, please inspect all items for any

physical damage that may have occurred during shipment. Report any damaged

items to customer service within 5 days of receiving the shipment. Shipping damage

reported after the ﬁrst 5 days of receiving the shipment will not be honored.

Before setting up your computer or components, please refer to the included invoice

to verify that all items ordered are present. Report any missing components to

customer service within 5 days of receiving the shipment. Anything reported missing

after the ﬁrst 5 days of receiving a shipment will not be honored.

Location and Positioning of Your Computer

When positioning your computer, be sure that:

• It is placed on an surface that is both level and stable

• Power and other cable connectors are not jammed between the

computer and a wall – or any other object

• Nothing obstructs airﬂow in front of, behind, or below the computer

• The computer’s front door has enough room to open so that optical

and other external storage drives can be easily accessed.

Do not place the computer near or over a radiator or heating vent.

If all or parts of your computer are placed in a cabinet, ensure that

adequate ventilation is provided. Do not place the computer in a

humid location or in any area the computer may be exposed to rain or

water. Be careful not to spill liquid of any kind on or into the computer.

Your computer was designed to operate in an upright position. Never

power on or operate the system when not in an upright position.

Alienware ALX Desktop Manual

Getting to Know Your Computer

This section of Chapter One provides essential information about your new computer

to familiarize you with its various features and get you up and running quickly.

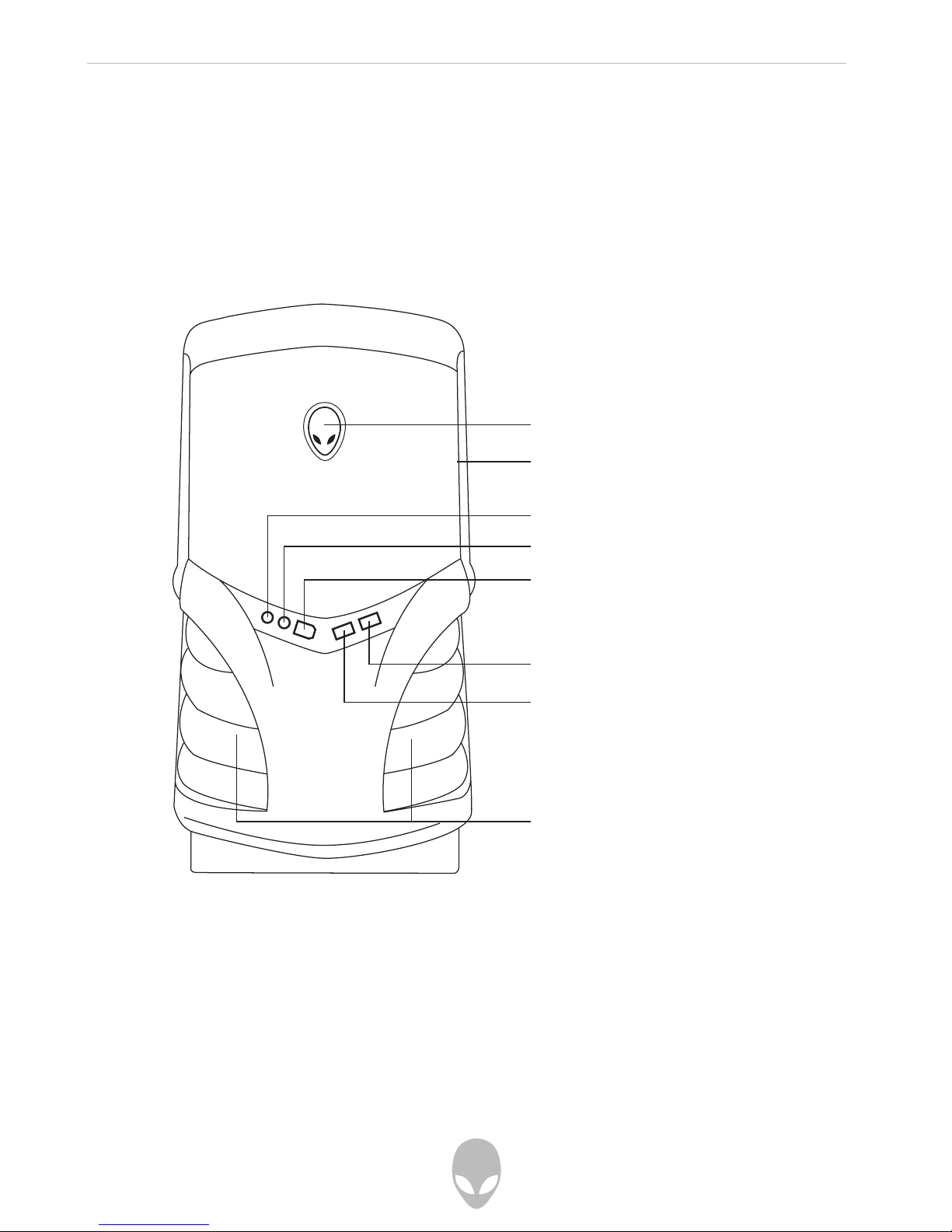

Front I/O Ports and Features

Power Button

Press the power button once to turn on your computer. The button will illuminate,

indicating the system is powered on. The light will ﬂutter when there is hard disk

activity to indicate that your computer’s hard drive is busy.

Power button, Power indicator,

and Hard Disk Activity Indicator

Drive bay access

Audio Line Out port

Audio Line In port

Fire Wire (IEEE 1 394) port

USB 2.0 port

Ventilation - Do not block

USB 2.0 port

Alienware ALX Desktop Manual

FireWire (IEEE1394)

Connect high-speed FireWire (also known as IEEE1394) devices such as digital

camcorders and external hard disk drives.

Line In

Connect audio devices such as a stereo microphone, MP3 player, or any other audio

source using a 1/8” mini-jack.

Line Out

Connect stereo headphones or other audio device using a 1/8” mini-jack.

USB 2.0

Connect high-speed USB 2.0 devices such as digital cameras, portable ﬂash drives,

MP3 players, and game controllers.

Chassis Ventilation

Do not obstruct airﬂow to the front ventilation openings. Doing so may cause your

computer to malfunction.

Audio Line Out (Headphone)

Audio Line In (Microphone)

FireWire port (IEEE1394)

USB 2.0 port

Front I/O Ports and Features
