Alienware M15x Core i7 Manuale utente
Alienware Area-51® m15x
Note: Specifications and information found in this manual are subject to change
without notice. Any changes therefore will be incorporated in future editions. The
manufacturer assumes no responsibility for errors or omissions in this document.
Reproduction of this manual in any manner without the prior written
permission of Alienware Corporation is strictly prohibited.
Windows™ Vista is the trademark of Microsoft Corporation.
Bluetooth® is the trademark owned by its proprietor.
This product incorporates copyright protect technology that is protected by U.S.
patents and other intellectual property rights. Use of this copyright protect technology
must be authorized by Macrovision, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or
disassembly is prohibited. Other trademarks are properties of their respective owners.
Rev 1.0 OCTOBER 2007
Alienware Area-51® m15x
2
CONTENTS
Introduction, 5
Chapter 1 System Preparation and Setup, 7
Overview, 8
Standards, 8
Knowing the Parts, 8
Basic sides of the Mobile System, 8
Top Side, 9
Integrated Dual Microphone Array (Built-inDigital), 9
Integrated Camera (on selected models), 9
Display Panel, 10
Power Switch, 10
Instant Keys, 10
Audio Speakers, 10
Keyboard, 10
Touchpad and Buttons, 10
Status Indicators (top), 10
Bottom Side, 11
Component Access Compartment, 11
Battery Voltage Indicator Button, 12
Battery Voltage Indicator, 12
Battery Lock, 12
Rear Side, 12
Battery Pack, 12
Left Side, 13
Power (DC) Input, 13
Audio Output (SPDIF/Digital/Analog/Headphone) Jack, 13
Audio Input/Output Jack (auto sensing), 13
Hi-Speed USB Port (2.0/1.1), 14
Smart Bay Swap Mechanism / Handle, 14
Smart-Bay Optical Disk Drive, 14
Optical Disk Drive Emergency Eject, 14
Gigabit LAN Port, 14
Right Side, 15
Flash Memory Card Reader Slot, 15
ExpressCard Slot, 15
HDMI Port, 15
Alienware Area-51® m15x
3
IEEE1394B Port (Bilingual), 16
Hi-Speed USB Port (2.0/1.1), 16
Security Lock Port, 16
Chapter 2 Getting started, 18
Switches and Status Indicators, 19
Switches, 19
Bluetooth Key, 19
Wireless LAN Key, 19
Alien Command Center Key, 20
Stealth Mode Key, 20
Status Indicators, 20
Capital Lock Indicator, 20
Number Lock Indicator, 20
Scroll Lock Indicator, 20
Chapter 3 Using the Mobile System, 22
Pointing Device, 23
Using the Touchpad, 23
Moving The Cursor, 24
Scrolling, 24
Touchpad Usage Illustrations, 25
Clicking/Tapping, 25
Double-clicking/Double-tapping, 25
Dragging, 26
Expansion Card, 26
Expansion Card, 26
Inserting an Expansion Card, 26
Removing an Expansion Card, 27
Chapter 4 Declarations and Safety Statements, 29
DVD-ROM Drive Information, 30
Regional Playback Information, 30
Region Definitions, 31
Overview, 32
Federal Communications Commission Statement, 33
FCC Radio Frequency Interference Requirements, 34
FCC Radio Frequency (RF) Exposure Caution Statement, 34
Alienware Area-51® m15x
4
FCC RF Exposure Guidelines (Wireless Clients), 34
R&TTE Directive (1999/5/EC), 35
CE Mark Warning, 35
Wireless Operation Channel for Different Domains, 35
France Restricted Wireless Frequency Bands, 36
UL Safety Notices, 37
Power Safety Requirement, 37
Nordic Lithium Cautions (for lithium-ion batteries), 38
Optical Drive Safety Information, 39
Laser Safety Information, 39
Service Warning Label, 39
CDRH Regulations, 39
Macrovision Corporation Product Notice, 39
Alienware Area-51® m15x
5
INTRODUCTION
Dear Valued Alienware Customer,
Welcome to the Alienware family. We are thrilled to include you among the growing
number of savvy high-performance mobile users.
The Alienware technicians who have crafted your machine have made certain that
your high-performance mobile is properly optimized and performs to its fullest
potential. We build machines with one single unwavering purpose: Build It As If
It Were Your Own. The technicians will not rest until your new machine meets or
exceeds our very demanding criteria!
We have tested your machine extensively in order to ensure that you enjoy the
highest levels of performance. In addition to a standard burn-in period, your
system has been evaluated using real-world tools such as synthetic performance
benchmarks.
We invite you to share your experience with your new high-performance mobile
with us, so please do not hesitate to either e-mail or call Alienware with any
questions or concerns. The entire staff shares your enthusiasm for new technology
and we hope that you enjoy using your new Mobile System as much as Alienware
enjoyed building it for you.
Sincerely,
Alienware Staff
Alienware Area-51® m15x
6
Alienware Area-51® m15x
7
CHAPTER 1: SYSTEM PREPARATION AND SETUP
Alienware Area-51® m15x
8
CHAPTER 1: SYSTEM PREPARATION AND SETUP
Overview
Congratulations on the purchase of your Alienware Area-51® m15x!
Standards
The following standards are adopted throughout this manual:
• Mobile System refers to the notebook computer that you have purchased.
• Boldface type is also used to highlight important information in this
document.
• Whenever extra caution is called for, the information will be boxed in a frame
preceded by “NOTE:” or “WARNING:”
Knowing the Parts
Basic Sides of the Mobile System
NOTE: Photos and icons in this manual are used for artistic purposes
only and do not show what is actually used in the product itself.
Alienware Area-51® m15x
9
Top Side

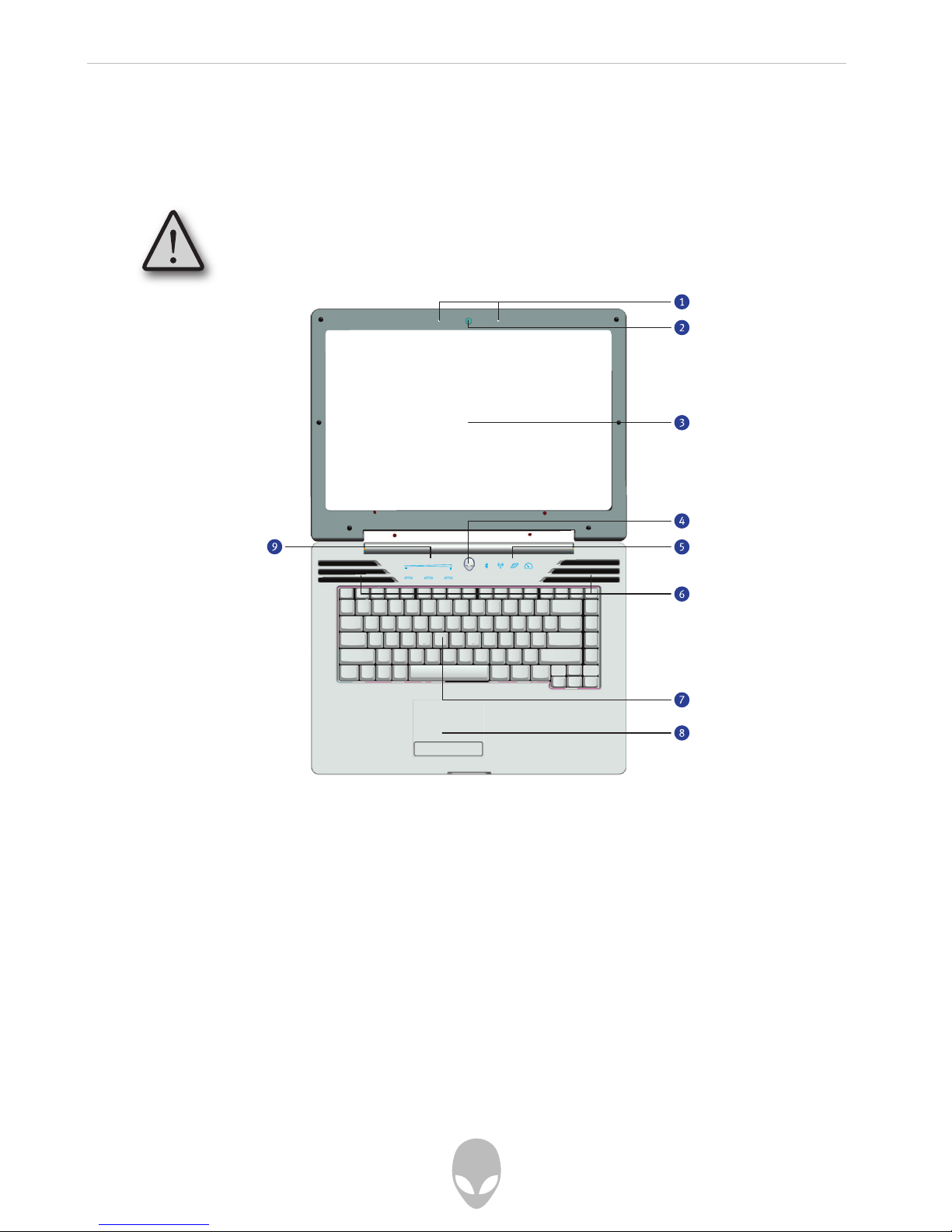

Refer to the diagram below to identify the components on this side of the Mobile
System.
Integrated Dual Microphone Array (Digital) (1)
The built-in mono microphones can be used for video conferencing, voice narrations,
or simple audio recordings.
Integrated Camera (2)
The built-in camera allows picture taking or video recording. It can also be used with
video conferencing and other interactive applications.
NOTE: The keyboard will be different for each region.
NUM
CAPS
SCRN
Alienware Area-51® m15x
10
Display Panel (3)
The Mobile System uses an ultra-clear flat panel which provides excellent viewing like
that of desktop monitors without any harmful radiation or flickering, so it is easier on
the eyes. Use a soft cloth without chemical liquids (use plain water if necessary) to
clean the display panel.
WARNING: The display panel is fragile. Do not bend or press on the panel.
Power Switch (4)
The power switch turns the Mobile System ON and OFF and can also put the Mobile
System into sleep or hibernation modes. Actual behavior of the power switch can be
customized in Windows Control Panel “Power Options.”
Instant Keys (5)
Instant keys allow you to launch frequently used applications with one push of a
button. Details are described in section 2.
Audio Speakers (6)
The built-in stereo speaker system allows you to hear audio without additional
attachments. The multimedia sound system features an integrated digital audio
controller that produces rich, vibrant sound (results improved with external stereo
headphones or speakers). Audio features are software controlled.
Keyboard (7)
The keyboard provides full-sized keys with comfortable travel (depth at which the keys
can be depressed) and a palm rest for both hands. A Windows function key is provided
to help ease navigation in the Windows operating system.
Touchpad and Buttons (8)
The touchpad with its buttons is a pointing device that provides the same functions as
a desktop mouse. A software-controlled scrolling function is available after setting up
the included touchpad utility to allow easy Windows or web navigation.
Status Indicators (top) (9)
Status indicators represent various hardware/software conditions. See indicator
details in section 2.
