ALIGATOR A510 Manuale utente
Quick Guide A510
Contents
Safety instructions....................................3
Putting into operation...............................6
lnsert SIM, memory card, battery.............6
Battery charging.......................................7
Switch n / ff.........................................8
Automatic time setting..............................9
Mobile controls.......................................10
Making calls............................................17
Contact list..............................................18
Photo contacts........................................19
S S call and SMS..................................19
S S Locator ..........................................21
FM Radio................................................26
Bluetooth................................................26
Mobile phone setting..............................27
PC connection........................................28
Safety and ecology.................................29
Used electric device...............................29
Battery liquidation...................................29
Declaration of conformity........................30
2
Safety instructions
Thank you for your purchase of the
ALIGAT R mobile phone. Please read
this instruction manual before use:
Do not switch on nor use the mobile
phone in the prohibited areas
Do not use the mobile phone while
driving the car
Do not use the mobile phone near the
medical appliances without having the
confirmation that the radio waves do
not influence its function
Mobile phone can influence the
function of the cardiac pacemakers or
other implanted appliances – please
consult your medical doctor
Turn it off in the aircraft
Do not use the mobile phone near the
filling petrol station
Turn off the mobile phone always
near explosives
3
Use always original batteries supplied
by the producer (danger of damage or
explosion of the mobile phone). Do
not throw the battery in the fire nor
expose it to the temperatures over
+60°C. Danger of explosion or fire !
SAR – mobile phone meets all
prescriptions for maximal emision of
electromagnetic radiation.
Please keep the mobile phone 2.5 cm
away from the body while calling. You
lower by that the quantity of
electromagnetic radiation absorbed
by your body.
Handle the mobile phone with care,
protect it from falling on the ground,
from mechanical damage, impurity or
high temperatures. Never pick it to
pieces !
4
Do not place the mobile phone or its
holder in the area above the airbag in
the car
Keep it out of reach of children. It
contains small parts that could be
swollowed or may hurt
Sometimes, the top of the external
display, including battery and signal
icons, may not appear. In this case,
turn the phone off and on to display it
correctly.
Software and hardware of the mobile
phone are continuously innovated.
The importer reserves the right to
alter the instruction manual or
particular functions of the mobile
phone without a prior notice
5
Putting into operation
lnsert SIM,memory card and battery
1. Slip your nail at the slot
under the battery cover
on the back side of the
mobile phone and pull
down carefully the cover.
2. Insert a SIM card at the
prepared slots. Insert SIM and also
MicroSD memory card (if you have)
3. Insert the battery. The three metal
contacts must point toward the
bottom part of the phone. Make sure
that the battery clicks smoothly into
the slot at the mobile phone.
4. Put the battery cover back
ATTENTION! Turn off the phone and
disconnect the charger when handling
the battery, card or SIM card. Only use
6
original batteries supplied by the phone
producer !
Battery c arging
Be sure that the battery is placed at the
mobile phone. Connect the charger with
the Micro USB connector or place the
phone at the charging stand and the
charging will start automatically.
Mobile phone can be charged if it is in
switched on / off mode. Charging level is
indicated on the mobile screen.
Battery discharged Fully charged
Mobile phone will warn you by an acoustic
signal and by message on the screen
when the battery is almost discharged. In
this case charge the battery as soon as
possible.
7

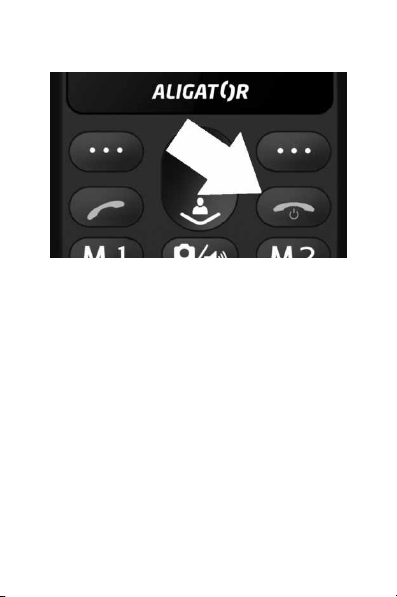

Switc On / Off
to SWITCH ON the phone - press and
hold the red button, till the phone turns on.
(Now you can be asked to enter the PIN
code in case the PIN protection is
activated).
to SWITCH OFF - press and hold the red
button, untill the mobile turns off. It is
necessary to confirm the shutdown by
pressing the left button Yes (2).
Before Switching n be sure that the
battery is inserted and is charged.
8
Automatic time setting
you will be prompted to confirm the time
when the phone is switched on for the first
time. Phone time is automatically set
when the mobile network supports it.
If the time is correct, press the left button
Save (2). therwise you can set the time
manually.
To turn on/off the automatic time setting
select in the menu:
Setting P one Time+Date
Autom. Set On/Off
9

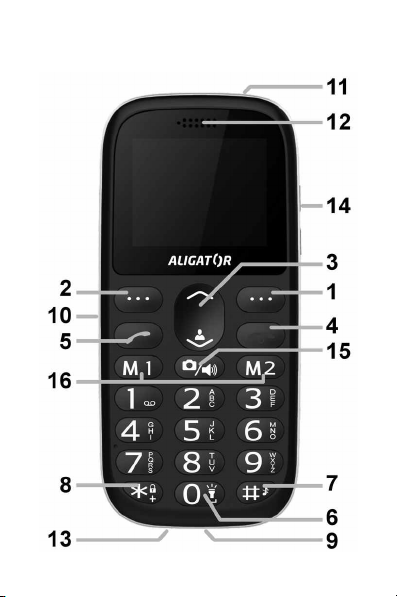

Mobile controls
10
