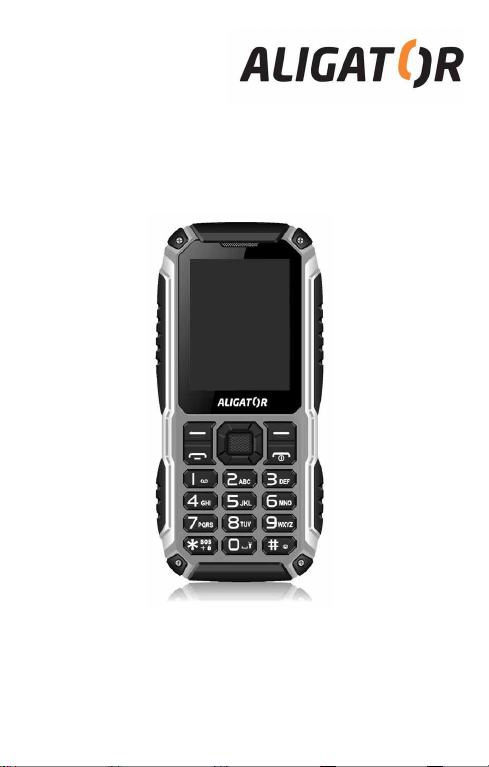

ALIGATOR R30 eXtremo Manuale utente
Resistant mobile phone for 2 SIM cards with
Power Bank function - charging of other devices
R30 eXtremo
Contents
Important instructions........................................................2
our mobile phone............................................................6
Insert SIM, memory card and battery................................7
Battery charging................................................................7
Switch On / Off..................................................................8
Making calls.......................................................................9
Keypad lock.......................................................................9
Function of Power bank.....................................................9
Volume.............................................................................10
Position of antennas........................................................10
Insert of text.....................................................................10
Telephone directory.........................................................11
Torchlight.........................................................................12
Shortcuts..........................................................................12
SOS function...................................................................12
Safety and ecology..........................................................13
Declaration of conformity.................................................14
We thank you for buying of this resistant mobile phone
ALIGATOR. Before you start please read this quick guide with
important instructions.
Important instructions
Although the phone is durable, treat your phone and its
accessories with care, protect it from falling to the
ground, mechanical damage, dirt and extreme
temperatures. Especially protect the screen from bumps
and knocks! Never disassemble the phone or accessory!
2
Remember that even with a durable phone display can
crash damage!
our phone is waterproof (not in saltwater), provided that
all covers of holes are properly fitted and sealed. The
maximum length of contact with water is 30 min. and the
phone must not be submerged to depths greater than
1m. et it has to be completely protected against water.
In case of contact, respectively immersion in water,
remove it from the water as soon as possible and pat
dry.
When deploying all covers make sure that there is no dirt
on the seal caps , they seal properly and are fully
deployed.
When the phone or its part got into contact with water,
dry it thoroughly before operating it. Especially dry all
caps, folds, crevices and holes for the speaker,
earphone and microphone. Never open the cover on the
back of the phone or at the connector after the phone
came into contact with water without being properly dried
out before.
In case of contact with water, do NOT tamper with the
phone, press any buttons and tamper with hole caps.
Protect microphone, earphone and loud-speaker
openings from the dust of sharp objects
Do not switch on and do not use the mobile phone in the
prohibited areas
3
Do not use the mobile phone while driving the car
Do not use the mobile phone near the filling petrol station
Turn off the mobile phone always near explosives
Use always original batteries supplied by the producer
(danger of damage or explosion of the mobile phone)
SAR – mobile phone meets the prescription for maximal
emission of the electromagnetic radiation.
While making a call please keep the mobile phone at
least 2-3 cm away from the body to minimalise the
quantity of the el.magnetic radiation absorbed by your
body.
Handle your cell phone and accessories with care ,
protect it from mechanical damage and impurity
Protect the mobile phone and accessories from the
extremely high temperatures
Do not put the battery at the fire and do not expose it to
the temperature over +60°C (danger of explosion or fire)
Protect the mobile phone and accessories from the fall to
the ground
Never put the mobile phone into parts !
Turn off the mobile phone near the sensitive medical
devices unless you are sure that the radio transmission
of the mobile phone does not influence its functions.
Mobile phone can affect the function of the electronic
cardiac pacemaker or other implanted apparatus –
please consult your medical doctor. In cases of
suspected violation turn off the phone immediately !
Switch off the cell phone always in the aircraft
Turn off the mobile phone always near explosives
Do not place the mobile phone or its holder in the car at
the place over the airbags
4
Keep it out of reach of the children and do not allow them
to play with. It contains small parts that can be
suffocated or may hurt !
Software and hardware of the mobile phone are
continuously updated. The importer reserves the right to
alter the instruction manual or mobile phone functions
without a prior notice.
our phone has a very powerful flashlight. So never
touch her in your eyes. Risk of eye damage or dazzle!
5

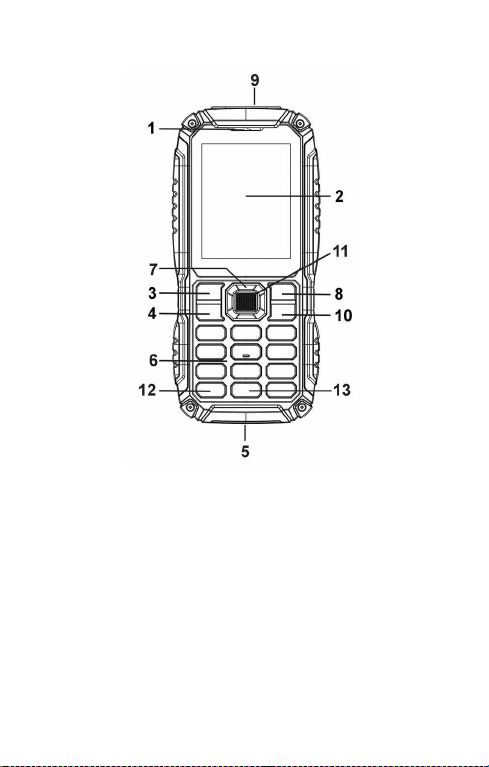

Your mobile phone
1. Earphone
2. Screen
3. Left functional button
4. Button for calling
5. Connector for
charger and USB
connector for function
of Power bank
6. Numeric keypad
7. Navigation direction
button
8. Right functional
button / contacts
9. Torchlight
10. Button to finish
call / Switch on
11. Button OK
12. Button * / SOS
13. Button 0 / Light
6

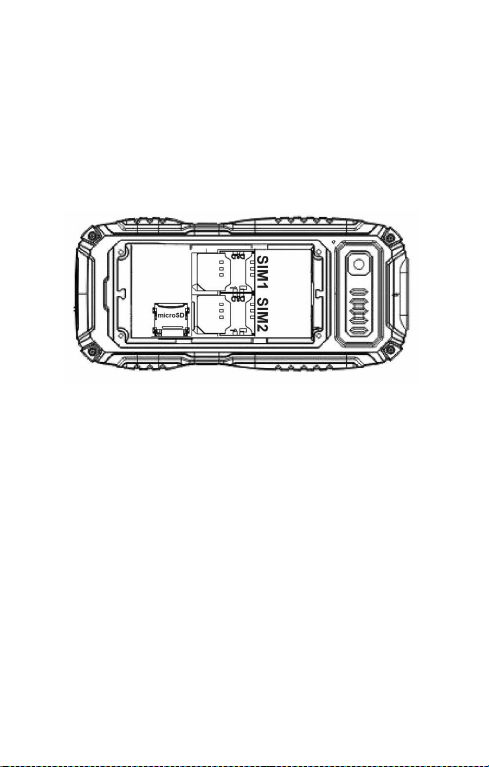

Insert IM cards, memory card and battery
1. Remove the battery cover on the back side of the phone
2. Insert carefully one or two SIM cards at the slots under
the space for battery. Make sure that the SIM cards are
placed correctly with the contacts towards down. The
battery must be removed when placing of SIM cards.
3. Insert the MicroSD card at the slot
4. Insert battery
5. Put the battery cover back and tighten the 2 supplied
screws. Screws must be tightened but make sure not to
damage the threads by an accessive force.
Battery charging
The indicator of charging level is placed at the upper part of
the screen. In case the battery is discharged proceed as
follows :
1.Connect the charger with the electrical network
2.Open the cap of the connector on the bottom side of the
phone
3.Connect the charger with the mobile phone
7
4.When ther battery is fully charged please disconnect the
charger from the mobile phone and from the electrical
network
5.Close very carefully the cap of the connector and press it on
its place. In case you do not press it carefully and do not
control it, the water can penetrate inside of the mobile
phone !
The mobile phone can be charged both in the switch on and
in switch off mode.
In case the battery is totally discharged (after a long time of
non-using), it can take even tens of minutes till the indicator of
charging level appears and till the mobile phone can be
switched on and started to be used.
witch On and witch Off
Press and hold the button (10) to switch on, to end a call or to
switch off the mobile phone.
ou can end the call or application event. you can return to
the main screen by a short press of this button.
In case the lock of the cell phone is activated please insert the
password. The default password is 1234.
Time and date will be set automatically if your operator
supports this option, or you can set it manually.
8
Making calls
Enter the tel.number with the use of the keypad buttons and
press the button (4). In case 2 SIM cards are inserted you will
be asked to choose which one should be used for calling.
Keypad lock
To set up the automatic keypad lock choose in menu :
ettings > ecurity > Automatic keypad lock
ou can lock the keypad by press of the button (10) on the
main screen.
To unlock the keypad please press first the left button (3)
followed by a button *
Even if the keypad is locked, you can call emergency number
112.
Function of Power bank
Built-in high-capacity battery can also be used to charge other
phones or devices. This phone has a standard USB socket on
the body. This socket is switched off from the production.
Select menu to Turn On / Off :
OrganizerPower BankUSB socketOn/Off
9
Volume
Volume level of the headphones can be adjusted during the
call by pressing of the navigation button up/down (7)
For handsfree activation / loud listening – press the button OK
(12) during the call
Warning : E posing to an e cessive noise can damage your
hearing. Listen to the music with reasonable volume level and
do not hold the device close to the ear, especially by using of
a loud-speaker !
Position of antennas
Device is provided with internal antennas for reception and
transmission. Antennas are placed at the upper and bottom
back part. Do not cover the places where the antennas are
placed.
While making a call please keep the mobile phone at least 2-3
cm away from the body to minimalise the quantity of the
el.magnetic radiation absorbed by your body.
Covered antennas may influence the intensity of transmission
and also the battery life.
Insert of text
Keypad of the cell phone enables to enter not only the digits
but also the letters/characters.
In case of inserting of the characters each button offers to
write several letters. For example the button „2“ can write the
letters A, B and C. A gap can be written with a button „0“.
10
