All-Flo P300 Manuale
A-
ALL-F
PUMP OPERATION & MAINTENANCE MANUAL
(
P300 High Density Polyethylene Air Diaphragm Pump
2 I All-Flo Pump Co.

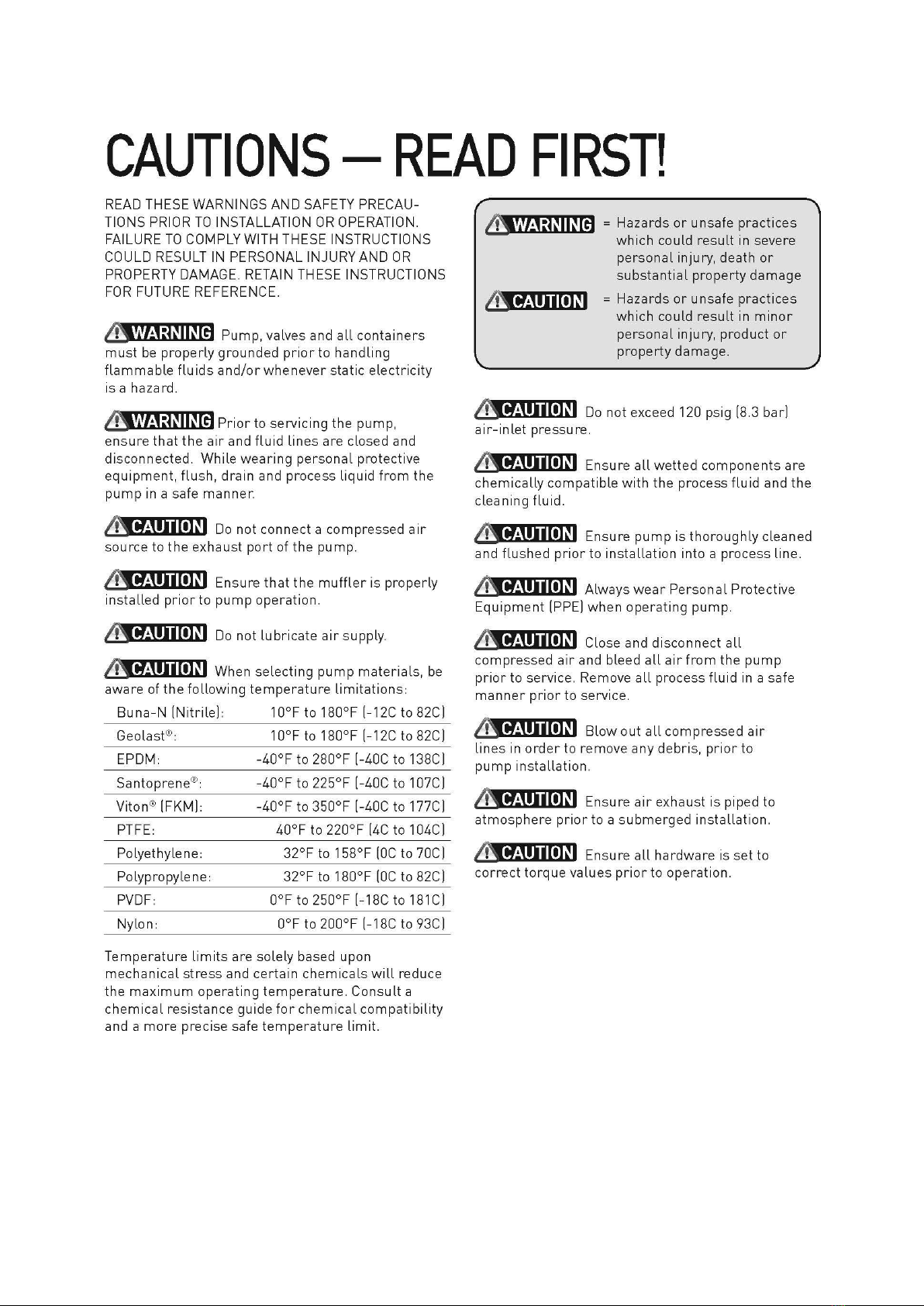

1. Warnings and Caution _______________________________________________________________________ 3
2. Pump Model Matrix __________________________________________________________________________4
3. Pump Dimensions ___________________________________________________________________________5
4. Pump Integrated with Pulsation Dampener Dimensions ______________________________________________6
5. Pump Specifications and Performance Curve ______________________________________________________7
6. Installation, Troubleshooting and Maintenance _____________________________________________________8-12
Installation ______________________________________________________________________________ 8-9

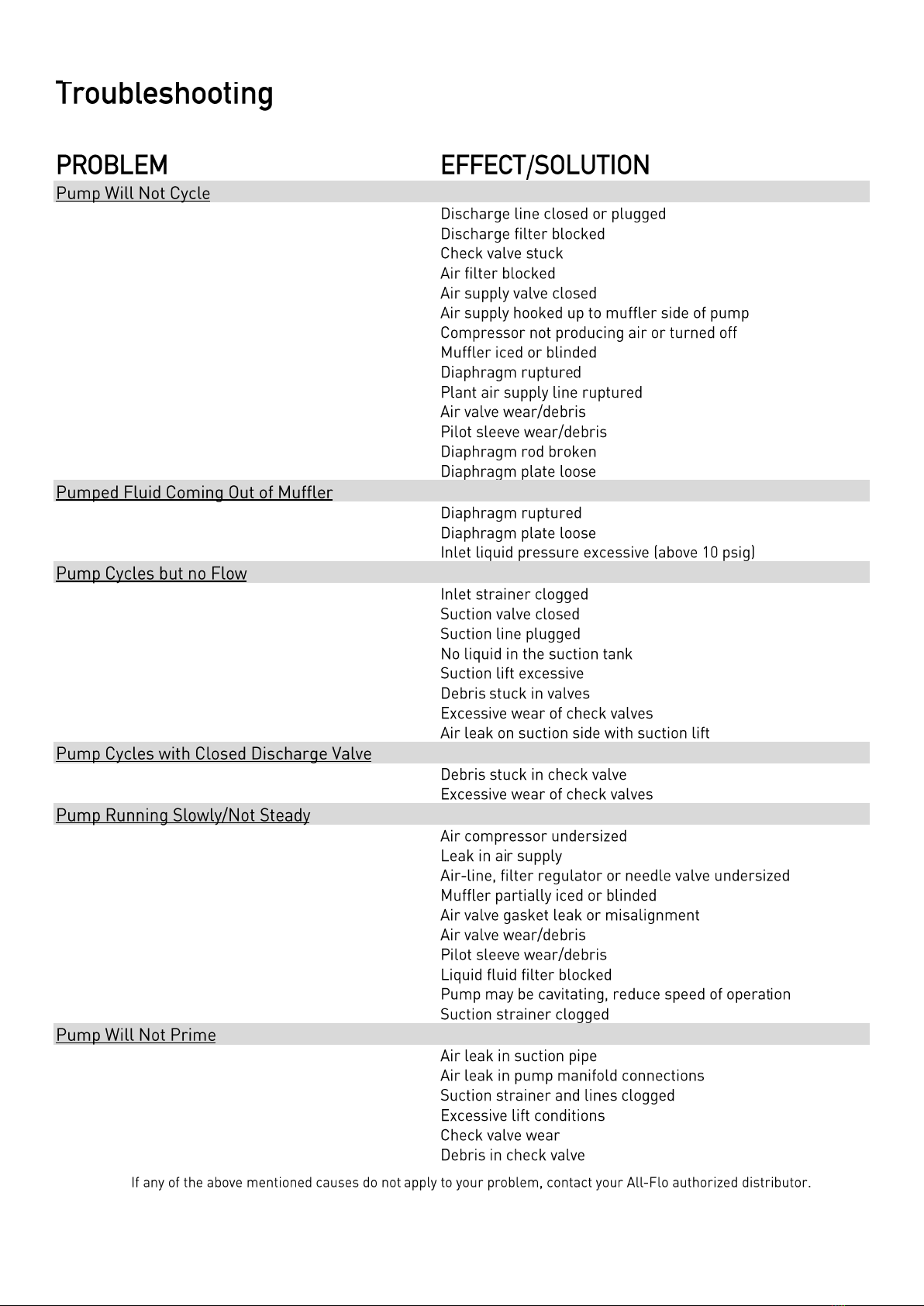

Troubleshooting __________________________________________________________________________10
Operation _______________________________________________________________________________11
Maintenance _____________________________________________________________________________12
7. Torque Specifications _________________________________________________________________________13
8. Exploded View and Parts List ___________________________________________________________________14-15
9. High Pressure System (Option Code HP) __________________________________________________________16
10. High Pressure System Appearance and Dimensions _________________________________________________ 17
11. High Pressure System Exploded Views ___________________________________________________________ 18
12. High Pressure System Performance Curves ________________________________________________________19
13. Warranty and Registration ______________________________________________________________________20
3I All-Flo Pump Co.
4 I All-Flo Pump Co.
Model Designation Matrix
PRODUCT SERIES
FLUID CONNECTI
INTERM
NER CHAMIN
ON TYPE
O-RINGS
VAL
L
VE SEAT
VALVE/BAL
DIAPHRAGM
SPE
W
CIAL (
ARE,
O
THER)
FLUID C
EDI
BER
TE/
S/
A
HAMBER
MANIFOLDS
SPECIAL (HA
OR
SPE
TING
CIAL
RD
MUFFLER)
(P )
PX X X -1 2 3- 4 5 6 7
-8 910
PUMP SIZE
2
3
5
1
4
INTERMEDIATE / INNER CHAMBER
H = High Density Polyethylene
J = Conductive Polyethylene
FLUID CHAMBER / MANIFOLDS
H = High Density Polyethylene
J = Conductive Polyethylene
DIAPHRAGMS
E = EPDM
P = Integral PTFE
VALVE/BALL
E = EPDM
T = PTFE
3 = Stainless Steel
6
7
VALVE SEAT
H = High Density Polyethylene
O-RINGS
E = EPDM
T = PTFE
SPECIAL OPTION
G70 = Standard
Z001 = Pump Integrated with Pulsation
Dampener
PUMP SIZE
300 = 3 Inch
FLUID CONNECTION TYPE
N = FNPT
B = FBSPT
A = ANSI Flange
D = DIN Flange
0
WET END REPAIR KIT
Wet end kits are available and
consist of diaphragms, (back-up
diaphragms if required), balls,
seats and seat O-Rings.
See matrix below.
Bold indicates recommended options
P W E 003 4 5 6 7
-
-
-
AIR END REPAIR KIT
Air end repair kit contains pilot sleeve
assembly and main air valve.
MATERIAL
SERIE
ODPR
EP
S
UCT
PUMP SIZE
AIR END
AIRR KIT
-RINGS
VAL
BALL
O
VE SEAT
AL
A
VE/
DIAPHR
V
GM
PRODUCT
SERIES
WET END
REPAIR KITS
PUMP SIZE
MATERIAL
P A K 0
- 3 0-
0
-
3 0
- PP
Pump Dimensions
A B C D F H I J K L
P300 18.90" 22.83" 31.50" 3.94" 15.28" 27.17" 1.57" 2.95" 15.55" 19.49"
(480 mm) (580 mm) (800 mm) (100 mm) (388 mm) (690 mm) (40 mm) (75 mm) (395 mm) (495 mm)
5 I All-Flo Pump Co.
Pump Integrated with Pulsation Dampener Dimensions
P300
A18.90”(480 mm)
B22.83”(580 mm)
C31.50”(800 mm)
D3.94”(100 mm)
E 15.28”(388 mm)
F3”
G27.17”(690 mm)
H3/4”
I1.57”(40 mm)
ØJ 2.95”(75 mm)
K15.55”(395 mm)
L19.49”(495 mm)
M6.30”(160 mm)
N5/8”
O10.28”(261 mm)
P1/2”
Q14.17”(360 mm)
6 I All-Flo Pump Co.
Pump Specifications
P300
Dimension
Air Inlet 3/4”
Liquid Inlet 3”
Liquid Outlet 3”
375 lbs
(170 kg)
Performance
211 gpm
(800 lpm)
Max pressure 120 PSI (8.2 bar)
9/16”
(12 mm)
16.4 ft-H2O
(5 m-H2O)
Suction lift wet
29.5 ft-H2O (9.0 m-H2O)
Temperature limits
158 °F (70°C)
Max Solids
Suction lift dry
Weight
Max capacity
Performance Curves
7 I All-Flo Pump Co.
8 I All-Flo Pump Co.
flexible connection
flexible
connection
vacuum
gauge
shut-off
valve
shut-off
valve
pressure
gauge
SUCTION
DISCHARGE
air shut-off
valve
combined air
filter and
regulator
needle
valve
AIR SUPPLY
9 I All-Flo Pump Co.
10 I All-Flo Pump Co.
