ALLEN & HEATH DX168 Manuale utente

DX168 Getting Started Guide

AP11129 Issue 2





DX168

The DX168 is a portable, rugged I/O Expander for the Allen & Heath dLive and

SQ digital mixing systems. It provides 16 remote controlled mic/line preamps

and 8 XLR line outputs. It connects to the mixer over a single Cat5e cable.

A second DX168 or a DX164-W can be connected when running in Cascade

mode. Alternatively, a redundant connection can be made to compatible

hardware.

The DX168 can be operated horizontally with the connectors facing upward or

sideward, or vertically to save space on stage. It can also be mounted in a 19”

rack or fligthcase using the optional AB1608-RK19 kit. A hard-wearing padded

polyester carry case is also available, A&H part number AP9932.

Front panel

Input sockets Balanced XLR mic/line inputs with +48V Phantom Power

indicator. The preamps are built into the DX168 and their Gain, Pad and +48V

are controlled from the mixer via the DX link.

The +48V indicator detects voltage at the socket whether supplied by the

DX168 or received from an external source.

Output sockets Balanced XLR outputs operating at nominal +4dBu

level.



DX168 Getting Started Guide

AP11129 Issue 2









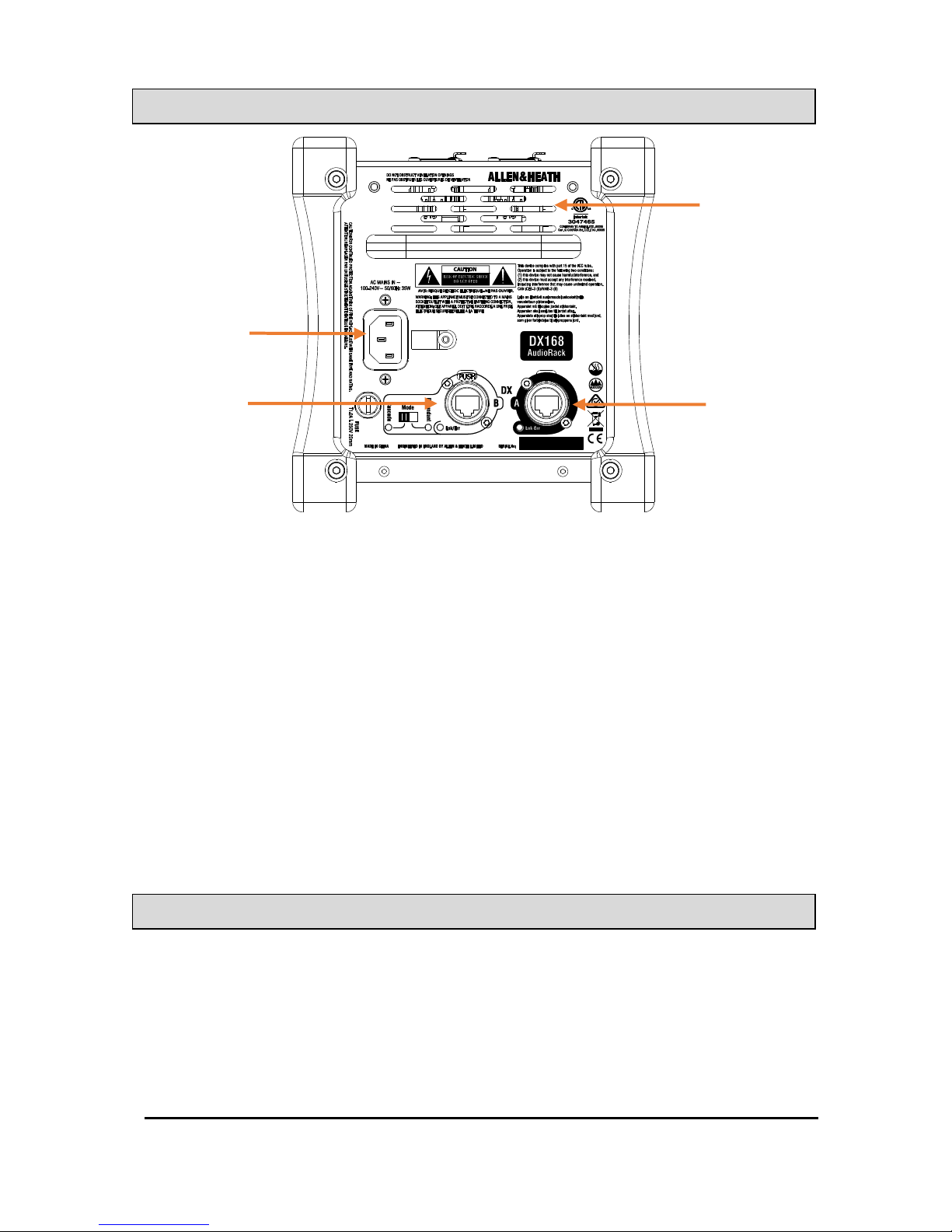

Side panel



DX A EtherCon port for connection to the mixing system. The cable

carries the audio signals as well as preamp control and system status data.

DX B EtherCon port for daisy chaining of a second unit or cable

redundancy. Switch to Redundant for 2 cable connection to compatible

hardware e.g. dLive S Class or DX Link card. Switch to Cascade for connection

to a second DX168 or DX164-W unit.

Mains power input IEC connector and fuse for the built-in universal

voltage PSU. This accepts voltages from 100 to 240V AC 50/60Hz. Secure the

cable to the plastic P-clip using a T20 screwdriver.

Vents Ensure good ventilation at the sides and back of the unit. Avoid

obstruction of vents while operating. Avoid dirt or liquid ingress.

Cables

Cat5e or higher STP cable is required for DX Link connections with a maximum

cable length of 100m per connection.

Allen & Heath can provide a number of Cat5e and Cat6 cables suitable for use

with the DX Hub:

DX168 Getting Started Guide

AP11129 Issue 2

CAT5e

AH9650-A 100m drum of Etherflex cable with Neutrik EtherCon locking connectors

AH7000-A 80m drum of Etherflex cable with Neutrik EtherCon locking connectors

AH9981-A 50m drum of Etherflex cable with Neutrik EtherCon locking connectors

AH9651-A 20m Etherflex cable with Neutrik EtherCon locking connectors

AH9997-A 2m cable with Neutrik EtherCon locking connectors

CAT6

AH10887-A 100m drum of CAT6 cable with Neutrik EtherCon locking connectors

AH10886-A 80m drum of CAT6 cable with Neutrik EtherCon locking connectors

AH10885-A 50m drum of CAT6 cable with Neutrik EtherCon locking connectors

AH10884-A 20m drum of CAT6 cable with Neutrik EtherCon locking connectors

Contact your local A&H dealer for more information.

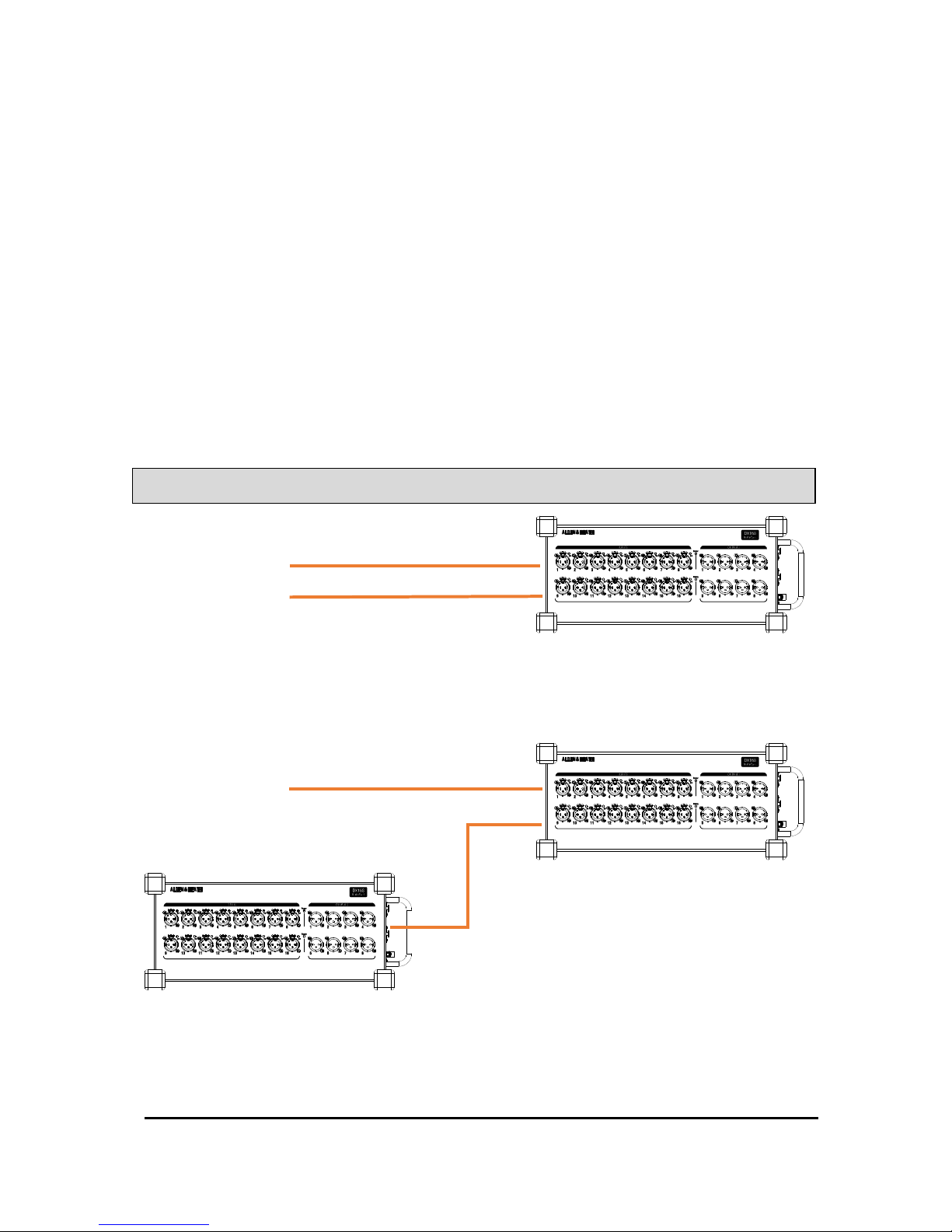

Connection

Redundant mode –to compatible hardware only

Requires dLive firmware V1.5 or higher.

Cascade mode –add second DX168 or DX164-W

Requires dLive firmware V1.6 or higher.

dLive S Class

Surface / MixRack,

DX Hub (x2), or DX

Link card

DX A

DX B

dLive Surface /

MixRack, DX Hub,

DX Link card, or

DX A

DX B

DX168 Getting Started Guide

AP11129 Issue 2

Specification

Mic/Line XLR Inputs

Balanced XLR, +48V phantom power

Mic/Line Preamp

Fully recallable

Input Sensitivity

-60 to +15dBu

Analogue Gain

+5 to +60dB, 1dB steps

Pad

-20dB Active PAD

Maximum Input Level

+30dBu (PAD in)

Input Impedance

>4kΩ (Pad out), >10kΩ (Pad in)

Mic EIN

-127dB with 150Ωsource

Analogue XLR Outputs

Balanced, Relay protected

Output Impedance

<75Ω

Nominal Output

+4dBu = 0dB meter reading

Maximum Output Level

+22dBu

Residual Output Noise

-92dBu (muted, 20-20kHz)

Operating Temperature Range

0°C to 40°C (32°F to 104°F)

Power

Mains Voltage Operating Range

100-240V AC, 50/60Hz

Mains Power Consumption

20W max

Dimensions and Weight

Width x Depth x Height x Weight

DX168

410 x 190 x 185 mm x 4.6kg

(16.1” x 7.5” x 7.3” x 10.1lbs)

Read the Safety Instructions Sheet included with the product and the information printed on the panel before operating.

A limited one year manufacturer’s warranty applies to this product, the conditions of which can be found at:

www.allen-heath.com/legal

By using this Allen & Heath product and the software within it you agree to be bound by the terms of the relevant End

User Licence Agreement (EULA), a copy of which can be found at: www.allen-heath.com/legal

Check the Allen & Heath website for the latest documentation and software updates
