AF-625SLR
625 LB STEEL FOLDING LOADING RAMPS
Assembled in the U.S.A. of domestic and imported components
6001775 - REV A 2/13
U.S. PATENT No. 5,645,394
Read and understand all safety rules and operating instructions before using these
loading ramps.
Follow all safety rules and operating instructions provided by manufacturer of
equipment to be loaded when using loading ramps.
Never allow children or untrained persons to use loading ramps.
Never ride any vehicle up or down the loading ramps.
Never load or unload power equipment with its engine running.
Never stand in the path of equipment when loading or unloading with the ramps.
Always use on stable, level surfaces.
Always set the emergency brake and chock the tires of the loading vehicle to
prevent any movement while loading or unloading the equipment.
Always attach straps between bumper of the truck and the center of the loading
ramp to prevent kick back.
Check product for worn, loose, or damaged parts before each use. If any damage
is present, repair the product before using.
Check product for loose or missing fasteners before each use. Tighten or replace
fasteners as needed before using.
Never exceed load capacity of loading surface (e.g. tailgate). If unknown, consult
with the manufacturer to find the maximum load capacity.
Never exceed load capacity of 625 pounds per ramp.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
1
Safety Rules
11
(x2)
5
(x4)
7
(x4)
12
(x2)
9
(x2)
8
(x4)
10
(x4)
3
(x2)
4
(x2)
13
(x1)
1
(1)
2
(1)
TOOLS REQUIRED FOR ASSEMBLY:
3/4" Wrench or Socket
•
9/16" Wrench or Socket
•
Adjustable Wrench
•
6
(x4)
2

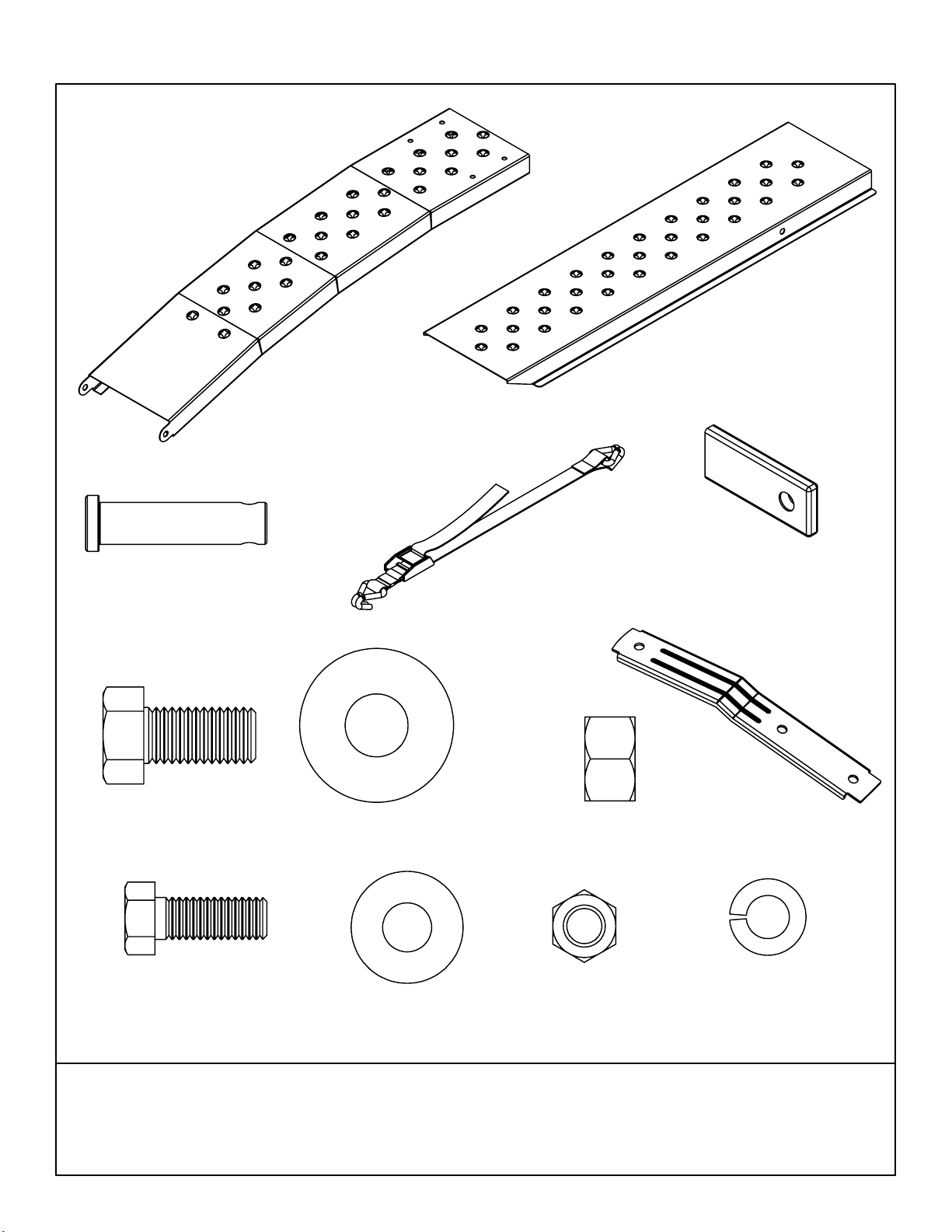

Carton Contents
1
2
1
5
6
4
3
7
8
2
910
10
11

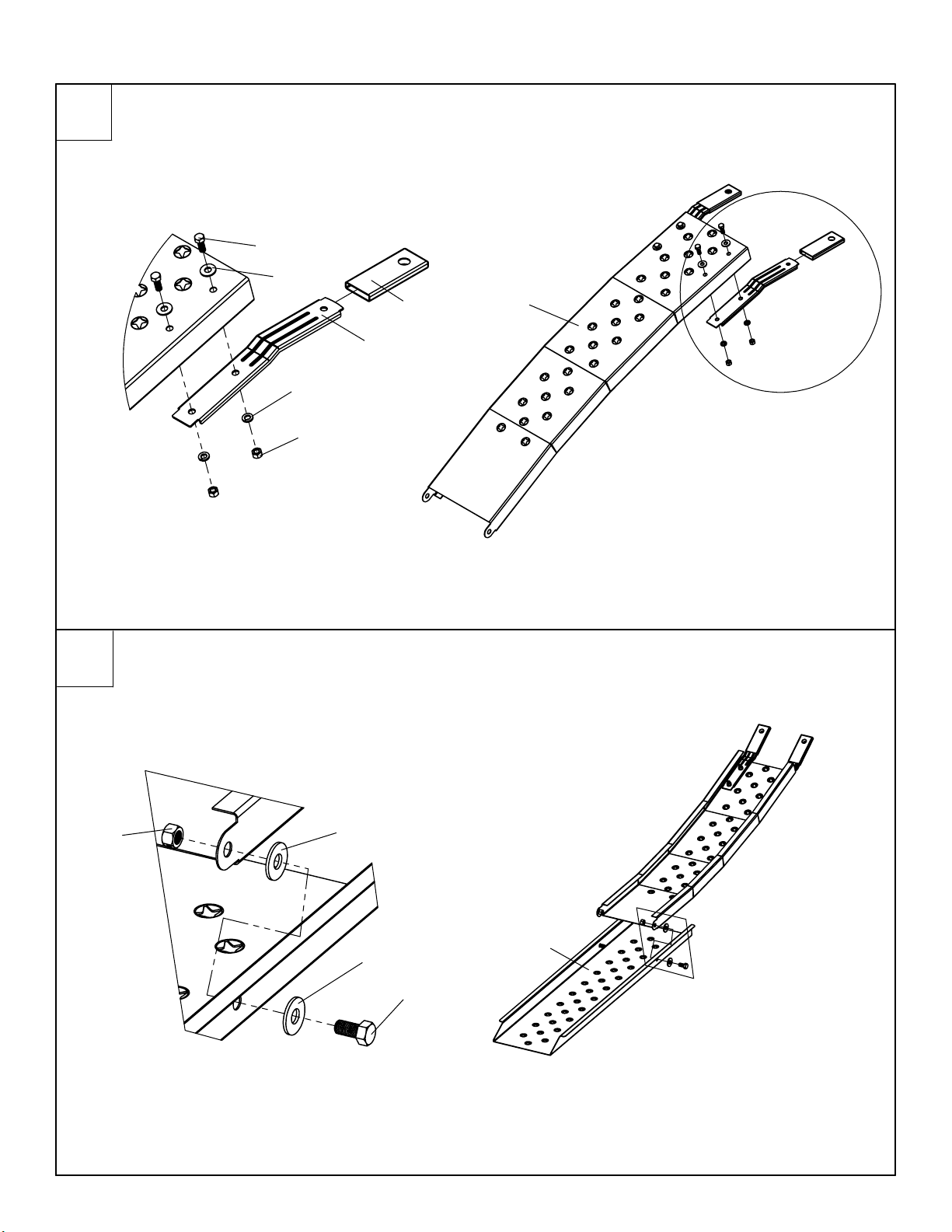

Attach support bars to ramp top.Tighten bolts at this time. Slide support bar
pads onto bars as shown.
Invert ramp bottom so that flanges face up. Place ramp top inside the ramp
bottom so that the side holes of each are in line. Be sure to place a washer
between the two ramp pieces to allow hinge to work properly.
Note: Apply soapy water
inside support bar pad,
this will allow the pad to
slide onto the bar easier.
Note: DO NOT OVER TIGHTEN. Ramp must be able to swivel.
3
Assembly Instructions

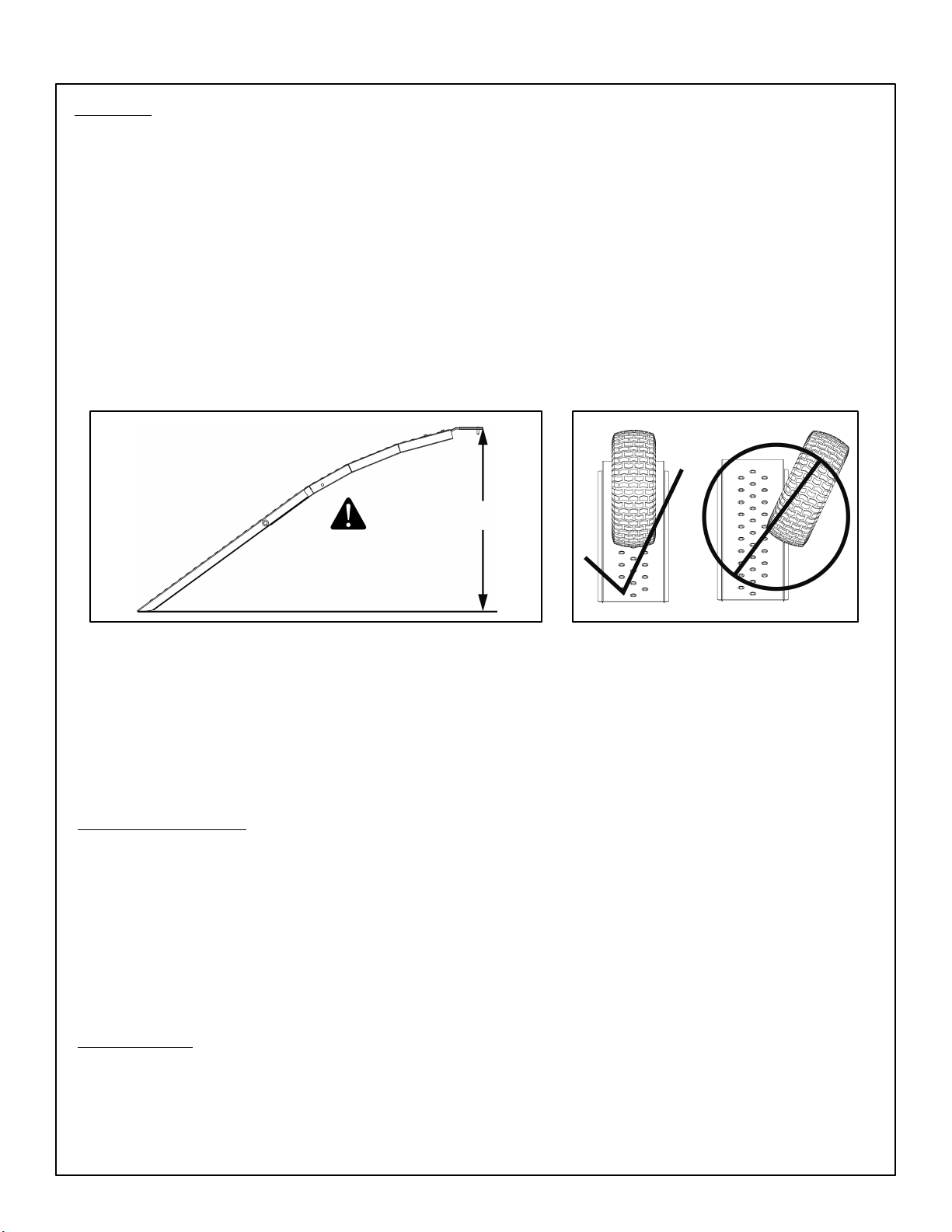

USAGE
:
Look for a wall or depression to reduce the loading angle, the lower the ramp
angle the easier the loading of the vehicle will be.
Park the loading vehicle on flat, firm, or grassy terrain.
Set the emergency brake and chock the tires of the loading vehicle to prevent any
movement while loading and unloading the equipment.
Center loading ramp on the loading surface with support bars on top.
Make sure ramps are aligned at the proper distance apart so that the tires of the
equipment being loaded are centered on the ramp.
DO NOT EXCEED 33"
RECOMMENDED SAFE OPERATING
HEIGHT, DO NOT EXCEED 33"
To prevent kickback, always attach cam buckle straps between the center of the
loading ramps and the loading vehicle. Use supplied clevis pins to secure ramps to
vehicle as needed.
For safety, always roll or winch equipment up or down the ramp.
NEVER
attempt
to ride equipment up or down the loading ramp.
MAINTENANCE:
Before each use, always check for any worn, loose, or damaged parts on the
loading ramps. If any damage is present,
DO NOT USE THE RAMP
.
Periodically check the fasteners to make sure they are still tight and in place.
Keep Ramp surface clean by occasionally cleaning with water and any mild
detergent.
STORAGE:
Fold ramp in half for proper space saving storage. Store in a clean, dry area only.
If there are any missing parts, or if you have any questions on assembly,
operation, maintenance or safety, please call:
1-800-652-6231
4
Operating Instructions
If this product fails due to a defect in material or workmanship within TWO
YEARS from the date of purchase, we will at our option repair or replace it free of
charge.
This warranty does not cover:
Repairs necessary because of operator abuse or negligence.
•
Equipment used for commercial or rental purposes.
•
Paint that is worn or faded due to normal use or exposure.
•
To arrange for product repair call 1-800-652-2321, or return this product to place
of purchase for replacement.
This warranty gives you specific legal rights, and you may also have other rights
which may vary from state to state. This warranty applies only while this product
is in use in the United States.
In the space below record the purchase date of your Loading Ramps.
Model Number
AF-625SLR
Purchase Date
Keep this Owner's Manual and your receipt in a safe place for future reference.
After the two year warranty period all replacement parts may be ordered by
calling
1-800-652-2321
.

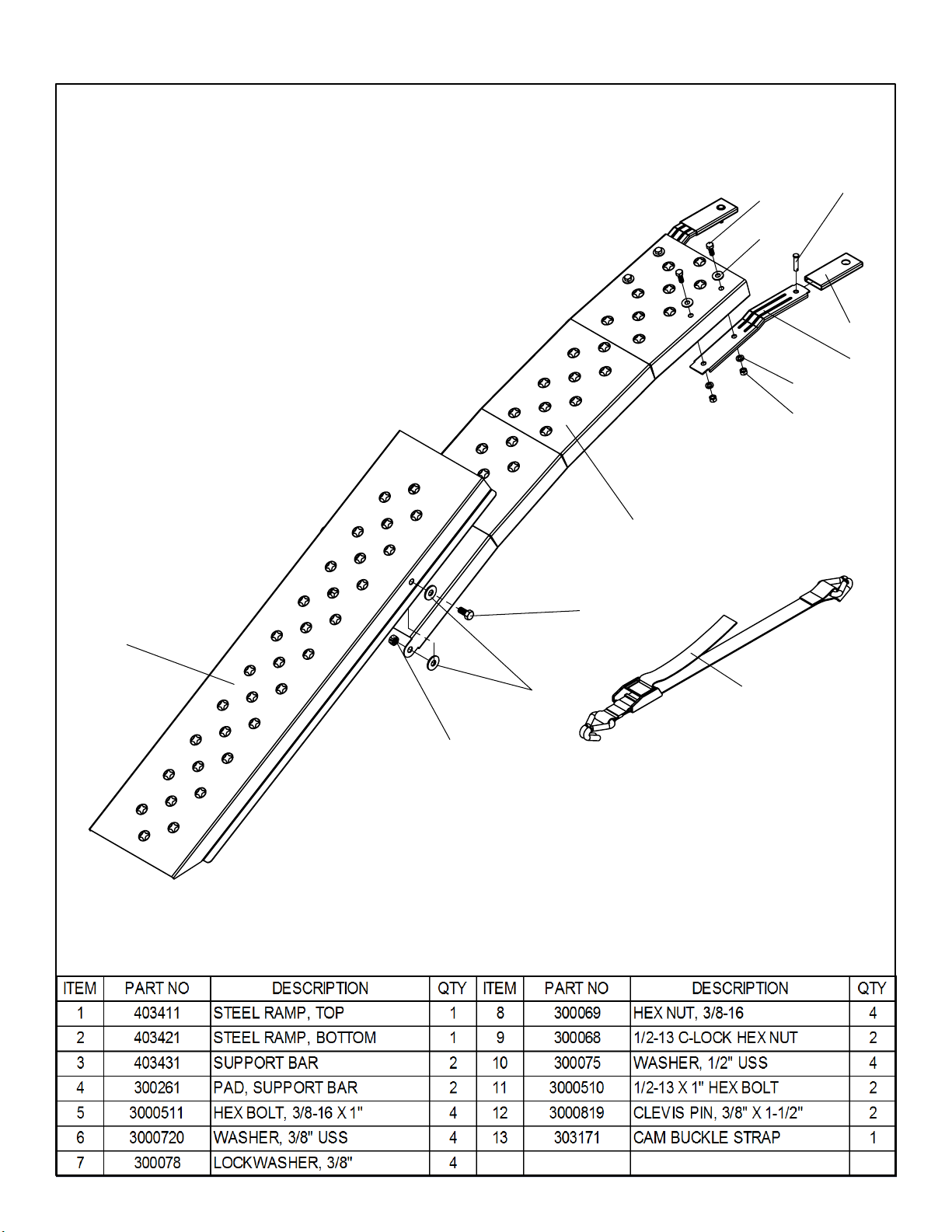

When ordering replacement parts, always give the following information:
Product
625 lb STEEL ARCHED LOADING RAMPS
•
Model Number
AF-625SLR
•
Part Number
•
Part Description
•
5
Warranty
13
2
11
1010
9
4
3
7
8
12
5
6
1
6
Repair Parts
