Alliance Laundry Systems 201932R5 Guida

Installation/Operation

www.comlaundry.com

Automatic

Washers

Metered and Nonmetered

W446I

Part No. 201932R5

August 2012

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

Para bajar una copia de estas instrucciones

en español, visite www.comlaundry.com.

201932 1

IMPORTANT: Read the complete

INSTALLATION/OPERATION INSTRUCTIONS

before using the washer.

For your safety and to reduce the risk of

fire or an explosion, do not store or use

gasoline or other flammable vapors and

liquids in the vicinity of this or any other

appliance.

W022

WARNING

means without the expressed written consent of the publisher.

2201932

Table of

Contents

Safety Information.............................................................................. 4

Explanation of Safety Messages........................................................... 4

Important Safety Instructions ............................................................... 4

Installation........................................................................................... 6

Dimensions and Specifications............................................................. 6

Before You Start ................................................................................... 7

Tools ................................................................................................ 7

Installing the Washer ............................................................................ 7

Step 1: Remove the Shipping Brace and Shipping Plug.................. 7

Step 2: Wipe Out Inside of Washtub ............................................... 8

Step 3: Connect Fill Hoses............................................................... 8

Step 4: Connect Drain Hose to Drain Receptacle ............................ 10

Step 5: Position and Level the Washer ............................................ 11

Step 6: Plug In the Washer............................................................... 12

Step 7: Add Water to the Washer .................................................... 13

Step 8: Check Lid Switch ................................................................ 13

Step 9: Check Installation ................................................................ 13

Vending................................................................................................. 14

Meter Case ....................................................................................... 14

Slide Extension Assembly – Models through Serial No. 1211........ 14

Slide Extension Assembly – Models Starting Serial No. 1211 ....... 15

Models Prepped for Card Reader..................................................... 17

Additional Washer Security............................................................. 18

Operation............................................................................................. 19

Operation Instructions for Coin Slide Operated and

Nonmetered Washers ......................................................................... 19

Step 1: Add Detergent...................................................................... 19

Step 2: Load Laundry....................................................................... 19

Step 3: Close Lid.............................................................................. 19

Step 4: Set Wash Temperature and Fabric/Cycle Selector .............. 20

Step 5: Start Washer......................................................................... 21

Indicator Lights................................................................................ 21

Control Modes ................................................................................. 22

Rapid Advance................................................................................. 23

Setting Dipswitch............................................................................. 23

Operation Instructions for Electronic Display Control Washers.......... 24

Step 1: Add Detergent...................................................................... 24

Step 2: Load Laundry....................................................................... 24

Step 3: Close Lid.............................................................................. 24

Step 4: Choose Small Load, if Desired............................................ 25

Step 5: Set Fabric Selector............................................................... 25

Step 6: Set Wash Temperature......................................................... 25

Step 7: Insert Money........................................................................ 25

Indicator Lights................................................................................ 26

201932 3

Operation Instructions for MDC Washers............................................ 27

Step 1: Add Detergent...................................................................... 27

Step 2: Load Laundry....................................................................... 27

Step 3: Close Lid.............................................................................. 27

Step 4: Choose Small Load, if Desired............................................ 28

Step 5: Set Fabric Selector and Wash Temperature......................... 28

Step 6: Insert Money or Card........................................................... 28

Step 7: Start Washer......................................................................... 29

Indicator Lights................................................................................ 29

Operation Instructions for NetMaster Washers .................................... 30

Step 1: Add Detergent...................................................................... 30

Step 2: Load Laundry....................................................................... 30

Step 3: Close Lid.............................................................................. 30

Step 4: Choose Small Load, if Desired............................................ 31

Step 5: Set Fabric Selector............................................................... 31

Step 6: Set Wash Temperature......................................................... 31

Step 7: Insert Money or Card........................................................... 32

Step 8: Start Washer......................................................................... 32

Indicator Lights................................................................................ 32

Maintenance ........................................................................................ 33

User-Maintenance Instructions............................................................. 33

Cold Weather Care........................................................................... 33

Care of Your Washer ....................................................................... 33

Replacing Hoses............................................................................... 33

Filter Screens ................................................................................... 33

Reinstallation of Shipping Materials ............................................... 33

Motor Overload Protector..................................................................... 33

Troubleshooting .................................................................................. 34

Contact Information........................................................................... 36

Installer Checklist................................................................ Back Cover

Safety Information

Explanation of Safety Messages

Throughout this manual and on machine decals, you

will find precautionary statements (“DANGER,”

“WARNING,” and “CAUTION”) followed by specific

instructions. These precautions are intended for the

personal safety of the operator, user, servicer, and

those maintaining the machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

Save These Instructions

1. Read all instructions before using the washer.

2. Install the washer according to the

INSTALLATION INSTRUCTIONS. Refer to the

EARTHING (GROUNDING) INSTRUCTIONS

in the INSTALLATION manual for the proper

earthing (grounding) of the washer. All

connections for water, drain, electrical power and

earthing (grounding) must comply with local

codes and be made by licensed personnel when

required. Do not do it yourself unless you know

how!

3. Do not install or store the washer where it will be

exposed to water and/or weather.

4. Do not add the following substances or textiles

containing traces of the following substances to

the wash water: gasoline, kerosene, waxes,

cooking oils, vegetable oils, machine oils, dry-

cleaning solvents, flammable chemicals, thinners

or other flammable or explosive substances.

These substances give off vapors that could

ignite, explode or cause the fabric to catch on fire

by itself.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. THE

GAS IS FLAMMABLE, DO NOT SMOKE OR

USE AN OPEN FLAME DURING THIS TIME.

6. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power

source.

Indicates an imminently hazardous

situation that, if not avoided, will cause

severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not

avoided, could cause severe personal

injury or death.

WARNING

Indicates a hazardous situation that, if not

avoided, may cause minor or moderate

personal injury or property damage.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions:

W023

WARNING

Safety Information

201932

7. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This appliance

is not intended for use by persons (including

children) with reduced physical, sensory or

mental capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning the use of

the appliance by a person responsible for their

safety. This is a safety rule for all appliances.

8. Do not reach into the washer if the washtub or

agitator is moving.

9. Never operate the washer with any guards ,

panels and/or parts removed or broken. DO NOT

tamper with the controls or bypass any safety

devices.

10. DO NOT operate individual units if they have

been separated from a stack unit.

11. Use your washer only for its intended purpose,

washing clothes. Always follow the fabric care

instructions supplied by the garment

manufacturer.

12. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. To reduce the risk of poisoning or chemical

burns, keep them out of the reach of children at

all times (preferably in a locked cabinet). Heed

all warnings or precautions.

13. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

14. Lid MUST BE CLOSED any time the washer is

to agitate or spin. DO NOT bypass the lid switch

by permitting the washer to agitate or spin with

the lid open. A brake will stop the washtub

within seconds if the lid is opened during

spinning. If the washtub does not stop when the

lid is opened, remove the washer from use and

call the service person.

15. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

16. Keep your washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have your washer checked by a

qualified service person.

17. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out. ALWAYS disconnect the

washer from electrical supply before attempting

any service.

18. Disconnect the power cord by grasping the plug,

not the cord. If the supply cord is damaged, it

must be replaced by a special cord or assembly

available from the manufacturer or its service

agent.

19. Before the washer is removed from service or

discarded, remove the lid to the washing

compartment.

20. Failure to install, maintain, and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNING and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Always contact your dealer, distributor, service agent

or the manufacturer about any problems or conditions

you do not understand.

Installation

Dimensions and Specifications

TLW2051N

1Pilot Hole

TLW2051N

25.63 in. (65.1 cm)

30.5 in. (74.47 cm)

Standard Capacity Meter Case

43 in. (109.2 cm)

High Capacity Meter Case

43.875 in. (111.44 cm)

0.44 in.

(1.12 cm) 26 in. (66.04 cm)

28.75 in. (73.02 cm)

41.25 in. (104.78 cm)

36 in. (91.44 cm)

51 in. (129.54 cm)

28 in. (71.12 cm)

Coin Slide Models

40.38 in. (102.56 cm)

Electronic Control Models

38.19 in. (97 cm)

Coin Slide Models

21.56 in. (54.76 cm)

Electronic Control Models

22.44 in. (57 cm)

METERED MODELS

TLW2050N

25.63 in. (65.1 cm)

30.5 in. (74.47 cm)

28 in. (71.12 cm)

0.44 in.

(1.12 cm) 26 in. (66.04 cm)

NONMETERED MODELS

41.25 in. (104.78 cm)

36 in. (91.44 cm)

51 in. (129.54 cm)

28.75 in. (73.02 cm)

40.38 in. (102.56 cm)

21.56 in. (54.76 cm)

Installation

201932

Before You Start

Tools

For most installations, the basic tools you will need

are:

Figure 1

NOTE: If the washer is delivered on a cold day

(below freezing), or is stored in an unheated room

or area during the cold months, do not attempt to

operate it until the washer has had a chance to

warm up.

IMPORTANT: Install dryer before washer. This

allows room for attaching exhaust duct.

Installing the Washer

Step 1: Remove the Shipping Brace and

Shipping Plug

Remove the shipping brace from under the lid.

The shipping plug will be released from the base of the

washer when removing the cardboard base from the

washer. Refer to Figure 2.

The shipping brace and plug should be saved and must

be reinstalled whenever washer is moved or

transported to a new location. This will prevent

damage to washer components.

Do not tilt washer to front or sides when moving.

Refer to User-Maintenance section for instructions on

reinstalling shipping brace and shipping plug.

Figure 2

D074I

1Wrench

2Screwdriver

3Pliers

4Level

D074I

TLW2052N

1Shipping Brace

2Shipping Plug

3Cardboard Base

TLW2052N

Installation

201932

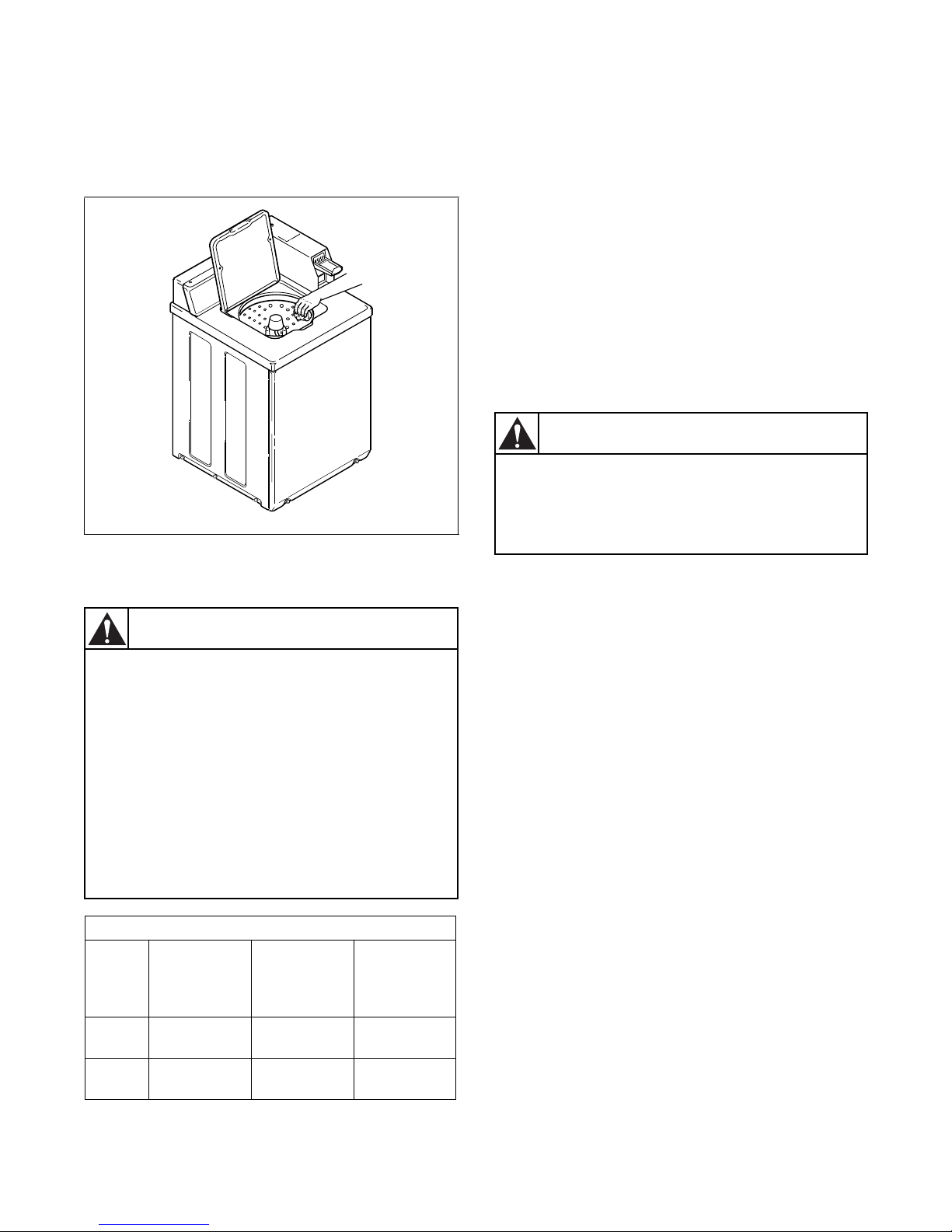

Step 2: Wipe Out Inside of Washtub

Prior to first wash, use an all purpose cleaner or a

detergent and water solution and a damp cloth to

remove shipping dust from inside of washtub.

Figure 3

Step 3: Connect Fill Hoses

Table 1

Water Supply Requirements

Water supply faucets must fit standard 3/4 inch

(19.1 mm) female garden hose couplings. DO NOT

USE SLIP-ON OR CLAMP-ON CONNECTIONS.

NOTE: Water supply faucets should be readily

accessible to permit turning them off when washer

is not being used.

Recommended cold water temperature is 50° to 75°

Fahrenheit (10° to 24° Celsius). Recommended

maximum hot water temperature is 125° Fahrenheit

(51° Celsius). Warm water is a mixture of hot and cold

water. Warm water temperature is dependent upon the

water temperature and the pressure of both the hot and

cold water supply lines.

Pressure must be a minimum of 20 to a maximum of

120 pounds per square inch (138 to 827 kPa) static

pressure measured at the faucet.

NOTE: Water pressure under 20 pounds per

square inch (138 kPa) will cause an extended fill

time in the washer.

Turn on the water supply faucets and flush the lines for

approximately two minutes to remove any foreign

materials that could clog the screens in the water

mixing valve. (This is especially important when

installing your washer in a newly constructed or

renovated building.)

W396I

Mixing Valve Flow Rates

Pressure

(psi)

HOT

gallons per

minute

(liters per

minute)

COLD

gallons per

minute

(liters per

minute)

WARM

gallons per

minute

(liters per

minute)

35 2.4

(9.1)

4.5

(17.0)

7.15

(27.1)

55 3.5

(13.2)

6.2

(23.5)

9.2

(34.8)

W396I

Under certain conditions, hydrogen gas

may be produced in a hot water system

that has not been used for two weeks or

more. HYDROGEN GAS IS EXPLOSIVE. If

the hot water system has not been used

for such a period and before using the

washer, turn on all hot water faucets and

let the water flow from each for several

minutes. This will release any

accumulated hydrogen gas. The gas is

flammable. Do not smoke or use an open

flame during this time.

W029

WARNING

To prevent personal injury, avoid contact

with inlet water temperatures higher than

125°Fahrenheit (51°Celsius) and hot

surfaces.

W748

WARNING
