Alliance Laundry Systems HWNLX2SP111CW01 Istruzioni operative

www.alliancelaundry.com

Troubleshooting

TLW13C

Part No. 202202R1

December 2016

Commercial

Topload Washers

Refer to Page 6 for Model Numbers

the expressed written consent of the publisher.

202202 1

Table of

Contents

Section 1 – Safety Information ...............................................................3

Locating an Authorized Servicer...........................................................4

Section 2 – Introduction ..........................................................................5

Customer Service...................................................................................5

Nameplate Location...............................................................................5

Model Identification ..............................................................................6

Theory of Operation ..............................................................................7

Section 3 – General Troubleshooting.....................................................9

1. Clicking Noise During Operation on NEWLY Installed Units ..10

2. Motor Hums ................................................................................11

3. No Hot Water ..............................................................................12

4. No Cold Water ............................................................................13

5. No Warm Water ..........................................................................14

6. Water Fill Does Not Stop At Proper Level.................................15

7. Motor Does Not Run...................................................................16

8. No Agitation................................................................................17

9. Constant Agitation ......................................................................18

10. Washer Overheats, Cycles On Motor Thermal Protector,

Switch Actuator Kicks In And Out .............................................19

11. Slow Spin Or No Spin.................................................................20

12. Constant Spin ..............................................................................21

13. Washer Stops In Cycle; Quits After A Couple Loads; Is

Intermittent..................................................................................22

14. Washer Is Locked Up Or Binding...............................................23

15. Outer Tub Does Not Empty ........................................................24

16. Excessive Vibration ....................................................................25

17. Water Leaking From Outer Tub..................................................26

18. Troubleshooting Coin Drop ........................................................27

Electronic Control...........................................................................31

19. Error Code Listing ......................................................................32

20. PDA Does Not Communicate With Control...............................34

21. No Visible Display on Control....................................................35

22. Coins Ignored When Entered......................................................37

23. Washer Will Not Fill (Pressure Switch Diagnostic) ...................39

24. Washer Will Not Fill (Mixing Valve Diagnostic) ......................41

25. Washer Over Fills .......................................................................43

26. No Agitation – Low and High Speed..........................................45

27. Washer Will Not Spin – High Speed ..........................................47

28. Washer Will Not Spin – Low Speed...........................................49

Section 4 – Adjustments ........................................................................51

29. Leveling Legs..............................................................................51

30. Belt (Agitate and Spin) ...............................................................52

31. Cleaning Non-Electronic Coin Drop...........................................52

32. Cleaning Electronic Coin Drop...................................................54

2202202

Section 5 – Motor Test Procedure........................................................56

202202 3

Safety Information

Section 1

Safety Information

Throughout this manual and on machine decals, you will find precautionary statements (“CAUTION,”

“WARNING,” and “DANGER”) followed by specific instructions. These precautions are intended for the personal

safety of the operator, user, servicer and those maintaining the machine.

DANGER

Danger indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death.

WARNING

Warning indicates a hazardous situation that, if not avoided, could cause severe personal injury or death.

CAUTION

Caution indicates a hazardous situation that, if not avoided, may cause minor or moderate personal injury or property

damage.

Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specific instructions.

IMPORTANT

The word “IMPORTANT” is used to inform the reader of specific procedures where minor machine damage will

occur if the procedure is not followed.

NOTE

The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is

important but not hazard related.

In the interest of safety, some general precautions relating to the operation of this machine follow.

• Failure to install, maintain and/or operate this product according to the manufacturer’s

instructions may result in conditions which can produce serious injury, death and/or

property damage.

• Do not repair or replace any part of the product or attempt any servicing unless specifically

recommended or published in this Service Manual and unless you understand and have the

skills to carry out the servicing.

• Whenever ground wires are removed during servicing, these ground wires must be

reconnected to ensure that the product is properly grounded and to reduce the risk of fire,

electric shock, serious injury or death.

W006R2

WARNING

4202202

Safety Information

NOTE: The WARNINGS and IMPORTANT INSTRUCTIONS appearing in this manual are not meant to

cover all possible conditions and situations that may occur. Common sense, caution and care must be

exercised when installing, maintaining or operating the washer.

Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do

not understand.

Locating an Authorized Servicer

Alliance Laundry Systems is not responsible for personal injury or property damage resulting from improper

service. Review all service information before beginning repairs.

Warranty service must be performed by an authorized technician, using authorized factory parts. If service is

required after the warranty expires, Alliance Laundry Systems also recommends contacting an authorized technician

and using authorized factory parts.

To reduce the risk of electric shock, fire, explosion, serious injury or death:

• Disconnect electric power to the washer before servicing.

• Never start the washer with any guards/panels removed.

• Whenever ground wires are removed during servicing, these ground wires must be

reconnected to ensure that the washer is properly grounded.

W003

WARNING

Repairs that are made to your products by unqualified persons can result in hazards due to

improper assembly or adjustments subjecting you or the inexperienced person making such

repairs to the risk of serious injury, electrical shock or death.

W007

WARNING

If you or an unqualified person perform service on your product, you must assume the

responsibility for any personal injury or property damage which may result. The manufacturer

will not be responsible for any injury or property damage arising from improper service and/or

service procedures.

W008

WARNING

202202 5

Introduction

Section 2

Introduction

Customer Service

If literature or replacement parts are required, contact

the source from whom the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

For technical assistance, call (920) 748-3121.

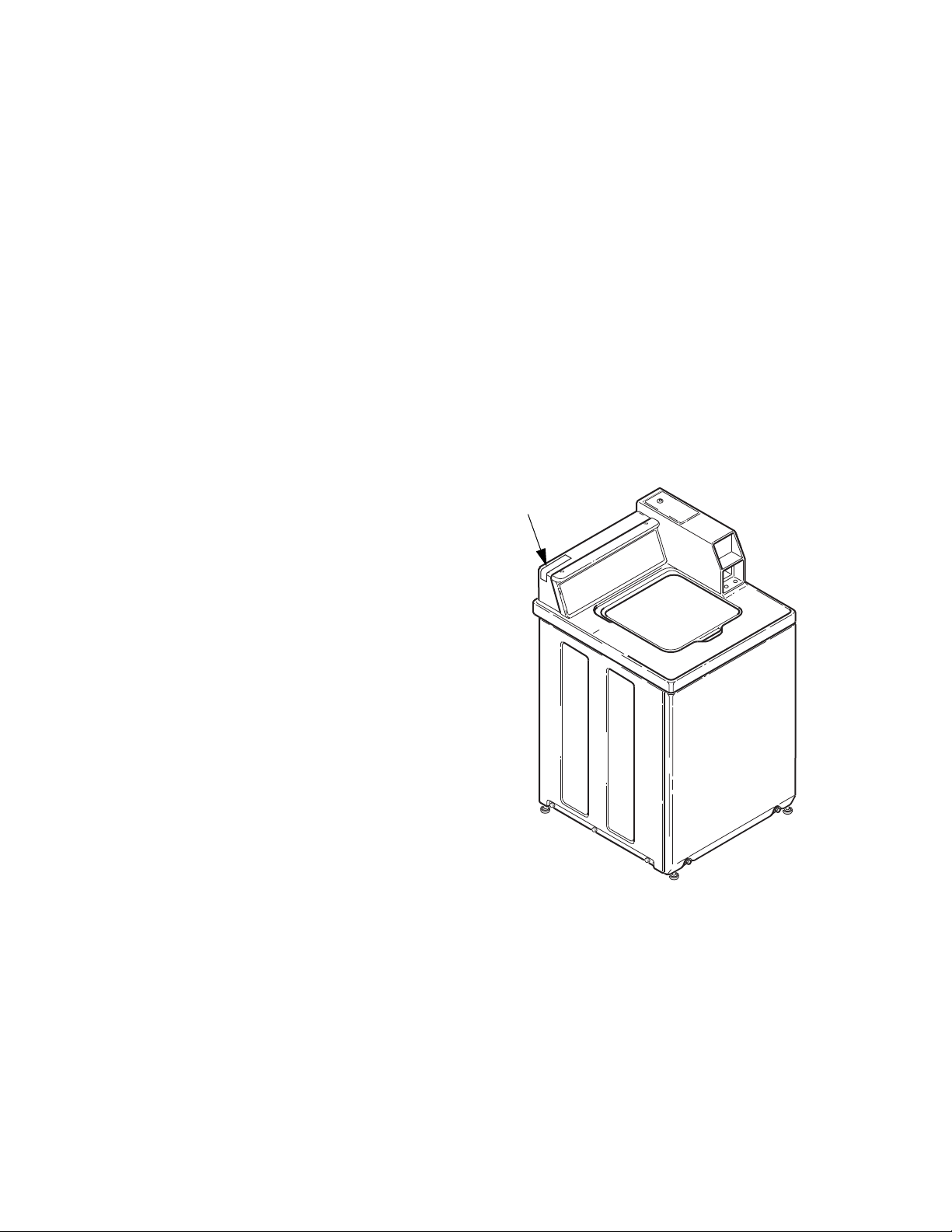

Nameplate Location

When calling or writing about your product, be sure to

mention model and serial numbers. Model and serial

numbers are located on nameplate(s) as shown.

TLW12C

Nameplate

6202202

Introduction

Model Identification

Information in this manual is applicable to these washers.

HWNLX2SP111CW01

HWNLE2SP111CW01

HWNLE2SP111CWNA

HWNLY2SP111CW01

SWNLC2PP111TW01

SWNLC2PP111TWNA

SWNLC2SP111TQ01

SWNLC2SP111TW01

SWNLC2SP111TWNA

SWNLX2SP111TW01

SWNLX2SP301AW01

SWNLY2PP111TW01

SWNLY2PP111TWNA

SWNLY2SP111TW01

SWNLY2SP111TWNA

SWNLY2SP301NW22

202202 7

Introduction

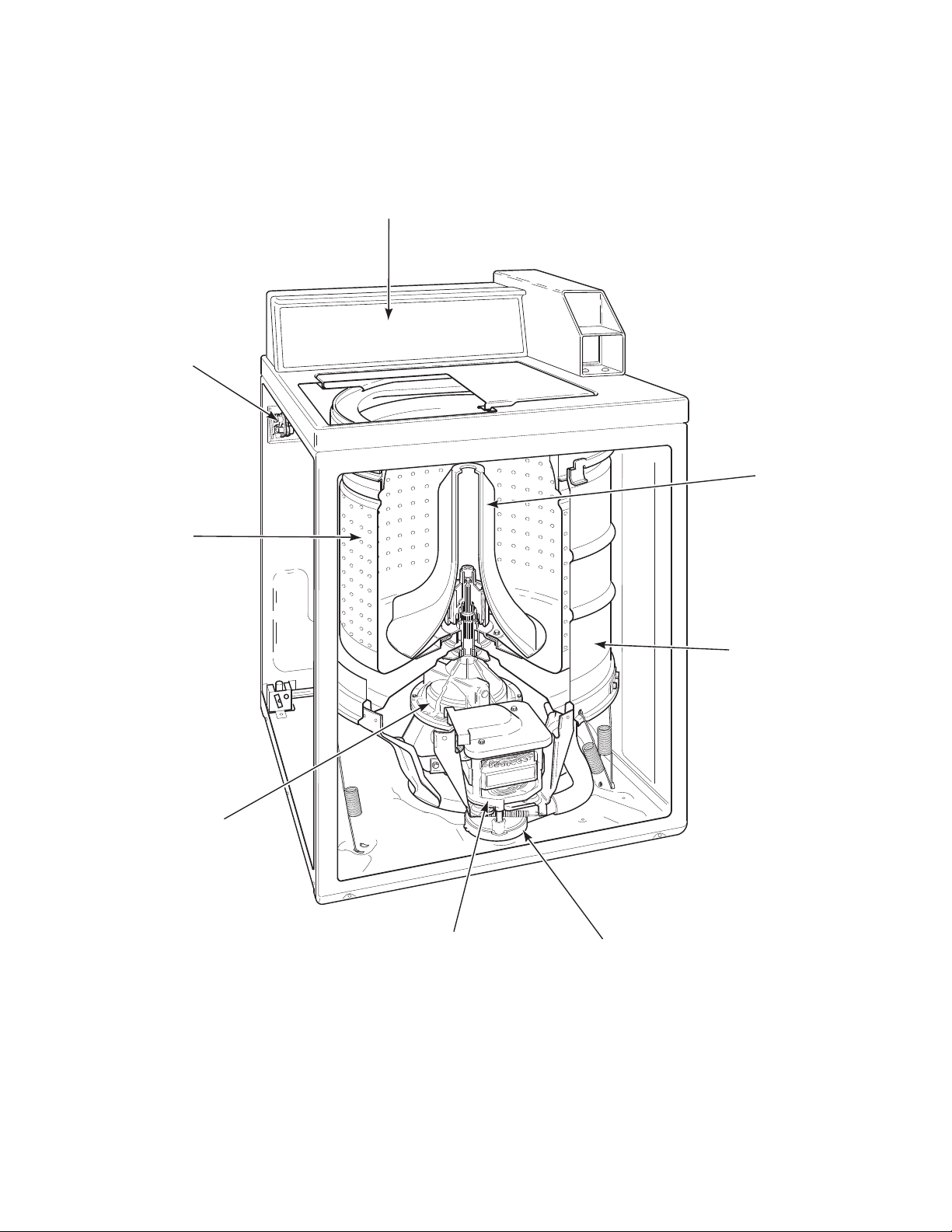

Theory of Operation

The cycle begins with a wash fill. The water

temperature is determined by the temperature selected.

While water fills the washtub, a column of air is

trapped in a pressure bulb and hose. The air pressure

continues to increase as the washtub fills with water

until it is great enough to activate the pressure switch.

The pressure switch then causes the wash fill to stop

and wash agitation to begin. However, the lid must be

closed for the washer to agitate or spin.

The washer uses a reversing type motor, a special drive

belt and an idler assembly. The idler assembly applies

tension to the outside of the drive belt.

W488SE3B

Pressure Switch

(Located

inside control

hood)

Mixing

Valve

Washtub

Transmission

Motor Pump

Outer

Tub

Agitator

8202202

Introduction

During agitation, the motor runs in the

counterclockwise direction. The spring tension on the

idler pulley applies the tension required to reduce the

slack on the drive belt and maintain maximum belt to

motor pulley contact. This eliminates belt slippage and

ensures an efficient wash action, even with extra large

loads.

The belt drives the transmission drive pulley in the

counterclockwise direction. The pulley drives the helix

which is splined to the input shaft of the transmission.

This causes the input shaft to turn inside of a roller

clutch which is pressed into the transmission cover.

This roller clutch acts as a bearing in the

counterclockwise direction allowing the transmission

gears to operate. The transmission’s rack and pinion

gear design produces a 210 degree agitation stroke at

the output shaft of the transmission which drives the

agitator. The brake assembly remains locked during the

agitation mode since no pressure is applied to it by the

transmission drive pulley.

After the wash agitation is completed, the timer

advances into the first spin. During spin, the motor

reverses turning in the clockwise direction to spin the

water out of the washtub. The combination of water,

washtub and load weight cause the drive belt tension on

the idler side of the belt to overtake the idler spring

pressure allowing the belt to become slack on the

opposite side. This reduces the belt to pulley contact

and allows slipping between the belt and pulley.

As water is removed by the pump and the momentum

of the washtub increases, the idler spring tension

gradually overcomes the belt tension removing the belt

slack. This eventually increases the belt to pulley

contact until maximum spin speed is achieved.

The drive pulley turns clockwise riding up the ramps of

the helix, exerting pressure on the brake and forcing it

to release from brake pads. The helix drives the input

shaft of the transmission, and when the input shaft turns

in the clockwise direction the roller clutch locks onto

the shaft causing the entire transmission assembly to

turn. None of the gears in the transmission are

operating at this time. The hub of the washtub is splined

to the transmission tube and rotates with the

transmission assembly. The centrifugal force created

by the spinning washtub causes water to be extracted

from the clothes.

Water is introduced during the first spin to “SPRAY”

the garments and remove suds from them. The initial

spin is followed by rinse agitation to rinse away any

detergent residue. The washer fills and then agitates

like the wash portion of the cycle. Following rinse

agitation, a final spin extracts the rinse water from the

clothes preparing them for the dryer.

Altri manuali per HWNLX2SP111CW01

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Alliance Laundry Systems Rondella

Alliance Laundry Systems

Alliance Laundry Systems LWS01A* series Istruzioni operative

Alliance Laundry Systems

Alliance Laundry Systems CCN020HNF Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems EA2011*A3000 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HFNKCASG116TN01 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems UW35P2 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems FLW1526C Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TLW12CTLW12C Guida

Alliance Laundry Systems

Alliance Laundry Systems POCKET HARDMOUNT UW50P4 Guida alla manutenzione e all'assistenza

Alliance Laundry Systems

Alliance Laundry Systems C003292ENR1 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems SF135PV Guida alla manutenzione e all'assistenza

Alliance Laundry Systems

Alliance Laundry Systems LWS02N Series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems Hardmount Coin and OPL Manuale di installazione e funzionamento

Alliance Laundry Systems

Alliance Laundry Systems HA1000 Istruzioni per il montaggio

Alliance Laundry Systems

Alliance Laundry Systems AA3410 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 800532R3 Guida

Alliance Laundry Systems

Alliance Laundry Systems Cygnus Ultra Pro Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems AFNE9BSP113TN01 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems UW35S2 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems Frontload Washer Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems NetMaster HWTB21 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems F232139R3 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems CFD14C Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 801455R2 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems D1528ENR3 Guida alla risoluzione dei problemi

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
