Allied Data Technologies CopperJet 800 Manuale utente

Installation manual 800 USB

Manual 800 USB

Rev1.0

Contents

General Information

Packaging contents

How to install the ADSL USB modem

ADSL USB modem driver installation under Windows

98 SE

ADSL USB modem driver installation under Windows ME

ADSL USB modem driver installation under Windows 2000

ADSL USB modem driver installation under Windows XP

ADSL USB Modem Configuration Wizar

Configuring the ADSL USB modem by option 1

Configuring the ADSL USB modem by option 2

Configuring the ADSL USB modem by option 3

Troubleshooting

Declaration of Conformity

Manual 800 USB

Rev1.0

General Information

Minimum System Requirements

Windows 98, 98SE, ME, 2000, or XP

Pentium 2 466 MHz

32 MB RAM

USB 1.1 compatible interface

Power consumption

USB 1.1 specification

Certification/Homologation

CE, EN60950, FCC, UL 1950

ADSL Complaince

ANSI T1.413 i2

G.992.1 annex A

G.992.2 (G.Lite)

Multimode

General Specifications

USB Buspowered

DHCP Client

PPP ov

er ATM (RFC 2364)

PPPoE relay

Transparent Bridging (RFC 1483)

Manual 800 USB

Rev1.0

Packaging contents

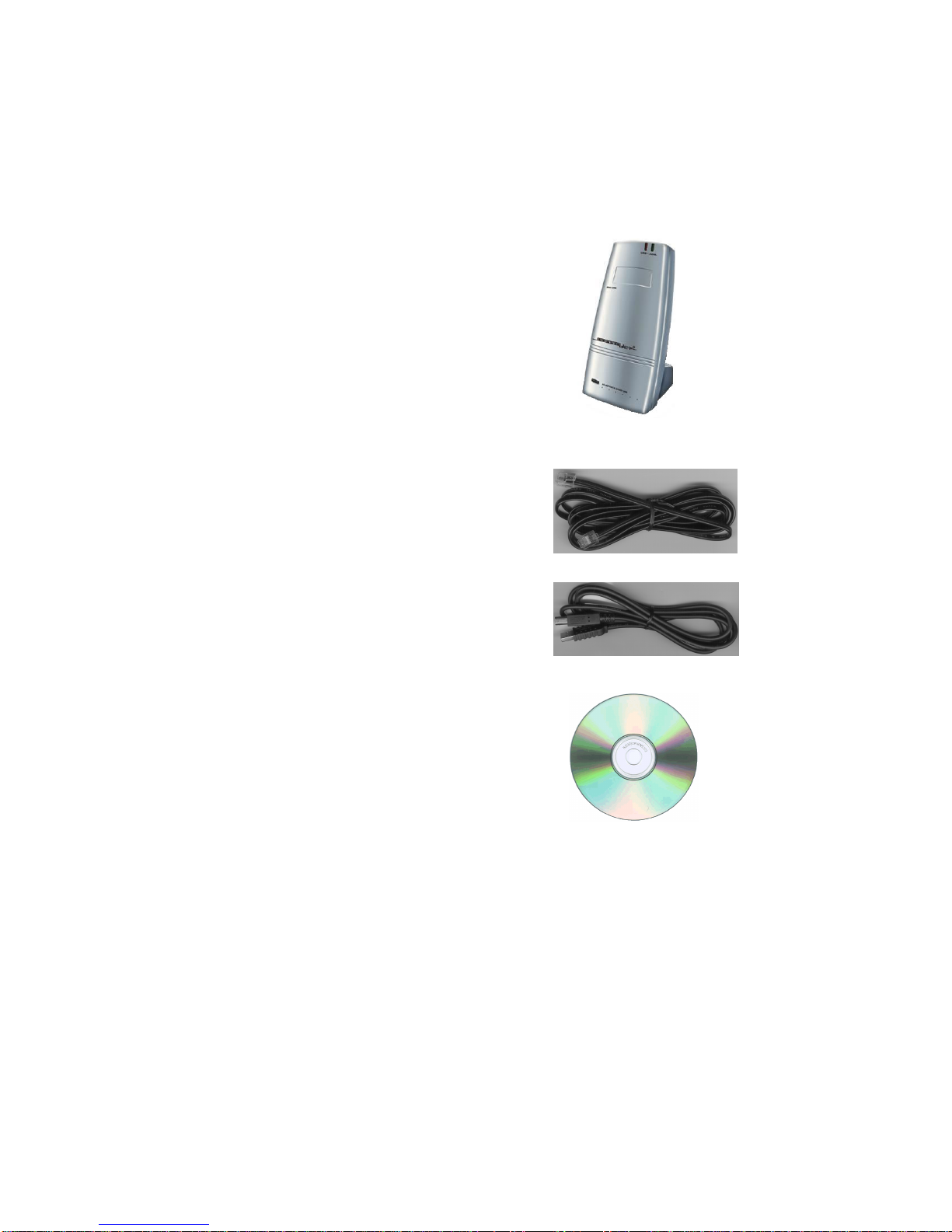

1. ADSL USB modem

2. RJ11 cable

3. USB cable

4. Driver CD

Manual 800 USB

Rev1.0

How to install the ADSL USB modem.

1. Connect the USB cable to your computer.

2. Connect the other side of the USB cable to your ADSL USB modem.

3. Connect the RJ11 cable to your ADSL USB modem (the ADSL port on the

back of the ADSL USB modem).

4. Connect the other side of the RJ11 cable into the phone outlet.

See pictur

e below for the setup.

Service Provider

Network (Telco)

RJ11 Cable

USB Cable

Computer

Manual 800 USB

Rev1.0

ADSL USB modem driver installation under Windows 98 SE.

1. Place the CD

ROM in the CD

ROM drive.

After you plugged in the USB cable in the ADSL USB modem and your computer,

Windows automatical

ly detects new hardware.

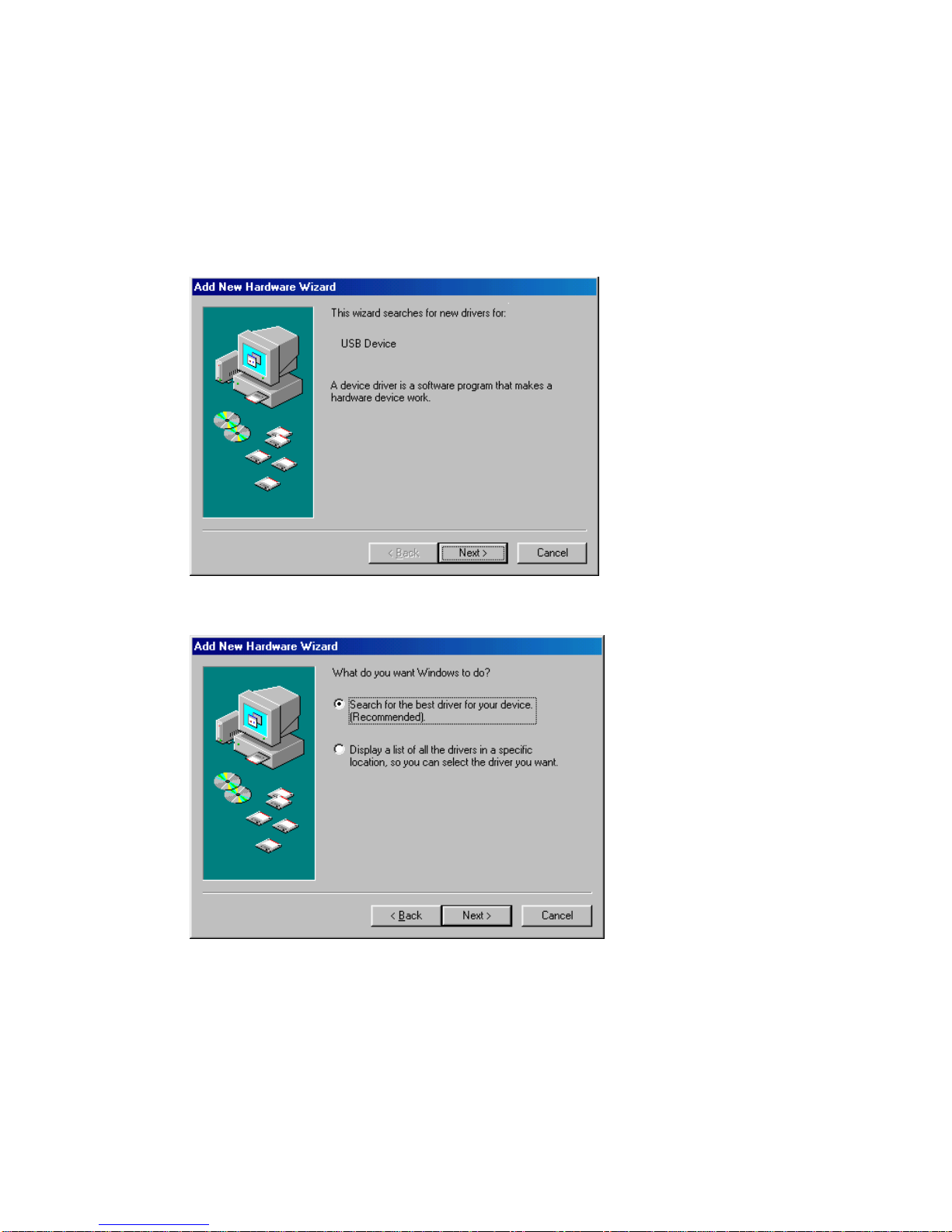

2. Click on ”

”.

3. Select ”

Search for the best driver for your device (Recommended)

”.

Click on ”

”.

Manual 800 USB

Rev1.0

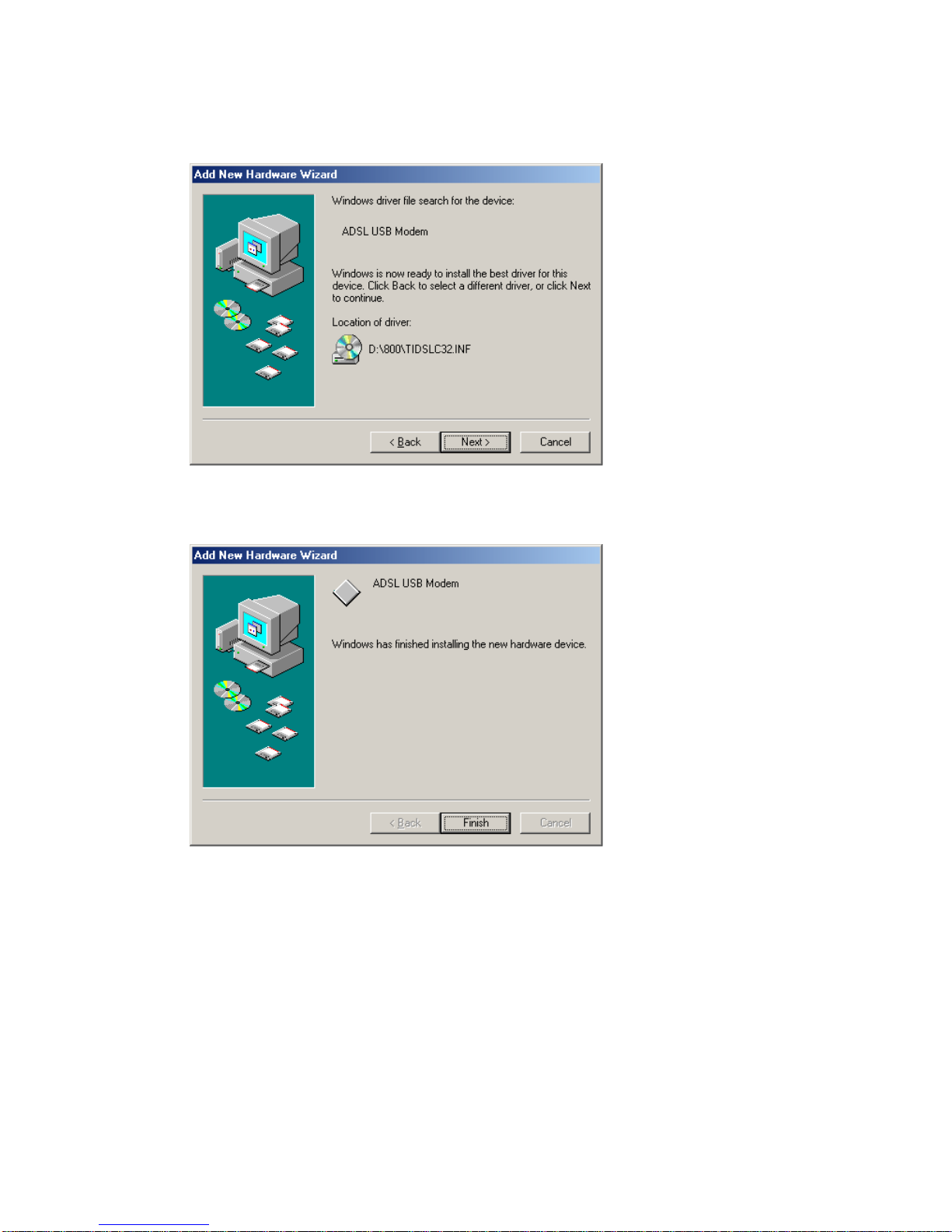

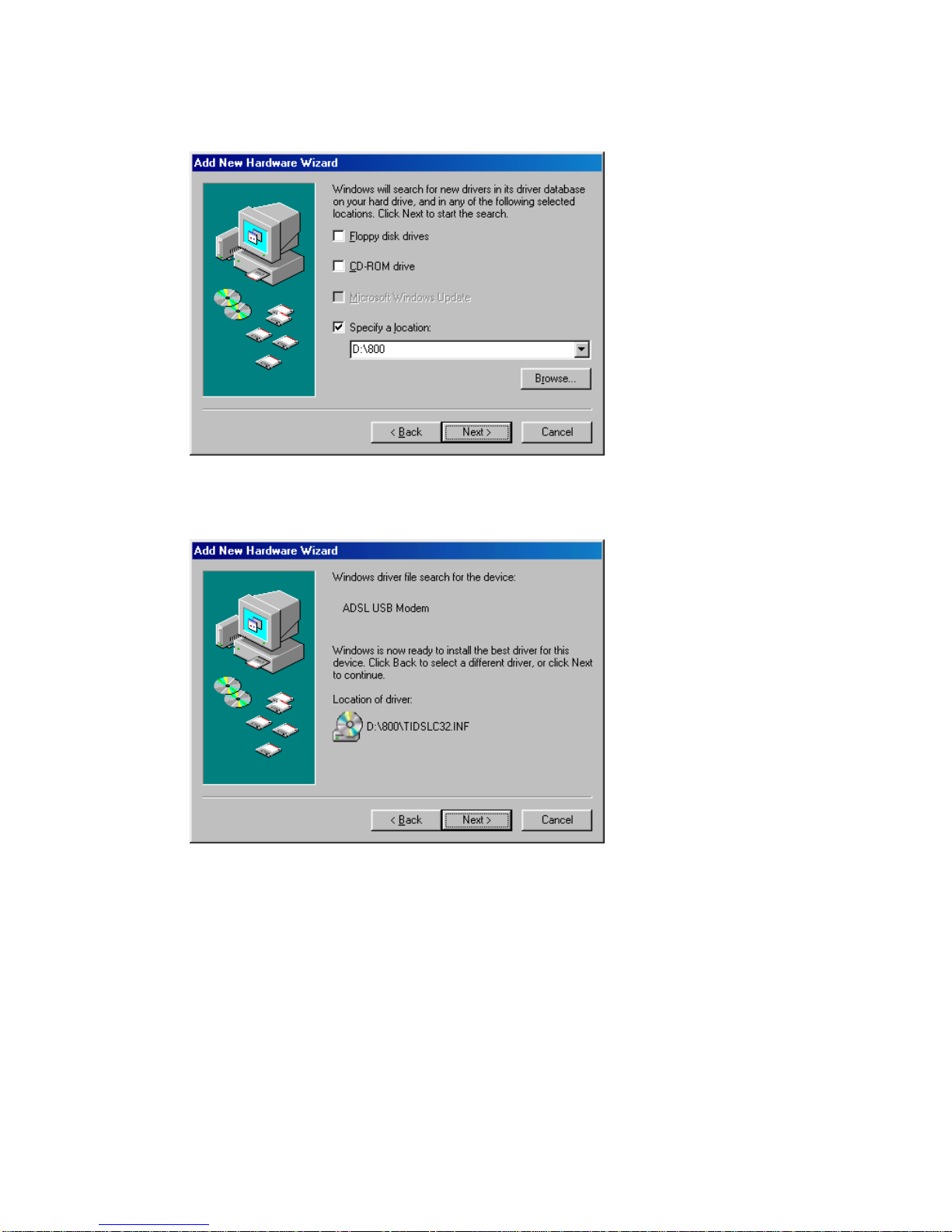

4. Specify the location of the driver or click on ”

Browse

”.

Click on ”

”.

5. Click on ”

”.

Manual 800 USB

Rev1.0

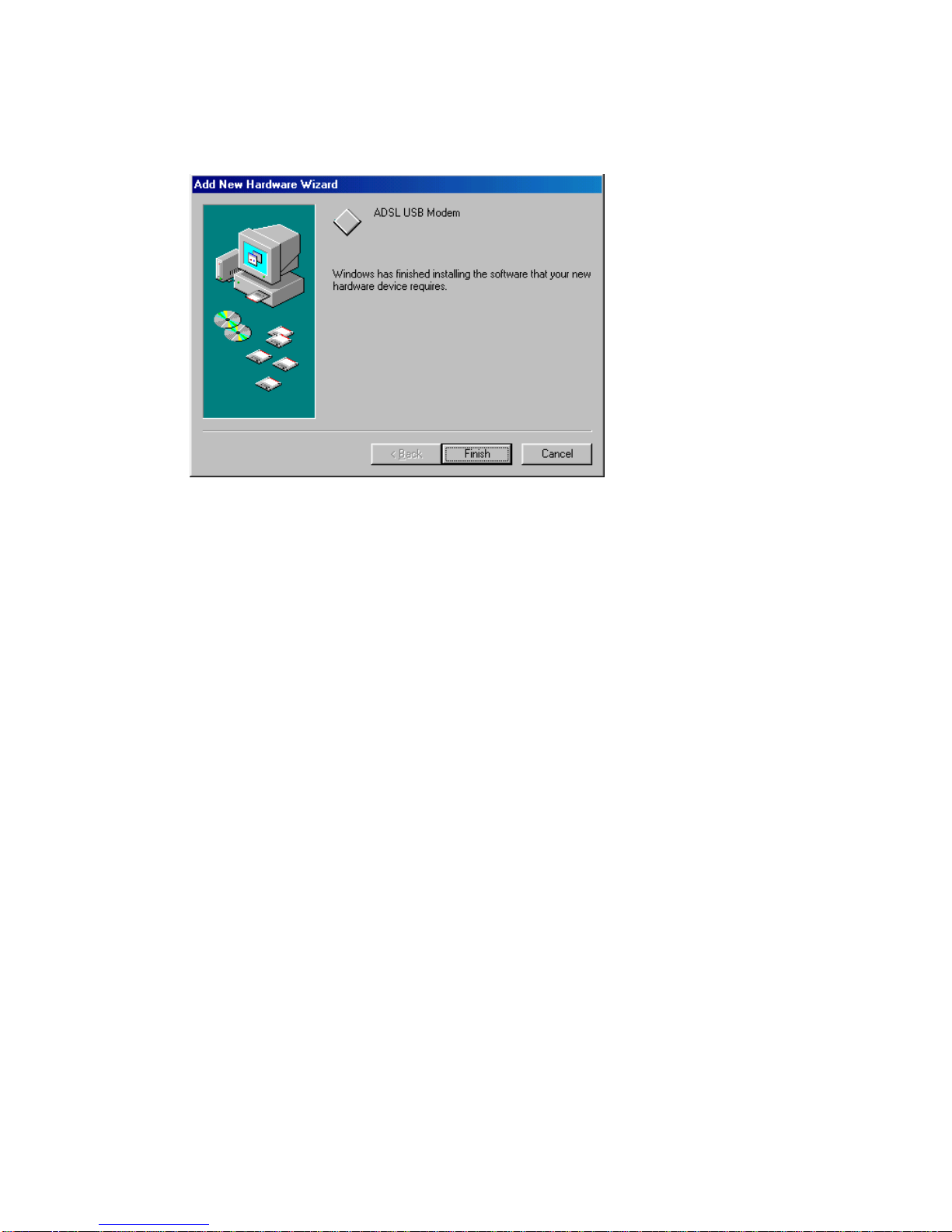

6. Click on ”

Finish

”.

After the USB driver installation, the ”

ADSL USB Modem Configuration Wizard

”

will start automatically.

How to configure the ADSL USB modem see chapter ”

ADSL USB Modem

Configuration Wizard

”.

Manual 800 USB

Rev1.0

ADSL USB modem driver installation under Windows ME

1. Place the CD

ROM in the CD

ROM drive.

After you plugged in the USB cable in the ADSL USB modem and your computer,

Windows automatically detects new hardware.

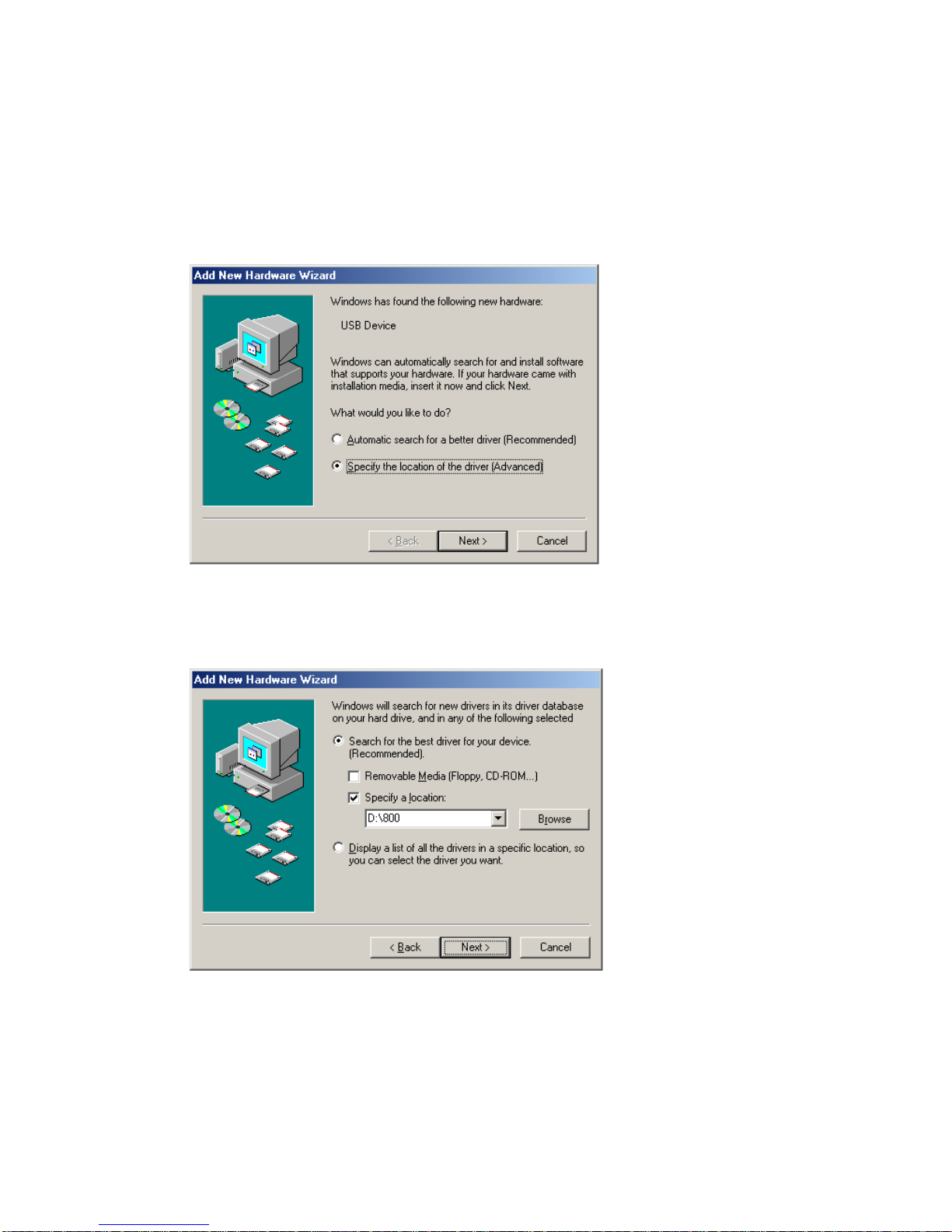

2. Se

lect ”

Specify the location of the driver (Advanced)

”.

Click on “

”.

3. Specify the location of the driver or click on

”Browse”

Click on

”Next”

Manual 800 USB

Rev1.0

4. Click on

”Next”

5. Click on ”

Finish

”.

After the USB driver installation,

the ”

ADSL USB Modem Configuration Wizard

”

will start automatically.

How to configure the ADSL USB modem see chapter ”

ADSL USB Modem

Configuration Wizard

”.
