Drive Button
Quickly selects drive
mode.
Charger Port
This is where you plug
in your charger.
Remember to charge
your chair every night.

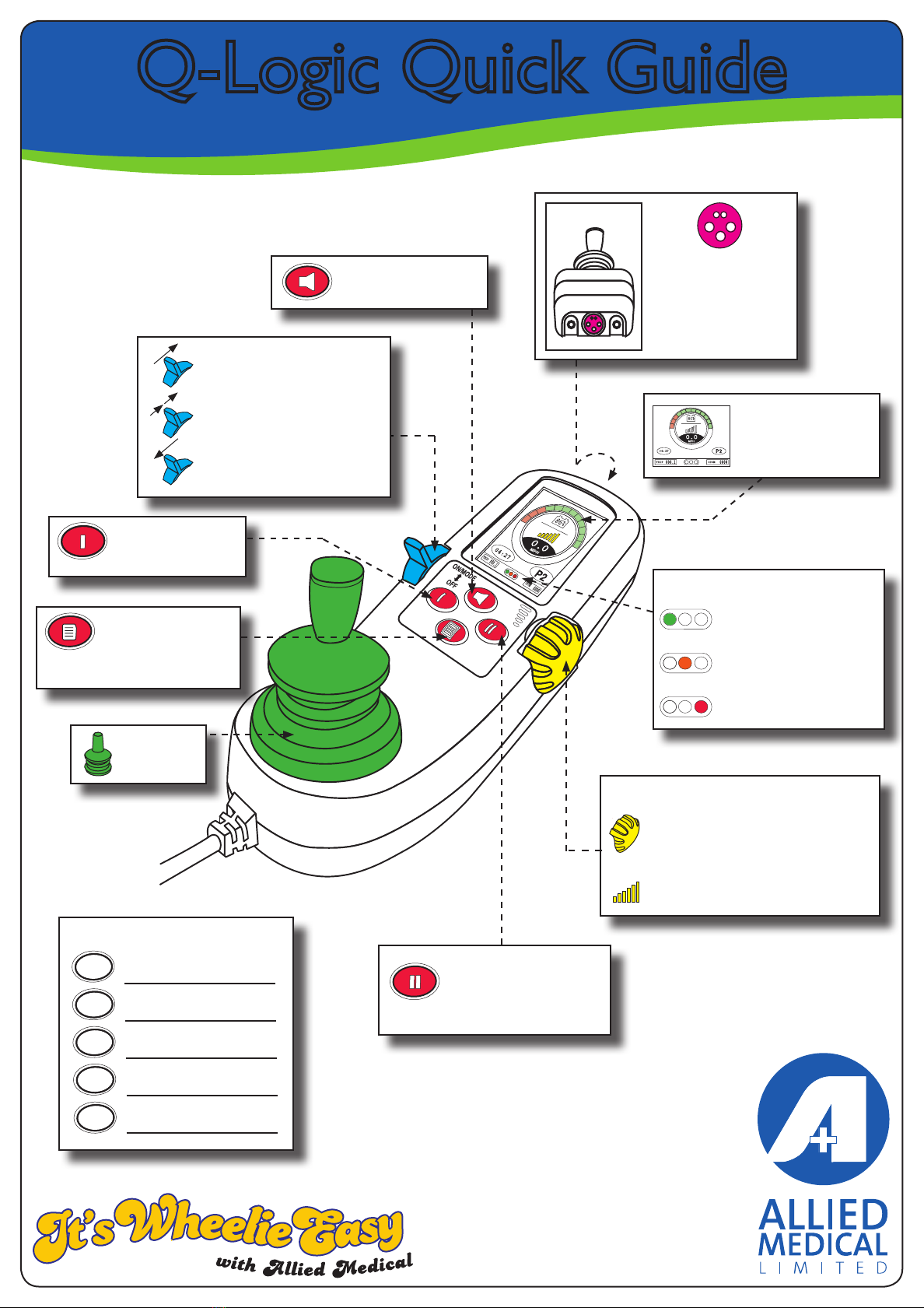

Front View
Horn Button
Menu Button
Selects menu options
for changing display
settings.
Joystick
Seat Functions
Quickly selects powered
seat functions, e.g.Tilt-in-
space.
Battery Meter
Shows how much charge
you have remaining.
Maximum Speed Knob
Adjusts the maximum speed of the chair.
Roll down to lower maximum speed.
Roll up to increase maximum speed.
You can see what speed is set in the
middle of the display.
On/Off/Mode Switch
Flick up to turn on your chair.
Flick down to turn chair off.
Flick up again to cycle through
my proles (P1, P2, Seat, etc).
Drive Indicator
Drive active - your chair will
move as normal
Speed limited - your seat is
raised and will drive slowly.
Drive stopped - your chair is
tilted too far back.
My Proles
P1
P2
P3
P4
P5
Q-Logic Quick Guide
PO Box 302 250
North Harbour
Auckland
Freephone 0800 31 61 81
Ph 09 415 1685
Fax 09 415 1686
www.alliedmedical.co.nz
Quick Guide.indd 1 26/01/2011 4:08:06 p.m.
Q-Logic Quick Guide

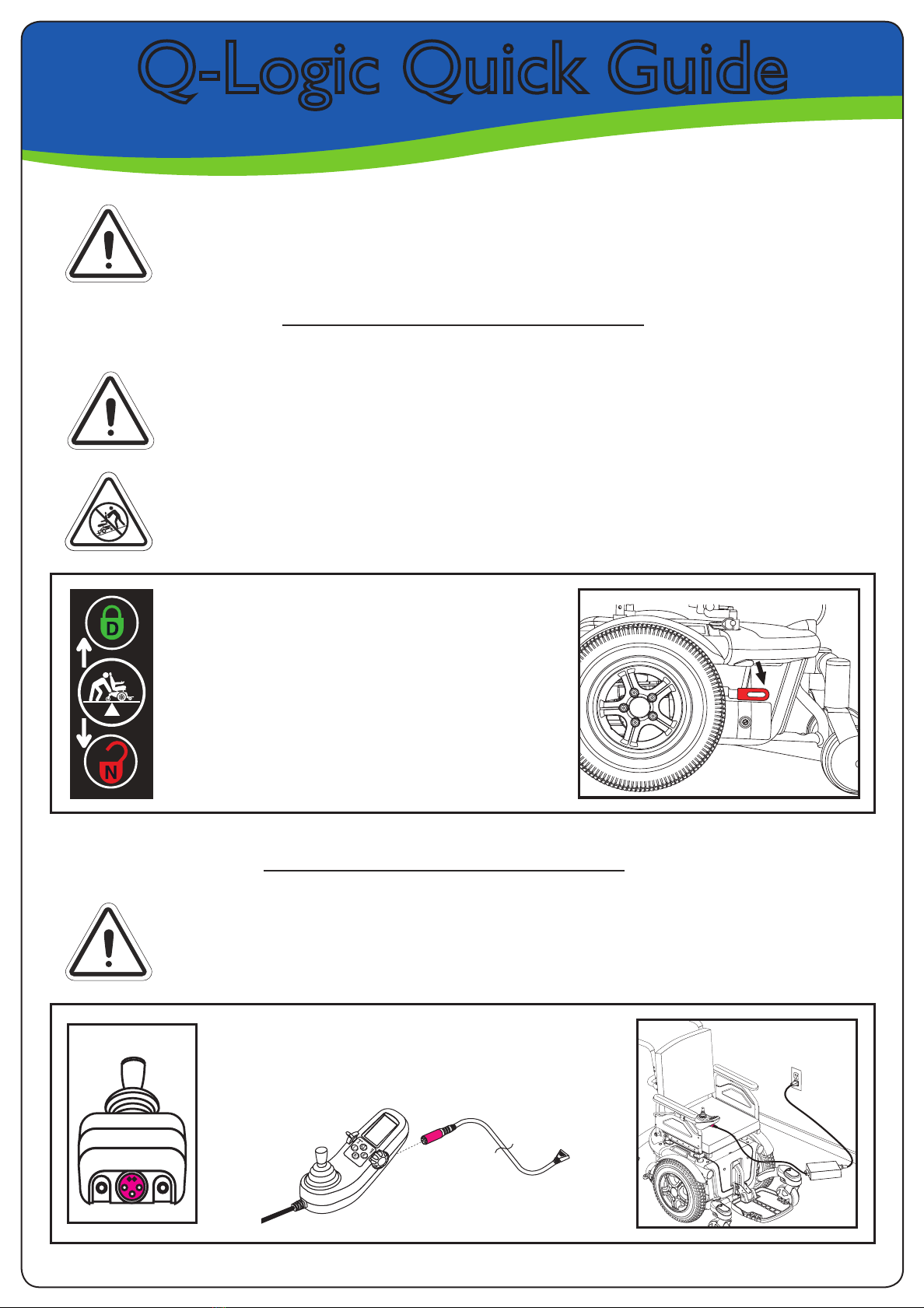

Ensure you turn off the chair for transfers.
Freewheel your chair by disengaging both motors.
Never disengage your motors when on a slope!
Unlocked and in freewheel mode.
Locked and in drive mode
Place unit on level ground and
stand to one side when changing
between modes.
Remember to charge your chair every night.
Your charger plugs into the
front of your hand control.
Front View
Quick Guide.indd 2 26/01/2011 4:08:09 p.m.
