Chapter 1

Switch Installation

This guide shows you how to install the FORMULA 8200 fiber switch from

Allied Telesyn International Corp., shown in Figure 1 and Figure 2.

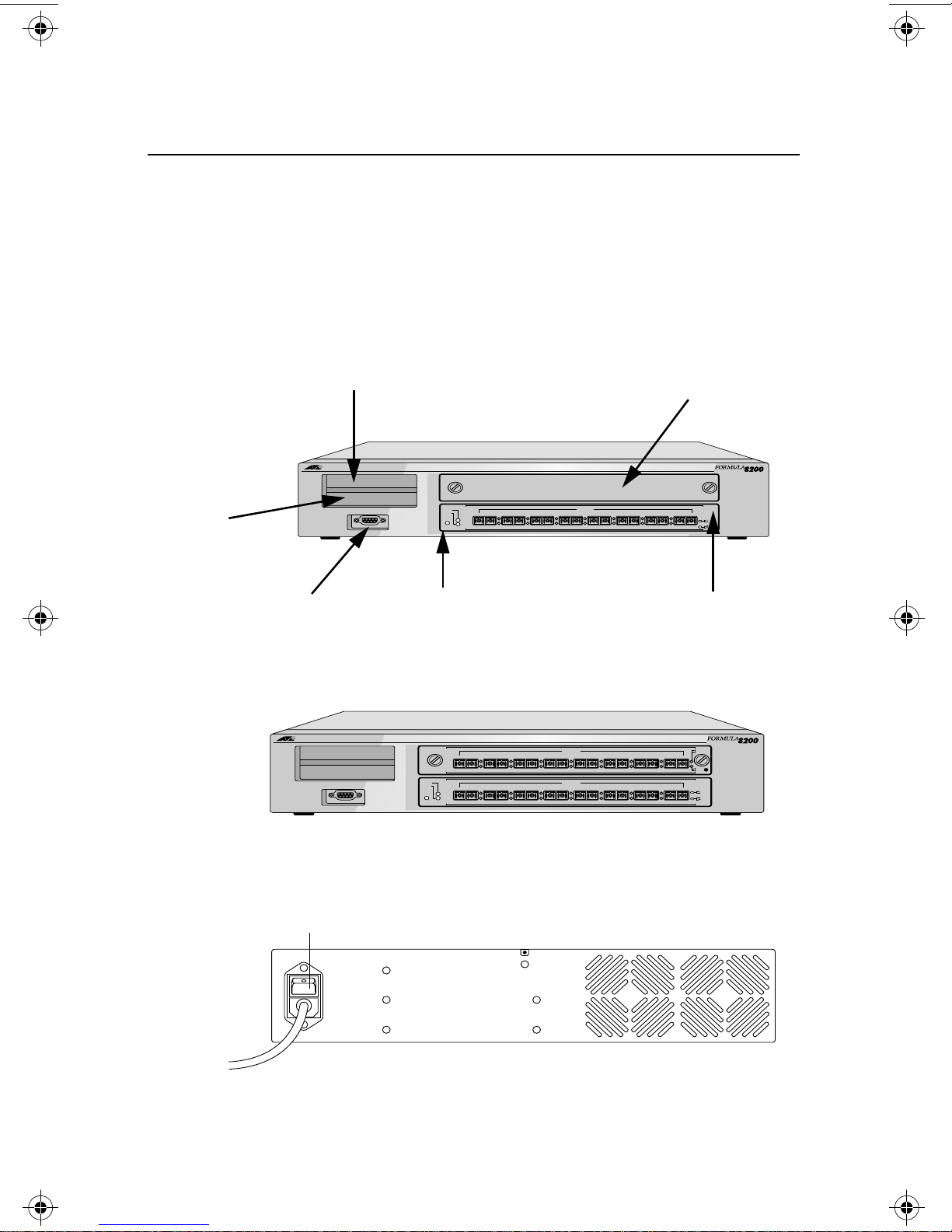

Figure 1:

The FORMULA 8200 Fiber Switch Models (AT-8208F/SC and AT-8216F/SC)

Figure 2:

The FORMULA 8200 Rear Panel

10/100BASE-T NETWORK PORTS

9101112

10/100BASE-T NETWORK PORTS

13 14 15 16

8201

10/100BASE-T NETWORK PORTS

1234

10/100BASE-T NETWORK PORTS

5678

STATUS

POWER

RESET

GREEN - LINK

YELLOW - DIAG GREEN - ACTIVITY

YELLOW - COLLISION

RS-232 TERMINAL PORT

100 BASE-FX

12345678

STATUS

POWER

RESET

Activity

Collision

Link

Diag

Expansion slot

Onboard module

Reset button,

Power LED,

and Status LED

Console port

Slot for accelerator card

Slot for

uplink card

10/100BASE-T NETWORK PORTS

9101112

10/100BASE-T NETWORK PORTS

13 14 15 16

8201

10/100BASE-T NETWORK PORTS

1234

10/100BASE-T NETWORK PORTS

5678

STATUS

POWER

RESET

GREEN - LINK

YELLOW - DIAG GREEN - ACTIVITY

YELLOW - COLLISION

RS-232 TERMINAL PORT

100 BASE-FX

Activity

Collision

Link

Diag

100 BASE-FX

9 1011 12 1314 15 16

12345678

RESET

STATUS

POWER

Activity

Collision

Link

Diag

AT-8208 F/SC

AT-8216F/SC

Power Switch

Power switch

Fiber_Book Page 1 Tuesday, February 17, 1998 1:43 PM

Switch Installation

Overview

The FORMULA 8200 includes the following hardware and software features:

❑

Eight or sixteen 100Base-FX, full duplex, dual SC fiber ports

❑

Flow control to autosense buffer limits on the transmit port

❑

Front panel LEDs that provide operating status and a

Reset

button

for front panel control of switch

❑

RS-232 console port interface for local switch management or Telnet

support for remote switch management

❑

Rack mount or table mount capabilities

❑

Support for multiple optional hardware and port configurations:

— 10/100Base-TX expansion ports

— OC3 ATM uplink card

— FDDI uplink card

❑

Virtual LAN (VLAN) support for up to 16 VLANs

❑

Virtual routing to provide switching between VLANs

❑

Loop detection using Spanning Tree Protocol (IEEE 802.1d)

❑

Portmirroringtoallowmonitoringofone’sportactivitiesfromanother

port

❑

Support for RMON Groups 1,2,3, and 9

❑

Simple Network Management Protocol (SNMP) agent for

Management Information Bases (MIB) II and a private enterprise

MIB

❑

TFTP and Zmodem support for software upgrades and backup

Fiber_Book Page 2 Tuesday, February 17, 1998 1:43 PM

FORMULA 8200 Fiber Switch Installation Guide

Verifying Your Switch Package

Your FORMULA 8200 package consists of:

❑

One FORMULA 8200 fiber switch, either the 8-port AT-8208F/SC or

the 16-port AT-8216F/SC

❑

Rackmounting kit that includes brackets and screws for the

rackmounting option

❑

Four feet for the desktop mounting option

❑

AC power cord (U.S.A. only)

❑

This installation guide

If any of these components are damaged, contact your shipping carrier

representative. If any components are missing, please phone the Allied

Telesyn. Refer to Appendix D, “Where To Find Us,” on page 23.

Prerequisites for Switch Installation

Before installing the FORMULA 8200, make sure your site meets the following

requirements:

❑

Power: 90-264 VAC, 47-63 Hz, 3-6A

❑

Temperature: 0

~ 40

❑

Humidity: 85% maximum relative humidity, noncondensing

Refer to Appendix A for a summary on product specifications.

Ventilation

The switch has an internal fan module. For the fan to function correctly, you

must not block the ventilation openings which are located at the rear and the

sides of the chassis.

Power

Power connections for each unit should be able to provide 120 VAC for North

American models or 240 VAC for international models. It is advisable to use

dedicated power circuits or power conditioners to supply power to the network

devices. This aids in isolating network equipment from electrical power

interference.

Fiber_Book Page 3 Tuesday, February 17, 1998 1:43 PM

Switch Installation

Location

Install the FORMULA 8200 on a sturdy, level surface in a ventilated area that

isdust freeand awayfrom heatvents, warmair exhaustfrom otherequipment,

and direct sunlight. Avoid proximity to large electric motors or other

electromagnetic equipment.

Refer to Appendix A, “Product Specifications for the FORMULA 8200 Switch,”

for a summary of installation specifications.

Installing the FORMULA 8200 on the Desktop

1. Set the switch on the flat surface. Allow at least 2 inches on the right

side of the switch for proper ventilation and 5 inches in the back for

power cord clearance.

2. Use the plastic screws provided to attach the four rubber feet to each

marked location on the bottom of the chassis (Figure 3).

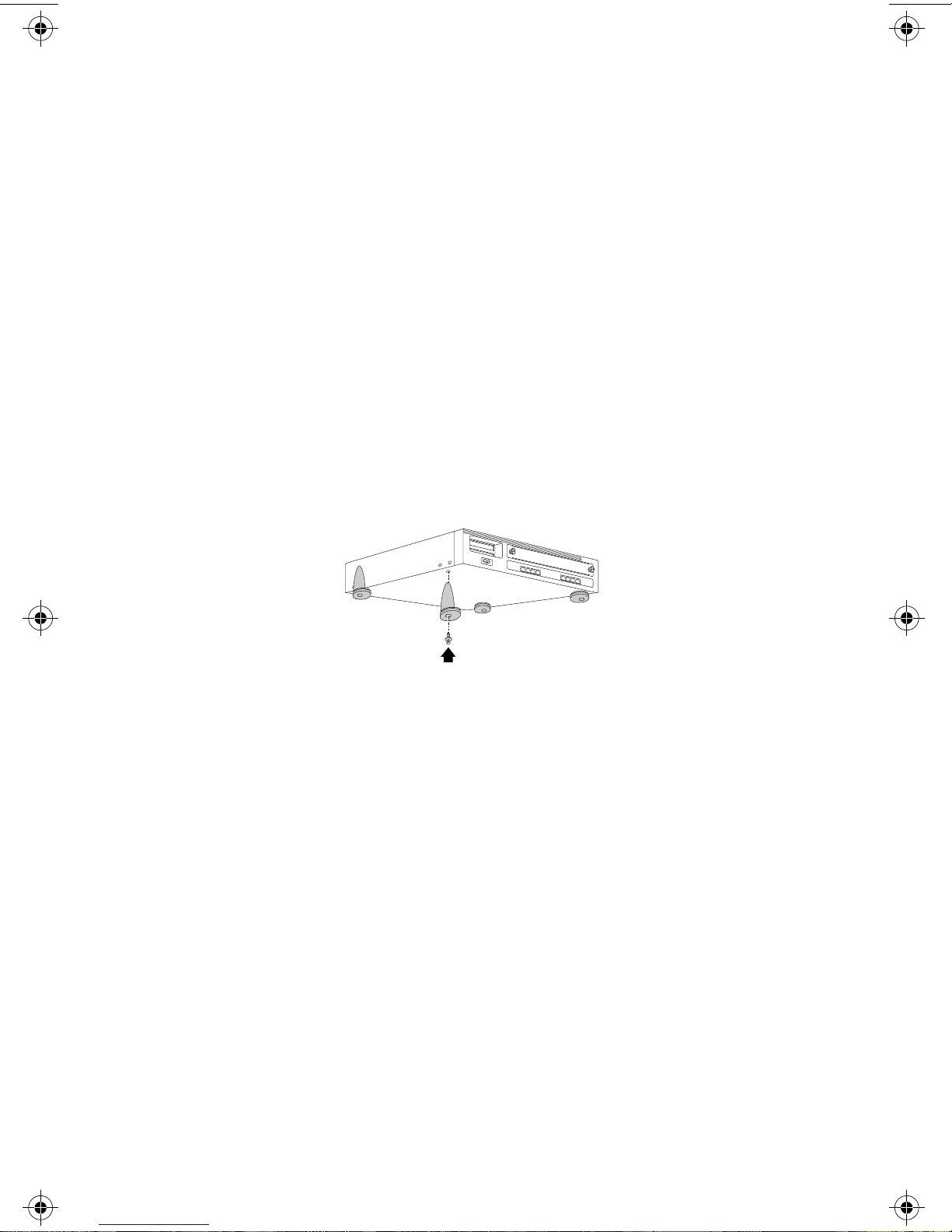

Figure 3:

Installing the Rubber Feet

3. Attach the power cord to the back of the switch. Then attach the other

end of the power cord to a grounded AC power outlet.

4. Proceed to the section, “Attaching a Console to the Switch.”

3007

Fiber_Book Page 4 Tuesday, February 17, 1998 1:43 PM

FORMULA 8200 Fiber Switch Installation Guide

Installing the FORMULA 8200 in the Rack

Caution

When mounting the switch in a rack, do not stack units directly on top

of one another.

1. If the rubber feet are attached, remove them.

2. Attach the mounting brackets to the side of the switch using the M4 x

8 mm screws provided (Figure 4).

Caution

Use only the M4 x 8 mm screws provided. Longer screws may contact

the internal components, damaging the unit.

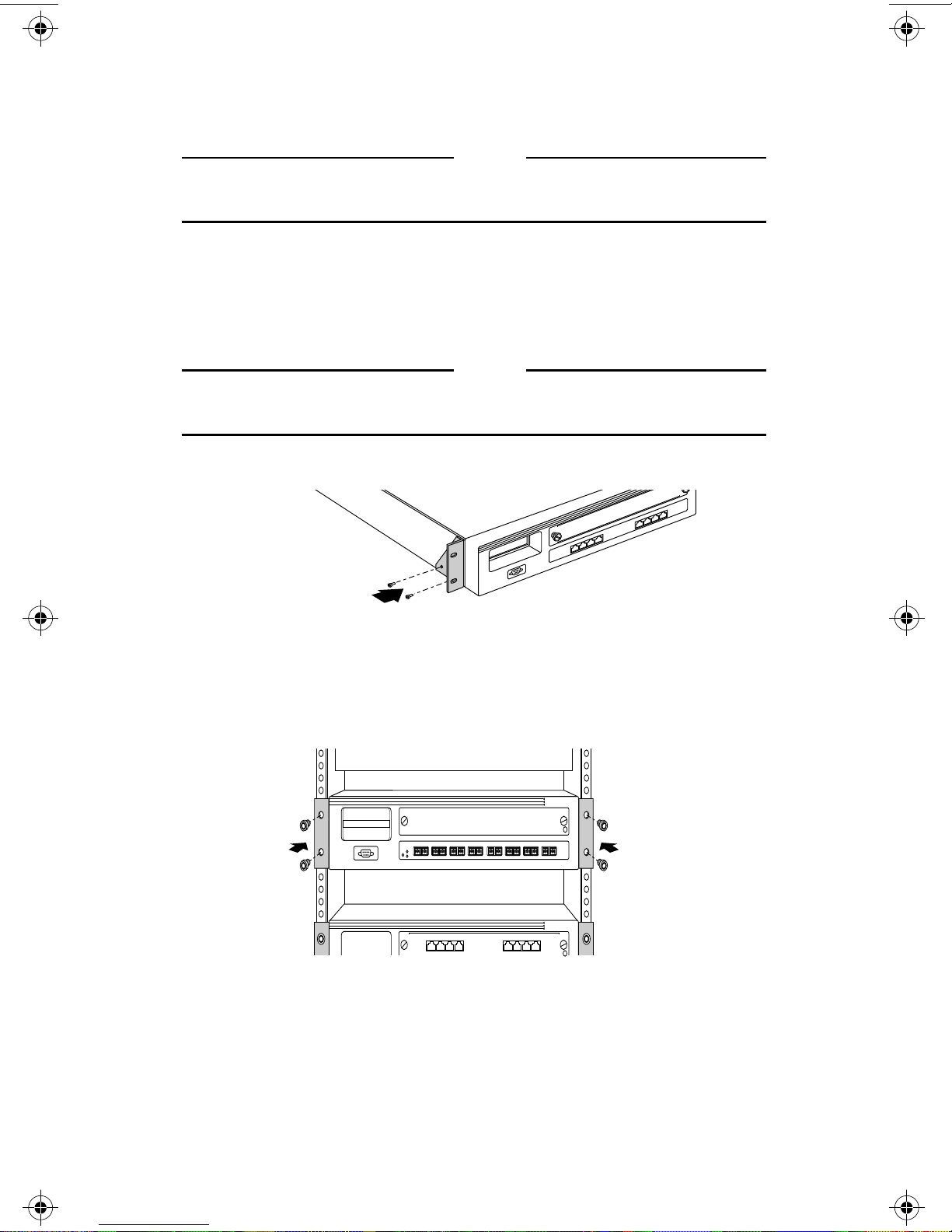

Figure 4:

Attaching the Mounting Brackets

3. Align the holes in the mounting brackets to the holes in the rack

(Figure 5) and secure with the screws provided.

Figure 5:

Rackmounting the Switch

4. Attach the power cord to the back of the switch. Then attach the other

end of the power cord to a grounded AC power outlet.

5. Proceed to the section, “Attaching a Console to the Switch.”

Fiber_Book Page 5 Tuesday, February 17, 1998 1:43 PM

Switch Installation

Attaching a Console to the Switch

You need the following equipment:

❑

A terminal or TTY-compatible terminal, or a portable computer with a

serial port and the ability to emulate a VT100 terminal

❑

A UL-listed null modem RS232 cable with a female DB9 connector for

the console port on the switch and with a connector on the other end

that is appropriate for your computer or terminal

1. Set the terminal protocol as follows:

— 9600 baud

— No parity

— 8 bits

— 1 stop bit

— Window terminal emulation option set to

— Terminal preferences:

Function

Arrow

, and

Control

keys active

2. Connect the terminal (or a computer in terminal-emulation mode) to

the switch’s console port using the RS232 cable. Then turn on the

terminal.

3. Proceed to the section, “Powering Up and Initializing the Switch.”

Powering Up and Initializing the Switch

Power on the switch.

The switch goes through a power-on self test (POST) to verify that all

components are functioning properly. The console displays messages

similar to the following screen:

Note

Report any error messages to Allied Telesyn’s Technical Support

department. Refer to Appendix D, “Where To Find Us,” for contact

information.

Fiber_Book Page 6 Tuesday, February 17, 1998 1:43 PM

Indice

Altri manuali Allied Telesis Router di rete

Allied Telesis

Allied Telesis TurboStack AT-TS90TR Manuale utente

Allied Telesis

Allied Telesis AT-GS950/48PS Manuale utente

Allied Telesis

Allied Telesis AT AR750S AT-AR750S AT-AR750S Manuale utente

Allied Telesis

Allied Telesis AT-FS705LE Manuale utente

Allied Telesis

Allied Telesis AT-8116 Manuale utente

Allied Telesis

Allied Telesis Rapier AR 300 Series Manuale utente

Allied Telesis

Allied Telesis AR Router Series Guida all'applicazione

Allied Telesis

Allied Telesis AT-AR442S Manuale utente

Allied Telesis

Allied Telesis AT-TN7100 Manuale utente

Allied Telesis

Allied Telesis Rapier AR 300 Series Istruzioni operative

Allied Telesis

Allied Telesis AT-GS950/8 Manuale utente

Allied Telesis

Allied Telesis AT-AR236E Scheda informativa del prodotto

Allied Telesis

Allied Telesis AR400 Series Manuale utente

Allied Telesis

Allied Telesis AT-AR256E v3 Manuale utente

Allied Telesis

Allied Telesis AT-8000S/24 Manuale utente

Allied Telesis

Allied Telesis AR750S Manuale di installazione e funzionamento

Allied Telesis

Allied Telesis AR750S-DP Manuale di installazione e funzionamento

Allied Telesis

Allied Telesis WebSmart AT-FS750/24POE Manuale utente

Allied Telesis

Allied Telesis AR400 Series Manuale di installazione e funzionamento

Allied Telesis

Allied Telesis CentreCOM AT-3726XL Istruzioni per l'installazione e il funzionamento

Allied Telesis

Allied Telesis AT-AR770S Manuale utente

Allied Telesis

Allied Telesis AT-FS705PD Manuale utente

Allied Telesis

Allied Telesis AT 9748TS/XP AT-9748TS/XP-20... Manuale utente

Allied Telesis

Allied Telesis AR725 Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
