Allied Vision Technologies Prosilica GE680 Manuale utente

GE680 / GE680C

Allied Vision Technologies Canada Inc.

101-3750 North Fraser Way

Burnaby, BC

V5J 5E9

Canada

Technical Manual

700026A

Updated September 15, 2010

GE680 Technical Manual Page 2

Table of Contents

Table of Contents .......................................................................................................... 2

Introduction ............................................................................................................ 5

Precautions.............................................................................................................. 5

Warranty ................................................................................................................. 5

Specifications .......................................................................................................... 6

Supported Features ................................................................................................... 7

Mechanical .............................................................................................................. 8

Connections............................................................................................................. 9

Cleaning the Sensor..................................................................................................14

Adjusting the C-mount ..............................................................................................15

Camera Installation ..................................................................................................16

System Optimization.................................................................................................21

Trouble Shooting .....................................................................................................23

Addendum..................................................................................................................26

GE IO Schematic.......................................................................................................27

Hirose 12-pin Trigger Schematic .................................................................................28

Mini-SMB Trigger Schematic.......................................................................................29

Trigger Timing Diagram .............................................................................................30

Notes on Triggering ..................................................................................................31

GE680 Technical Manual Page 3

Legal notice

For customers in the U.S.A.

(FCC Compliance Information)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications. However there is no guarantee

that interferences will not occur in a particular installation. Operation of this equipment in a residential environment is likely to

cause harmful interference.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this

equipment. The shielded interface cable recommended in this manual must be used with this equipment in order to comply with the

limits for a computing device pursuant to Subpart B of Part 15 of FCC Rules.

For customers in Canada

This digital apparatus complies with the Class A limits for radio noise emissions set out in the Radio Interference Regulations.

Pour utilisateurs au Canada

Cet appareil numérique est conforme aux normes classe A pour bruits radioélectriques, spécifiées dans le Règlement sur le

brouillage radioélectrique.

Life support applications

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can

reasonably be expected to result in personal injury. Allied Vision Technologies customers using or selling these products for use in

such applications do so at their own risk and agree to fully indemnify Allied Vision Technologies for any damages resulting from

such improper use or sale.

Trademarks

Unless stated otherwise, all trademarks appearing in this document are the property of Allied Vision Technologies and are fully

protected by law.

Warranty

The information provided by Allied Vision Technologies is supplied without any guarantees or warranty whatsoever, be it specific or

implicit. Also excluded are all implicit warranties concerning the negotiability, the suitability for specific applications or the non-

breaking of laws and patents. Even if we assume that the information supplied to us is accurate, errors and inaccuracy may still

occur.

All text, pictures and graphics are protected by copyright and other laws protecting intellectual property. It is not permitted to copy

or modify them for trade use or transfer, nor may they be used on web sites.

Allied Vision Technologies Canada Inc. 1/2010

GE680 Technical Manual Page 4

Contacting Allied Vision Technologies

• Technical information:

http://www.alliedvisiontec.com

• Support:

[email protected]

Allied Vision Technologies GmbH (Headquarters)

Taschenweg 2a

07646 Stadtroda, Germany

Tel.: +49.36428.677-0

Fax.: +49.36428.677-28

e-mail: [email protected]

Allied Vision Technologies Canada Inc.

101-3750 North Fraser Way

Burnaby, BC, V5J 5E9, Canada

Tel: +1 604-875-8855

Fax: +1 604-875-8856

e-mail: [email protected]

Allied Vision Technologies Inc.

38 Washington Street

Newburyport, MA 01950, USA

Toll Free number +1-877-USA-1394

Tel.: +1 978-225-2030

Fax: +1 978-225-2029

e-mail: [email protected]

GE680 Technical Manual Page 5

Introduction

The GE680 series of cameras are sensitive, 200 frames per second, VGA, Gigabit Ethernet cameras

based on the Kodak KAI-0340D CCD sensor.

Precautions

READ INSTALLATION GUIDE CAREFULLY.

This document contains specific information which is necessary for the correct operation and

treatment of this product.

DO NOT OPEN THE CAMERA. WARRANTY IS VOID IF CAMERA IS OPENED.

This camera contains sensitive components which can be damaged if handled incorrectly.

KEEP SHIPPING MATERIAL.

Poor packaging of this product can cause damage during shipping.

VERIFY ALL EXTERNAL CONNECTIONS.

Verify all external connections in terms of voltage levels, power requirements, voltage polarity,

and signal integrity prior to powering this device.

CLEANING.

This product can be damaged by some volatile cleaning agents. Avoid cleaning the image sensor

unless absolutely necessary. Please see instructions on sensor cleaning in this document.

DO NOT EXCEED ENVIRONMENTAL SPECIFICATIONS.

See environmental specifications limits in the Specifications section of this document.

Warranty

AVT provides a 2 year warranty which covers the replacement and repair of all AVT parts which are

found to be defective in the normal use of this product. AVT will not warranty parts which have

been damaged through the obvious misuse of this product.

GE680 Technical Manual Page 6

Specifications

Sensor

pe Kodak KAI-0340D

Sensor Shutter Type Progressive Interline

Image Resolution 640 x 480 pixels

Pixel Size 7.4μm x 7.4μm

Optical Forma

3 inch

Lens Moun

C-mount with adjustable back focus

Color Sensor Filter Pattern†Bayer

Full Resolution Frame Rate 205 fps

Frame Rate (320 x 240 ROI) 388 fps

I/O 1 isolated TTL compatible input, 3 isolated TTL compatible

outputs. 1 RS-232 input/output.

Power Requirements Less than 4.5W††. 12V nominal.

Digitization 12 Bits

Trigger latency* 1.2μs

Trigger Jitter* ±10ns

Tpd* 90ns

Operating Temperature 0 to 50 Celsius***

Operating Humidity 20 to 80% non-condensing

Size 39mm (height) x 51mm (width) x 80mm (length)

Weigh

169g

Hardware Interface Standard IEEE 802.3 1000BASE-T, 100BASE-TX

Software Interface Standard GigE Vision Standard 1.0

Regulator

Conforms to CE, FCC

† Applies to GE680C only.

†† Power consumption will increase with reduced ROI imaging.

* See Notes on Triggering in the Addendum.

***DUE TO THE SMALL PACKAGING AND HIGH SPEED OF THE GE CAMERAS, SPECIAL CARE IS REQUIRED

MAINTAIN A REASONABLE OPERATING TEMPERATURE. IF THE CAMERA IS TO BE OPERATED IN A WARM

ENVIRONMENT, IT IS SUGGESTED THAT THE CAMERA BE MOUNTED ON A HEAT SINK SUCH AS A METAL BRACKET

AND THAT THERE IS SUFFICIENT AIR FLOW.

GE680 Technical Manual Page 7

Supported Features

Imaging Modes free-running, external trigger, fixed rate, sof

ware trigger

Fixed Rate Control 0.001 fps to maximum frame rate

External Trigger Delay 0 to 60 seconds in 1 microsecond increments

External Trigger Even

rising edge, falling edge, any edge, level high, level low

Exposure Time 25 microseconds to 60 seconds in 1 microsecond increments

Gain 0 to 24dB

Region of Interest (ROI) independent x and y control with 1 pixel resolution

Horizontal Binning 1 to 8 pixels

Vertical Binning 1 to full resolution of sensor

Pixel Formats Mono8, Mono16*, Bayer8, Bayer16, RGB24,

YUV411, YUV422, YUV444,

BGR24, RGBA24, BGRA24

Sync Out Modes trigger ready, trigger input, exposing, readout, imaging,

strobe, GPO

*On monochrome versions only.

GE680 Technical Manual Page 8

Mechanical

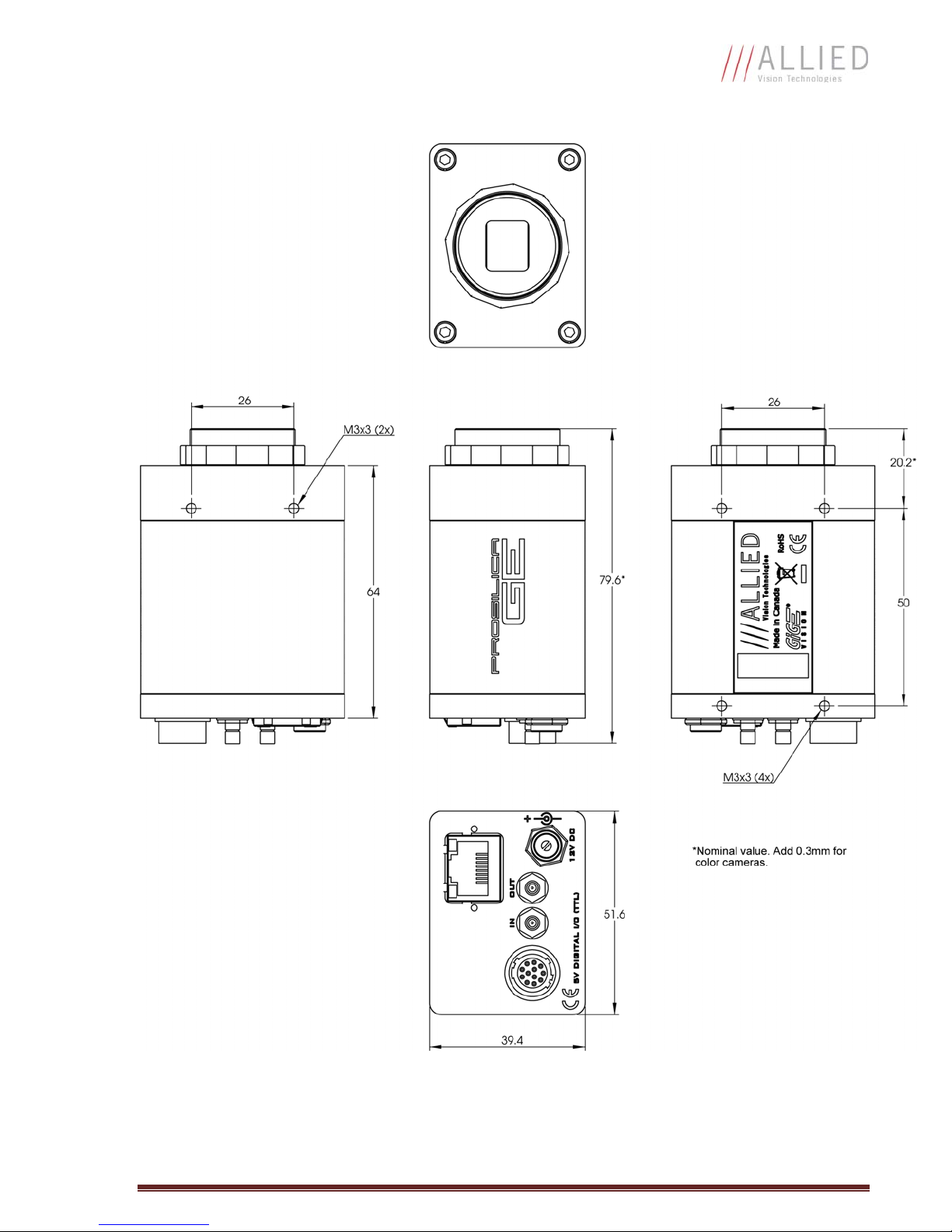

Figure 1. GE SERIES mechanical dimensions.

GE680 Technical Manual Page 9

Connections

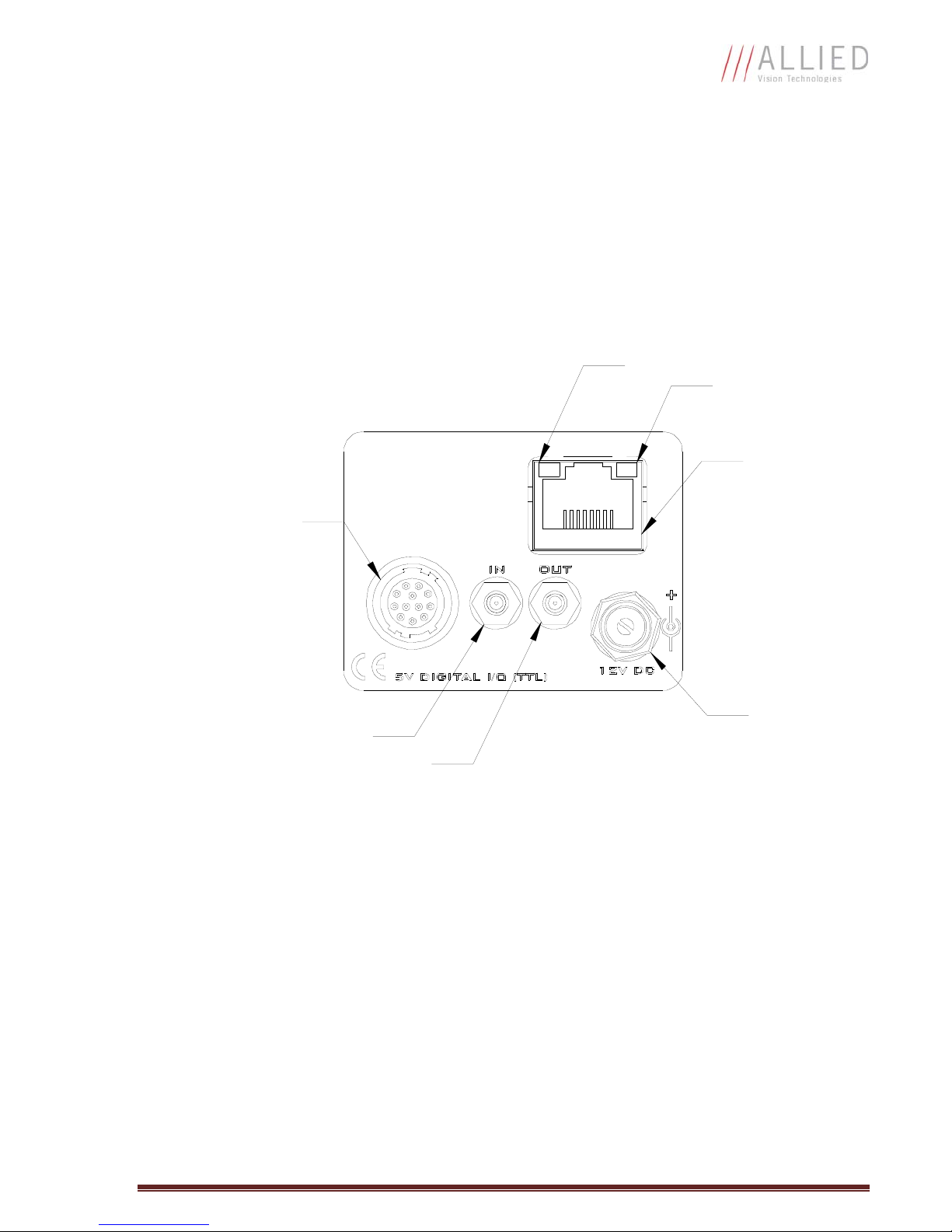

Figure 2. GE SERIES connection diagram.

GE680 Technical Manual Page 10

Item 1: GIGABIT ETHERNET PORT

This port conforms to the IEEE 802.3 1000BASE-T standard for Gigabit Ethernet over copper. It is

recommended that CAT5E or CAT6 compatible cabling and connectors be used for best

performance. Cable lengths up to 100m are supported.

Item 2: General Purpose I/O PORT

PIN FUNCTION

1Trigger Inpu

2Sync Out 2

3Sync Out 3

4RS-232 RXD

5RS-232 TXD

6DNC

7DNC

8DNC

9DNC

10 Isolated Ground

11 Isolated Ground

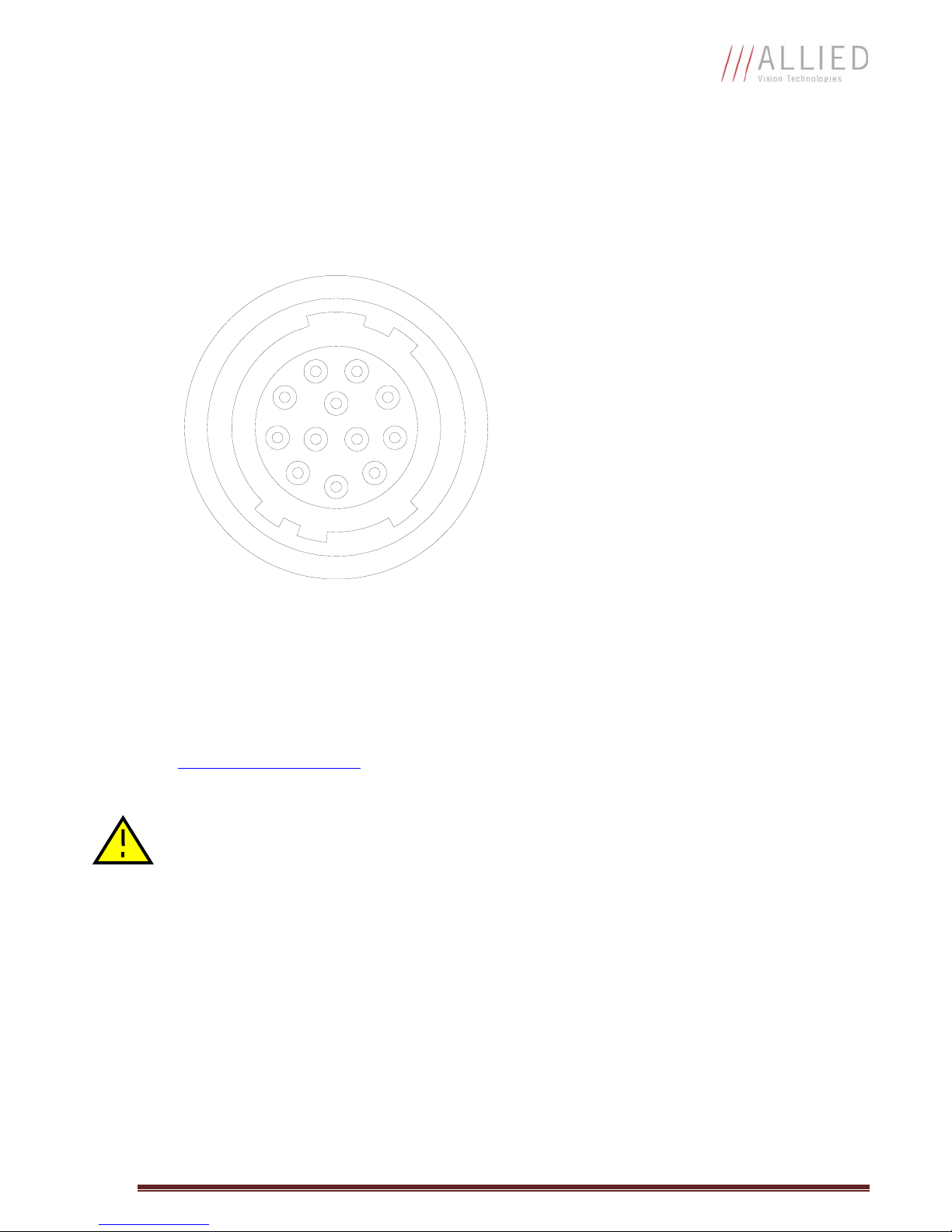

Figure 3. General Purpose I/O Pin out. Camera rear view. 12 Isolated Ground

The General Purpose I/O port uses a Hirose HR10A-10R-12SB connector on the camera side. The

mating cable connector is Hirose HR10A-10P-12P. This connector can be purchased from AVT or

from http://www.digikey.com.

See Addendum for more detail.

DO NOT EXCEED 5.5V ON SIGNAL INPUTS.

All inputs and outputs are galvanically isolated from the internal camera circuitry.

TRIGGER INPUT

This input signal allows the camera to be synchronized to some external event. The camera can be

programmed to trigger on the rising or falling edge of this signal. The camera can also be

programmed to capture an image at some programmable delay time after the trigger event.
