Allied Vision Alvium G1 Manuale utente
Page 1 of 5
QUICK REFERENCE
Pin Assignment for Alvium Cameras
V1.0.0
2023-Feb-13
Scope
This document gives an overview for camera connections with I/O cables for GigE and USB cameras and
with FPC cables for CSI-2 cameras. To avoid damage to your cameras and connected peripherals, see the
corresponding Alvium user guide for instructions and further information.
Helpful downloads
Download Link
User guides for Alvium cameras www.alliedvision.com/en/support
Additional documentation
Accessories, such as I/O cables www.alliedvision.com/en/products/accessories
Table 1: Helpful downloadss
Alvium G1
Alvium 1500 C
Alvium 1800 C
Alvium 1800 U
Alvium G5
Pin Assignment for Alvium
Cameras
Page 2 of 5

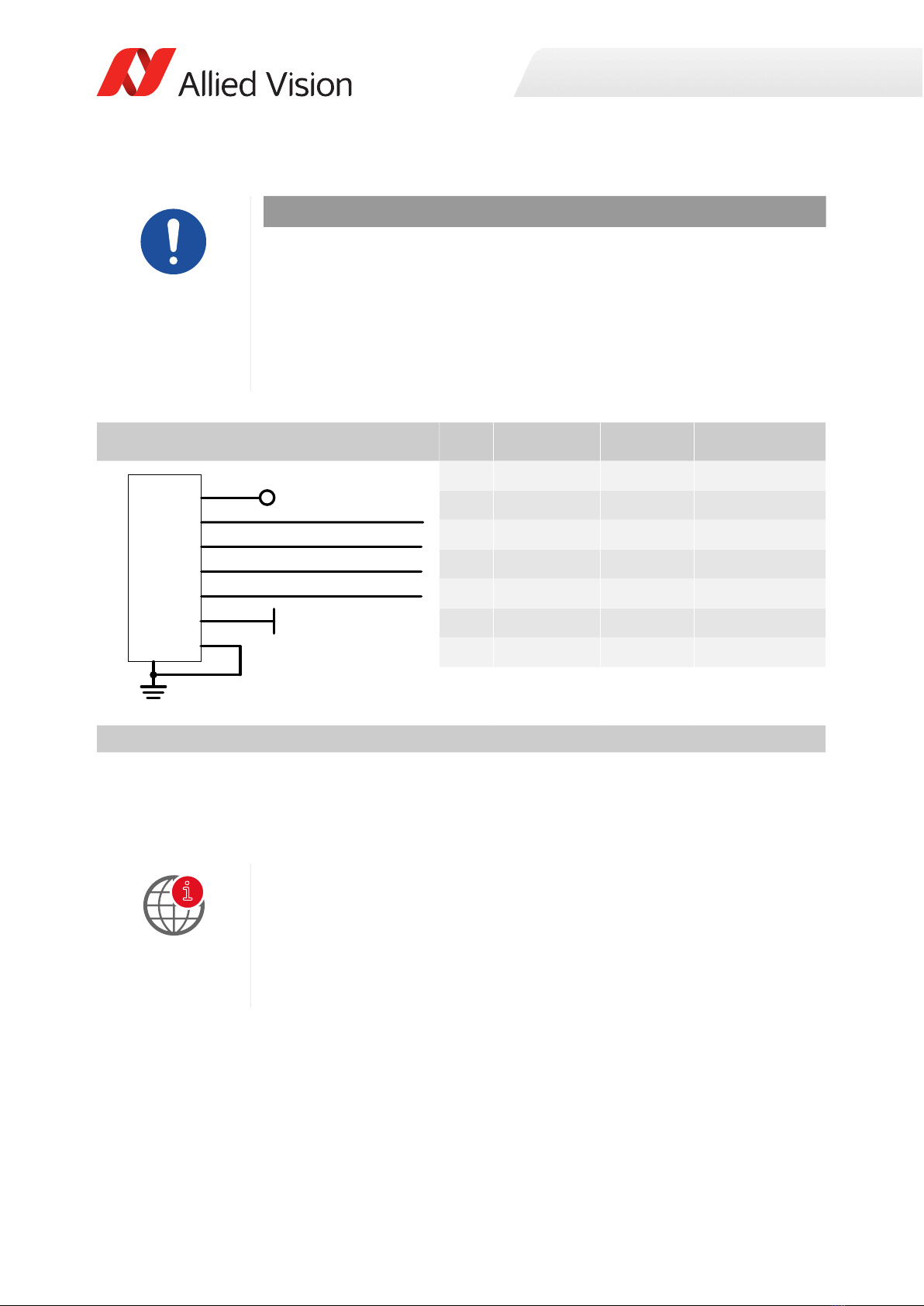

Alvium USB cameras
Compatible I/O cables
NOTICE
Damage to camera electronics
The color coding shown in Table 2 applies to Allied Vision I/O cables with screw
locks for Alvium USB cameras. When using third party cables, the camera can be
damaged if you do not observe different color codings.
• Use only cables shown in Compatible I/O cables on page 3.
• For 12319 I/O cables without screw locks, observe that all cable lines are blue.
• For third-party cables, see the manufacturer data sheet.
Pin Signal Direction I/O cable color*
1 VCC-EXT-IN PWR IN Red
2 EXT-GPIO 0 IN/OUT Brown
3 EXT-GPIO 1 IN/OUT Orange
4 EXT-GPIO 2 IN/OUT Yellow
5 EXT-GPIO 3 IN/OUT Green
6 GND PWR Black
7 C-GND PWR Transparent
*Color coding applies only to Allied Vision I/O cables with screw locks.
Table 2: 7-pin JST BM07B-SRSS-TBT I/O connector pin assignment
I/O cables for Alvium USB cameras
• 12319: 7-pin JST I/O cable without screw locks 0.4 m
Observe for connecting: All lines are blue.
• 12322: 7-pin JST I/O cable with screw locks 5.0 m
• 17070: 7-pin JST I/O cable with screw locks 10.0 m
See www.alliedvision.com/en/products/accessories.
GND
C-GND
EXT-GPIO 0
EXT-GPIO 1
EXT-GPIO 2
EXT-GPIO 3
VCC-EXT-IN
11
22
33
44
55
66
7
i
Pin Assignment for Alvium
Cameras
Page 3 of 5

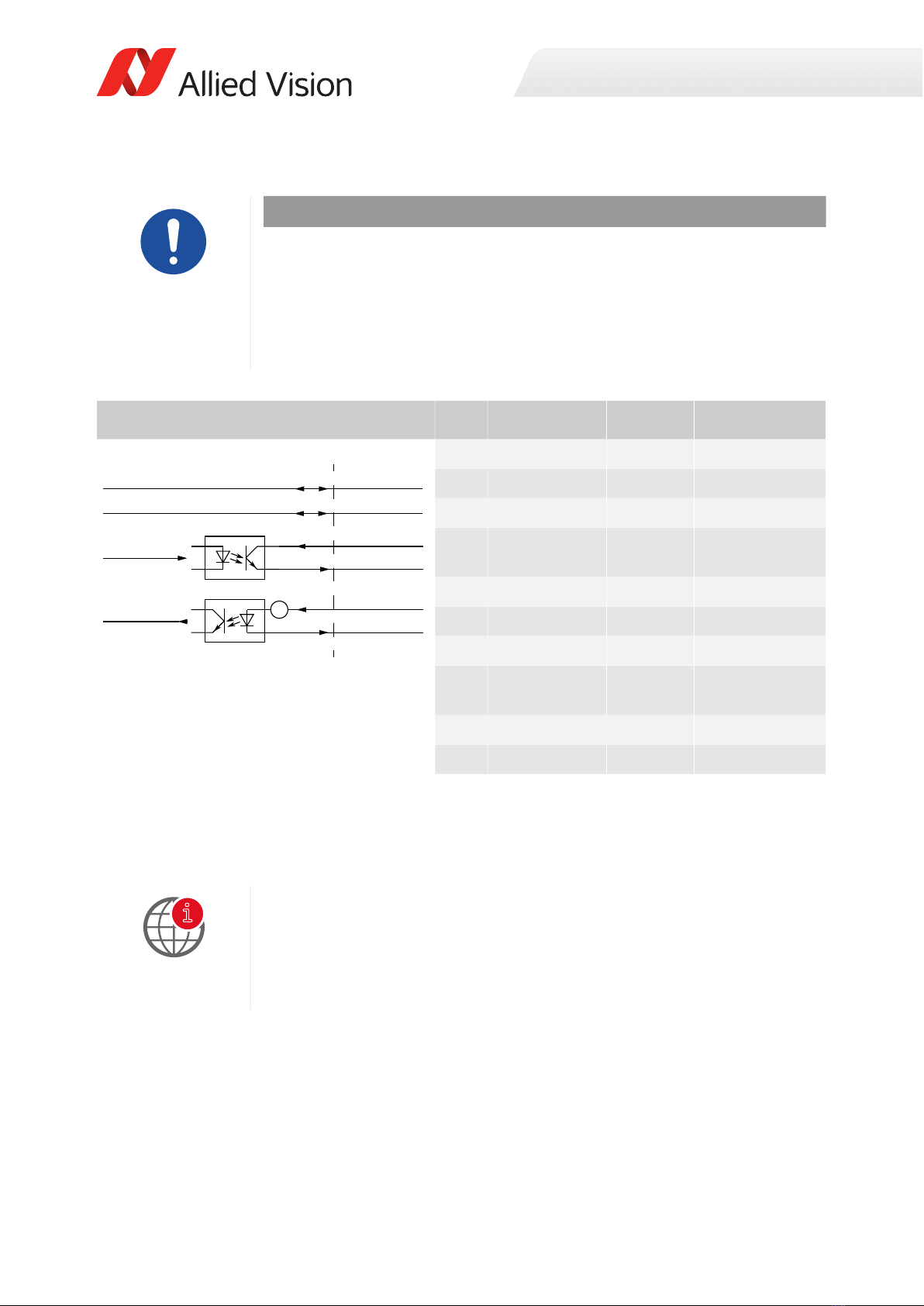

Alvium G1 and G5 cameras
Compatible I/O cables
NOTICE
Damage to camera electronics
The color coding shown in Table 3 applies to Allied Vision I/O cables for Alvium G1
and Alvium G5 cameras. When using third party cables, the camera can be
damaged if you do not observe different color codings.
• Use only cables shown in Compatible I/O cables on page 3.
• For third-party cables, see the manufacturer data sheet.
Pin Signal Direction I/O cable color
1 PWR-GND In Black
2 PWR-IN In Red
3 OPTO-IN-GND In Brown
4OPTO-OUT-
PWR In Orange
5 GPI3 In Yellow
6 GPO2 Out Green
7 GPIO0 In/Out Blue
8 GPIO1 See Pin 7
GPIO0 Violet
9 Reserved Gray
10 C-GND PWR Transparent
Table 3: 10-pin TFM I/O connector pin assignment
I/O cables for Alvium G1 and Alvium G5 cameras
• 16167: 10-pin TFM I/O cable 3.0 m
• 16189: 10-pin TFM I/O cable 5.0 m
• 16190: 10-pin TFM I/O cable 10.0 m
see www.alliedvision.com/en/products/accessories.
EXT-GPIO3
EXT-GPIO2
GPO2
Pin 6
GPI3
Pin 5
I_lim
Isolated In GND
Pin 3
Isolated Out Power
Pin 4
GPIO1
Pin 8
GPIO0
Pin 7
EXT-GPIO1
EXT-GPIO0
Internal External
5 mA
i
Pin Assignment for Alvium
Cameras
Page 4 of 5

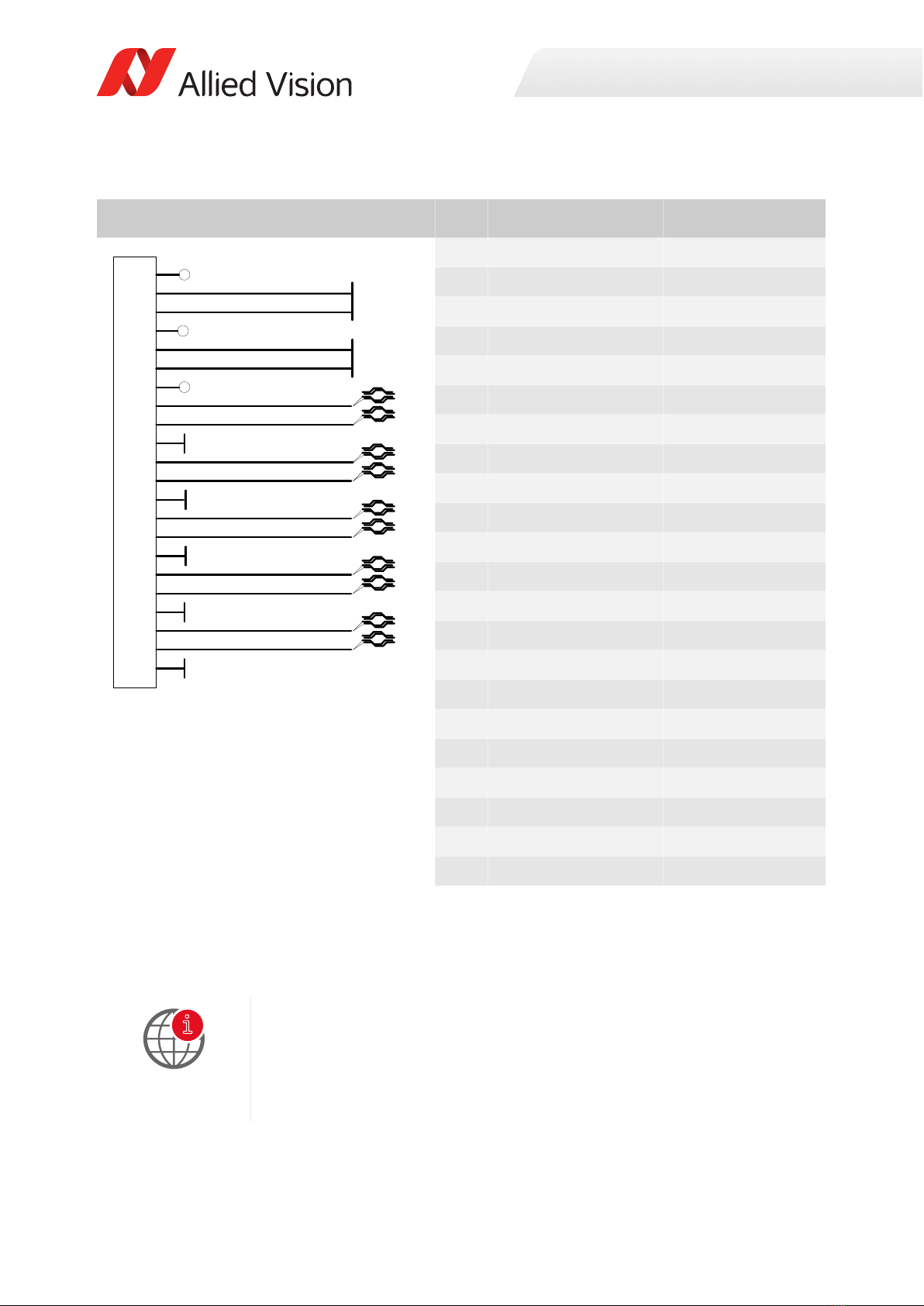

Alvium CSI-2 cameras
Compatible FPC cables
Pin Signal Direction
1 VCC-EXT-IN PWR IN
2 EXT-GPIO0-I2C_SCL IN/OUT
3 EXT-GPIO1-I2C_SDA IN/OUT
4 VCC-EXT-IN PWR IN
5 EXT-GPIO2 IN/OUT
6 EXT-GPIO3 IN/OUT
7 VCC-EXT-IN PWR IN
8 CSI2-TXD3_N OUT
9 CSI2-TXD3_P OUT
10 GND PWR
11 CSI2-TXD2_N OUT
12 CSI2-TXD2_P OUT
13 GND PWR
14 CSI2-TXC_N OUT
15 CSI2-TXC_P OUT
16 GND PWR
17 CSI2-TXD1_N OUT
18 CSI2-TXD1_P OUT
19 GND PWR
20 CSI2-TXD0_N OUT
21 CSI2-TXD0_P OUT
22 GND PWR
Table 4: 22-pin TFM Hirose FH55-22S-0.5SH connector pin assignment
FPC cables for Alvium CSI-2 cameras
• 12316: 22-pin FPC cable 120 mm
• 12317: 22-pin FPC cable 220 mm
• 12318: 22-pin FPC cable 420 mm
see www.alliedvision.com/en/products/accessories.
GND
GND
GND
GND
GND
CSI2-TXC_N
CSI2-TXC_P
CSI2-TXD0_N
CSI2-TXD0_P
CSI2-TXD1_N
CSI2-TXD1_P
CSI2-TXD2_N
CSI2-TXD2_P
CSI2-TXD3_N
CSI2-TXD3_P
EXT-GPIO0-I2C_SCL
I2C control
User control
EXT-GPIO1-I2C_SDA
EXT-GPIO2
EXT-GPIO3
VCC-EXT-IN
VCC-EXT-IN
VCC-EXT-IN
1
1
2S
2
3S
3
4
4
5S
5
6S
6
7
7
8S
8
9S
9
10
10
11S
11
12S
12
13
13
14S
14
15S
15
16
16
17S
17
18S
18
19
19
20S
20
21S
21
22
22
i
Pin Assignment for Alvium
Cameras
Page 5 of 5
Contact us
Copyright and trademarks
All text, pictures, and graphics are protected by copyright and other laws protecting intellectual property.
All content is subject to change without notice. All trademarks, logos, and brands cited in this document are
property and/or copyright material of their respective owners. Use of these trademarks, logos, and brands
does not imply endorsement.
Copyright © 2023 Allied Vision Technologies GmbH. All rights reserved.
