SWING GATE OPENER

INSTALLATION MANUAL

TORO 24

UL325

Compliant

UL991

CSA C22.2

Canada

Compliant

INDEX

IMPORTANT SAFETY INSTRUCTIONS.............................................................1-2

DIFFERENT UL 325 CLASS TYPES................................................................... 3

PARTS IDENTIFICATION..................................................................................... 4

OPEN INSIDE INSTALLATION............................................................................. 5

OPEN OUTSIDE INSTALLATION......................................................................... 6

GATE OPERATOR INSTALLATION...................................................................... 7

MOTOR WIRING.................................................................................................... 7

EMERGENCY RELEASE....................................................................................... 8

LIMIT SWITCH ADJUSTMENT.............................................................................. 8

LCD SETTINGS AND PROGRAMMING...............................................................9-10

SETTING TIME & DATE...............................................................................9

SETTING MOTOR SPEED...........................................................................9

SETTING MOTOR POWER..........................................................................9

PROGRAMMING 7 DAY TIMER...................................................................9

SETTING LEAF DELAY................................................................................9

SETTING AUXILIARY RELAY.......................................................................9

SETTING SERVICE CYCLE..........................................................................9

SETTING LIMIT SWITCH CONFIGURATION...............................................10

SETTING TO FACTORY DEFAULT...............................................................10

LCD DIAGNOSTICS...............................................................................................10

GATE STATUS...............................................................................................10

METER...........................................................................................................10

MOTOR ONE AND MOTOR TWO.................................................................10

EVENT LOG...................................................................................................10

CYCLE COUNT..............................................................................................10

LCD MENU DESCRIPTION....................................................................................10-11

ELECTRICAL CONNECTION.................................................................................12

SWINGER LOOP LAYOUT......................................................................................13

GENERAL LOOP INSTALLATION GUIDELINES..............................................14

ENTRAPMENT PROTECTION INSTALLATION...............................................................15

ENTRAPMENT PROTECTION DEVICE CONNECTIONS..............................................16

ACCESSORY CONNECTIONS...............................................................................17

LPR-1 LOOP RACK INSTALLATION...................................................................18

THREE BUTTON STATION SYSTEM.....................................................................19

MAGNETIC/SOLENOID LOCK CONNECTION......................................................20

RADIO RECEIVER CONNECTIONS.......................................................................21

TIMER ADJUSTMENT.............................................................................................22

DIP SWITCH FUNCTIONS......................................................................................23

SOLAR PANEL CONNECTIONS............................................................................24

LED DIAGNOSTICS................................................................................................25

OPERATOR PARTS DIAGRAM..............................................................................26

IMPORTANT SAFETY PRECAUTIONS

WARNING

To reduce the risk of injury:

READ THE FOLLOWING DIRECTIONS. DO NOT START UNTIL YOU HAVE READ AND

UNDERSTAND THESE DIRECTIONS. IF THERE IS SOMETHING YOU DON’T

UNDERSTAND CALL US.

Never let children operate or play with gate controls. Keep the remote control away

from children.

Always keep people and objects away from the gate. No one should cross the path of

the moving gate.

This operator must be tested monthly. The gate must reverse on contact with a ridged

object or stop when an object activates the non-contact sensors. After adjusting the

force or the limit travel, retest the gate operator. Failure to adjust and retest the gate

operator properly can increase the risk of injury.

Use the emergency release only when the gate is not moving.

Keep gates properly maintained. Have a qualified service person make repairs to gate

hardware. It takes many years of experience to make proper adjustments to gate

hardware or operators.

This entrance is for vehicles only. Pedestrian must use separate entrance.

There is nothing on a gate operator that is easily repaired without a great deal of

experience. Save yourself some time and call a qualified Gate Service Contractor who

knows your type of gate operator.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

INSTALL THE GATE OPERATOR ONLY WHEN

YOU HAVE READ THE FOLLOWING:

Confirm that the gate operator being installed is appropriate for the application.

Confirm that the gate is designed and built according to current published industry standards.

Confirm that all appropriate safety features and safety accessory devices are being

incorporated, including both primary and secondary entrapment protection devices.

Make sure that the gate works freely before installing the operator.

Repair or service worn or damaged gate hardware before installation of the gate operator.

Eliminate all gaps in a swinging gate below a 4 foot height that permits a 4 inch sphere to pass

through any location, including the hinge area of the gate.

Operator must be disconnected from the power source before attempting any installation of

accessories.

Install this gate operator according to our installation instructions.

Adjust the operator load sensing device to the minimum force setting that will still allow for

reliable gate operation.

Install the operator inside the fence line (do not install the operator on the public side of the

fence line).

Install a proper electrical ground to a gate operator.

Controls intended for user activation must be located at least six feet (6’) away from any

moving part of the gate and where the user is prevented from reaching over, under, around or

through the gate to operate the controls. Outdoor or easily accessible controls shall have a

security feature to prevent unauthorized use.

The stop and/or reset buttons must be located in the line of sight of the gate. Activation of the

reset control shall not cause the operator to start.

Install a minimum of two(2) WARNING SIGNS, one on each side of the gate where easily visible

and take pictures of installation.

Test all safety features for proper function before placing the automatic vehicular gate into

service.

Train owner/users about basic functions and safety features of the gates system, including how

to turn off the power and how to operate the manual disconnect feature.

leave safety instructions, product literature and installation manual with end user.

Explain to the owner/user the importance of routine service and retesting on a monthly basis.

DIFFERENT UL 325 CLASS TYPES

Class one: Residential

A vehicular gate operator intended for use at a home of one to four single family dwellings, garage or

parking area.

Class two: Commercial or General Public Access

A Vehicular gate operator intended for use at a commercial location or building such as a multi-family

housing unit (five or more single family units), hotel, garages, retail stores, other buildings servicing the

general public.

Class three: Industrial or limited access

A vehicular gate operator intended for use at an industrial location or building such us a factory, loading

dock area, or other locations not intended to service the general public.

Class four: Restricted Access

A vehicular gate operator intended for use at a guarded industrial location or building such as airport

security areas or other restricted access locations not servicing the general public where unauthorized

access is prevented via supervision by security personnel.

Other components required to satisfy UL 325

Each class must have a primary and secondary means to sense and react to obstructions within two

seconds.

The six types of obstruction sensing systems are:

Type A:

Inherent obstruction sensing system. This system must sense and initiate the reverse of the gate within

two seconds of contact with a solid object.

Type B1:

Provision for connection of a non-contact device can be used, such as a secondary protection.

Type B2:

Provision for connection of a contact sensor. Examples include an edge device or equivalent. This can

be used for secondary protection.

Type C:

Inherent adjustment clutch or pressure relief valve.

Type D:

Provision for connection of or provided with and actuation device requiring continuous pressure.

ALL-O-MATIC INC.

<ENG. ESP.>

CMX-309FB C

8.0000 M

535202

CMX-309FB C

8.0000 M

535202

CMX-309FB C

8.0000 M

535202

1 2 3 4 5 6 7 8

-----------------------OPEN------------------------

MOTOR 1

MOTOR 2

SINGLE/DUAL

IN/OUT

24V AC

LINE IN EXTERNAL

S/N:

DATE:

OPEN

ERD

TIMER

PARTS IDENTIFICATION

GATE OPERATOR

BACK MOUNTING

PLATE

BACK MOUNTING

BRACKET

FRONT GATE

BRACKET

EMERGENCY

RELEASE KEY

NOTE: Back mounting bracket must be cut to fit geometry requirements. Use

back mounting plate when a steel post is not available to weld the back

mounting bracket.

PIVOT

PIVOT PIN

SECURE

SETSCREW

Exit Loop

Phantom Loop

Safety Loop

See side for

Jumper setting

Loop Connections

Exit

Loop

Safety

Phantom

24VAC/

12VDC

Ground

Exit

Phantom

Safety

LPR-1

TORO Control Board

POWER

CONNECTIONS

ACCESSORY

INPUTS

AUXILIARY

RELAY 1

SOL/MAG LOCK

RELAY

FUNCTION

SWITCHES

LCD DISPLAY

MENU NAVIGATION

KEYPAD

BATTERY 7Ahr

TRANSFORMER

CONTROL

BOX

{

OUTSIDE

OPEN INSIDE INSTALLATION

INSIDE

Comply with the measurements shown for proper installation. Adjust the gate structure to

optimize for best automation performance, if necessary.

Before proceeding with installation, be sure that gate moves freely and the following:

1) Hinges are properly positioned and lubricated.

2) No obstructions are in the path of the swinging gate.

3) No frictions between two leafs or with the ground while moving.

GEOMETRY OPTIONS

OPTION A B C SPEED

1 7” 5” 58” 15 SEC./90º OPENING

2 8” 6” 58” 17.5 SEC./90º OPENING

3 7.5” 7.5” 58” 19 SEC./90º OPENING

•

TORO

Positive stops

Closed position

Opened position

OPEN OUTSIDE INSTALLATION

OUTSIDE

INSIDE

8”

58”

6”

Closed position

Opened position

Custom bracket

required

(not included)

Comply with the measurements shown for proper installation. Adjust the gate structure to

optimize for best automation performance, if necessary.

Before proceeding with installation, be sure that gate moves freely and that:

1) Hinges are properly positioned and lubricated.

2) No obstructions are in the path of the swinging gate.

3) No frictions between two leafs or with the ground while moving.

WIRE CONNECTION:

(1) Avoid tension in the cable during open and close cycles.

(2) Always connect the grounding wire(GND)

no.1

no.2

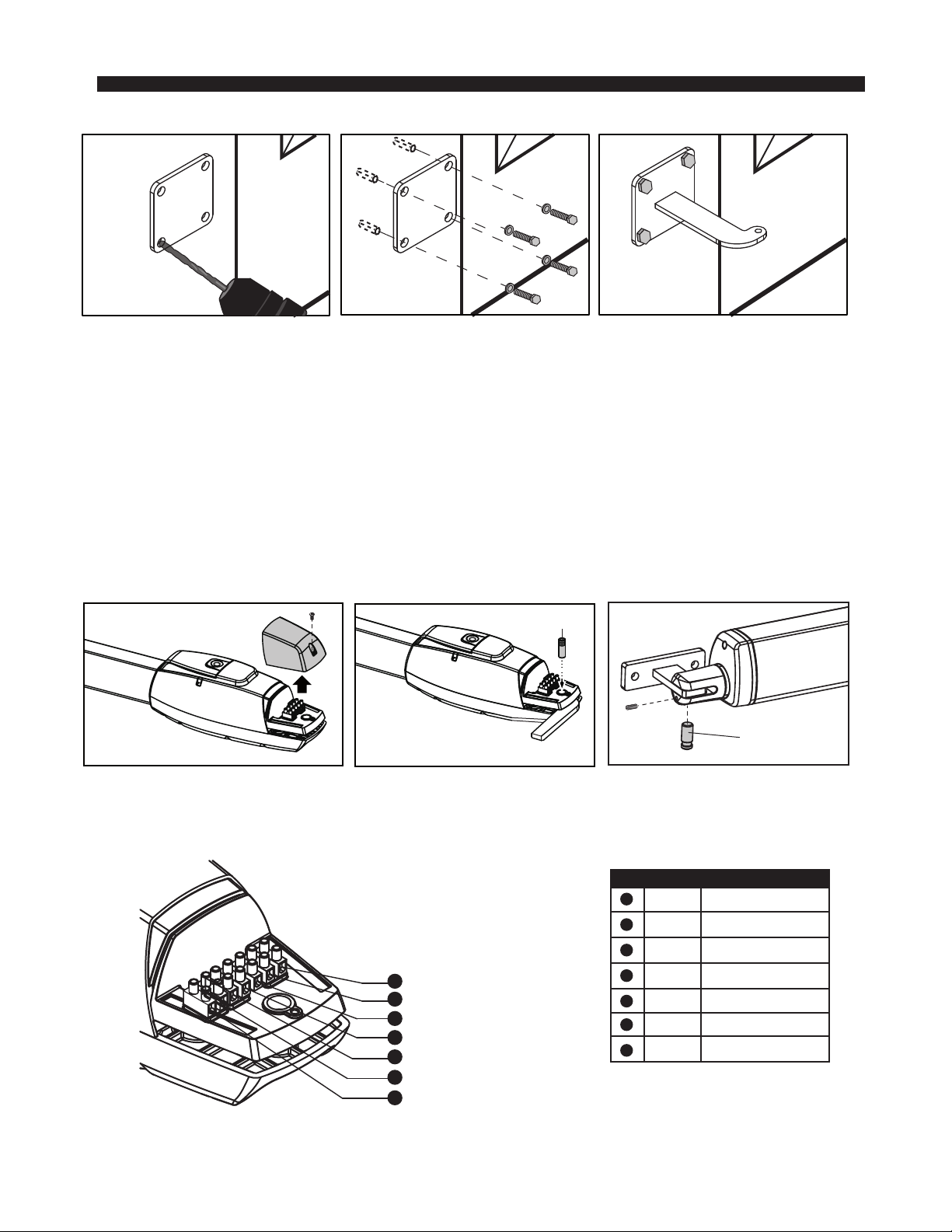

GATE OPERATOR INSTALLATIONS

When a steel post is not available use the back mounting plate to have a welding surface.

Mount the back mounting plate to the pillar using anchor bolts. Cut the back mounting bracket to fit the

geometry and weld to the back mounting plate or the steel post (if available). NOTE: For OPEN OUTSIDE

installation a custom mounting plate(not provided) is required to fit geometry.

Remove the wire connection cover and attach the back mounting bracket with the pin. Release the gate

operator and place the pin into the fitting position no. 1 and no. 2 shown below. Use the setscrew to hold pin

no. 2 in position.

Make sure the gate operators are mounted in horizontal position especially in the CLOSE, OPEN and 45º

positions.

Prior to welding the front gate bracket on the gate leaf(if necessary), cover the gate operator to prevent

damage from welding sparks.

White

Yellow

Red

White

Black

+5V

INDEX

COMMON

Limit Switch (Limit 1)

Limit Switch (Limit 2)

Motor (+)

Motor (-)

Blue

Green

Altri manuali per TORO 24

Indice

Altri manuali ALLOMATIC Apricancello

ALLOMATIC

ALLOMATIC SL-175DC Manuale utente

ALLOMATIC

ALLOMATIC TORO 24 Manuale utente

ALLOMATIC

ALLOMATIC SW-350DC Manuale utente

ALLOMATIC

ALLOMATIC SL-90DC Manuale utente

ALLOMATIC

ALLOMATIC SL-100AC Manuale utente

ALLOMATIC

ALLOMATIC OH-200DC Manuale utente

ALLOMATIC

ALLOMATIC SL-175 Manuale utente

ALLOMATIC

ALLOMATIC DC Series Manuale utente

ALLOMATIC

ALLOMATIC SL-100 AC Manuale utente

ALLOMATIC

ALLOMATIC SW-300DC Manuale utente

ALLOMATIC

ALLOMATIC TORO 24 PRIME Manuale utente

ALLOMATIC

ALLOMATIC SL-45 DC Manuale utente

ALLOMATIC

ALLOMATIC TORO 24 Manuale utente

ALLOMATIC

ALLOMATIC SL-45DC Manuale utente

Manuali Apricancello popolari di altre marche

Elite

Elite CSW200UL Manuale utente

CAME

CAME FROG-PM4 Manuale utente

SOMFY

SOMFY FX230 Manuale utente

Aprimatic

Aprimatic ONDA 500 Manuale utente

Turnstiles

Turnstiles FSW 900 Manuale utente

Erreka

Erreka BUL BL33 Istruzioni operative

Erreka

Erreka VULCAN S Manuale utente

Beninca

Beninca R1-2 WBV Manuale utente

Erreka

Erreka VULCAN D Manuale utente

Motorline professional

Motorline professional FORT Manuale di istruzioni

Beninca

Beninca BOB5024 Manuale utente

AGA

AGA GATEMASTER 900 HD Manuale utente

Chamberlain

Chamberlain MotorLift HC280ML Manuale utente

SOMFY

SOMFY Dexxo RTS Pro Manuale utente

Cardin

Cardin BL Series Manuale utente

Westfalia

Westfalia 85 27 06 Manuale utente

CAME

CAME F500 Manuale utente

Extel

Extel VERA Manuale utente
