PolyForm™Modular LED Light Bars
Installation Instructions
1. Snap the front connector of
the PolyForm fixture to the
wire socket of the plug from
the top down.
2. Follow this same method
to seamlessly link fixtures
and connectors to create the
desired design.
3. Snap the end cap onto the end
of the last fixture.
Plug the DC power cable into
the power supply to illuminate
the fixture.
Assembling PolyForm Fixtures Note: PolyForm is 12V DC - Do Not Connect To 120V AC Power
See Next Page For Mounting Instructions
®
®
Specifications subject to change without notice.
page 2 of 2 v1
PolyForm™Modular LED Light Bars
Installation Instructions

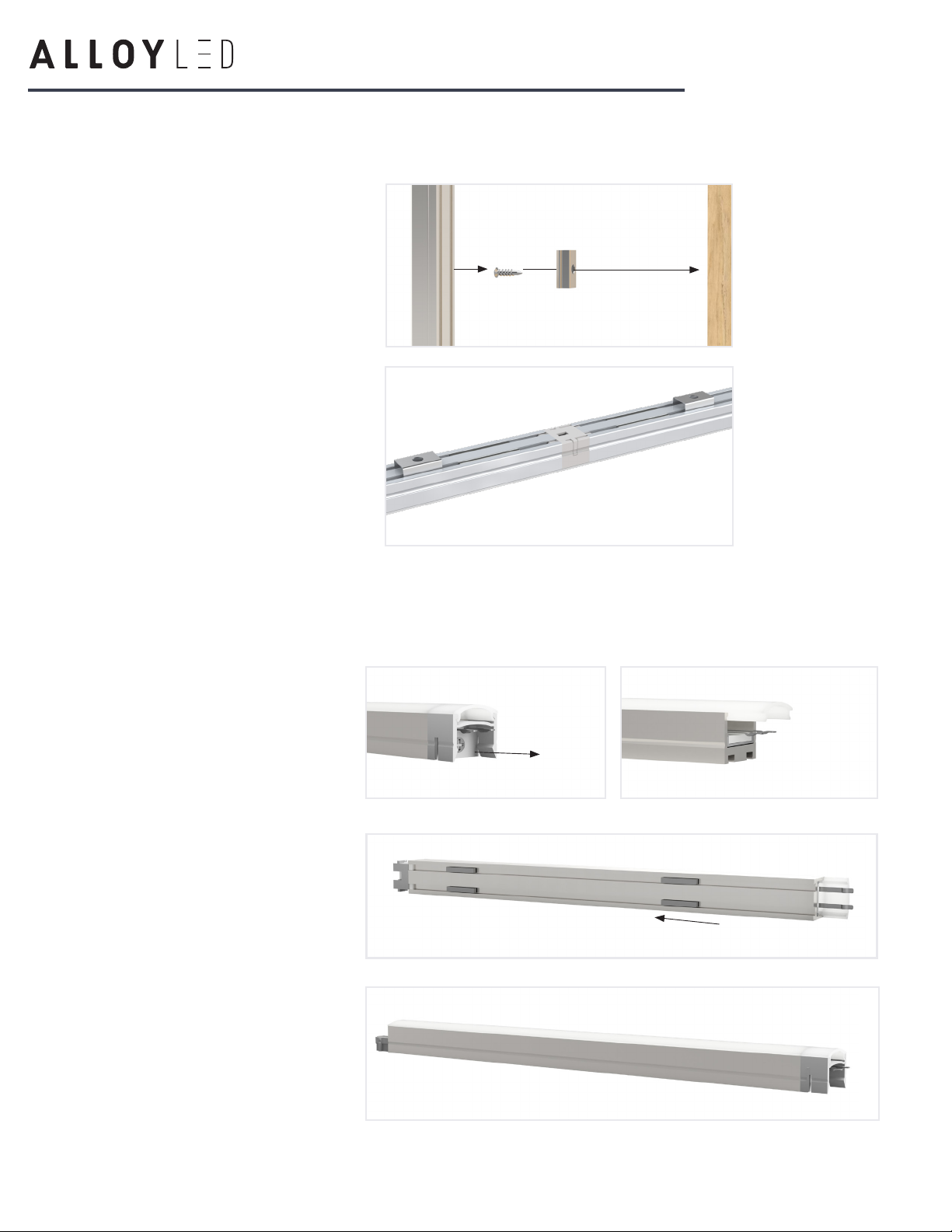

Mounting PolyForm Fixtures
→ Mounting With Clips
→ Mounting With Magnets
1. Measure the PolyForm and
trace the length of your design
onto the surface in which it will
be installed.
2. Use the included screws to
attach the mounting clips to
the surface where you traced.
Ensure that the mounting clips
are straight and aligned.
3. Mount the fixtures by snapping the
mounting clips onto the grooves
on the bottom of the fixtures.
1. Remove the screw from the front
of the PolyForm fixture. Slide the
connection cap off.
(This is the receiving end where the
PCB/diodes are not visible.)
Note: Be sure to not bend the
metal connection prongs.
2. Slide the 2 pairs of magnets into
the grooves on the bottom of the
fixture. Distribute them evenly
across the fixture.
3. Carefully reinstall the connection
cap and screw. Mount the PolyForm
to a metal surface.
Mounting clips attach to the grooves
at the bottom of the fixture
Note: When fixtures are mounted on a metal surface using the magnets,
vibration and a buzzing sound may occur when the light is dimmed. This is
NOT a result of the lighting components.
®
®
Specifications subject to change without notice.
