ALPHA LITE RX Manuale utente

WIRELESS MODULE RX/TX

USER MANUAL

July 2019

Safety Information

1. Do not open or disassemble the cover to reduce the risk of electric shock.

2. Please wear safety equipment such as safety helmet during work.

3. Be sure to fix the safety chain on the product when installing and moving.

4. Please install the signs below for people to bypass

when install the product on high truss.

5. The work should be done under the direction of approved specialist

who is trained in safety and mechanical installations.

WARNING

- 3 -

Contents

Safety Information 3

Contents 4

[Fixture Information]

Fixture Information 5

Fixture Exterior View 6

Technical Specifications 7

[Fixture Installation]

Equipment Connection 8

Power Connection 9

DMX Connection 9

Signal Link 10

Signal Unlink 11

Operation Indications 12

- 4 -

Fixture Information

- 5 -

Alpha Lite has an agreement with Lumen Radio in Sweden to partner with technology and information.

Lumen Radio Wireless DMX products offers unprecedented reliability and will give you the trust you need to

control your fixtures wirelessly.

Based on advanced CRMX technology, the CRMX Nova TX brings you all the advanced features

such as Automated Cognitive Coexistence, DMX fidelity, lowest latency in the industry at 5ms,

128 bit encryption and much more. CRMX Nova utilizes the international license free ISM band on 2.4GHz.

CRMX Nova TX is a DMX transmitter for one DMX universe of up to 512 channels at maximum refresh rate.

Multiple CRMX TX units can be used together to transmit multiple DMX universes, allowing for easy system expansion.

CRMX Nova RX is a receiver for one DMX universe being transmitted by any CRMX transmitter.

It supports one full DMX universe of up to 512 channels at maximum refresh rate.

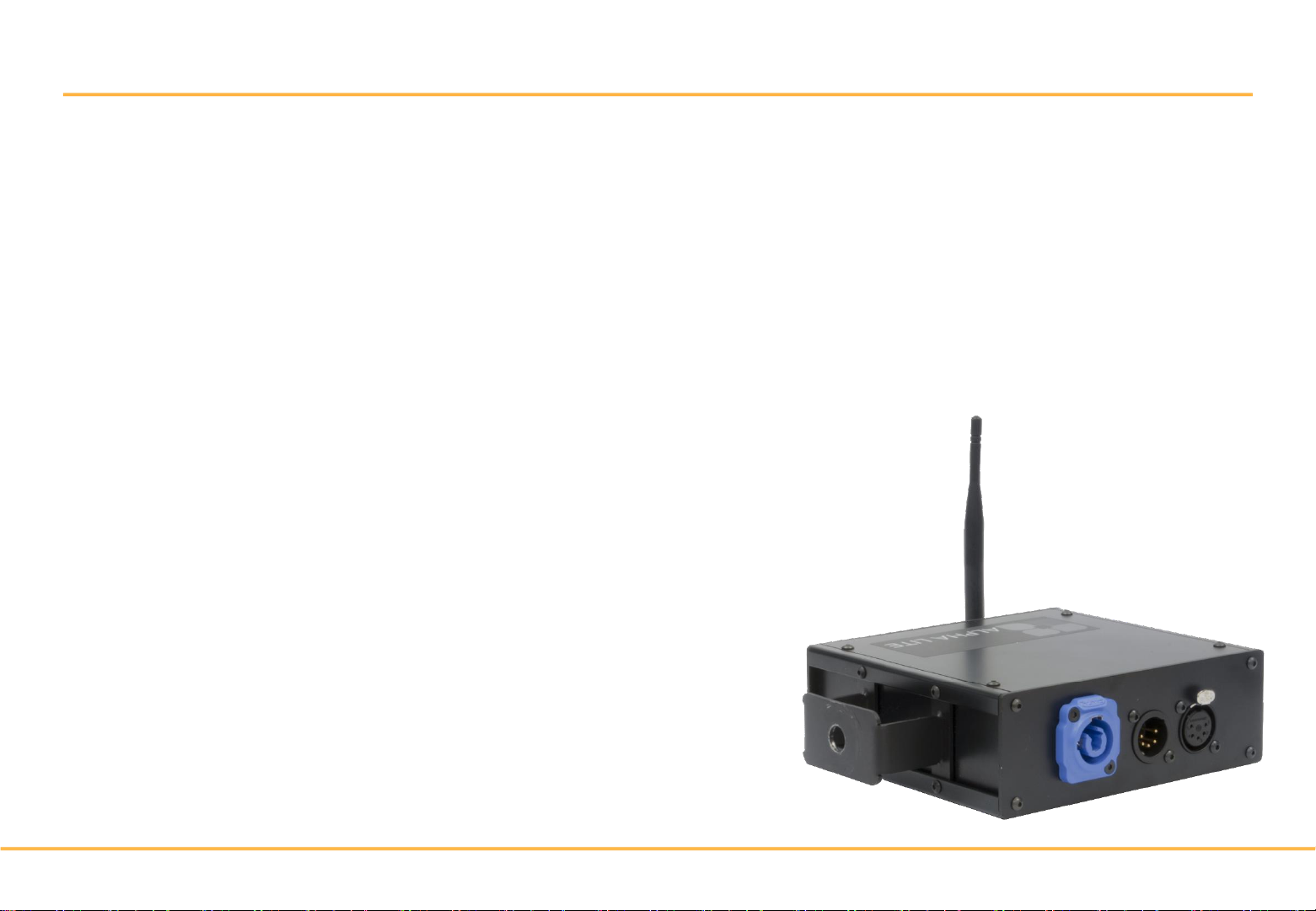

Fixture Exterior View

Stirrup

Antenna Connector

- 6 -

Operation Indications

Link Switch

POWER IN

DMX IN

DMX OUT

TX RX

Data send-only (2 ports) Data receive-only (2 ports)

Connect with

a Consol

Connect with

Lighting fixtures

■DMX Port

* If you insert the DMX input signal to the RX unit, an error may occur.

Technical Specifications

- 7 -

TX / RX

Power Input Voltage AC 100 ~ 240V, 50/60Hz

Supported Protocol ANSI E1.11-DMX512-A / ANSI E1.20-RDM

International license Free ISM band on 2.4GHz

Operation Temperature Range -20~45°C (-4°F~122°F) (ambient)

Operational Frequency Range 2402-2480 MHz

Wireless Range Up to 1000 meters

Ingress Protection IP20

Environmental For indoor use only

Output Power Levels 10mW (10dBm)

Connectors DMX: 1 XLR Neutrik® 5-pin gold plated male / female

Antenna: RP-SMA female

AC: Neutrik® NAC3FCA male

Dimension (mm / inch) 173 x 135 x 50 / 6.8 x 5.3 x 2

Weight (kg / lbs) 0.8 / 1.7

RX (Receiver)

Equipment Connection

- 8 -

TX (Transmitter)

Main Console

Lighting fixtures

DMX Cable Connection

Wireless Connection

RX (Receiver)

Lighting fixtures Lighting fixtures

Lighting fixtures Lighting fixtures Lighting fixtures

Lighting fixtures Lighting fixturesLighting fixtures

Power & DMX Connection

AC power at 100-240V, 50-60Hz

1. POWER IN

2. DMX INPUT (XLR Mounting-plugs)

3. DMX OUTPUT (XLR Mounting-sockets)

- 9 -

1. Observe the proper voltage range

2. If power is supplied outside the range, noise may be generated from the SMPS.

3. If the operating voltage is out of the proper voltage range,

SMPS function may be degraded or damaged.

TX RX

Data send-only (2 ports) Data receive-only (2 ports)

Connect with

a Consol

Connect with

Lighting fixtures

■DMX Port

* If you insert the DMX input signal to the RX unit, an error may occur.

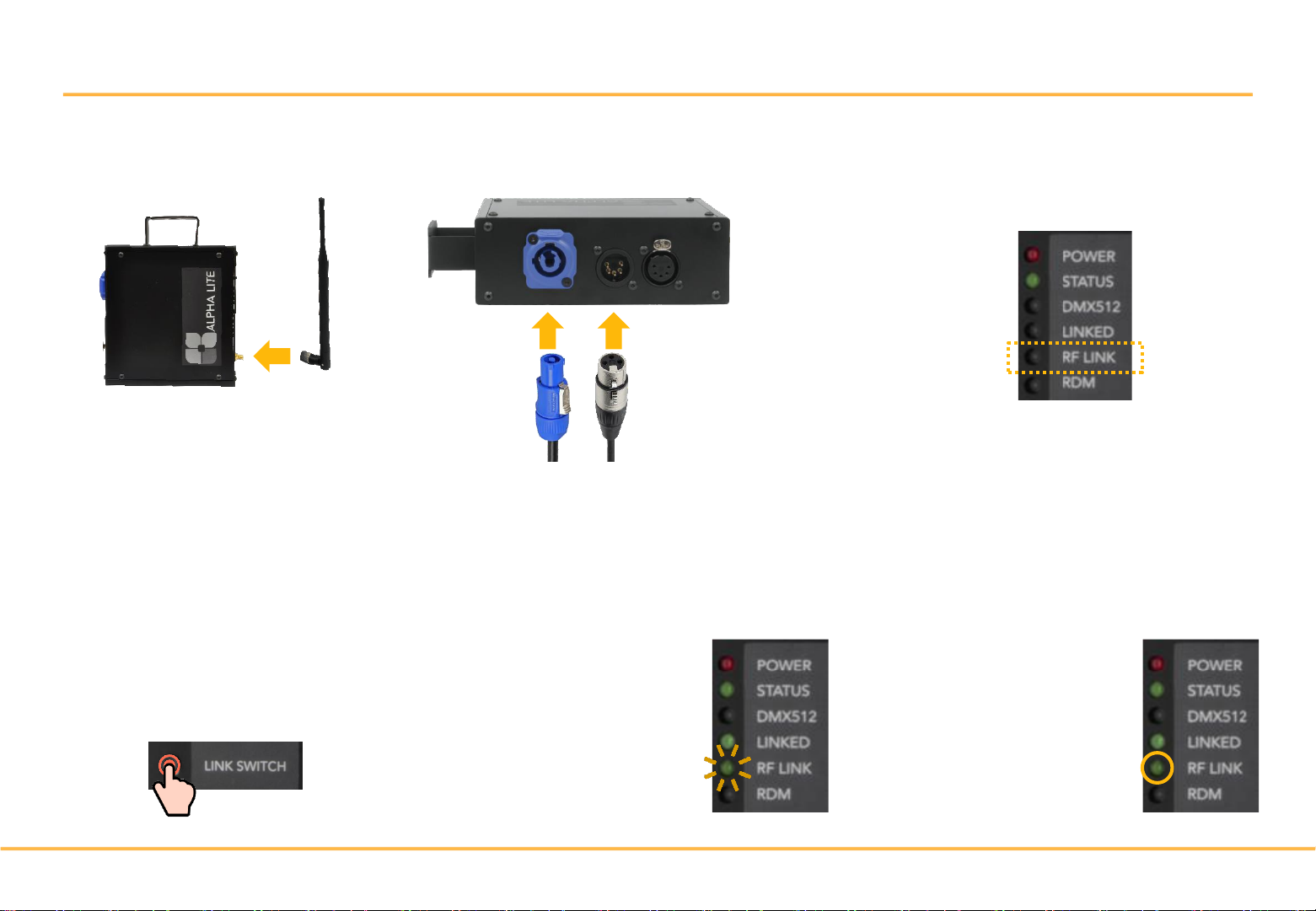

Signal Link

1. Connect an antenna

-10 -

(TX/RX)

2. Power on

the transmitter(TX) and receivers(RX).

(TX : Connect with

main consol)

(RX : Connect with

lighting fixtures)

(Connect

the power)

(TX/RX)

3. Ensure that the RF Link indicators

on all receivers are off.

(If necessary, follow the unlink procedure.)

(RX)

4. When the receivers are ready

to be linked, press for one second

and release the ‘LINK SWITCH’

button on the transmitter.

The transmitter will search for

any unlinked receivers.

5. The transmitter’s RF Link indicator

will flash for 10 seconds and

normal operation

will resume.

(TX)

6. The RF Link indicator will change

to a steady on successfully linked

receivers.

(TX) (RX)
