Alpha Professional Tools WBCKIT Manuale utente
Part No: WBCKIT
103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114
www.alpha-tools.com

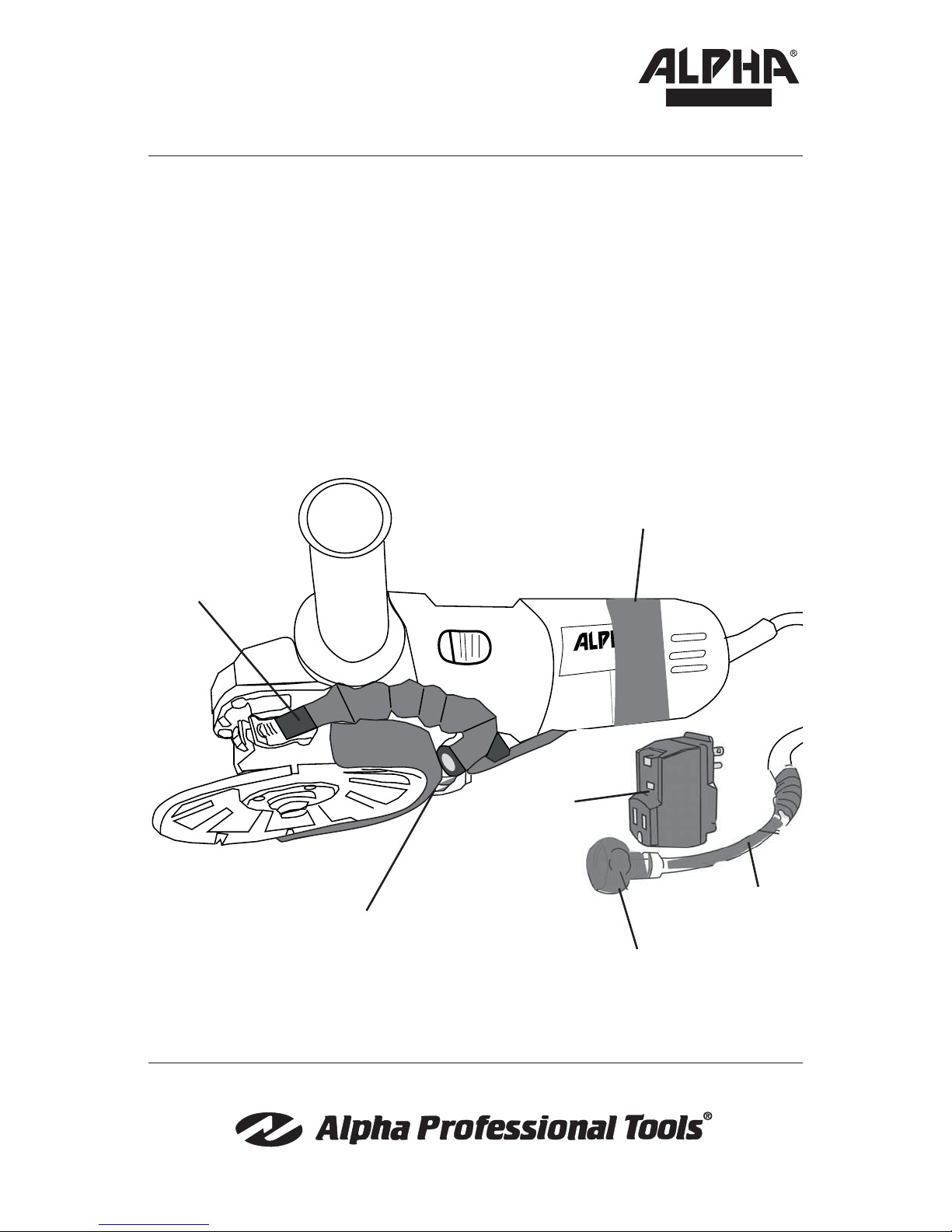

Alpha® Wet Blade
Cutting Kit
Instruction Manual
MANUAL
HSG-125
®
Blade Guard
Coolant Tube
Garden Hose Adapter
GFCI
Hook & Loop Strap
*Tool and Blade sold separately
Water Line
2
TABLE OF CONTENTS
SERVICE
Use only Alpha Professional Tools®accessories and spare parts. Should
components which have been described need to be exchanged, please contact
your dealer or Alpha Professional Tools®.
NEED MORE INFORMATION
For information on Alpha Professional Tools®complete product line, visit us on the
web at www.alpha-tools.com.
CONTENTS
Parts List .............................................................................................. 3
Instructions ........................................................................................... 3
Creating Thread Holes for the Protective Guard .................................. 4
Assembly of WBCKIT Guard................................................................ 4
Installation of WBCKIT Guard .............................................................. 5
Garden Hose Adapter Installation ........................................................ 6
Installation of Plastic Wire Wrap........................................................... 7
Installation of GFCI............................................................................... 7
Completed Assembly............................................................................ 7
CAUTION!
• Attach the Wet Blade Cutting Kit correctly by following the procedure in this
instructional manual.
• During operation, be sure to wear personal safety equipment.
3
1
2
3
4
56
7
8

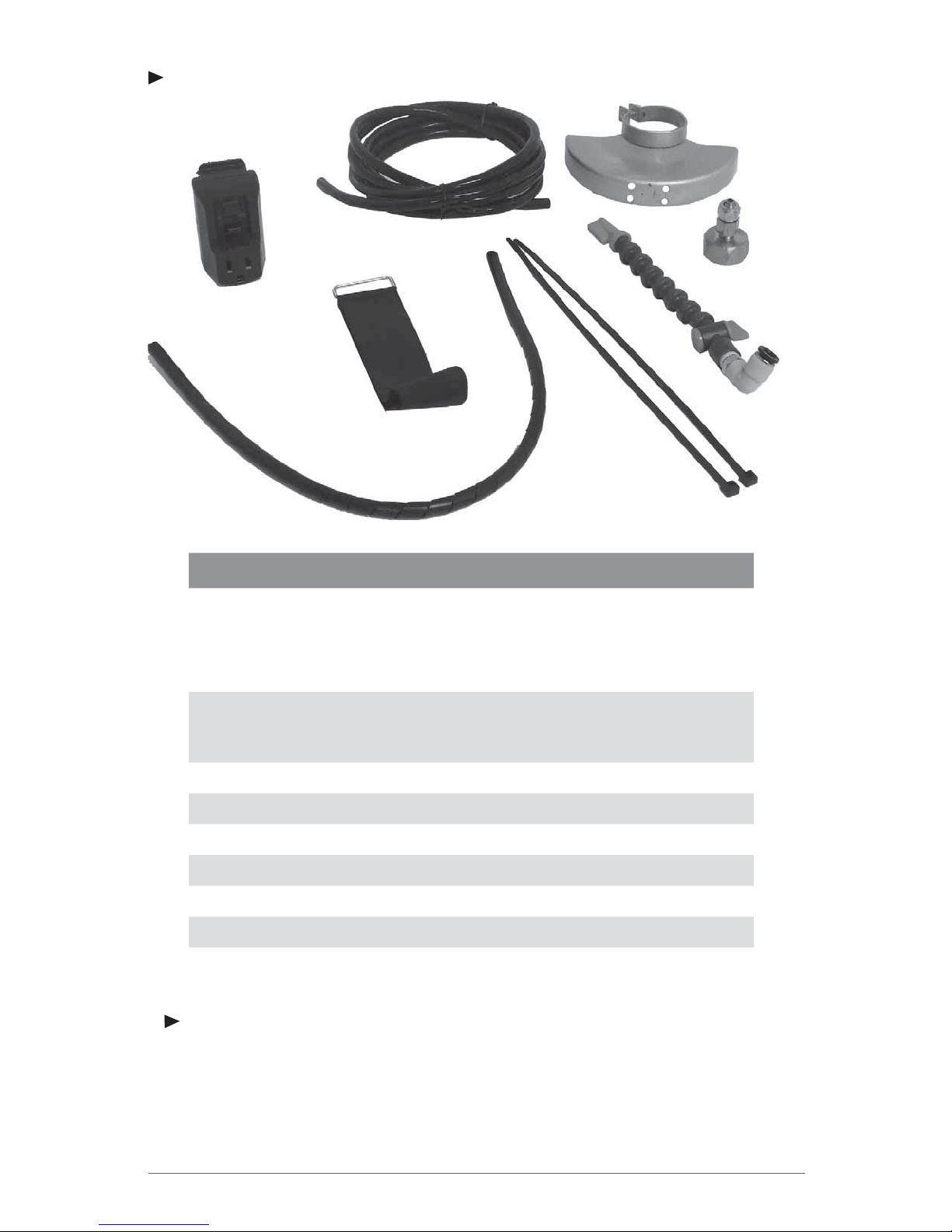

PARTS LIST
No. Item Description Part Number
1. Protective Guard for HSG-125
The WBCKIT can also be attached to
other grinders with minimal alteration
to their safety guards
140007
2. Water Line (10’) 3m*
133287
3. Garden Hose Adapter*
4. Ground Fault Circuit Interrupter GFCI-1
5. Hook & Loop Strap 140003
6. Coolant Tube 140004
7. 90 degree Swivel Fitting 140005
8. Plastic Ties PDH-CABLETIES
9. Plastic Wire Wrap 140002
* Not sold separately.
9
INSTRUCTIONS
Alpha Professional Tools®provides the highest quality parts and manufacturing techniques
in the manufacture of this product. In order to obtain the maximum effectiveness and
provide the highest degree of safety, it is necessary to review and follow these instructions
carefully before using the tool.
4

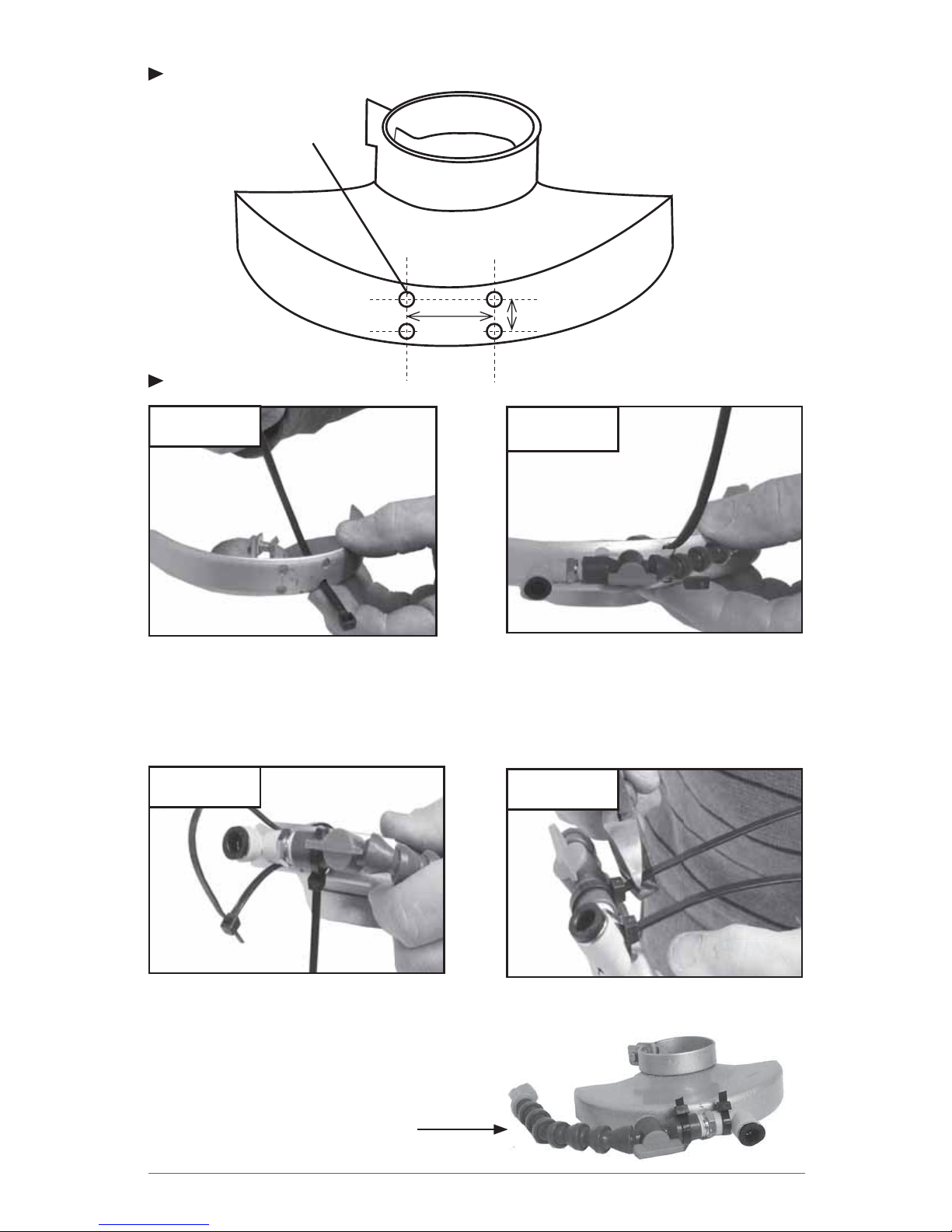

ASSEMBLY OF WBCKIT GUARD
1. Thread plastic cable tie through
holes in the guard. (If using another
grinder the safety guard must be
altered to accomodate cable ties
as shown above).
STEP 2
STEP 3 STEP 4
2. Place coolant tube between holes
on Guard and tighten in place with
plastic tie.
3. Repeat steps 1 and 2 to com-
pletely secure the coolant tube to
the guard.
4. Trim plastic ties with pliers as shown
above.
WBCKIT Guard Assembly
STEP 1
Hole Size:
5mm or #8 Drill Bit
10mm (3/8”)
25mm (1”)
CREATING THREAD HOLES FOR THE PROTECTIVE GUARD
Illustration of
Protection Guard
5

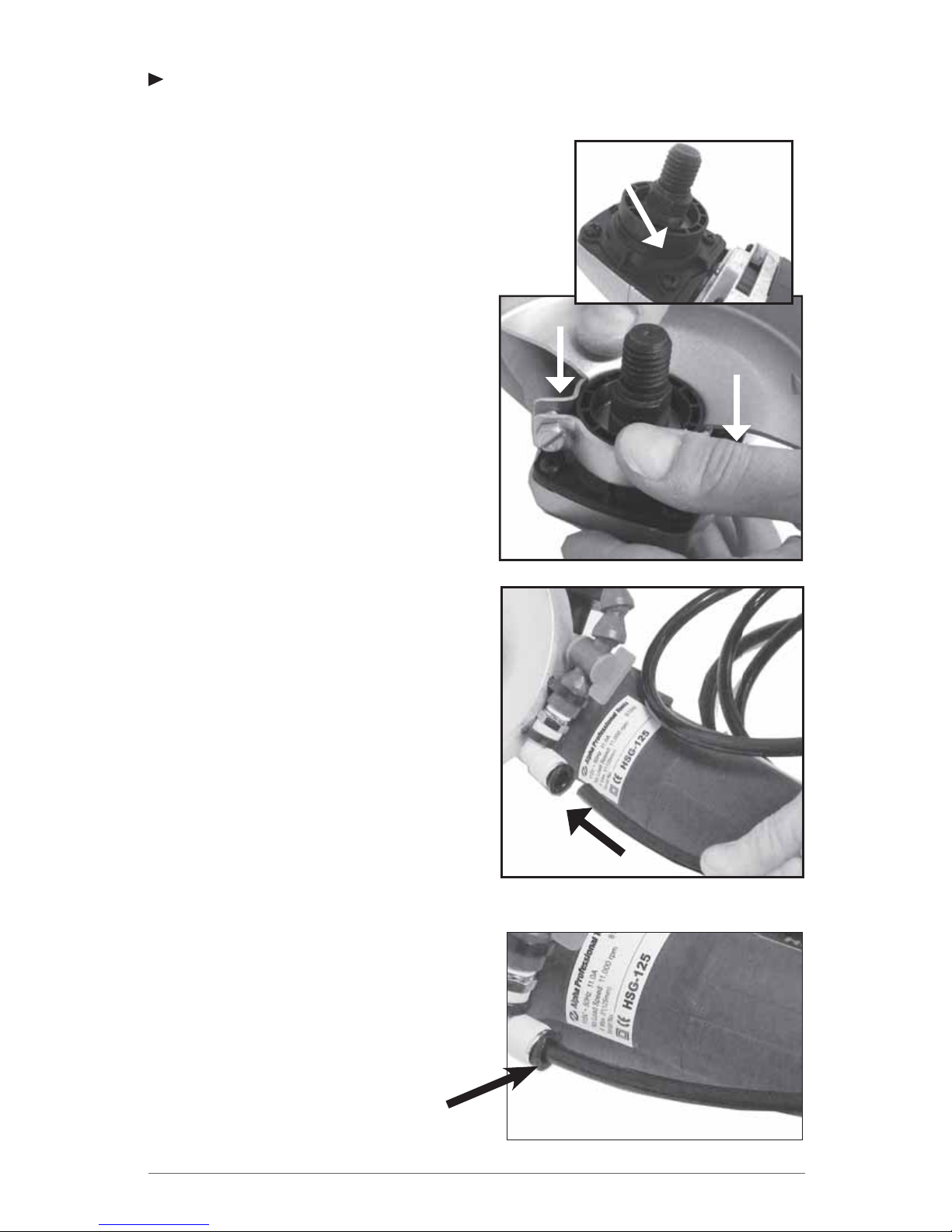

INSTALLATION OF WBCKIT GUARD
Note: It is important to securely attach the
WBCKIT to the tool.
1. Before tightening, slide the protective cover
onto clamping collar so that the lip on the
protective cover fits into the groove on the
tool.
2. Position the protective cover with the
shield facing backwards. Push down
until the protective cover is firmly seated
on the clamping collar.
3. Tighten the clamping screw to a snug fit.
The protective cover should not be able
to move.
4. Take one end of the water line and insert
into the “push to connect” side of the 90
degree swivel fitting.
5. Push tubing until it contacts the bottom of
the fitting. Pull back slightly on the tubing
to ensure correct engagement.
Note: Tubing should not pull out from
fitting.
6. To release tubing from fitting, push
tubing inward, push down on the release
collar and then pull tubing free from
connection.
Release
Collar
Groove
6
3. Position hook & loop strap
around the waterline and grind-
er body.
Note: Position the strap away
from the vent ports of
grinder.
4. The 90 degree swivel fitting
can be moved to give a tight
installation to the grinder
body.
5. Adjust thestrapto a tight position.
2. Tighten the compression nut with a
14mm wrench to a secure condition.
Note: Do not overtighten connection.
If leakage occurs during startup,
tighten in small increments until a
leak tight connection is made.
GARDEN HOSE
ADAPTER INSTALLATION
1. Take the open end of the
water line and place the
compression fitting nut on
the tube as shown. Push
the tube into the connector
base.
Base
Compression Nut
Push Tube
Water Line
14mm Wrench
Vent ports
7

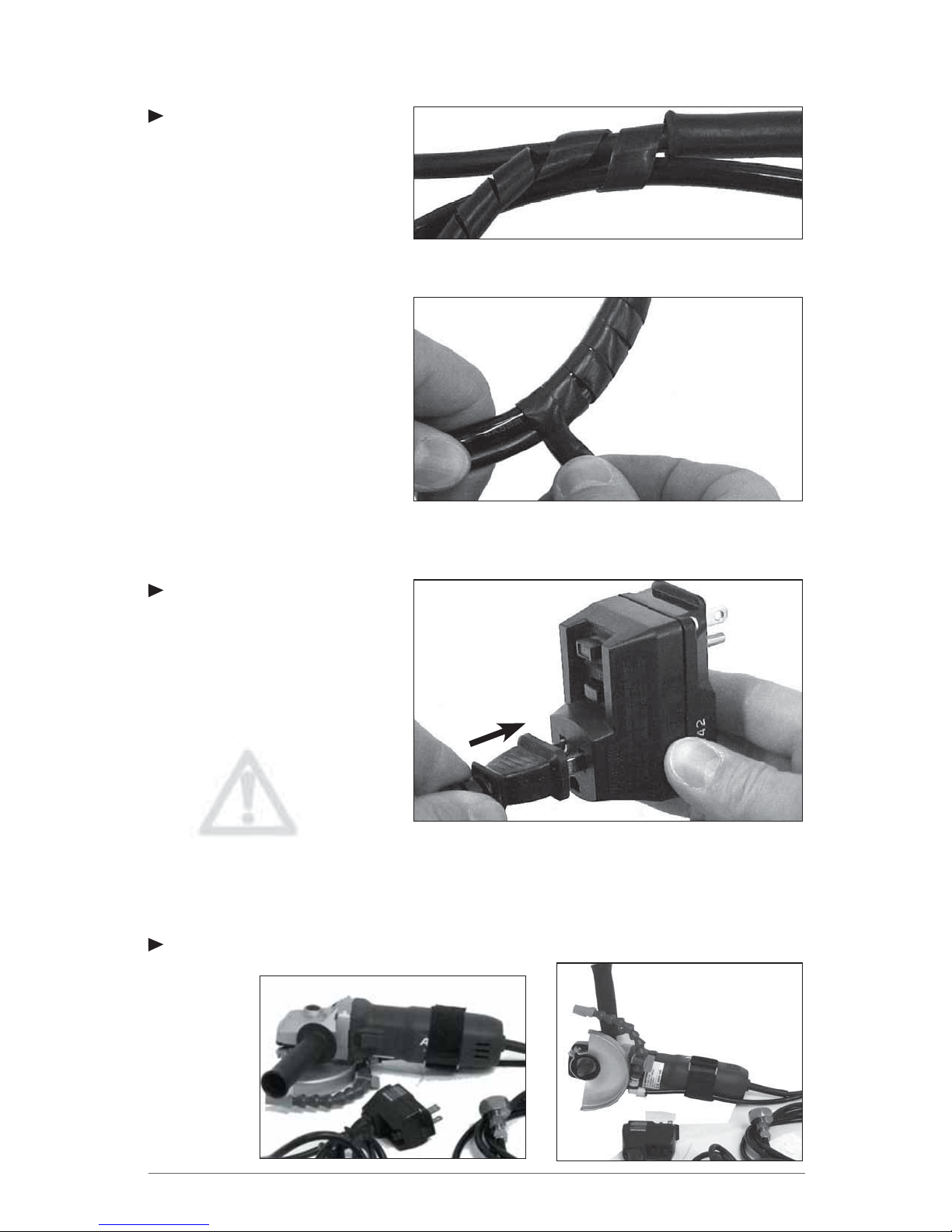

COMPLETED ASSEMBLY
1. Install the plastic wire wrap
around both power cord and
water-line as shown.
INSTALLATION OF GFCI
1. Install the GFCI to the grinder
power cord as shown. Con-
nect to power and check the
GFCI for proper function by
pressing the test and reset
buttons.
Caution: Do not operate a
grinder with a water-feed sys-
tem, without a GFCI installed
and in proper working condition.
2. Finish the wrapping proce-
dure until secure.
INSTALLATION OF
PLASTIC WIRE WRAP
Copyright ©2009 Alpha Professional Tools. All rights reserved.
103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114
www.alpha-tools.com
