Fan heater PTC-1601
USER MANUAL
lntroduction

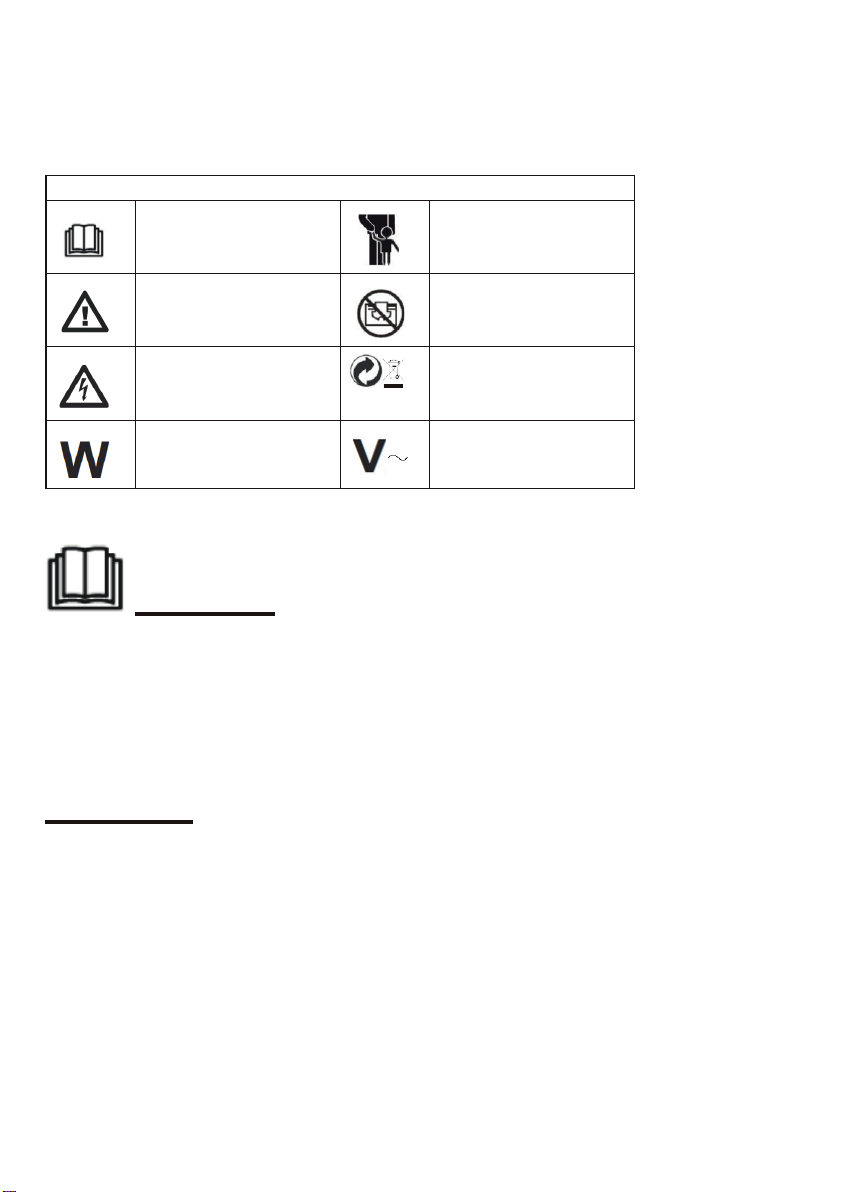

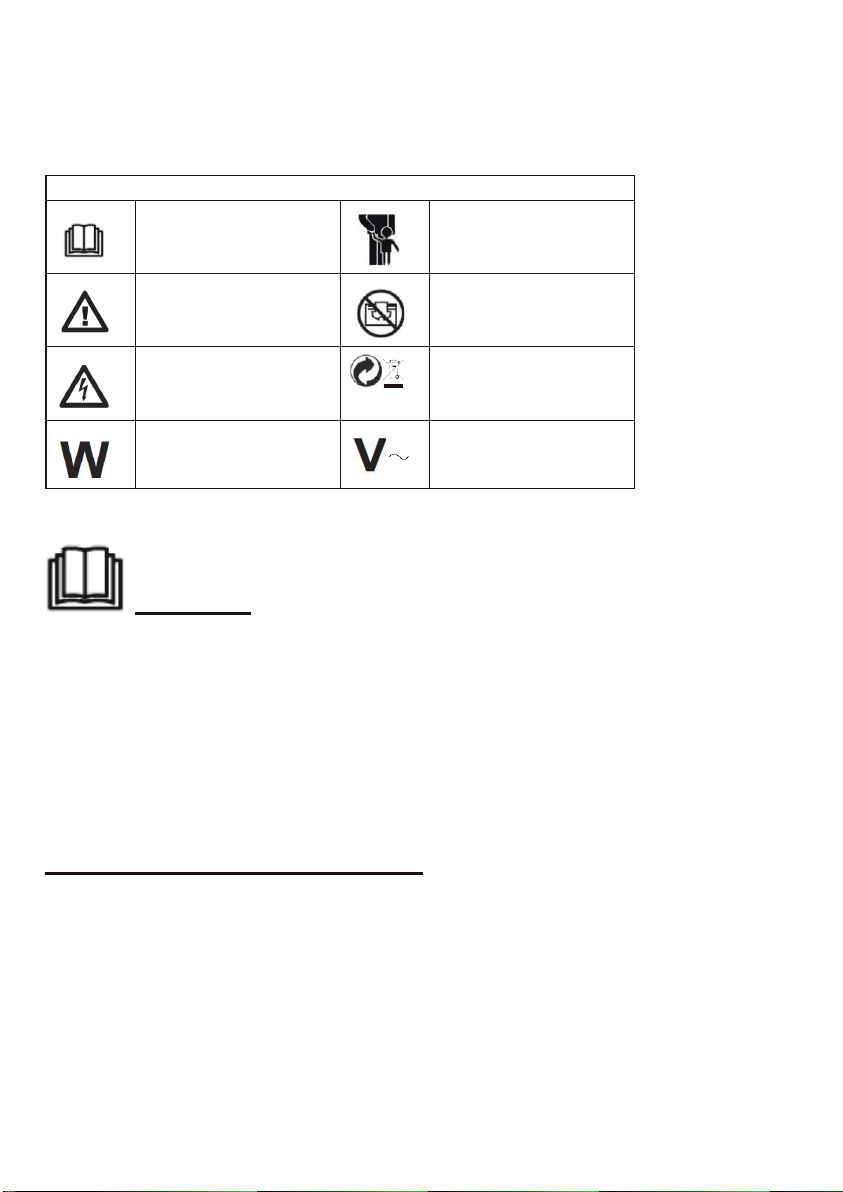

The following pictograms are used in this operating manual / on the unit:
Read the operating manual! Danger to life and of accidents
fortoddlers and children!
Observe warning and
safetyinstructions! Warning! Do not cover.
Beware of electric shock!
Dangerto life! Dispose of packaging and prod-
uctin an environmentally friendly
manner!
Watt (actual power) Volt (alternating current)
lntroduction
Before using the appliance for the first time, study the page that
contains pictures & illustrations, become familiar with the functions of
the appliance and read the following operating and safety instructions.
Only use the appliance for the prescribed purposes and in the
prescribed way. Keep these instructions in a safe place. If passing the
appliance on, please also hand over all documents to the recipients.
lntended use
The appliance is intended to generate hot air in closed, dry rooms. The
electric flame simulator conveys a log fire atmosphere. Other types of
use and modifications to the appliance are not regarded as intended
and pose a serious danger of accidents. The manufacturer is not liable
for loss or damage caused by improper use or any other use than the
intended purpose. The appliance is designed for domestic use only
and is not suitable for commercial purposes.
-
Technical specifications of model PTC-1601
Nominal voltage: 220–240V, 50-60 Hz
Rated power: 1500W
Dimensions: 16 × 10 × 22 cm (w × d × h)
Weight: approx. 1 kg
Scope of delivery
Immediately after unpacking, please check that the delivery is
complete and that all product parts are in good condition.
- 1 electric heater.
- 1 user manual.
Safety instructions
WARNING: Do not cover.
• WARNING! Please read all safety instructions. Failureto adhere to
the safety instructions can cause electric shock, fire and/or serious
injuries.
• SAVE ALL SAFETY INSTRUCTIONS FOR FUTURE
REFERENCE!
• WARNING! DANGER OF DEATH OR SERIOUS INJURY
TO TODDLERS AND CHILDREN!
• This appliance can be used by children aged 8 years and above
and persons with reduced physical, sensory or mental capabilities
or a lack of experience and knowledge if they have been given
supervision or instruction concerning safe use of the appliance and
understand the hazards involved.
• This appliance is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities or a lack
of experience and knowledge, unless they have been given
supervision or instruction.
• Children must not play with the appliance.
• The heater must not be located immediately below a power outlet
socket.
• Do not use this heater in the immediate surroundings of a bath, a
shower or a swimming pool.
• Cleaning and user maintenance must not be carried out by
children.
• Children younger than 3 years must be kept away from the heater
unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch
on/off the appliance provided that is has been placed or installed
in its intended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children aged 3 years
and less than 8 years shall not plug in, regulate and clean the
appliance or perform user maintenance.
CAUTION: Some parts of this appliance can become very hot and
cause burns. Particular attention must be paid where
children and vulnerable people are present.
WARNING: In order to avoid overheating, do not cover the heater.
ATTENTION! RISK OF EXPLOSION!
- Do not operate this electrical appliance in potentially
explosive environments where there are flammable liquids or
gases.
Danger of death by electric shock
Do not operate the appliance with a damaged power cable or
damaged power plug.
ATTENTION! Damaged power cables pose a danger of death by
electric shock. Check the power cable regularly for damage and wear
and tear. lf the power cable is damaged, it must be replaced by the
manufacturer, its representative or a similarly qualified person in order
to avoid unnecessary risks to safety.
- Protect the power cable from sharp edges, mechanical stresses
and hot surfaces.
- Do not operate the appliance outdoors. Ensure that the power
cable is never wet or damp while the appliance is in operation.
- Do not switch the appliance on if you have noticed visible damage
(e.g. tears or cracks) or if you suspect that the appliance is
damaged (e.g. after it has fallen).
- If any unusual circumstances occur, immediately unplug the
appliance.
- Only electrical technicians should repair or replace the lights in the
appliance.
Danger of injuries and/or hazards
ATTENTION! Never leave the electric heater unattended while it is in
operation, as this poses a risk of injury.
- Prevent the power cable from becoming a trip hazard – always run
it away from the appliance to the rear.
- Ensure that children and pets are not endangered by operation of
the appliance.
ATTENTION!
- Never operate the appliance using an external system such as
a time switch. Never connect the unit to an electrical circuit that
can switch it on and off with any mechanism. Injuries as well as
damage to the product could result.
- Disconnect the power supply by pulling the plug out of the power
outlet socket. Never pull on the power cable.
- Always place the appliance on a flat, dry surface.
- Do not install or operate the appliance in a vehicle.
- Unplug the appliance before moving it to a different location.
- Unplug the appliance before cleaning it.
- Store the appliance in a dry, dust- and vibration-free place.
- Avoid damage to the appliance. If it has been dropped, don’t use it
anymore.
CAUTION! In order to avoid a hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied with power
through an external switching device, such as a timer, nor connected
to a circuit that is regularly switched off and on again by the utility
provider.
Before operating
ATTENTION! Do not place the appliance directly beneath a wall power
outlet; this can lead to a risk of injury and may damage the appliance.
ATTENTION! Take care to prevent the power cable from being caught
in a pinch, and protect it from sharp edges. Damaged power cables
increase the risk of an electric shock.
ATTENTION! To reduce the risk of fire, keep textiles, curtains, or
any other flammable material a minimum distance of 1 m from the
air outlet. Keep combustible material such as furniture, cushions,
bedding, paper, clothes, curtains, etc. at least 1 m away from the
heater.
WARNING! This heater is not equipped with a device for controlling
the temperature of the room. Do not use this heater in small rooms
when they are occupied by persons not capable of leaving the room
on their own, unless constant supervision is provided.
Note: Please ensure that the power plug is still accessible after
installation of the electric heater.
Note: Ensure that the electric heater is correctly installed. If in doubt,
contact a professional.
Your electric heater is now ready for operation.
Operation
The voltage of the power source must comply with the specifications
on the ratings plate of the heater. Devices marked with 230 V can also
be operated at 220 V. Before using the appliance, it is imperative to
ensure that the installation location corresponds to the requirements of
the safety instructions.
Note: When the heater is turned on for the first time, a harmless
slight odour may occur. This odour is produced by the internal heating
elements as they heat up. Provide suffcient ventilation.
Note: Your heater is fitted with a safety device that will switch the
appliance off overheating occurs. lf the heater stops working, turn it
off and inspect the inlets and outlets tor blockages. Unplug the heater
and wait at least 10 minutes for the protection system to reset before
attempting to restart the appliance. lf the safety device still switches
the heater off and prevents it from operating, take the heater to your
nearest service centre for inspection and repair.
Attention:
1) Check that the air intake and exhaust is not covered or obstructed
in anyway.
2) Keep combustible objects at least 1 m away from the unit.
Note:
1) This unit comes standard with a 6ft (1.4m) long cord. Always plug
the unit into an wall outlet. An extension or relocate tab should never
be used.

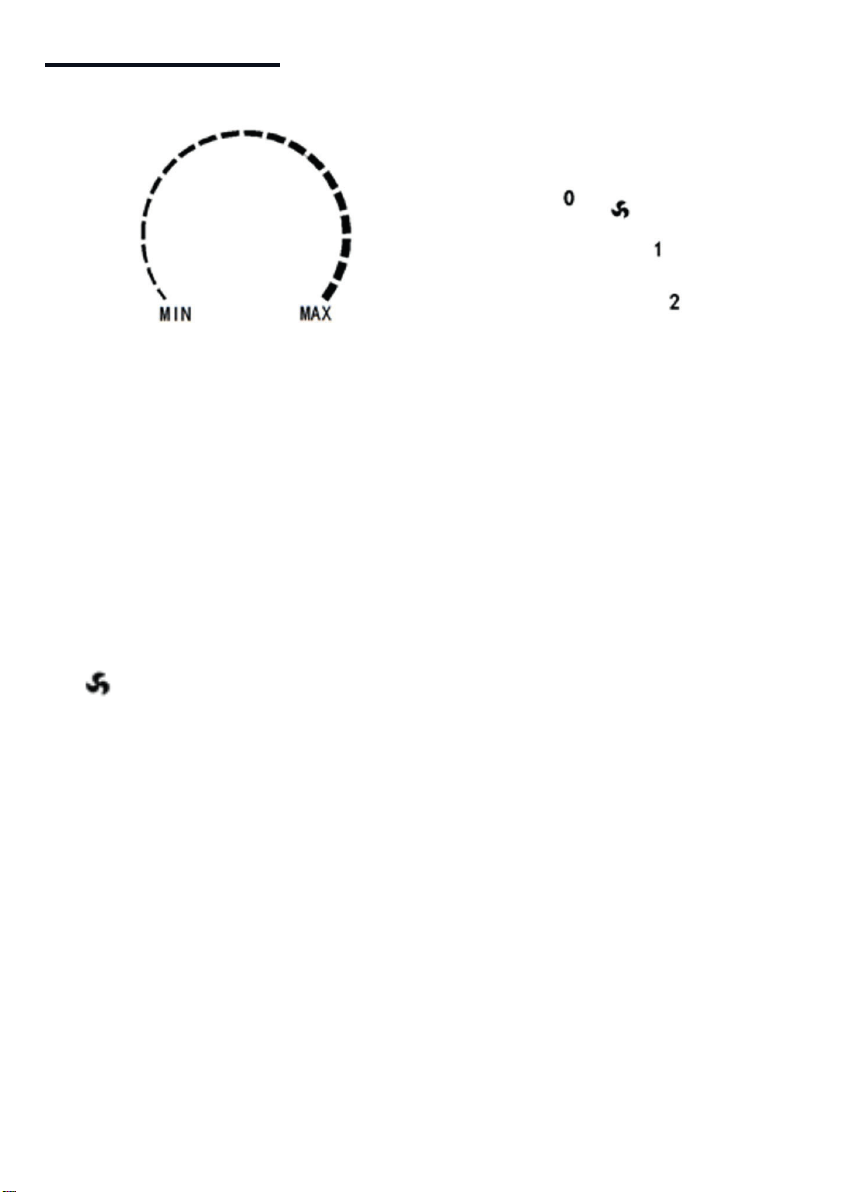

USING THE HEATER
Adjustable thermostat switch Power setting switch
1) There are four feet at the bottom of the product. Please open the
feet before use. Place the heater on a stable ground and connect
the power supply.
2) Rotate the Power setting switch to select the heating mode:
0 = Off
= Fan only
1 = Low heat
2 = High heat
3) Rotate the Adjustable thermostat switch to minimize (les heat) or
maximize (more heat) the heat.
4) When you want to turn off the appliance, rotate the Power setting
switch to 0 state.
5) Then take out the power plug out the socket.
ATTENTION! DANGER OF BURNING!
- It is imperative to let the appliance completely cool down before
any work is done on it.
ATTENTION!
- Only an electrical technician should conduct repairs; failure to
comply may lead to risk of injury and/or damage to the appliance.
Cleaning the heater
- Please make sure the plug should be put off before cleaning the
heater.
- Aggressive or corrosive cleaning agents should never be used;
they could cause damage to the appliance.
- Use a slightly damp cloth to clean the housing.
- Clean the ventilation slots regularly and thoroughly (e.g. with a
vacuum cleaner) so that no dust can accumulate.
Information
The appliance is covered by a 2-year warranty from the date of
purchase. The appliance was carefully manufactured and diligently
inspected before being dispatched. Damage that is attributed to
improper use, as well as wear and tear on the parts, are not covered
by the warranty.
WARNING! Only qualified specialists may repair your appliance, and
they must use only original spare parts. This ensures that the safety of
your appliance is maintained.
WARNING! Always have the manufacturer of the appliance, or their
customer service agent, perform a replacement of the power plug or
cable. This ensures that the safety of your appliance is maintained.
This appliance does not use a standard bulb for its flame effect. The
appliance uses an electrically controlled LED system to create the
effect; consequently, no related parts need to be replaced. There are
no user-serviceable parts in this appliance. Under no circumstances
should the appliance be serviced by anyone other than a qualified
electrician.
Table of information required for electric local-space
heaters
p
Model identifier(s): PTC-1601
Item Symbol Value Unit Item Unit
Heat output Type of heat input – for electric local-
spaceheaters only (select one)
Nominal heatoutput Pnom 1.5 kW Manual heat-charge control with
integrated thermostat
[no]
Minimum heatoutput
(indicative)
Pmin 1.0 kW Manual heat-charge control with
room- and/or out-
door-temperature feedback
[no]
Maximum continuous heat
output
Pmax,c 1.5 kW Electronic heat-charge con-trol
with room- and/or out-
door-temperature feedback
[no]
Auxiliary electricity consumption Fan-assisted heat output [no]
At nominal heatoutput elmax 0.000 kW Type of heat-output / room-temperature
control (select one)
At minimumheat output elmin 0.000 kW Single-stage heat output, no
room-temperature control
[no]
In standbymode elSB N/A KW Two or more manual stages, no
room-temperature control
[no]
With mechanical-thermostat
room-temperature control
[yes]
With electronic room-tempera-
ture control
[no]
Electronic room-temperature
control plus day timer
[no]
Electronic room-temperature
control plus week timer
[no]
Other control options
(multiple selectionspossible)
Room-temperature controlwith
presence detection
[no]
Room-temperature control with
open-window detection
[no]
With remote-control option [no]
With adaptive start control [no]
With working-time limitation [no]
With black-bulb sensor [no]
Contact details: Adriaan Mulderweg 9–11, 5657 EM Eindhoven, the Netherlands
Note:
For electric local-space heaters, the measured seasonal space-heating energy effciency TJ s cannot
be worse than the declared value at the nominal heat output ofthe appliance.
BHeizlüfter PTC-1601
BENUTZERHANDBUCH
Einleitung
Die folgenden Bildsymbole werden in dieser Anleitung/am Gerät verwendet:
Lesen Sie die Bedienungsanlei-
tung sorgfältig.
Lebensgefahr und Unfallgefahr
für Kleinkinder und Kinder!
Warn- und Sicherheit-
shinweise beachten! Warnung! Nicht abdecken.
Achtung: Stromschlag! Leb-
ensgefahr! Verpackung und Produkt um-
weltgerecht entsorgen!
Watt (tatsächliche Leistung) Volt (Wechselspannung)
Einleitung
Gehen Sie vor der ersten Verwendung des Geräts bitte die
Bedienungsanleitung durch, machen Sie sich mit den Funktionen
des Geräts vertraut, und lesen Sie die folgenden Betriebs- und
Sicherheitshinweise. Verwenden Sie das Gerät nur für den
angegebenen Zweck und wie vorgeschrieben. Bewahren Sie die
Bedienungsanleitung an einem sicheren Ort auf. Übergeben Sie bei
einer Weitergabe des Geräts auch alle zugehörigen Unterlagen an
den Empfänger.
Bestimmungsgemäßer Gebrauch
Das Gerät dient zur Erzeugung heißer Luft in geschlossenen,
trockenen Räumen. Der elektrische Flammensimulator vermittelt
eine Kaminfeueratmosphäre. Andere Verwendungsarten und
Veränderungen am Gerät gelten als nicht bestimmungsgemäß und
sind mit erheblichen Unfallgefahren verbunden. Der Hersteller haftet
nicht für Verluste oder Schäden, die durch unsachgemäßen Gebrauch
oder durch andere als die vorgesehenen Zwecke entstanden sind.
Das Gerät ist nur für den Haushaltsgebrauch bestimmt und nicht für
gewerbliche Zwecke geeignet.
-
Questo manuale è adatto per i seguenti modelli
1
Indice
Lingue:
Altri manuali Alpina Stufa
Alpina
Alpina AF261M Manuale utente
Alpina
Alpina YL-B12-5A Manuale utente
Alpina
Alpina HP-12AR Manuale utente
Alpina
Alpina PTC-2021 WIFI GLASS Manuale utente
Alpina
Alpina SF-9353 Manuale utente
Alpina
Alpina SF-9351 Manuale utente
Alpina
Alpina LQ001 Manuale utente
Alpina
Alpina YL-A07S-7 Manuale utente
Alpina
Alpina SF-7637 Manuale utente
Alpina
Alpina YL-B12-7A Manuale utente
Manuali Stufa popolari di altre marche
Empire Heating Systems
Empire Heating Systems WCC65 Manuale utente
Wetekom
Wetekom 92 86 43 Manuale utente
Desa
Desa SPC170-F Manuale utente
Watlow
Watlow Watrod Electric Tubular Heaters Manuale utente
Haverland
Haverland ECO-DRY GPS Series Manuale elenco delle parti
Stelpro
Stelpro ASILVC2060 Series Manuale utente
